- Page 1 The power behind competitiveness Delta UPS - Amplon Family N Series, Single Phase 1/ 2/ 3 kVA User Manual www.deltapowersolutions.com...
- Page 2 Failure to heed these instructions and warnings will void the warranty. Copyright © 2016 by Delta Electronics Inc. All Rights Reserved. All rights of this User Manual (“Manual”), including but not limited to the contents, information, and figures are solely owned and reserved by Delta Electronics Inc.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Chapter 1 : Important Safety Instructions --------------------------- 1 Safety Instructions ---------------------------------------------- 1 Standard Compliance ------------------------------------------ 4 Storage ------------------------------------------------------------- 4 Chapter 2 : Introduction --------------------------------------------------- 5 General Overview ----------------------------------------------- 5 Exterior & Dimensions ----------------------------------------- 5 Package List ------------------------------------------------------ 6 Chapter 3 : Operation Panel ---------------------------------------------- 8 LED Indicators --------------------------------------------------- 8... - Page 4 Chapter 9 : Troubleshooting --------------------------------------------25 Chapter 10 : Maintenance ------------------------------------------------28 10.1 UPS ----------------------------------------------------------------28 10.2 Batteries ----------------------------------------------------------28 10.3 Fan -----------------------------------------------------------------29 Appendix 1 : Technical Specifications-------------------------------30 Appendix 2 : Warranty ----------------------------------------------------32 Amplon N Series...
-
Page 5: Chapter 1 : Important Safety Instructions
Chapter 1 Important Safety Instructions Chapter 1 : Important Safety Instructions 1.1 Safety Instructions Installation Warnings Before installation and usage, please read this User Manual thoroughly. This helps you to use the product correctly and safely. Install the UPS in a well-ventilated area, away from excess moisture, heat, dust, flammable gas or explosives. - Page 6 Usage Warnings This is a class-A product. In a domestic environment, this product may cause ra- dio interference, in which case, the user is required to take adequate measures. The UPS can be used to power computers and associated peripheral devices, such as monitors, modems, cartridge tape drives, external hard drives, etc.
- Page 7 Chapter 1 Important Safety Instructions Battery Warnings Built-in Battery Battery Battery Note Rating Batteries Q’ty Type Voltage 1kVA 24Vdc 9Ah sealed The UPS cannot 2kVA lead-acid 48Vdc connect any external battery battery pack. 3kVA 72Vdc Keep the batteries away from heat sources. Do not open or mutilate the batter- ies.
-
Page 8: Standard Compliance
1.2 Standard Compliance EN 62040-1 EN 62040-2 Category C2 1.3 Storage Prior to installation If the UPS needs to be stored prior to installation, it should be placed in a dry area. The allowable storage temperature is between -15°C and +50°C (5°F~122°F). -
Page 9: Chapter 2 : Introduction

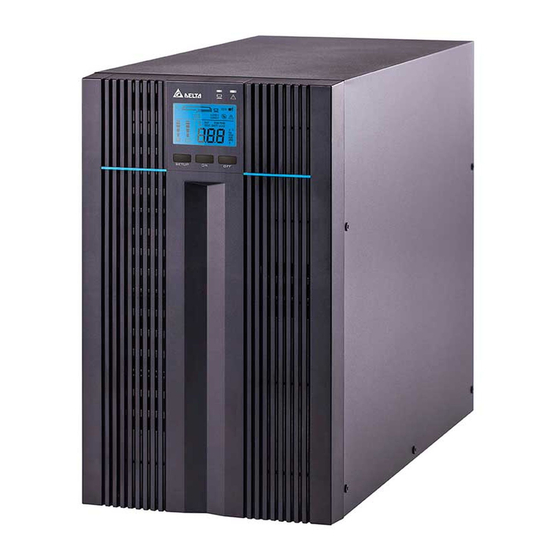

Chapter 2 Introduction Chapter 2 : Introduction 2.1 General Overview The N series UPS is a single-phase on-line UPS providing reliable and consistent sine-wave quality power to your electronic equipment. It adopts the latest technol- ogy and the highest quality components providing output power factor up to 0.9, and its efficiency in on-line mode can reach at maximum 93%. -
Page 10: Package List
2.3 Package List For models UPS102N2000B035 (1kVA), UPS202N2000B035 (2kVA) & UPS302N2000B035 (3kVA): SETUP SETUP 1 kVA 2/ 3 kVA Item Q’ty 1kVA 2/ 3kVA 1 PC User Manual 1 PC Input Power Cord (10 A) 1 PC Input Power Cord (16 A) 1 PC Output Power Cord (10 A) 1 PC... -
Page 11: Chapter 2 Introduction
Chapter 2 Introduction For models UPS102N2000B0B6 (1kVA), UPS202N2000B0B6 (2kVA) & UPS302N2000B0B6 (3kVA): SETUP SETUP 1 kVA 2/ 3 kVA Item Q’ty 1kVA 2/ 3kVA 1 PC User Manual 1 PC Input Power Cord (10 A) 1 PC Input Power Cord (16 A) 1 PC NOTE : 1. -
Page 12: Chapter 3 : Operation Panel
Chapter 3 : Operation Panel 3.1 LED Indicators RUN TIME 3.3 LCD Display (inclduing SET TEST BATT LOAD 3.4 7-Segment Display) °C 3.2 Multi-function Buttons SETUP 3.1 LED Indicators Description Indicates the output status. 1. ON (green): There is output 2. -
Page 13: Multi-Function Buttons
Chapter 3 Operation Panel 3.2 Multi-function Buttons Multi- function Description Button The button has multi-function. Please refer to the following for de- tailed information. 1. Turn-on: In standby mode, press and hold the button for 3 seconds, release it after you hear one beep and the UPS will run in on- line mode. - Page 14 Multi- function Description Button The button has multi-function. Please refer to the following for de- tailed information. 1. Turn-off: In on-line mode, press and hold the button for 3 seconds, release it after you hear one beep and the inverter will be off and the UPS will transfer to run in standby/ bypass mode.
-
Page 15: Lcd Display
Chapter 3 Operation Panel NOTE : When the backlight of the LCD is off, you can press any button mentioned above to wake up the display and enable each button function. 3.3 LCD Display RUN TIME SET TEST BATT LOAD °C Icon Naming... - Page 16 Icon Naming Description Standby Illuminates when the UPS is operating in stand- Mode Graph by mode. Online Mode Illuminates when the UPS is operating in on-line Graph mode. Battery Illuminates when the UPS is operating in battery Mode Graph mode. Bypass Illuminates when the UPS is operating in bypass Mode Graph...
- Page 17 Chapter 3 Operation Panel Icon Naming Description Warning Icon 2. Flashing: When the icon is flashing, it would be accom- panied with other icon(s) to show you the according warning message(s). :There is no battery or battery replace- ment is needed. :The UPS is overloaded.
-
Page 18: 7-Segment Display
3.4 7-Segment Display Column A RUN TIME SET TEST BATT LOAD °C 7-Segment Display Column B NOTE : You might need to read the word shown in Column A together with that in Cloumn B to understand the display meaning. Icon Description 1. - Page 19 Chapter 3 Operation Panel Icon Description When the word ‘SET’ illuminates, it means that the UPS is in the setup mode. You can set up the following items via the LCD. For how to setup, please refer to 5.5 Setup Mode. 1.
-
Page 20: Flow Chart Of The 7-Segment Display
Icon Description Means ‘voltage’. Means ‘percentage’. Means ‘frequency’. Means ‘kVA’. Means ‘kW’. Means ‘minute’. Means the UPS’s internal temperature. 3.5 Flow Chart of the 7-Segment Display The following flow chart helps you to understand how to go through each display screen. - Page 21 Chapter 3 Operation Panel Press the button SETUP for 0.1 second to view the next display. Press the button for 0.1 Press the button for 0.1 second to view the next display. second to view the next display. Press the button for 0.1 Press the button for 0.1...
-
Page 22: Chapter 4 : Rear Panel
Chapter 4 : Rear Panel MI N I SLO T MINI SL O T OUTPUT SOCKET-1 IN PUT BREAKER OUTPUT SOCKET IN PUT BREAKER OUTPUT SOCKET-2 AC I N P UT AC I N P UT 1 kVA 2/ 3 kVA Item Functions Accepts a mini SNMP, mini Relay I/O, mini ModBus... -
Page 23: Chapter 5 : Operation Modes
Chapter 5 Operation Modes Chapter 5 : Operation Modes NOTE : 1. Please refer to Chapter 3 : Operation Panel to learn how to operate the operation panel and understand the display meaning. 2. Each of the display diagrams shown in this chapter is for reference only. Actual display depends on the operation of the UPS. -
Page 24: Setup Mode
5.5 Setup Mode Press the scrolling button for more than 3 seconds and the LCD will go into the setup menu. Please note that only qualified service personnel can perform setup action. In setup mode, you can set up the following items: 1. - Page 25 Chapter 5 Operation Modes Standby On-line Bypass Battery Setup Item Mode Mode Mode Mode Buzzer Disable Setup Overload Alarm Setup NOTE : Please note that only qualified service personnel can perform setup action. Setup Mode Flow Chart Original Display T>3 seconds Inverter Voltage Setup T>3 seconds T>0.1S...
-
Page 26: Chapter 6 : Turn-On, Cold Start & Turn-Off Procedures
Chapter 6 : Turn-on, Cold Start & Turn-off Procedures NOTE : Please refer to Chapter 3 : Operation Panel to learn how to operate the operation panel and understand the display meaning. 6.1 Turn-on Procedures After the UPS is connected to the AC utility, the AC utility supplies power to the UPS. -
Page 27: Chapter 7 : Alarm
Chapter 7 Alarm Chapter 7 : Alarm Condition Alarm Battery Mode The audible alarm beeps once every 2.1 seconds. Low Battery The audible alarm beeps once every 0.6 second. Battery The audible alarm beeps once every 2.1 seconds. Missing/ Weak Battery/ Battery Replacement/ * Overload... -
Page 28: Chapter 8 : Optional Accessories
Chapter 8 : Optional Accessories Item Function Dust Filter Prevents dust from entering into the UPS to ensure UPS reliability and to prolong product life. Mini SNMP Card Monitors and controls the status of the UPS via a network system. Mini Relay I/O Card Increases the quantity of dry contacts. -
Page 29: Chapter 9 : Troubleshooting
1. When a problem occur, please check if the following situation exists before contacting Delta service personnel: Is the main input voltage present? 2. Please have the following information ready if you would like to contact the Delta service personnel: Unit information including model, serial number, etc. - Page 30 Error Meaning Possible Cause Solution Code Inverter The UPS has Contact service personnel. Fault abnormalities. DC-DC Fault The UPS has Contact service personnel. abnormalities. Abnormal The UPS has Contact service personnel. Output/ abnormalities. Inverter Voltage O/P Short Output has a short- 1.
- Page 31 Chapter 9 Troubleshooting B. About other problems that might happen: Problem Possible Cause Solution Overload The UPS is Decrease your connected overloaded. loads. Battery Missing Internal battery cables 1. Contact service are not connected or personnel. not firmly connected. 2. Connect the internal battery cables and connect them firmly.
-
Page 32: Chapter 10 : Maintenance
Chapter 10 : Maintenance 10.1 UPS UPS Cleaning Regularly clean the UPS, especially the slits and openings, to ensure that the air freely flows into the UPS to avoid overheating. If necessary, use an air-gun to clean the slits and openings to prevent any object from blocking or covering these areas. -
Page 33: Fan
Chapter 10 Maintenance 10.3 Fan Higher temperatures shorten fan life. When the UPS is running, please check if each fan works normally and make sure if the ventilation air can move freely around and through the UPS. If not, contact service personnel. NOTE : Please ask your local dealer or customer service for more maintenance information. -
Page 34: Appendix 1 : Technical Specifications
Appendix 1 : Technical Specifications Model N-1K N-2K N-3K Power Rating 1kVA/0.9KW 2kVA/1.8KW 3kVA/2.7KW Waveform Pure Sine Wave Nominal Voltage 220/230/240 Vac 175 ~ 280 Vac (100% load); Voltage Range 80 ~ 175 Vac (50% ~ 100% load) Input Frequency 50/60 Hz ±... - Page 35 Appendix 1 Technical Specifications Model N-1K N-2K N-3K Audible Noise < 45 dBA < 48 dBA < 48 dBA Display LED indicators & LCD display Communication Interfaces MINI Slot x 1, USB Port x 1 Dimensions 145 x 320 x 190 x 390 x 190 x 390 x 225 mm...
-
Page 36: Appendix 2 : Warranty
Appendix 2 : Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty period, Seller will repair or replace the product at its sole discretion according to the failure situation. - Page 40 5013226702...
