Use the AutoChart Live menu to adjust the depth range, contour interval, and map position. Some of the menu options in this
section may be displayed in other parts of the menu system so that you can access them quickly. No matter where you make the
change, the control head will update the setting across the system.
Open the AutoChart Live Menu
1. With a Chart View displayed on-screen, press the MENU key once.
2. Select AutoChart Live. Press the RIGHT Cursor key.
Adjust the Depth Range
You can adjust the range of data shown on the chart by changing the minimum range and maximum range on the display. The
range you select affects how the depth colors are displayed. For related color or shading options, see Add Settings with Chart
Options.
1. From the AutoChart Live menu, select Min Range.
2. Press the RIGHT or LEFT Cursor keys to adjust the setting.
3. Select Max Range.
4. Press the RIGHT or LEFT Cursor keys to adjust the setting.
low range
high range
AutoChart Live
D S
ISPLAY ETTINGS

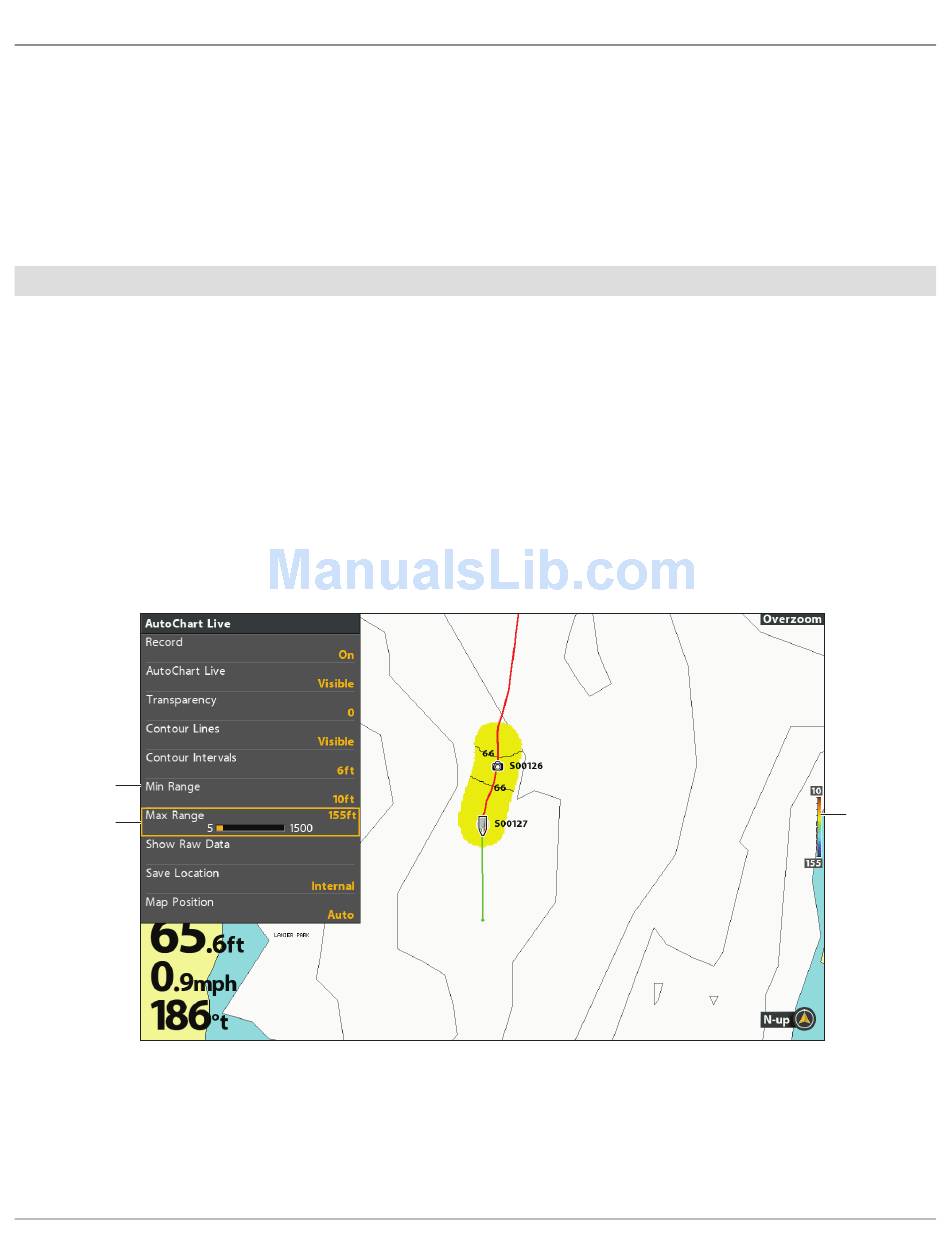

Adjusting the Display Depth Range
162
depth
map scale
