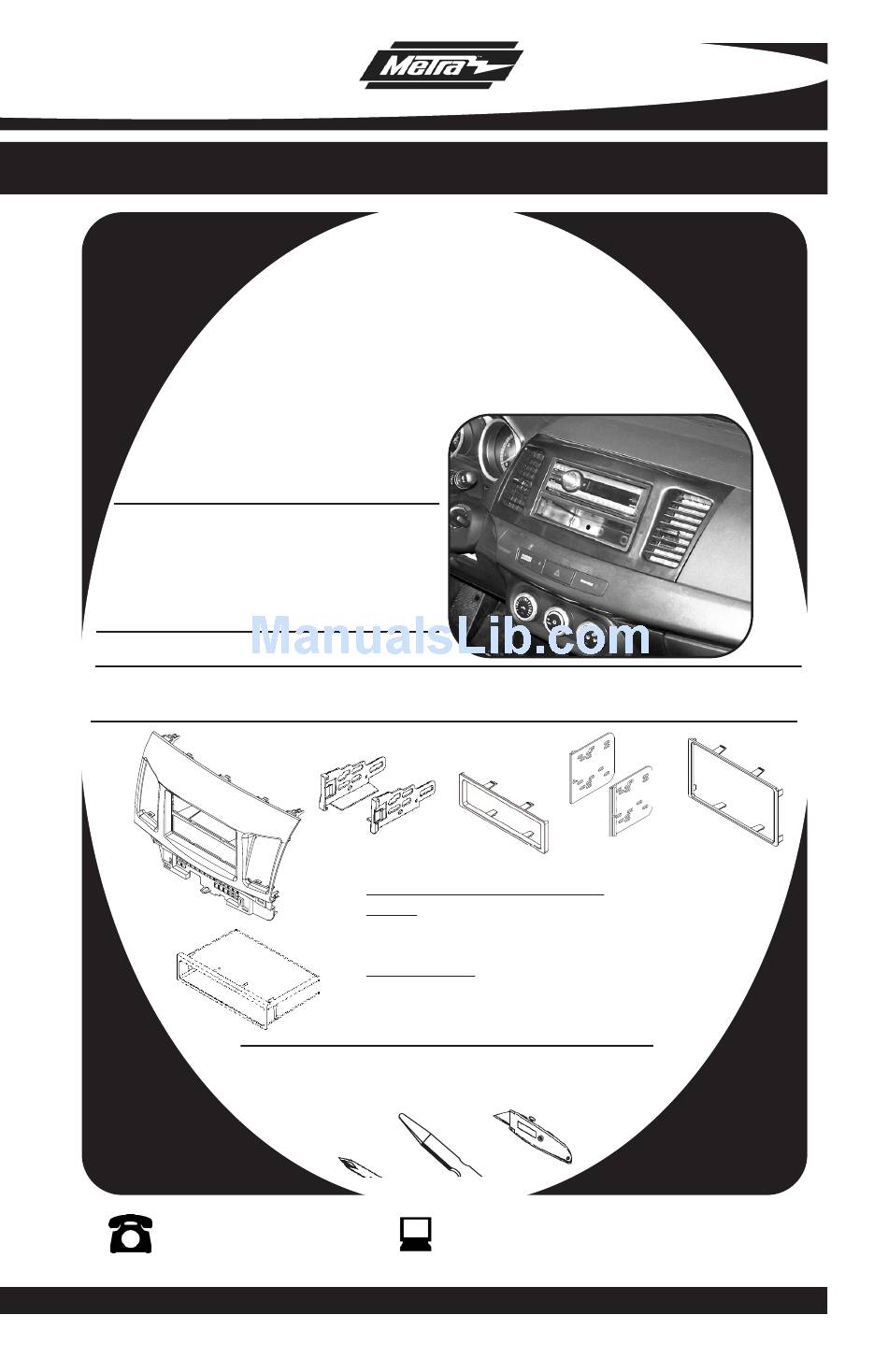

INSTALLATION INSTRUCTIONS FOR PART 99-7011
99-7011
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted to Match Factory
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Snap in Pocket
A
F
1-800-221-0932
© COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
MITSUBISHI Lancer
2008-2010
B
C
WIRING AND ANTENNA CONNECTIONS: (Sold Separately)
Harness:
• MITO-02 - Mitsubishi amp interface harness 2007-up
• 70-7005 - Mitsubishi harness 2007-up
Antenna Adapter:
• No antenna adapter required
TOOLS REQUIRED:
Phillips Screwdriver/ Panel Removal Tool
• Cutting Tool
www.metraonline.com
D
E
