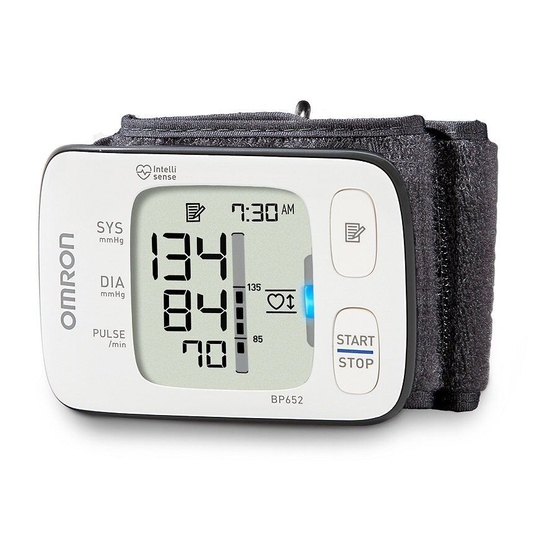

Omron BP652 Instruction Manual

Hide thumbs Also See for BP652:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
Wrist Blood
Pressure Monitor
BP652
Model
Downloaded from
www.Manualslib.com
manuals search engine

Advertisement

Table of Contents
loading

Related Manuals for Omron BP652

Summary of Contents for Omron BP652

  • Page 1 INSTRUCTION MANUAL Wrist Blood Pressure Monitor BP652 Model Downloaded from www.Manualslib.com manuals search engine...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Before using the monitor Introduction......................3 Safety information .....................4 Intended use ....................4 Operating the device ...................4 Care and maintenance.................5 Operating instructions BBefore taking a measurement................6 Know your unit ....................7 Unit display......................8 Display symbols....................9 Heartbeat symbol ..................9 Average value symbol ................9 Irregular heartbeat symbol................9 Movement error symbol ................9 Battery installation...................11...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the OMRON BP652 Wrist Blood Pressure Monitor. Fill in for future reference. DATE PURCHASED: __________________ SERIAL NUMBER: ____________________ • Staple your purchase receipt here • Register your product on-line at www.register-omron.com The monitor is compact and easy-to-use at home, at work, and during travel.

  • Page 4: Safety Information

    SAFETY INFORMATION INTENDED USE The device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population with wrist circumference ranging from 5 1/4 inches to 8 1/2 inches (13.5 cm to 21.5 cm). The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings.

  • Page 5: Care And Maintenance

    Unlawful disposal may cause environmental pollution. Do not use a mobile phone near the device. It may result in an operational failure. Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.

  • Page 6: Bbefore Taking A Measurement

    BEFORE TAKING A MEASUREMENT To ensure a reliable reading, follow these recommendations: 1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 5 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times. 3.

  • Page 7: Know Your Unit

    Pressure Monitor STARTED Model BP652 1883330-6A Wrist Blood Pressure Monitor INTRODUCTION Thank you for purchasing the OMRON BP652 Wrist Blood Pressure Monitor. Fill in for future reference. DATE PURCHASED: __________________ SERIAL NUMBER: ____________________ BP652 5337790-9A • Staple your purchase receipt here •...

  • Page 8: Unit Display

    UNIT DISPLAY Date/Time display Blood pressure level indicator (bar) Average reading symbol Positioning symbol Memory symbol Systolic blood pressure Positioning indicator Diastolic blood pressure Low battery symbol Heartbeat symbol (Flashes during measurement) Pulse display / Memory number Deflation symbol Irregular heartbeat symbol Movement error symbol...

  • Page 9: Display Symbols

    DISPLAY SYMBOLS HEARTBEAT SYMBOL ( The Heartbeat symbol flashes on the display at every heartbeat during the measurement. AVERAGE READING SYMBOL ( The Average Reading Symbol is displayed when you press the Memory button ( ). The most recent average reading appears on the display screen. IRREGULAR HEARTBEAT SYMBOL ( When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol will appear on the display with the...
  • Page 10 DISPLAY SYMBOLS 2013 ESH/ESC Guidelines for the management of arterial hypertension Definitions of hypertension by office and home blood pressure levels Office Home Systolic Blood Pressure ≥ 140 mmHg ≥ 135 mmHg Diastolic Blood Pressure ≥ 90 mmHg ≥ 85 mmHg These are from statistical values for blood pressure.

  • Page 11: Battery Installation

    BATTERY INSTALLATION CAUTION Use only 1.5V “AAA” alkaline batteries with this device. 1. Press the hook of the battery cover and pull downward. 2. Install 2 “AAA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.

  • Page 12: Battery Replacement

    BATTERY INSTALLATION BATTERY REPLACEMENT Low battery symbol When the Low battery symbol appears on the display, turn the monitor off and remove all the batteries. Replace with 2 new batteries at the same time. WARNING If battery fluid should get in your eyes, immediately rinse with plenty of clean water.

  • Page 13: Setting The Date And Time

    SETTING THE DATE AND TIME Set the monitor to the current date and time before taking a measurement for the first time or after replacing the batteries. 1. TO START THE SETTING Press the Date/Time Setting button ( to adjust the date and time. The year flashes on the display.
  • Page 14 SETTING THE DATE AND TIME 4. SETTING THE DAY Press the Date/Time Setting button ( to advance by one day. Press the Date/Time Setting button ( to set the current day. The hour flashes on the display. 5. SETTING THE HOUR The time is set using AM or PM.

  • Page 15: Applying The Arm Cuff

    APPLYING THE WRIST CUFF CAUTION Read all of the information in the instruction manual and any other literature in the box before operating the unit. CAUTION This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions.

  • Page 16: Applying The Cuff On The Right Wrist

    APPLYING THE WRIST CUFF 4. Wrap the wrist cuff around your wrist. Do not apply over clothing. NOTES: • Make sure the wrist cuff does not cover the protruding part of the wrist bone on the outside of the wrist. •...

  • Page 17: Taking A Measurement

    TAKING A MEASUREMENT 1. Sit comfortably on a chair with your feet flat on the floor and place your elbow on a table in order to relax before starting blood pressure measurement. NOTES: • The distance from the top of your seat measuring to the top of the table you are sitting at, should be 12±2 inches (30±5 cm).
  • Page 18 TAKING A MEASUREMENT SETTING THE POSITIONING SENSOR Press and hold the button to reset the Positioning sensor. The Positioning sensor is set “on” as default. Press the START/STOP button to store the new setting. 2. Press the START/STOP button. All symbols appear on the display. Heart Zone Guidance-The monitor has a built-in Positioning sensor that is used as an aid in determining if the monitor is at the correct height.
  • Page 19 TAKING A MEASUREMENT NOTE: Even if the device is not positioned properly and the Positioning indicator is orange, after 5 seconds the monitor will start the measurement and the wrist cuff will start to inflate. (Proper position) (Wrist is too high) (Wrist is too low) (Forward-bent posture) Downloaded from...
  • Page 20 TAKING A MEASUREMENT As the cuff inflates, the monitor automatically determines your ideal inflation level. This monitor detects your blood pressure and pulse rate during inflation. The Heartbeat Symbol ( ) flashes at every heartbeat. Remain still and do not move until the entire measurement process is completed.
  • Page 21 TAKING A MEASUREMENT WARNING Consult your physician for specific information about your blood pressure. Self-diagnosis and treatment using readings may be dangerous. Follow the instructions of your physician or licensed healthcare provider. WARNING DO NOT adjust medication based on readings from this blood pressure monitor.

  • Page 22: Using The Memory Function

    USING THE MEMORY FUNCTION Every time you complete a measurement, the monitor stores the blood pressure and pulse rate in the memory. The monitor automatically stores up to 100 readings (blood pressure and pulse rate). When 100 readings are stored, the oldest record is deleted to save the most recent readings.

  • Page 23: To Delete All Readings Stored In The Memory

    USING THE MEMORY FUNCTION NOTES: • The Memory number appears for a second before the pulse rate is displayed. The newest set is number “1”. • If the Positioning indicator is set to “on” before the measurement, the Positioning indicator is displayed with the readings. •...

  • Page 24: Care And Maintenance

    Use the unit in a manner consistent with the instructions provided in this manual. CAUTION Use only OMRON authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit. CAUTION Changes or modification not approved by the manufacturer will void the user warranty.

  • Page 25: Error Indicators

    ERROR INDICATORS SYMBOL CAUSE CORRECTION Wrist cuff not applied Apply the wrist cuff correctly. Refer to correctly. “Applying the Wrist Cuff”. Do not hold the wrist cuff. Remain still Movement during and do not talk during measurement. measurement. Refer to “Taking a Measurement”. Apply the wrist cuff correctly.

  • Page 26: Troubleshooting Tips

    TROUBLESHOOTING TIPS PROBLEM CAUSES AND SOLUTIONS Replace both batteries with new ones at the No power. same time. Check the battery installation for No display appears on the unit. proper placement of the battery polarities. Review the section “Battery Installation”. Blood pressure varies constantly.

  • Page 27: Fcc Statement

    FCC STATEMENT FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 28: Limited Warranty

    OTHER TERMS THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION TO THE PERIOD OF THE ABOVE EXPRESS WARRANTY. OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES OR DAMAGES.

  • Page 29: Specifications

    SPECIFICATIONS BP652N HEM-6300-Z Model: LCD Digital Display Display: Pressure: 0 to 299 mmHg, Pulse: 40 to 180 beats/min. Measurement Range: Pressure: ±3mmHg or 2% of reading Accuracy: Pulse: ±5% of reading Automatic by electric pump Inflation: Automatic rapid deflation Deflation: Oscillometric method Measurement Method: 2 “AAA”...
  • Page 30 SPECIFICATIONS NOTES: • These specifications are subject to change without notice. • In the clinical validation study, the 5th phase was used on 85 subjects for determination of diastolic blood pressure. • This device has not been validated for use in pregnancy. Downloaded from www.Manualslib.com manuals search engine...

  • Page 31: Guidance And Manufacturer's Declaration

    IEC60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: • The use of accessories and cables other than those specified by OMRON, with the exception of cables sold by OMRON as replacement parts for internal components, may result in increased emission or decreased immunity of the device.
  • Page 32 (Table 1) Guidance and manufacturer’s declaration – electromagnetic emissions OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. Electromagnetic environment...
  • Page 33 (Table 2) Guidance and manufacturer’s declaration – electromagnetic immunity OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. IEC 60601...
  • Page 34 GUIDANCE AND MANUFACTURER’S DECLARATION IEC 60601 Compliance Electromagnetic environment Immunity test Test level level – guidance <5 % U (>95 % dip in U for 0.5 cycle 40 % U Voltage dips, (60 % dip in short interruptions for 5 cycles and voltage Not Applicable.
  • Page 35 (Table 4) Guidance and manufacturer’s declaration – electromagnetic immunity OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. IEC 60601...
  • Page 36 GUIDANCE AND MANUFACTURER’S DECLARATION IEC 60601 Compliance Electromagnetic environment Immunity test Test level level – guidance Radiated RF 3 V/m 3 V/m d = 1.2 P IEC 61000-4-3 80 MHz to 80 MHz to 800 MHz 2.5 GHz d = 2.3 P 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in...
  • Page 37 If the measured field strength in the location in which the OMRON BPM is used exceeds the applicable RF compliance level above, the OMRON BPM should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the OMRON BPM.
  • Page 38 Recommended separation distance between portable and mobile RF communications equipment and the OMRON BPM OMRON BPM is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this OMRON BPM can help prevent electromagnetic interference by maintaining a...
  • Page 39 Manufactured for : OMRON HEALTHCARE Co., Ltd. Distributed by : OMRON HEALTHCARE, INC. 1925 West Field Court Lake Forest, IL 60045 U.S.A. www.omronhealthcare.com © 2014 OMRON HEALTHCARE, INC. 9701555-9A Made in China Downloaded from www.Manualslib.com manuals search engine...
