Omron BP629 Instruction Manual

'12.06.05
24.06.18
24.06.18
高田 澤田
小川
INSTRUCTION MANUAL Main Unit:
3 series
Automatic Wrist Blood
Battery compartment
Pressure Monitor
BP629
Model
Components:
5329416-7B
INTRODUCTION
® ®
Thank you for purchasing the OMRON BP629 IntelliSense Automatic Wrist Blood
Pressure Monitor.
2 "AAA" Alkaline Batteries
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
• Staple your purchase receipt here
• Register your product on-line at
www.register-omron.com
The monitor is compact and easy-to-use at home, at work, and during travel. Perfect for
people who frequently monitor their own blood pressure.
Your new digital blood pressure monitor uses the oscillometric method of blood
pressure measurement. This means the monitor detects your blood's movement through
your brachial artery and converts the movements into a digital reading. An Blood pressure level indicator
oscillometric monitor does not need a stethoscope so the monitor is simple to use.
Clinical research has proven a direct relationship between blood pressure in the wrist
and blood pressure in the arm. Changes in wrist blood pressure reflect changes in arm
blood pressure because the arteries in the wrist and the arm are close to each other.
Frequently measuring the blood pressure in your wrist will provide your physician with
an accurate indication of changes in your blood pressure.
The BP629 comes with the following components:
IRREGULAR HEARTBEAT SYMBOL (
• Monitor • Storage Case • 2 "AAA" Alkaline Batteries
• Instruction Manual printed in English and Spanish • Quick Start Guide When the monitor detects an irregular rhythm two or more times during the
® measurement, the Irregular Heartbeat Symbol (
The BP629 IntelliSense Automatic Wrist Blood Pressure Monitor is intended for
measurement values.
home use.
An irregular heartbeat rhythm is defined as a
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference. For specific information about your own blood rhythm that varies by less than 25% from the
pressure, CONSULT YOUR DOCTOR. average rhythm or 25% more than the average
rhythm detected while the monitor is measuring
SAVE THESE INSTRUCTIONS
the systolic and diastolic blood pressure.
If the irregular heartbeat symbol (
SAFETY INFORMATION displays with your measurement results,
we recommend you consult your
To assure the correct use of the product, basic safety measures should always be
physician. Follow the directions of your
followed including the warnings and cautions listed in this instruction manual.
doctor.
MOVEMENT ERROR SYMBOL (
SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
Indicates a potentially hazardous situation which, if not avoided,
The Movement Error Symbol (
WARNING
could result in death or serious injury.
measurement. Please remove the wrist cuff, and wait 2-3 minutes. Reapply the wrist
Indicates a potentially hazardous situation which, if not avoided,
cuff and take another measurement.
may result in minor or moderate injury to the user or patient or
CAUTION
damage to the equipment or other property. Internationally recognized guidelines for upper limit of
normal home blood pressure readings are as follows:
OPERATING THE DEVICE
Contact your physician for specific information about your blood pressure.
Self-diagnosis and treatment using measured results may be dangerous. Follow the
instructions of your physician or licensed healthcare provider.
DO NOT adjust medication based on measurement results from this blood pressure
monitor. Take medication as prescribed by your physician. Only a physician is
qualified to diagnose and treat High Blood Pressure.
Systolic Blood Pressure
The monitor is not intended to be a diagnostic device.
Diastolic Blood Pressure
If battery fluid should get in your eyes, immediately rinse with plenty of clean
water. Contact a physician immediately.
This is a general guideline because blood pressure depends on age and morbidity. A
lower home blood pressure goal may be recommended for certain patients,
If you have a condition that may compromise circulation, you may get an inaccurate
including diabetic patients, pregnant women, and patients with renal failure.
reading with this device. Consult your physician before using this device.
Read all of the information in the instruction manual and any other literature in the
box before operating the unit.
WARNING
This device is intended for use in measuring blood pressure and pulse rate in the
Contact your physician for specific information about your blood pressure.
adult population. Do not use this device on infants or persons who cannot express
Self-diagnosis and treatment using measured results may be dangerous.
their intentions.
Follow the instructions of your physician or licensed healthcare provider.
Operate the device only as intended. Do not use the device for any other purpose.
WARNING
Dispose of the device, components and optional accessories according to applicable
DO NOT adjust medication based on measurement results from this blood
local regulations. Unlawful disposal may cause environmental pollution.
pressure monitor. Take medication as prescribed by your physician. Only a
Do not use a cellular phone near the device. It may result in an operational failure.
physician is qualified to diagnose and treat High Blood Pressure.
Use only Omron authorized parts and accessories. Parts and accessories not
approved for use with the device may damage the unit.
WARNING
The monitor is not intended to be a diagnostic device.
Use only 1.5 V "AAA" alkaline batteries with this device. Do not use other types of
batteries. This may damage the unit.
CARE AND MAINTENANCE
Do not subject the monitor to strong shocks, such as dropping the unit on the floor.
Do not submerge the device or any of the components in water.
CAUTION
Store the device and the components in a clean, safe location.
Use only 1.5V "AAA" alkaline batteries with this device.
Changes or modification not approved by the manufacturer will void the user
warranty. Do not disassemble or attempt to repair the unit or components.
1. Press the hook on the bottom of the battery cover
BEFORE TAKING A MEASUREMENT
and lift the cover off in the direction of the arrow.
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes
before taking a measurement. Rest for at least 15 minutes before taking the
measurement.
2. Install 2 "AAA" size batteries so the + (positive) and -
2. Stress raises blood pressure. Avoid taking measurements during stressful times.
3. The cuff can be applied to your left or right wrist. (negative) polarities match the polarities of the battery
4. Measurements should be taken in a quiet place.
compartment as indicated.
5. Position the unit at heart level throughout the measurement.
6. Remain still and do not talk during the measurement.
3. Set the date and time.
7. Wait 2-3 minutes between measurements. The wait time allows the arteries to return
Refer to "Setting the Date and Time".
to the condition prior to taking the blood pressure measurement. You may need to
increase the wait time depending on your individual physiological characteristics.
8. Keep a record of your blood pressure and pulse readings for your physician. A
4. Replace the battery cover.
single measurement does not provide an accurate indication of your true blood
pressure. You need to take and record several readings over a period of time. Try to NOTE: Make sure that the battery cover is securely in
measure your blood pressure at the same time each day for consistency.
position.
BATTERY REPLACEMENT

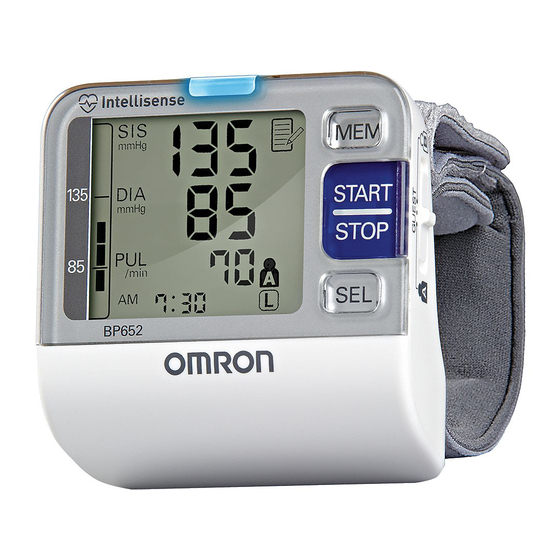

KNOW YOUR UNIT
When the Low Battery Indicator appears on the display, turn the monitor off and
remove all the batteries. Replace with 2 new batteries at the same time. Long-life
alkaline batteries are recommended.
Display WARNING
Wrist cuff
If battery fluid should get in your eyes, immediately rinse with
Memory (MEM) button
plenty of clean water. Contact a physician immediately.
START/STOP button
NOTES: • Turn the unit off before replacing the batteries. If the batteries are removed
Date/Time Setting ( ) button
while the unit is still on, the date and time will be reset to that of the
Date/Time Setting ( ) button
previous use. The measurement results are not deleted.
• When the batteries are replaced, you may need to reset the date and time. If
"-:--" appears on the display, refer to "Setting the Date and Time".
• The batteries included with the device may have a shorter life.
INSTRUCTION MANUAL
Automatic Wrist Blood 3 series CAUTION
Pressure Monitor
Model BP629
5329416-7A Dispose of the device, components and optional accessories according to
INTRODUCTION
Pressure Monitor . Thank you for purchasing the OMRON BP629 IntelliSense ® ® Automatic Wrist Blood
Fill in for future reference.
DATE PURCHASED: __________________ applicable local regulations. Unlawful disposal may cause environmental
SERIAL NUMBER: ____________________
• Staple your purchase receipt here pollution.
www.register-omron.com • Register your product on-line at
The monitor is compact and easy-to-use at home, at work, and during travel. Perfect Quick Start
Instruction Your new digital blood pressure monitor uses the oscillometric method of blood for people who frequently monitor their own blood pressure.
through your brachial artery and converts the movements into a digital reading. An pressure measurement. This means the monitor detects your blood's movement
oscillometric monitor does not need a stethoscope so the monitor is simple to use.
and blood pressure in the arm. Changes in wrist blood pressure reflect changes in arm Clinical research has proven a direct relationship between blood pressure in the wrist
blood pressure because the arteries in the wrist and the arm are close to each other. Guide
Manual an accurate indication of changes in your blood pressure. Frequently measuring the blood pressure in your wrist will provide your physician with
• Monitor • Standard Adult Arm Cuff • 2 "AAA" Alkaline Batteries The BP652 comes with the following components:
• Instruction Manual printed in English and Spanish • Quick Start Guide
The BP652 IntelliSense home use. Automatic Wrist Blood Pressure Monitor is intended for ®
SETTING THE DATE AND TIME
UNIT DISPLAY
Set the monitor to the current date and time before taking a measurement for the first
time. If the date and time has not been set, the measurement values are stored without
any date or time information.
Systolic blood pressure Diastolic blood pressure
1. TO START THE SETTING
Press the Date/Time Setting button (
Memory symbol
and time.
Average value symbol
Irregular heartbeat symbol
Pulse display
Movement error symbol
Battery low symbol The year flashes on the display.
Date/Time display
Heartbeat symbol
Deflation symbol (Flashes during measurement)
2. SETTING THE YEAR
Press the Date/Time Setting button (
DISPLAY SYMBOLS
increments of one year.
Press the Date/Time Setting button (
)
year.
The month flashes on the display.
) will appear on the display with the
NOTES: • The year can be set between 2010 and
Normal Heartbeat
2040. When the display reaches 2040, it
Pulse will return to 2010.
• Press and hold the (
Blood
increase the date and time values faster.
pressure
)
Irregular Heartbeat 3. SETTING THE MONTH
Short Long Press the Date/Time Setting button (
Pulse increments of one month.
Press the Date/Time Setting button (
Blood
pressure month.
)
The day flashes on the display.
) is displayed if you move your body during the
4. SETTING THE DAY
Press the Date/Time Setting button (
increments of one day.
Press the Date/Time Setting button (
day.
The hour flashes on the display.
5. SETTING THE HOUR
The time is set using AM or PM.
Press the Date/Time Setting button (
Home Guideline for Upper Limit of Normal BP
increments of one hour.
Press the Date/Time Setting button (
135 mmHg
hour.
85 mmHg
The minute flashes on the display.
6. SETTING THE MINUTE
Press the Date/Time Setting button (
increments of one minute.
Press the Date/Time Setting button (
setting.
7. TO TURN THE MONITOR OFF
Press the START/STOP button.
APPLYING THE WRIST CUFF
CAUTION
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
CAUTION
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.
BATTERY INSTALLATION
APPLYING THE CUFF ON THE LEFT WRIST
1. Roll up sleeve. Make sure your sleeve is not rolled up too
tightly on your arm. This may constrict the flow of blood
in your arm.
2. Wrap the cuff directly against your skin.
Do not apply over clothing. Place the cuff over your left
wrist with your left thumb facing upward.
3. Position the cuff leaving a clearance of approximately 1/2
to 1 inch between the cuff and the bottom of your palm.
4. Hold the bottom part of the cuff and wrap it around the
wrist so it fits comfortably and securely around your wrist.
NOTE: Make sure the wrist cuff does not cover the
protruding part of the wrist bone on the outside of
the wrist.
5. Fold the remaining part of the wrist cuff back out of the
way.
Low Battery Indicator
APPLYING THE CUFF ON THE RIGHT WRIST
When taking a measurement using the right wrist
position the cuff as shown in the illustration.
TAKING A MEASUREMENT
1. Sit comfortably in a chair with your feet flat on the floor.
) to adjust the date
2. Hold your arm across your chest at heart level.
Hold your elbow firmly to avoid body movement.
Sit still and do not talk or move during the measurement.
3. Press the START/STOP button.
All symbols appear on the display.
) to advance by
) to set the current
The cuff starts to inflate automatically.
As the cuff inflates, the monitor automatically determines your ideal inflation level.
This monitor detects your blood pressure and pulse rate during inflation.
The Heartbeat Symbol ( ) flashes at every heartbeat.
Remain still and do not move until the entire measurement process is completed.
) button to
NOTE: To stop the inflation or measurement, push the START/STOP button. The
monitor will stop inflating, start deflating, and will turn off.
4. After the monitor has detected your blood pressure
) to advance by
and pulse rate, the cuff automatically deflates. Your
blood pressure and pulse rate are displayed.
) to set the current
) to advance by
5. Press the START/STOP button to turn the monitor off.
) to set the current
NOTE: The monitor will automatically turn off after two minutes.
) to advance by
) to set the current
USING THE MEMORY FUNCTION
Every time you complete a measurement the monitor stores the blood pressure and
pulse rate in the memory. The monitor automatically stores up to 60 sets of
measurement values (blood pressure and pulse rate). When 60 sets of measurement
) to advance by
values are stored, the oldest record is deleted to save the most recent values.
) to set the minute
AVERAGING FUNCTION
The monitor calculates the average reading based on up to the three most recent sets of
measurement values taken within 10 minutes of the most recent reading.
NOTE: If two sets of measurement values are stored in the memory for the 10 minute
period, the average is based on the two sets of measurement values. If only
one set of measurement values is stored, this is displayed as the average.
TO DISPLAY THE MEASUREMENT VALUES
1. Press the MEM button to display the average reading based on the three most recent
sets of measurement values taken within 10 minutes of the most recent reading. The
Average Value Symbol ( ) appears on the display when the average reading is
shown.
2. Press the MEM button to display the set of measurement values from the most
recent to the oldest.
NOTES: • Press the MEM button repeatedly to display the next values.
• Press and hold the MEM button to display the values faster.
The date and time are alternately displayed with the measurement values.
3. Press the START/STOP button to turn the monitor off.
TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete values stored in the memory. All values will be deleted.
1. Press the START/STOP button to turn the monitor on.
2. While holding the MEM button, press the START/STOP button down for more than
5 seconds until the display appears as it does in the following illustration.
3. Press the START/STOP button to turn the monitor off.
NOTE: The monitor will automatically turn off after two minutes.
CARE AND MAINTENANCE
To keep your digital blood pressure monitor in the best condition and protect the unit
from damage, follow the directions listed below:
Do not forcefully bend the cuff. Do not fold tightly.
Clean the monitor with a soft dry cloth.
Do not use any abrasive or volatile cleaners.
Do not attempt to clean the cuff.
CAUTION
Do not submerge the device or any of the components in water. Do not subject
the monitor to extreme hot or cold temperatures, humidity or direct sunlight.
CAUTION
Store the device and the components in a clean, safe location.
CAUTION
Do not subject the monitor to strong shocks, such as dropping the unit on the
floor.
Remove the batteries if the unit will not be used for three months or longer. Always
replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
Use the unit in a manner consistent with the instructions provided in this manual.
CAUTION
Use only Omron authorized parts and accessories. Parts and accessories
not approved for use with the device may damage the unit.
CAUTION
Changes or modification not approved by the manufacturer will void the user
warranty. Do not disassemble or attempt to repair the unit or components.
ERROR INDICATORS
SYMBOL CAUSE CORRECTION
Take another measurement and
Monitor could not
remain still until the measurement
detect pulse wave.
is complete.
Cuff under-inflated.
Remove the monitor from your
Cuff not applied
wrist.
correctly.
Read "Taking a Measurement".
Wait 2-3 minutes.
Cuff over-inflated.
Take another measurement.
Device error.
Contact Customer Service.
Movement during Keep still and take another
measurement. measurement.
Remove the monitor from your
wrist. Wait 2-3 minutes and then
take another measurement. Repeat
Irregular or weak
the steps in section "Applying the
pulses are detected.
Wrist Cuff." If this symbol
continues to appear, contact your
doctor.
Replace the batteries.
Batteries are worn.
Refer to "Battery Installation".
TROUBLESHOOTING TIPS
PROBLEM CAUSES AND SOLUTIONS
Replace both batteries with new ones at the same
No power.
No display appears on the unit. time. Check the battery installation for proper
placement of the battery polarities.
Blood pressure varies constantly. Many factors
including stress, time of day, how you wrap the
Measurement values appear too
cuff, may affect your blood pressure.
high or too low.
Review the sections "Before Taking a
Measurement" and "Taking a Measurement".
Alternating date/time
display
FCC STATEMENT
Note:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. The product generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If the product does
cause harmful interference to radio or television reception, which can be determined by
turning the product on and off, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard entitled
"Digital Apparatus", ICES-003 of the Canadian Department of Communications.
Cet appareil numérique respecte les limites de bruits radioeléctriques applicables aux
appareils numériques de Clase B prescrites dans la norme sur le materiel brouilleur:
"Appareils Numériques", ICES-003 édictée par le minister des communications.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
LIMITED WARRANTY
®
Your BP629 IntelliSense Automatic Wrist Blood Pressure Monitor, excluding the
wrist cuff and batteries, is warranted to be free from defects in materials and
workmanship appearing within 2 years from the date of purchase, when used in
accordance with the instructions provided with the monitor. The above warranties
extend only to the original retail purchaser.
We will, at our option, repair or replace without charge any monitor or wrist cuff
covered by the above warranties. Repair or replacement is our only responsibility and
your only remedy under the above warranties.
To obtain warranty service contact Customer Service by calling 1-800-634-4350 for the
address of the repair location and the return shipping and handling fee.
Enclose the Proof of Purchase. Include a letter, with your name, address, phone
number, and description of the specific problem. Pack the product carefully to prevent
damage in transit. Because of possible loss in transit, we recommend insuring the
product with return receipt requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON IN
CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY DISCLAIMS
ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IMPLIED WARRANTIES AND OTHER TERMS THAT MAY BE
IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION TO THE PERIOD
OF THE ABOVE EXPRESS WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER
SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS,
EXPENSES OR DAMAGES.
This warranty provides you with specific legal rights, and you may have other rights
that vary by jurisdiction. Because of special local requirements, some of the above
limitations and exclusions may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
SPECIFICATIONS
BP629 (HEM-6200-Z)
Model:
Display: LCD Digital Display
Measurement Range: Pressure: 0 to 299 mmHg, Pulse: 40 to 180/min.
Pressure: ±3mmHg or 2% of reading
Accuracy/Calibration:
Pulse: ±5% of reading
Automatic by electric pump
Inflation:
Automatic pressure release valve
Deflation:
Automatic exhaust valve
Rapid Air Release:
Oscillometric method
Measurement Method:
Power Source: 1.5V 2 "AAA" batteries
Battery Life: Approx. 300 uses with 2 new alkaline batteries
50ºF to 104ºF (10ºC to 40ºC) /15 to 90% RH
Operating Temperature
/Humidity:
-4ºF to 140ºF (-20ºC to 60ºC) /10 to 95% RH
Storage Temperature
700-1060 hPa
/Humidity/Air Pressure:
Approximately 4 1/8 oz. (117g)
Main Unit Weight:
not including batteries
Main Unit Dimensions: Approx. 2 3/4"(l) × 2 3/4"(w) × 1 5/8" (h)
(70 mm × 71 mm × 41 mm) (not including the wrist cuff)
Approximately 5 1/4" to 8 1/2" (13.5 to 21.5 cm)
Measurable
circumference of wrist:
Up to 60
Memory:
Main Unit, Storage Case, 2 "AAA" Alkaline Batteries,
Contents:
Instruction Manual, and Quick Start Guide
NOTE: These specifications are subject to change without notice.
Manufactured for :
OMRON HEALTHCARE Co., Ltd.
Distributed by :
OMRON HEALTHCARE, INC.
1925 West Field Court
Lake Forest, IL 60045 U.S.A.
www.omronhealthcare.com
© 2012 OMRON HEALTHCARE, INC.
Made in China
