Asus Terminator 2 Barebone System T2-PE1 Product Manual page 66

5 . 5 . 5 . 5 . A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R ,
5 . A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R , A T X p o w e r c o n n e c t o r s ( 2 4 - p i n E A T X P W R ,
4 - p i n A T X 1 2 V 1 , 4 - p i n A T X 1 2 V 2 ) 4 - p i n A T X 1 2 V 1 , 4 - p i n A T X 1 2 V 2 ) 4 - p i n A T X 1 2 V 1 , 4 - p i n A T X 1 2 V 2 )
4 - p i n A T X 1 2 V 1 , 4 - p i n A T X 1 2 V 2 ) 4 - p i n A T X 1 2 V 1 , 4 - p i n A T X 1 2 V 2 )
These connectors are for the 20-pin and 4-pin power plugs from the
power supply unit. The plugs from the power supply unit are designed
to fit these connectors in only one orientation. Find the proper
orientation and push down firmly until the connectors completely fit.

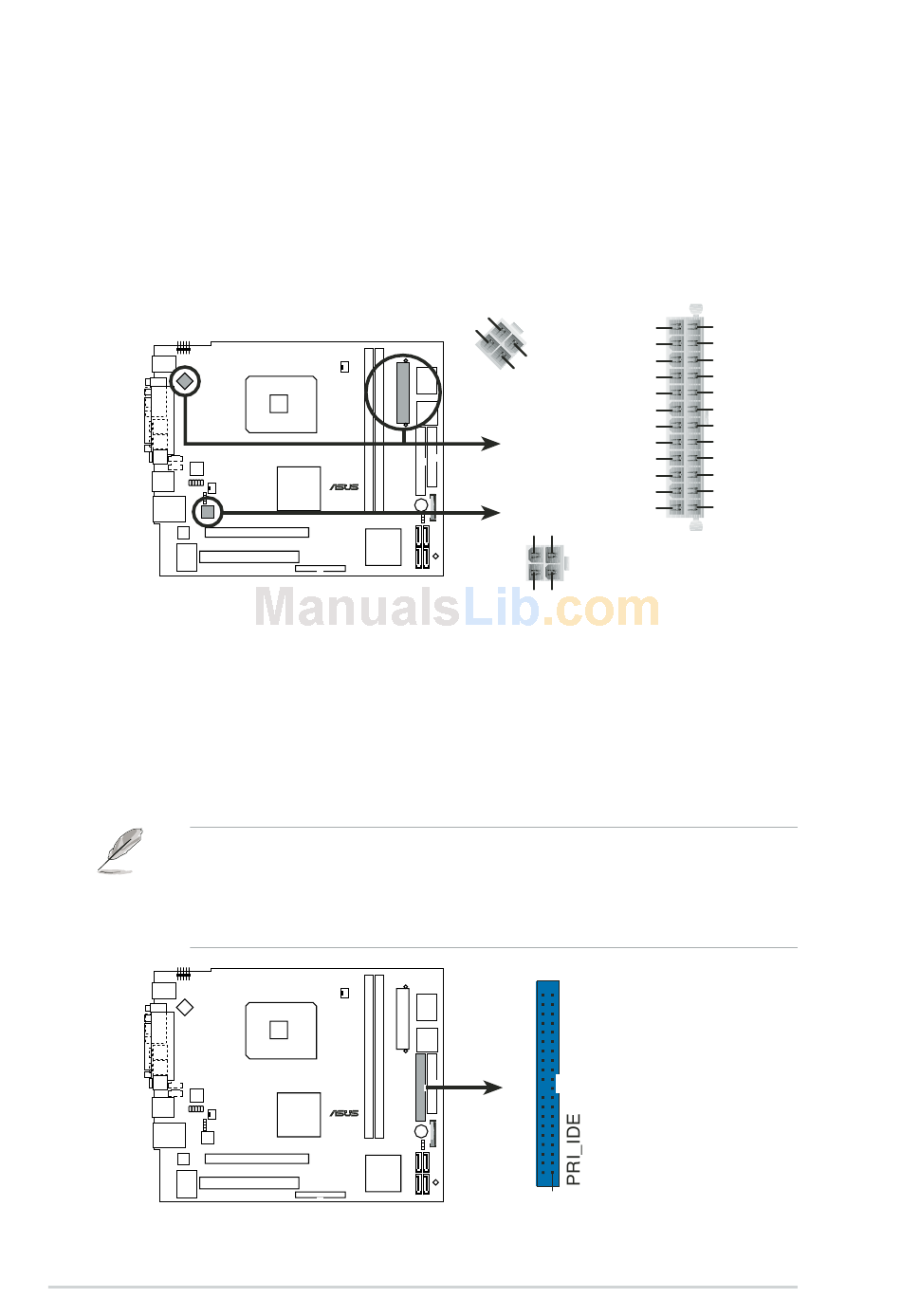

ATX power connectors
6 . 6 . 6 . 6 . 6 . I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E ) I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E )
The PRI_IDE connector is for the Ultra ATA/100 IDE hard disk ribbon
cable. Connect the cable's blue connector to the IDE connector, then
connect the gray connector to a slave device (optical drive) and the
black connector to the Ultra ATA/100 master device (hard disk drive).
Refer to the hard disk documentation for the jumper settings.
•
•
IDE connector
4 - 6 4 - 6 4 - 6 4 - 6 4 - 6
¤
Pin 20 on the IDE connector is removed to match the covered hole
on the UltraATA cable connector. This prevents incorrect orientation
when you connect the cables.
For Ultra ATA/133 IDE devices, use an 80-conductor IDE cable.
¤
ATX12V1
+12V DC
Ground
+12V DC
Ground +5V Standby
ATX12V2
GND +12V DC
GND +12V DC
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
PIN 1
C h a p t e r 4 : M o t h e r b o a r d i n f o C h a p t e r 4 : M o t h e r b o a r d i n f o C h a p t e r 4 : M o t h e r b o a r d i n f o C h a p t e r 4 : M o t h e r b o a r d i n f o C h a p t e r 4 : M o t h e r b o a r d i n f o
EATXPWR
+3 Volts Ground
+12 Volts
+5 Volts
+12 Volts
+5 Volts
+5 Volts
Power OK
NC
Ground
Ground
+5 Volts
Ground
Ground
Ground
+5 Volts
PSON#
Ground
Ground
+3 Volts
-12 Volts
+3 Volts
+3 Volts
1
