2.5

Installing a CPU

The ASUS motherboard comes with a surface mount LGA775 socket
designed for the Intel
2.5.1 2.5.1 2.5.1

Removing the CPU fan and heatsink assembly

Removing the CPU fan and heatsink assembly Removing the CPU fan and heatsink assembly
2.5.1 2.5.1 Removing the CPU fan and heatsink assembly Removing the CPU fan and heatsink assembly
The system package includes a pre-installed proprietary CPU fan and
heatsink assembly to ensure optimum thermal condition and performance.
D O N O T D O N O T replace the proprietary CPU fan and heatsink with other D O N O T
D O N O T D O N O T
models.
You must remove the CPU fan and heatsink assembly before you can install
a CPU.

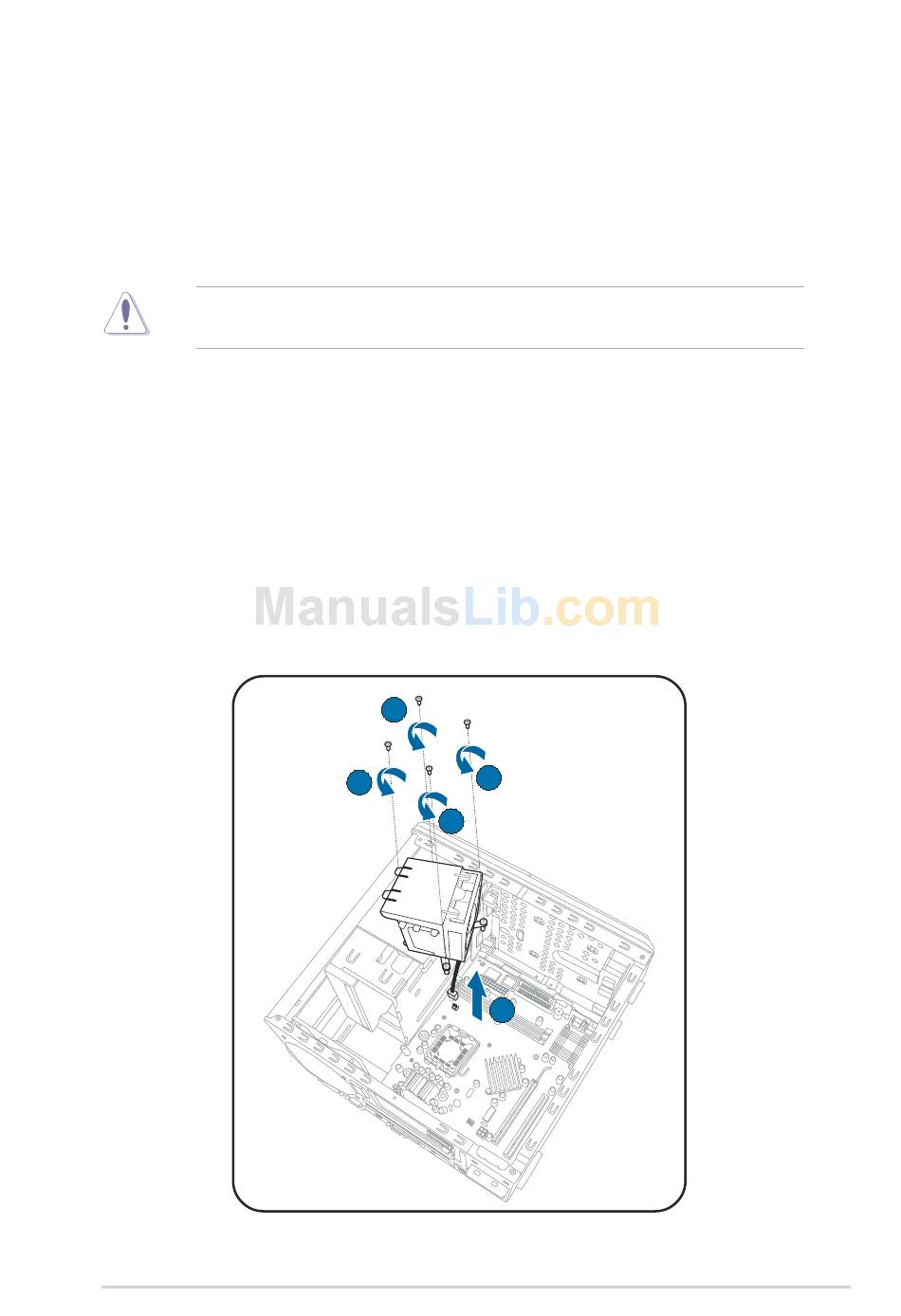

To remove the CPU fan and heatsink assembly:
1. Disconnect the CPU fan cable from the CPU fan connector on the
motherboard.
2. Using a Phillips screwdriver, release the four screws that secure the
fan and heatsink assembly to the motherboard.
3. Carefully lift the fan and heatsink assembly, and set it aside.
A S U S T 2 - P E 1 A S U S T 2 - P E 1 A S U S T 2 - P E 1 A S U S T 2 - P E 1 A S U S T 2 - P E 1
® Pentium ® 4 processor in the 775-land package.
2 2 2 2 2
2 2 2 2 2
2 2 2 2 2
2 2 2 2 2
1 1 1 1 1
2 - 5 2 - 5 2 - 5 2 - 5 2 - 5
