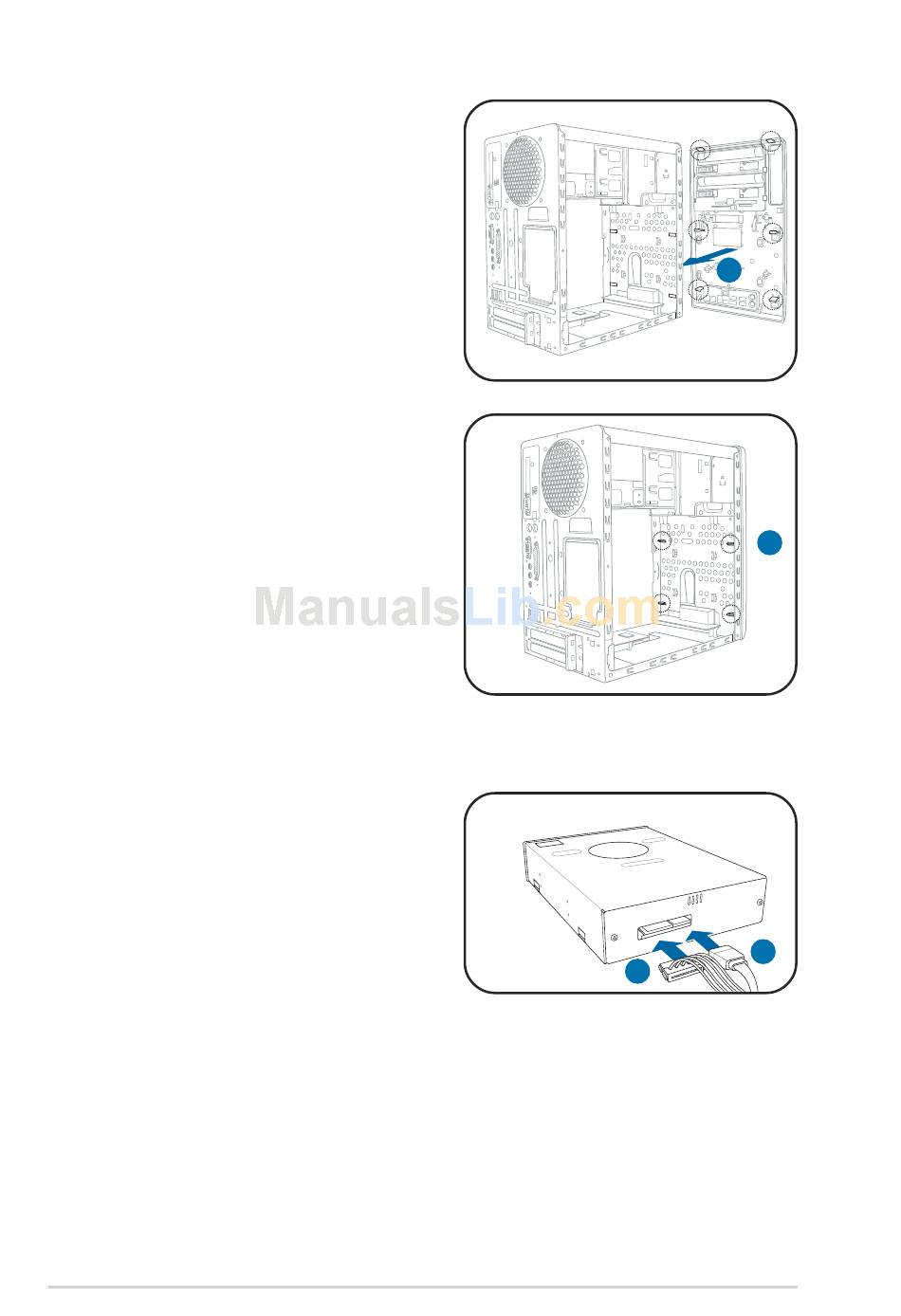

13. Reinstall the front panel cover
by aligning its hooks with the
chassis holes.
14. Lock the front panel cover
hooks to the chassis holes as
indicated.
To install a Serial ATA optical drive:
1. Follow steps 1 ~ 7 of the
previous section "To install an
IDE optical drive."
2. Connect one end of the Serial
ATA cable to the Serial ATA
interface at the back of the
optical drive. Connect the other
end to a Serial ATA connector
on the motherboard. See page
4-7 for the location of Serial ATA connectors.
3. Connect a Serial ATA power cable from the power supply unit to the
Serial ATA power connector at the back of the drive. See page 2-24
for details on the power supply unit plugs.
