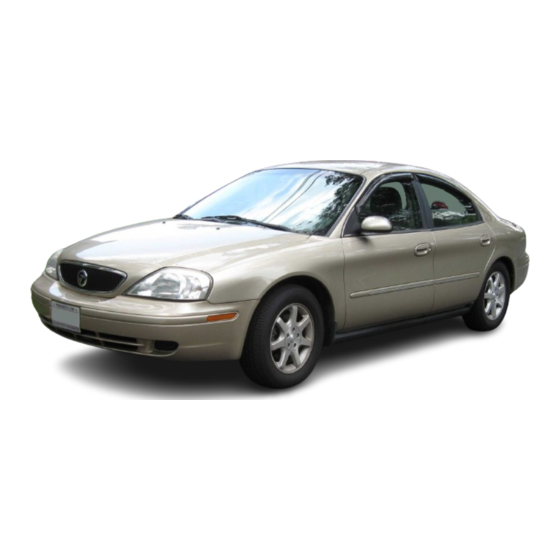

Mercury Sable 1999 Owner's Manual

Mercury 1999 mercury sable owner's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Before driving
Starting and driving
Starting
Servicing
All rights reserved. Reproduction by any means, electronic
or mechanical including photocopying, recording or by any
information storage and retrieval system or translation in
whole or part is not permitted without written
authorization from Ford Motor Company.
Copyright
1998 Ford Motor Company
Contents
2
4
16
70
96
101
118
135
180
189
204
205
1

Advertisement

Table of Contents
loading

Related Manuals for Mercury Sable 1999

Summary of Contents for Mercury Sable 1999

  • Page 1 Before driving Introduction Instrumentation Controls and features Seating and safety restraints Starting and driving Starting Driving Roadside emergencies Servicing Maintenance and care Capacities and specifications Customer assistance Reporting safety defects Index All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company.

  • Page 2: Introduction

    Introduction ICONS Indicates a safety alert. Read the following section on Warnings. Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.
  • Page 3 Introduction INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

  • Page 4: Instrumentation

    Instrumentation Headlamp control (pg. 16) Trunk release — sedan only (pg. 53) Parking brake release (pg. 103) Rear window wiper and washer — wagon only (pg. 46) Instrument cluster (pg. 6) 0 1 2 2 FUEL DOOR> 0 0 0 1 3 SERVICE ENGINE km/h...
  • Page 5 Electronic sound system (pg. 29) FM 12 BASS TREB SEEK EJECT PUSH-ON SCAN TUNE TAPE TAPE SIDE R-DEF VENT Instrumentation Passenger side air bag (pg. 84) FADE Climate control systems (pg. 18) Gearshift (pg. 105)

  • Page 6: Warning Lights And Chimes

    Instrumentation WARNING LIGHTS AND CHIMES Standard instrument cluster FUEL DOOR> SERVICE ENGINE SOON THEFT COOLANT Optional instrument cluster FUEL DOOR> SERVICE ENGINE SOON THEFT COOLANT Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on.
  • Page 7 Instrumentation Safety belt Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter. Door ajar Illuminates when the ignition is in the ON or START position and any door is open.
  • Page 8 Instrumentation Temporary malfunctions may cause your Service Engine Soon light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened.
  • Page 9 Instrumentation of a tank indicated on the fuel gauge (refer to Fuel gauge in this chapter for more information). The ignition must be in the ON position for this lamp to illuminate. The lamp will also illuminate for several seconds after the ignition is turned to the ON position regardless of the fuel level.
  • Page 10 Instrumentation Speed control (if equipped) This light comes on CRUISE when either the SET/ ACCEL or RESUME controls are pressed. It turns off when the speed control OFF control is pressed, the brake is applied or the ignition is turned to the OFF position. Brake system warning Momentarily illuminates when the ignition is...
  • Page 11 Instrumentation Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately. Safety belt warning chime Chimes to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.
  • Page 12 Instrumentation GAUGES Standard instrument cluster gauges FUEL DOOR> SERVICE ENGINE SOON THEFT COOLANT Optional instrument cluster gauges FUEL DOOR> SERVICE ENGINE SOON THEFT COOLANT Speedometer Indicates the current vehicle speed. Standard instrument cluster – 0 1 2 2 RPMx1000 0 0 0 1 3 UNLEADED FUEL ONLY km/h –...
  • Page 13 Optional instrument cluster Tachometer Indicates the engine speed in revolutions per minute. Standard instrument cluster Optional instrument cluster Driving with your tachometer pointer in the red zone may damage the engine. Instrumentation 0 0 0 0 0 0 0 0 0 km/h R N D 2 1 RPMx1000...

  • Page 14: Engine Coolant Temperature Gauge

    Instrumentation Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool.
  • Page 15 Instrumentation Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled.

  • Page 16: Controls And Features

    Controls and features HEADLAMP CONTROL Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps. Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: the engine must be running and the headlamp control is in the OFF or Parking...
  • Page 17 Flash to pass Pull toward you to activate and release to deactivate. PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. Rotate up to brighten. Rotate down to dim. Rotate to full down position to turn off. AUTOLAMP CONTROL The autolamp system provides light sensitive...
  • Page 18 Controls and features To turn autolamps on, rotate the control up. The preselected time lapse is adjustable up to approximately three minutes by continuing to rotate the control upward. To turn autolamps off, rotate the control down until it clicks. REAR WINDOW DEFROSTER Clears the rear window of thin ice and fog.
  • Page 19 Fan speed control Controls the volume of air circulated in the vehicle. Temperature control knob Controls the temperature of the airflow inside the vehicle. Mode selector control Controls the direction of the airflow to the inside of the vehicle. The air conditioning compressor will operate in all modes except VENT .
  • Page 20 Controls and features A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers. VENT-Distributes outside air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.
  • Page 21 Controls and features -Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging. Operating tips In humid weather, select before driving.

  • Page 22: Electronic Automatic Temperature Control

    Controls and features Electronic Automatic Temperature Control (EATC) system (if equipped) — TEMP — F-DEF R-DEF The EATC system will maintain a selected temperature and automatically control airflow. You can override automatic operation with any of the override controls or the fan speed control. Turning the EATC on —...
  • Page 23 Controls and features Automatic operation Press AUTO and select the desired temperature. The selected temperature and the word AUTO will appear in the display window. The EATC system will either heat or cool to achieve the selected temperature. The system will automatically determine fan speed, airflow location and if fresh outside air or recirculated air is required.
  • Page 24 Controls and features For continuous maximum cooling, push the temperature control until 16°C (60°F) is shown in the display window. The EATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the temperature control. For continuous maximum heating, push the temperature control until 32°C (90°F) is shown in the display window.
  • Page 25 The display will show and a bar graph to indicate manual fan operation and relative speed. To return to automatic fan operation, press AUTO. Manual override controls — TEMP — F-DEF R-DEF The override controls are located at the bottom of the EATC and allow you to determine where airflow is directed.
  • Page 26 Controls and features MAX A/C-Uses recirculated air to cool the vehicle. The temperature will remain unchanged and air will be cooled based on the selected temperature. To exit, press AUTOMATIC or any other override controls. MAX A/C is noisier than normal A/C but more economical and will cool the inside of the vehicle faster.
  • Page 27 F- DEF -Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the outside air temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.
  • Page 28 Controls and features Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield). If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open.

  • Page 29: Using Your Audio System

    USING YOUR AUDIO SYSTEM AM/FM Stereo/Cassette/Ford MACH Audio System with CD DJ Compatibility FM 12 SEEK PUSH-ON SCAN TUNE DISC 1-6 COMP SHUFFLE Volume/power control Press the control to turn the audio system on or off. Turn control to raise or lower volume.
  • Page 30 Controls and features your preset volume level, turn the audio system off with the power control before switching off the ignition. AM/FM select The AM/FM select control works in radio, tape and CD modes (if equipped). AM/FM select in radio mode This control allows you to select AM or FM frequency bands.
  • Page 31 Tune adjust for CD mode Press the to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.
  • Page 32 Controls and features Scan function The scan function works in radio, tape or SCAN CD mode. Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode. Scan function in tape mode Press the SCAN control to hear a short sampling of all selections on the tape.
  • Page 33 COMP SHUFFLE 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected. Bass/treble adjust The bass adjust control allows you to increase or decrease the audio system’s bass output.
  • Page 34 Controls and features Speaker sound can be adjusted between the front and rear speakers. Inserting a tape Push only slightly when inserting a cassette tape (with the open edge to the right). A cassette deck loading mechanism pulls the tape in the rest of the way. You can switch from CD to tape play by inserting a tape into the cassette deck.
  • Page 35 In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind. Fast forward The fast forward control works in tape and CD modes. In the tape mode, tape direction will automatically reverse...
  • Page 36 Controls and features Compression adjust Compression adjust COMP SHUFFLE brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. Shuffle feature The shuffle feature COMP SHUFFLE operates in CD mode and plays all tracks on the current disc in random order.
  • Page 37 CD changer (if equipped) Your CD changer is either located in the trunk or in the right side cargo area storage compartment. Slide the door to access the CD changer magazine. Press to eject the magazine. Make sure only one disc is inserted in each slot.
  • Page 38 Controls and features The CD magazine may be inserted or ejected with the radio power off. Troubleshooting the CD changer (if equipped) The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case. If sound skips: You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty.
  • Page 39 Do not insert more than one disc into each slot of the CD changer magazine. Cleaning cassette player (if equipped) Clean the tape player head with a cassette cleaning cartridge after ten to twelve hours of play in order to maintain the best sound and operation. Cassette and cassette player care Use only cassettes that are 90 minutes long or less.
  • Page 40 Controls and features modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations. Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms.
  • Page 41 4. ON, all electrical circuits operational. Warning lights illuminated. Key position when driving. 5. START, cranks the engine. Release the key as soon as the engine starts. SPEED CONTROL (IF EQUIPPED) To turn speed control on Press ON. Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h...
  • Page 42 Controls and features To set a speed Press SET/SET ACC/ SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph). If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed.
  • Page 43 Press and release SET/SET ACC/SET ACCEL. Each press will increase the set speed by 1.6 km/h (1 mph) or Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET/SET ACC/SET ACCEL. You can accelerate with the accelerator pedal at any time during speed control usage.
  • Page 44 Controls and features Pressing OFF will erase the previously programmed set speed. To return to a previously set speed Press RES/RSM/ RESUME. For RES/ RSM/RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph). Indicator light This light comes on when either the SET ACC/SET ACCEL or RES/RSM/RESUME controls are pressed.
  • Page 45 TURN SIGNAL CONTROL Push down to activate the left turn signal. Push up to activate the right turn signal. WINDSHIELD WIPER/WASHER CONTROLS Rotate the windshield wiper control to the desired interval, low or high speed position. The bars of varying length are for intermittent wipers.
  • Page 46 Controls and features Rear window wiper and washer (wagon only) The rear wiper control is located under the headlamp controls Press the wiper control to activate the rear wiper. Press again to turn off the wiper. Press the washer control to activate the rear washer.
  • Page 47 Controls and features DOME LAMPS AND MAP LAMPS The front dome lamp is located overhead between the driver and passenger seats. If the vehicle is equipped with a moon roof, the dome lamp is located behind the moon roof. The dome lamp will stay on if the control is moved to the ON position.
  • Page 48 Controls and features ILLUMINATED VISOR MIRROR (IF EQUIPPED) To turn on the visor mirror lamps, lift the mirror cover. Adjust the amount of light by sliding the control. MOON ROOF (IF EQUIPPED) Press SLIDE to open and close the moon roof.
  • Page 49 Press the bottom portion of the rocker switch to open. One touch down Press AUTO completely down and release quickly. The driver’s window will open fully. Depress again to stop window operation. Window lock The window lock feature allows only the driver to operate the power windows.
  • Page 50 Controls and features POWER DOOR LOCKS (IF EQUIPPED) Press U to unlock all doors and L to lock all doors. Central locking/Two step unlocking (if equipped) When unlocking the driver or front passenger door with the key, turn it once toward the front of the vehicle to unlock that door only.
  • Page 51 Controls and features Heated outside mirrors (if equipped) Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated. Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place.
  • Page 52 Controls and features CENTER CONSOLE Your vehicle may be equipped with a variety of console features. These include: utility compartment cupholders coin holder slots cellular phone (if equipped) Use only soft cups in the cupholder. Hard objects can injure you in a collision. If your vehicle is equipped with the column shift and a bench seat, it has a center console in the center front seating position.
  • Page 53 Controls and features TRUNK REMOTE CONTROL Press the remote trunk release control on the instrument panel to the left of the steering wheel. LIFTGATE (WAGON ONLY) You can open the entire liftgate or just the liftgate window. To open the entire liftgate, pull the release handle hidden under the exterior trim panel just...
  • Page 54 Controls and features CARGO AREA FEATURES Storage compartment Your vehicle comes equipped with a storage compartment in the floor of the cargo area. An additional compartment is in the rear trim panel on the right. Always put the load you are carrying as far forward as possible. Cargo net (if equipped) The cargo net secures lightweight objects in the cargo area.
  • Page 55 Cargo cover (if equipped) Your vehicle may be equipped with a cargo area shade that covers the luggage compartment of your vehicle. To install the shade: 1. Fasten the cover into the mounting brackets (make sure the cover is right side up).
  • Page 56 Controls and features 2. Wrap the vinyl around the roller tube twice. Tuck the edges of the vinyl inside the end cap with each wrap. 3. Fold the edges of the vinyl towards the center, making sure that the edges clear the end cap slots.
  • Page 57 Controls and features Unlocking the doors Press this control to unlock the driver’s door. The interior lamps will illuminate. Press the control a second time within five seconds to unlock all doors. Locking the doors Press this control to lock all doors. To confirm all doors are closed and locked, press the control a...
  • Page 58 Controls and features Sounding a panic alarm Press this control to activate the alarm. To deactivate the alarm, press the control again or turn the ignition to ACC or This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada.
  • Page 59 Replacing lost transmitters Take all your vehicle’s transmitters to your dealer if service is required. If you purchase additional transmitters (up to four may be programmed), perform the following procedure: To reprogram the transmitters yourself, place the key in the ignition and turn from OFF to ON eight times in rapid succession (within 10 seconds) ending in ON.
  • Page 60 Controls and features To replace the battery: 1. Twist a thin coin between the two halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART. 2. Place the positive (+) side of new battery in the same orientation.
  • Page 61 Press 7/8 and 9/0 controls on the keyless entry pad at the same time to lock the doors (doors opened or closed). Open a door and press the power door lock control to lock the doors. Use the door key to lock the doors (doors opened or closed).
  • Page 62 Controls and features Disarming the system You can disarm the system by any of the following actions: Unlock the doors by using your remote entry transmitter. Unlock the doors by using your keyless entry pad. Unlock the doors or liftgate with a key. Turn the key full travel (toward the front of the vehicle) to make sure the alarm disarms.
  • Page 63 Your vehicle has a factory-set 5–digit code that operates the keyless entry system. You can also program your own 5–digit personal entry code. The factory-set code is located: on the owner’s wallet card in the glove compartment taped to the computer module When pressing the controls on the keyless entry keypad, press the middle of the controls to ensure a good activation.
  • Page 64 Controls and features If you wish to erase your personal code, use the following instructions: Erasing personal code 1. Enter the factory-set code. 2. Press 1/2 within five seconds of step 1. 3. Press the 7/8 and 9/0 controls at the same time within five seconds of step two.
  • Page 65 Autolock Autolock is a feature that will automatically lock all doors when: all vehicle doors, liftgate and liftgate window are fully closed the ignition key is in the ON position you shift into or through R (Reverse) the brake pedal is released The autolock feature repeats when: any door is opened and then closed the brake pedal is released...
  • Page 66 Controls and features 3. Turn the ignition key from RUN/ACC to OFF. 4. Press the power door UNLOCK control three times. 5. Turn the ignition key from OFF to RUN/ACC. A horn chirp indicates the enable/disable feature is entered. 6. Press the power door UNLOCK control one time. 7.
  • Page 67 problem if they are too close to the key when starting the engine. If a problem occurs, turn ignition off and restart the engine with all other objects on the key ring held away from the SecuriLock ignition key. Spare SecuriLock your dealership and programmed to your SecuriLock passive anti-theft system.
  • Page 68 Controls and features not available (one or both of your original keys were lost or stolen), you must bring your vehicle to your dealership to have the spare SecuriLock programmed. Procedure to program spare SecuriLock to your vehicle New SecuriLock keys must have the correct mechanical key cut for your vehicle.
  • Page 69 Controls and features If the programming procedure was successful, the new SecuriLock key(s) will start the vehicle’s engine. The theft indicator (located on the instrument cluster) will light for three seconds and then go out. If the programming procedure was not successful, the new SecuriLock key(s) will not operate the vehicle’s engine.

  • Page 70: Seating And Safety Restraints

    Seating and safety restraints SEATING Head restraints Your vehicle’s seats may be equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible.
  • Page 71 Seating and safety restraints Lift handle to move seat forward or backward. Pull lever up to adjust seatback. Adjusting the front power seat (if equipped) Never adjust the driver’s seat or seatback when the vehicle is moving. Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.
  • Page 72 Seating and safety restraints Press to raise or lower the rear portion of the seat cushion. Press the control to move the seat forward, backward, up or down. Using the power lumbar support (if equipped) The power lumbar control is located on the outboard side of the seat.
  • Page 73 Seating and safety restraints 3rd seat (wagon only) The third seat faces the rear of the vehicle. For height and weight limits, see the label on the seat cushion. When the seat is down, the back of your wagon has a flat surface for carrying cargo. To open up the seat: 1.
  • Page 74 Seating and safety restraints SAFETY RESTRAINTS Safety restraints precautions Always drive and ride with your seatback upright and the lap belt snug and low across the hips. To prevent the risk of injury, make sure children sit where they can be properly restrained.
  • Page 75 Seating and safety restraints Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only.
  • Page 76 Seating and safety restraints suddenly or turns a corner sharply, or the vehicle receives an impact of 8 km/h (5 mph) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers. Automatic locking mode In this mode, the shoulder belt is automatically pre-locked.
  • Page 77 Seating and safety restraints Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode. How to disengage the automatic locking mode Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.
  • Page 78 Seating and safety restraints Failure to replace the Belt and Retractor assembly could increase the risk of injury in collisions. Front safety belt height adjustment Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of...
  • Page 79 Seating and safety restraints To attach the shoulder belt to the lap belt, pull the shoulder belt out from the retractor in the seatback and insert into the lap belt connecting pin into the wide end of the key slot on the shoulder belt.
  • Page 80 Seating and safety restraints Shorten and fasten the belt when not in use. Safety belts for rear-facing occupants (wagon only) Never use child safety seats in the third seat of a wagon. Your vehicle is equipped with safety belts containing an adjust tongue at the rear-facing seating positions.
  • Page 81 Seating and safety restraints The lap belts should fit snugly and as low as possible around the hips, not around the waist. Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident. Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed...
  • Page 82 Seating and safety restraints Safety belt extension assembly If the safety belt assembly is too short, even when fully extended, 20 cm (8 inches) can be added to the safety belt assembly by adding a safety belt extension assembly (part number 611C22). Safety belt extension assemblies can be obtained from your dealer at no cost.
  • Page 83 Seating and safety restraints Safety belt maintenance Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, wears or cuts, replacing if necessary. All safety belt assemblies, including retractors, buckles, front seat belt buckle assemblies (slide bar)(if equipped), shoulder belt height adjusters (if...
  • Page 84 Seating and safety restraints Important supplemental restraint system (SRS) precautions The supplemental restraint system is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries. Air bags DO NOT inflate slowly or gently and the risk of injury from a deploying air bag is greatest close to the trim...
  • Page 85 Do not attempt to service, repair, or modify the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln-Mercury dealer. Children and air bags For additional...
  • Page 86 Seating and safety restraints How does the air bag supplemental restraint system work? The air bag SRS is designed to activate when the vehicle sustains sufficient longitudinal deceleration sufficient to cause the sensors to close an electrical circuit that initiates air bag inflation.
  • Page 87 Seating and safety restraints there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of air bag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the air bag module as possible while maintaining vehicle control.
  • Page 88 Seating and safety restraints A difficulty with the system is indicated by one or more of the following: The readiness light will either flash or stay lit. The readiness light will not illuminate immediately after ignition is turned on. A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and light are repaired.
  • Page 89 Seating and safety restraints Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision. Always follow the instructions and warnings that come with any infant or child restraint you might use.
  • Page 90 Seating and safety restraints seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child. A belt-positioning booster should be used if the shoulder belt rests in front of the child’s face or neck, or if the lap belt does not fit snugly on both thighs, or if the thighs are too short to let the child sit all the way back on the seat cushion when the...
  • Page 91 Seating and safety restraints When installing a child safety seat: Review and follow the information presented in the Air Bag Supplemental Restraint System section in this chapter. Use the correct safety belt buckle for that seating position. Insert the belt tongue into the proper buckle until you hear a snap and feel it latch.
  • Page 92 Seating and safety restraints Installing child safety seats in combination lap and shoulder belt seating positions 1. Position the child safety seat in a seat with a combination lap and shoulder belt. An air bag can kill or injure a child in a child seat.
  • Page 93 Seating and safety restraints 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.
  • Page 94 Seating and safety restraints 10. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat steps two through nine.
  • Page 95 (part number 613D74) including instructions, may be obtained at no charge from any Ford or Lincoln-Mercury dealer. All vehicles built for sale in Canada include a tether anchor hardware kit. Be sure to follow the child safety seat manufacturer’s instructions.

  • Page 96: Starting

    Starting PREPARING TO START YOUR VEHICLE Engine starting is controlled by the ignition system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise. When starting a fuel-injected engine, avoid pressing the accelerator before or during starting. Only use the accelerator when you have difficulty starting the engine.
  • Page 97 Starting Important safety precautions A computer system controls the engine’s idle revolutions per minute (RPM). When the engine starts, the idle RPM runs faster to warm the engine. If the engine idle speed does not slow down automatically, have the vehicle checked. Do not allow the vehicle to idle for more than ten minutes at the higher engine RPM.

  • Page 98: Starting The Engine

    Starting FUEL DOOR> SERVICE ENGINE SOON THEFT COOLANT Make sure the corresponding lights illuminate briefly. If a light fails to illuminate, have the vehicle serviced. If the driver’s safety belt is fastened, the may not illuminate. STARTING THE ENGINE 1. Turn the key to 5 (START) without pressing the accelerator pedal and...
  • Page 99 Using the engine block heater (if equipped) An engine block heater warms the engine coolant, which improves starting, warms up the engine faster and allows the heater-defroster system to respond quickly. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach -23°C (-10°F) or below.
  • Page 100 Starting Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. Important ventilating information If the engine is idling while the vehicle is stopped in an open area for long periods of time, open the windows at least 2.5 cm (one inch).

  • Page 101: Driving

    Driving BRAKES Your service brakes are self-adjusting. Refer to the scheduled maintenance guide for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied.
  • Page 102 Driving The ABS operates by detecting the onset of wheel lockup during brake applications and compensating for this tendency. The wheels are prevented from locking even when the brakes are firmly applied. The accompanying illustration depicts the advantage of an ABS equipped vehicle (on bottom) to a non-ABS equipped vehicle (on top) during hard braking with loss of front braking traction.
  • Page 103 The Anti-Lock system does not decrease the time necessary to apply the brakes or always reduce stopping distance. Always leave enough room between your vehicle and the vehicle in front of you to stop. We recommend that you familiarize yourself with this braking technique.
  • Page 104 Driving Pull the release lever to release the brake. Driving with the parking brake on will cause the brakes to wear out quickly and reduce fuel economy. STEERING Your vehicle is equipped with power steering. Power steering uses energy from the engine to help steer the vehicle.
  • Page 105 AUTOMATIC TRANSAXLE OPERATION Brake-shift interlock This vehicle is equipped with a brake-shift interlock feature that prevents the gearshift from being moved from P (Park) unless the brake pedal is depressed. If you cannot move the gearshift out of P (Park) with the brake pedal depressed: 1.
  • Page 106 Driving If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. See your dealer or a qualified service technician. Driving with an automatic overdrive transaxle Your automatic overdrive transaxle provides fully automatic operation in either...
  • Page 107 Understanding gearshift positions P (Park) Always come to a complete stop before shifting into P (Park). Make sure the gearshift is securely latched in P (Park). This locks the transaxle and prevent the front wheels from rotating. Always set the parking brake fully and make sure the gearshift is...
  • Page 108 Driving N (Neutral) With the gearshift in P R N the N (Neutral) position, the vehicle can be started and is free to roll. Hold the brake pedal down while in this position. (Overdrive) (Overdrive) P R N position is the normal driving position for an automatic overdrive transaxle.
  • Page 109 When to use D (Drive) The D (Drive) position eliminates the needless shifting back and forth between third and fourth gears that your vehicle may do when driving on hilly terrain. It also gives more engine braking than overdrive to slow your vehicle on downgrades.
  • Page 110 Driving VEHICLE LOADING Before loading a vehicle, familiarize yourself with the following terms: Base Curb Weight : Weight of the vehicle including any standard equipment, fluids, lubricants, etc. It does not include passengers or aftermarket equipment. Payload : Combined maximum allowable weight of cargo, passengers and optional equipment.
  • Page 111 Maximum Trailer Weight : maximum weight of a trailer the loaded vehicle (including passengers and cargo) is permitted to tow. It is determined by subtracting the weight of the loaded trailer towing vehicle from the GCWR for the towing vehicle. Trailer Weight Range : Specified weight range that the trailer must fall within that ranges from zero to the maximum trailer weight rating.
  • Page 112 Your vehicle does not come from the factory fully equipped to tow. No towing packages are available through Ford or Mercury/Lincoln dealers. Do not tow a trailer until your vehicle has been driven at least 800 km (500 miles). If towing with a...
  • Page 113 Towing a trailer places an additional load on your vehicle’s engine, transaxle, brakes, tires and suspension. Inspect these components carefully after towing. The amount of weight that you can tow depends on the type of engine in your vehicle. See the following charts: 3.0L 2-Valve Vulcan Engine Model...
  • Page 114 Driving Do not exceed the GVWR or the GAWR specified on the Safety Compliance Certification Label. Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transaxle damage, structural damage, loss of control, and personal injury.
  • Page 115 Do not connect a trailer’s hydraulic brake system directly to your vehicle’s brake system. Your vehicle may not have enough braking power and your chances of having a collision greatly increase. The braking system of the tow vehicle is rated for operation at the GVWR not GCWR.
  • Page 116 Driving Trailer towing tips Practice turning, stopping and backing up in an area before starting on a trip to get the feel of the vehicle trailer combination. When turning, make wider turns so the trailer wheels will clear curbs and other obstacles. Allow more distance for stopping with a trailer attached.
  • Page 117 Never use a tow bar that attaches to the bumper when you tow your vehicle. This could damage the bumper and cause an accident. LUGGAGE RACK (IF EQUIPPED) The rear crossbar can be adjusted to fit the item being carried. The front crossbar does not move. Do not load more than 44 kg (100 lbs.) on the luggage rack.

  • Page 118: Roadside Emergencies

    Roadside emergencies HAZARD FLASHER Use only in an emergency to warn traffic of vehicle breakdown, approaching danger, etc. The hazard flashers can be operated when the ignition is off. The hazard lights control is located on top of the steering column.
  • Page 119 Roadside emergencies If your vehicle is a sedan, the Resetting the fuel shut-off switch is located on the right side of the trunk behind the trunk liner. If your vehicle is a wagon, the Resetting the fuel shut-off switch is located behind the service panel on the right side of the cargo area.
  • Page 120 Roadside emergencies Standard fuse amperage rating and color Fuse Stan- Mini Rat- dard Fuses Fuses Grey Grey Violet Violet Pink 7.5A Brown Brown Blue Yellow Yellow Natural Natural Green Green — — — — — Passenger compartment fuse panel The fuse panel is located below and to the left of the steering wheel by the brake pedal.
  • Page 121 Roadside emergencies The fuses are coded as follows. Fuse/ Fuse Relay Location Rating — Description Not Used Instrument Illumination Left Low Beam Headlamp Right Low Beam Headlamp Instrument Cluster, Shift Lock Actuator, Rear Defrost TR Sensor, Reverse Lamps, DRL, A/C Controls TR Sensor, Starter Relay Power Antenna, RCU, GEM PCM Relay, Ignition Coil, PATS,...
  • Page 122 Roadside emergencies Fuse/ Fuse Relay Location Rating — — — — — — — — Description Semi-Active Ride Control Module Multifunction Switch (Turn Signal) Not Used Front Wiper/Washer Headlamp Switch Rear Wiper/Washer ICP, RAP, Phone, GEM Cigar Lighter Power Mirrors, Power Antenna, Luggage Compartment Lamp, Autolamp GEM, RAP, PATS...
  • Page 123 Roadside emergencies Power distribution box The power distribution box is located in the engine compartment. The power distribution box contains high- current fuses that protect your vehicle’s main electrical systems from overloads. Always disconnect the battery before servicing high current fuses. Always replace the cover to the Power Distribution Box before reconnecting the battery or refilling fluid reservoirs.
  • Page 124 Roadside emergencies The high-current fuses are coded as follows. Fuse/ Fuse Relay Location Rating 40A** Fuse Junction Panel 30A** PCM Relay 40A** Ignition Switch, Starter Relay C.B. 40A** Ignition Switch — 40A** Rear Window Defrost Relay 30A** Thermactor Air ByPass 40A** High Speed Cooling Fan Relay, 20A** Fuel Pump Relay 40A** Blower Motor Relay...
  • Page 125 Roadside emergencies Fuse/ Fuse Relay Location Rating 30A* Anti-Lock Brake Module 15A* Horn Relay, Powertrain Control 15A* Headlamp Switch, Autolamp — 30A* Autolamps Relay, Multifunction — — — 30A* Generator 10A* A/C Clutch Relay 15A* Heated Oxygen Sensors, — — —...
  • Page 126 Roadside emergencies CHANGING THE TIRES If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decrease your speed. Hold the steering wheel firmly and slowly move to a safe place on the side of the road. Temporary spare tire information The temporary spare tire for your vehicle is labeled as such.
  • Page 127 Roadside emergencies When one of the front wheels is off the ground, the transaxle alone will not prevent the vehicle from moving or slipping off the jack, even if the vehicle is in P (Park). To prevent the vehicle from moving when you change a tire, be sure the parking brake is set, then block (in both directions) the wheel that is diagonally opposite (other side and end of...
  • Page 128 Roadside emergencies 3. Remove the center ornament or wheel cover from the wheel with the tapered end of the wheel nut wrench that came with your vehicle. Insert and twist the handle, then pry against the wheel. 4. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them...
  • Page 129 Roadside emergencies 10. Return the flat tire, jack and lug wrench to their proper storage locations. Make sure the jack is fastened so it does not rattle when you drive. 11. Unblock the wheels. JUMP STARTING YOUR VEHICLE The gases around the battery can explode if exposed to flames, sparks, or lit cigarettes.
  • Page 130 Roadside emergencies 4. Check all battery terminals and remove any excessive corrosion before you attach the battery cables. Ensure that vent caps are tight and level. 5. Turn the heater fan on in both vehicles to protect any electrical surges. Turn all other accessories off. Connecting the jumper cables, 3.0L Vulcan and 3.0L Duratec engines 1.
  • Page 131 Roadside emergencies 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable. For the 3.0L Vulcan, make the connection to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system.
  • Page 132 Roadside emergencies 5. Be sure that the cables are clear of fan blades, belts and other moving parts of both engines. Jump starting 1. Start the engine of the booster vehicle and run the engine at moderately increased speed. 2. Start the engine of the disabled vehicle. 3.
  • Page 133 Roadside emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
  • Page 134 Roadside emergencies WRECKER TOWING If you need to have your vehicle towed, contact a professional towing service or, if you are a member, your roadside assistance center. It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt.

  • Page 135: Maintenance And Care

    SERVICE RECOMMENDATIONS To help you service your vehicle: We highlight do-it-yourself items in the engine compartment for easy location. We provide a Scheduled Maintenance Guide which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide necessary parts and service. Check your “Warranty Guide”...
  • Page 136 Maintenance and care 3. Block the wheels to prevent the vehicle from moving unexpectedly. Working with the engine on 1. Set the parking brake and ensure the gearshift is securely latched in P (Park). 2. Block the wheels to prevent the vehicle from moving unexpectedly.
  • Page 137 Maintenance and care IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 3.0L V6 Vulcan engine 1. Automatic transmission fluid dipstick 2. Brake fluid reservoir 3. Air filter assembly 4. Battery 5. Engine oil filler cap 6. Engine oil dipstick 7. Power steering fluid reservoir 8.
  • Page 138 Maintenance and care 3.0L V6 Duratec engine 1. Automatic transmission fluid dipstick 2. Brake fluid reservoir 3. Air filter assembly 4. Battery 5. Engine oil filler cap 6. Engine oil dipstick 7. Engine coolant reservoir 8. Windshield washer fluid reservoir 9.
  • Page 139 3. Set the parking brake and ensure the gearshift is securely latched in P. 4. Open the hood. Protect yourself from engine heat. 5. Locate and carefully remove the engine oil indicator (dipstick). 6. Wipe the indicator clean. Insert the indicator fully, then remove it again.
  • Page 140 Maintenance and care Adding engine oil 1. Check the engine oil. For instructions, refer to Checking the engine oil in this chapter. 2. If the engine oil level is not within the normal range, add only certified engine oil of the recommended viscosity.
  • Page 141 It is recommended you use the appropriate Motorcraft oil filter (or another brand meeting Ford specifications) for your engine application. BRAKE FLUID Checking and adding brake fluid Brake fluid should be checked and refilled as needed. Refer to the Scheduled Maintenance Guide for the service interval schedules:...
  • Page 142 Maintenance and care Do not let the reservoir for the master cylinder run dry. This may cause the brakes to fail. WINDSHIELD WASHER FLUID Checking and adding washer fluid Check the washer fluid whenever you stop for fuel. The reservoir is highlighted with a symbol.
  • Page 143 ENGINE COOLANT Check the level of the engine coolant in the reservoir. Refer to the Scheduled Maintenance Guide for service interval schedules. Be sure to read and understand Precautions when servicing your vehicle in this chapter. If the engine coolant has not been checked at the recommended interval, the engine coolant reservoir may become empty.
  • Page 144 Maintenance and care When the engine is cool, add a 50/50 mixture of engine coolant and water to the engine coolant reservoir. Plain water may be added in an emergency, but you MUST replace it with a 50/50 mixture of coolant and distilled water as soon as possible.
  • Page 145 Recycled engine coolant Ford Motor Company recommends that Ford and Lincoln-Mercury dealers use recycled engine coolant produced by Ford-approved processes. Not all coolant recycling processes produce coolant which meets Ford specification ESE-M97B44–A, and use of such coolant may harm engine and cooling system components.
  • Page 146 Maintenance and care CHECKING AND ADDING POWER STEERING FLUID Check the power steering fluid. Refer to the Scheduled Maintenance Guide for the service interval schedules. If adding fluid is necessary, use only MERCON ATF. 1. Start the engine and let it run until it reaches normal operating temperature (the engine coolant temperature gauge indicator will be near the center of the normal area between H and C).
  • Page 147 Maintenance and care 3.0L Duratec engine 4. Check the fluid level in the reservoir. It should be between the MIN and MAX lines. Do not add fluid if the level is within this range. 5. If the fluid is low, add fluid in small amounts, continuously checking the level until it reaches the range between the MIN and MAX lines.
  • Page 148 Maintenance and care 3. With the parking brake engaged and your foot on the brake pedal, start the engine and move the gearshift lever through all of the gear ranges. Allow sufficient time for each gear to engage. 4. Latch the gearshift lever in P (Park) and leave the engine running.
  • Page 149 Maintenance and care High fluid levels can be caused by an overheating condition. Adjusting automatic transmission fluid levels Before adding any fluid, make sure the correct type is used. The type of fluid used is normally indicated on the dipstick and/or dipstick handle and also in the Lubricant specifications section in the Capacities and specifications chapter.
  • Page 150 Maintenance and care If the electrolyte level in the battery is low, you can add plain tap water to the battery, as long as you do not use hard water (water with a high mineral or alkali content). If possible, however, try to only fill the battery cells with distilled water.
  • Page 151 Keep batteries out of reach of children. Batteries contain sulfuric acid. Avoid contact with skin, eyes or clothing. Shield your eyes when working near the battery to protect against possible splashing of acid solution. In case of acid contact with skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention.
  • Page 152 Maintenance and care Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal. Call your local authorized recycling center to find out more about recycling automotive batteries. WINDSHIELD WIPER BLADES Check the wiper blades at least twice a year or when they seem less effective.
  • Page 153 Maintenance and care 3. Attach the new wiper to the wiper arm and press it into place until a click is heard. INFORMATION ABOUT TIRE QUALITY GRADES New vehicles are fitted with tires that have their Tire Quality Grade (described below) molded into the tire’s sidewall.
  • Page 154 Maintenance and care Traction AA A B C The traction grades, from highest to lowest are AA, A, B, and C. Those grades represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
  • Page 155 SERVICING YOUR TIRES Checking the tire pressure Use an accurate tire pressure gauge. Check the tire pressure when tires are cold, after the vehicle has been parked for at least one hour or has been driven less than 5 km (3 miles). Adjust tire pressure to recommended specifications found on the Certification Label.
  • Page 156 Maintenance and care Replacing the tires Replace the tires when the wear band is visible through the tire treads. When replacing full size tires, never mix radial bias-belted, or bias-type tires. Use only the tire sizes that are listed on the Certification Label.
  • Page 157 SNOW TIRES AND CHAINS Snow tires must be the same size and grade as the tires you currently have on your vehicle. The tires on your vehicle have all weather treads to provide traction in rain and snow. However, in some climates, you may need to use snow tires and chains.
  • Page 158 Maintenance and care If you do not use the proper fuel cap, the pressure in the fuel tank can damage the fuel system or cause it to work improperly in a collision. The fuel system may be under pressure. If the fuel cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the cap.
  • Page 159 Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury. Fuels can also be harmful if absorbed through the skin.
  • Page 160 Maintenance and care If you must replace the fuel filler cap, replace it with a genuine Ford or Motorcraft part. The customer warranty may be void for any damage to the fuel tank or fuel system if a genuine Ford or Motorcraft fuel filler cap is not used. The fuel system may be under pressure.
  • Page 161 Maintenance and care Your vehicle was not designed to use fuel or fuel additives with metallic compounds, including manganese-based compounds containing (MMT). Repairs to correct the effects of using a fuel for which your vehicle was not designed may not be covered by your warranty.
  • Page 162 Maintenance and care Running out of fuel Avoid running out fuel because this situation may have an adverse affect on modern powertrain components. If you have run out of fuel: You may need to crank the engine several times before the system starts to pump fuel from the tank to the engine.
  • Page 163 The advertised fuel capacity of the fuel tank on your vehicle is equal to the rated refill capacity of the fuel tank as listed in the Refill Capacities chart in this “Owner Guide.” The advertised capacity is the amount of the Indicated Capacity and the Empty Reserve combined.
  • Page 164 Maintenance and care 2. Each time you fill the tank, record the amount of fuel added (in liters or gallons). 3. After at least three to five tank fill-ups, fill the fuel tank and record the current kilometer (mileage) reading. 4.
  • Page 165 Drive at reasonable speeds (traveling at 105 km/h [65 mph] uses 15% more fuel than traveling at 88 km/h [55 mph]). Revving the engine before turning it off may reduce fuel economy. Use of the air conditioner or defroster may reduce fuel economy.
  • Page 166 Maintenance and care Carrying unnecessary weight may reduce fuel economy (approximately 2 km/h [1 mpg] is lost for every 180 kg [400 lb] of weight carried). Adding certain accessories to your vehicle (for example bug deflectors, rollover/light bars, running boards, ski/luggage racks) may reduce fuel economy.
  • Page 167 Use only unleaded fuel. Avoid running out of fuel. Do not turn off the ignition while your vehicle is moving, especially at high speeds. Have the items listed in your Scheduled Maintenance Guide performed according to the specified schedule. The scheduled maintenance items listed in the Scheduled Maintenance Guide are essential to the life and performance of your vehicle and to its emissions system.
  • Page 168 Maintenance and care Information about your vehicle’s emission system is on the Vehicle Emission Control Information Decal located on or near the engine. This decal identifies engine displacement and gives some tune up specifications. Please consult your “Warranty Guide” for complete emission warranty information.
  • Page 169 EXTERIOR BULBS Replacing exterior bulbs Check the operation of the following lamps frequently: Headlamps Tail lamps Brakelamps High-mount brakelamp Turn signals Backup lamps License plate lamp Do not remove lamp bulbs unless they will be replaced immediately. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect performance.
  • Page 170 Maintenance and care 3. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) about 1/8 turn to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb.
  • Page 171 Maintenance and care High-mount brakelamp bulbs The following procedure is for sedans only. For wagon, refer to a qualified technician. 1. Open trunk. 2. Inside trunk, locate access hole under the rear window 3. Remove the bulb socket by rotating it 45 degrees and pulling it out of the lamp assembly.
  • Page 172 Maintenance and care Wagon 1. Remove screw and the license plate lamp assembly from liftgate. 2. Remove bulb socket by turning counterclockwise. 3. Carefully pull the bulb out from the socket and push in the new bulb. 4. Install the lamp assembly on liftgate with screw.
  • Page 173 Function High-mount brake lamp Rear side marker lamp Cargo lamp (wagon) Dome lamp Dome/map lamp Dome lamp/moon roof Visor vanity lamp (passenger/driver) Floor console Luggage compartment lamp I/P ashtray lamp To replace all instrument panel lights - see your dealer. AIMING THE HEADLAMPS Your vehicle is equipped with a Vehicle Headlamp Aim Device (VHAD) on each headlamp body.
  • Page 174 Maintenance and care Horizontal aim adjustment 1. Park the vehicle on a level surface. 2. With the hood open, locate the horizontal indicator and the adjusting screw. Remove the protective cap to access the 7 mm adjusting screw head. 3. Turn the horizontal adjusting screw in the direction of the arrow to change the...
  • Page 175 Maintenance and care 3. The “UP” and “DN” on the bubble label indicate the directional change (up or down) of the vertical aim. 4. Use a 7 mm wrench or socket to turn the vertical adjusting screw clockwise or counterclockwise until the bubble aligns with the “0”...
  • Page 176 Maintenance and care Waxing your vehicle Wax when water stops beading on the surface. This could be every three or four months, depending on operating conditions. Use only carnauba or synthetic-based waxes. Use cleaning fluid or alcohol with a clean cloth to remove any bugs and tar before waxing vehicle.
  • Page 177 Maintenance and care Take care when using a power washer to clean the engine. The high pressure fluid could penetrate the sealed parts and cause damage. Do not spray with cold water to avoid cracking the engine block or other engine components. Cover the highlighted areas to prevent water damage when cleaning the engine.
  • Page 178 Maintenance and care Never wash or rinse the engine while it is running; water in the running engine may cause internal damage. Cleaning plastic exterior parts Use vinyl cleaner for routine cleaning. Clean with a tar remover if necessary. Do not clean plastic parts with thinners, solvents or petroleum-based cleaners.
  • Page 179 Maintenance and care finish in this area helps protect the driver from undesirable windshield reflection. Cleaning the interior fabric Remove dust and loose dirt with a whisk broom or a vacuum cleaner. Remove fresh spots immediately. Do not use household or glass cleaners. These agents can stain and discolor the fabric.

  • Page 180: Motorcraft Part Numbers

    Capacities and specifications MOTORCRAFT PART NUMBERS Component 3.0L V6 Vulcan engine Air filter FA-1630 element Fuel filter FG-800-A Battery BXT-58R (standard) Battery BXT-36R (optional) Oil filter FL-400-S PCV valve EV-228 Spark plugs* AWSF-32PP** * Refer to Vehicle Emissions Control Information (VECI) decal for spark plug gap information.
  • Page 181 Capacities and specifications REFILL CAPACITIES Fluid Ford Part Name Brake fluid High Per- formance DOT 3 Motor Vehicle Brake Fluid Engine Premium coolant Engine Coolant Engine oil Motorcraft (includes 5W-30 filter Super change) Premium Motor Oil Fuel tank capacity Power Motorcraft steering MERCON...
  • Page 182 Capacities and specifications Fluid Ford Part Name Automatic Motorcraft transaxle - MER- AX4N CON V Automatic Motorcraft transaxle - MER- AX4S CON V Windshield Ultra-Clear washer Windshield fluid - Washer Front Concen- trate Windshield Ultra-Clear washer Windshield fluid - Washer Rear Concen- trate...
  • Page 183 Capacities and specifications LUBRICANT SPECIFICATIONS Ford Part Items Name or equivalent Brake fluid High Per- formance DOT 3 Motor Vehicle Brake Fluid Door latch, Multi- hood latch, Purpose auxiliary Grease hood latch, seat tracks, trunk and liftgate latches Lock Penetrating cylinders and Lock Lubricant...
  • Page 184 Capacities and specifications Ford Part Items Name or equivalent Engine Ford coolant Premium Engine Coolant Power Motorcraft steering MERCON fluid Windshield Ultra-Clear washer Windshield fluid Washer Concentrate ENGINE DATA Engine 3.0L V6 Vulcan engine Cubic inches Horsepower 145 @ 5250 rpm Torque 170 lb.-ft.
  • Page 185 Capacities and specifications VEHICLE DIMENSIONS Vehicle dimensions (1) Overall length (2) Overall width 1 854.2 (73.0) (3) Overall height (4) Wheelbase (5) Track - Front 1 564.6 (61.6) (5) Track - Rear Sedan mm Wagon mm (in) (in) 5 016.5 (197.5) 5 069.8 (199.6) 1 854.2 (73.0) 1 399.5 (55.1) 1 463.0 (57.6)
  • Page 186 Capacities and specifications...

  • Page 187: Certification Label

    Capacities and specifications IDENTIFYING YOUR VEHICLE Certification label The National Highway Traffic Safety Administration Regulations require that a Certification Label be affixed to a vehicle and prescribe where the Certification Label may be located. The Certification Label is located on the front door latch pillar on the driver’s side.
  • Page 188 Capacities and specifications Vehicle identification number The vehicle identification number XXXXXXXXXXXXXXXXX is attached to a metal tag and is located on the driver side instrument panel. Engine number The engine number (the last eight numbers of the vehicle identification number) is stamped on the engine block, transmission, frame and transfer case (if equipped).

  • Page 189: Customer Assistance

    United States, this card is found in the Owner Guide portfolio in the glove compartment in Ford vehicles and is mailed to you if you own a Mercury or Lincoln. In Canada, it’s found in the Roadside Assistance book in the glove compartment.
  • Page 190 Should you need to arrange assistance for yourself, Ford will reimburse a reasonable amount. To obtain information about reimbursement, call 1-800-241-3673 in the United States for Ford or Mercury vehicles; or if you own a Lincoln vehicle, call 1–800–521–4140. Call 1–800–665–2006 in Canada. Ford extended service plan...
  • Page 191 Ford. At Ford Motor Company and Ford of Canada, we are dedicated to providing Ford, Lincoln and Mercury vehicle owners with programs that will enhance your ownership experience and protect you from unexpected repair bills. Genuine Ford ESP is the only Extended Service Plan that enables us to provide that service.
  • Page 192 Customer assistance general manager of the dealership. In most cases, your concern will be resolved at this level. Ford Motor Company and Ford of Canada dealerships also carry genuine Ford parts and accessories, providing you with original equipment reliability. Away from home If you are away from home when your vehicle needs service, or if you need more help than the dealership could provide, contact the Ford Customer Assistance...
  • Page 193 What kinds of cases does the Board review? Unresolved warranty repair concerns or vehicle performance as designed concerns on Ford, Mercury and Lincoln cars and Ford or Mercury light trucks which are within the terms of any applicable written new vehicle warranty are eligible for review, except...
  • Page 194 West Virginia, Georgia and Wisconsin purchasers/lessees. Board membership The Board consists of: three consumer representatives a Ford or Lincoln/Mercury dealership representative Consumer candidates for Board membership are recruited and trained by an independent consulting firm. The dealership Board member is chosen from Ford and Lincoln-Mercury dealership management, recognized for their business leadership qualities.
  • Page 195 What the Board needs To have your case reviewed you must complete the application in the DSB brochure and mail it to the address provided on the application form. Your application is reviewed and, if it is determined to be eligible, you will receive an acknowledgment indicating: the file number assigned to your application the toll-free phone number of the DSB’s...
  • Page 196 Customer assistance Oral presentations If you would like to make an oral presentation, indicate YES to question #6 on the application. While it is your right to make an oral presentation before the Board, this is not a requirement and the Board will decide the case whether or not an oral presentation is made.
  • Page 197 Customer assistance Ford Motor Company Customer Assistance Center 16800 Executive Plaza Drive P.O. Box 6248 Dearborn, Michigan 48121 GETTING ASSISTANCE OUTSIDE THE U.S. AND CANADA Before exporting your vehicle to a foreign country, contact the appropriate foreign embassy or consulate. These officials can inform you of local vehicle registration regulations and where to find unleaded fuel.
  • Page 198 Ford Ultra-Clear Spray Glass Cleaner * May be sold with the Motorcraft name A wide selection of accessories is available through your local authorized Ford, Lincoln-Mercury or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your...
  • Page 199 Customer assistance complement the style and aerodynamic appearance of your vehicle. In addition, each accessory is made from high quality materials and meets or exceeds Ford’s rigid engineering and safety specifications. Ford accessories are warranted for up to 12 months or 20,000 km (12,000 miles) on all cars and light trucks and 12 months with unlimited distance on medium/heavy duty trucks unless the accessory is...
  • Page 200 Customer assistance Travel equipment Console Console armrest Daytime running lights Factory luggage rack Factory luggage rack adaptors Fog lights Framed luggage covers Heavy-duty battery Neutral towing transfer case kit (Explorer 4.0L only) Off road lights Pickup box rails Removable luggage rack Removable luggage rack adapters Retractable bed hooks and loops Running boards...
  • Page 201 Carpet floor mats Cleaners, waxes and polishes Flat splash guards Front end covers (full and mini) Hood deflectors Locking gas cap Lubricants and oils Molded splash guards Molded vinyl floor mats Rallye bars Rear air deflectors Rear decklid spoilers Side window air deflectors Spare tire lock Step bumpers Step/sill plates...
  • Page 202 Customer assistance The Federal Communications Commission (FCC) and Canadian Radio Telecommunications Commission (CRTC) regulate the use of mobile communications systems - such as two-way radios, telephones and theft alarms - that are equipped with radio transmitters. Any such equipment installed in your vehicle should comply with FCC or CRTC regulations and should be installed only by a qualified service technician.
  • Page 203 Customer assistance ORDERING ADDITIONAL OWNER’S LITERATURE To order the publications in this portfolio in the United States: Make checks payable to: HELM, INCORPORATED P.O. Box 07150 Detroit, Michigan 48207 For a free publication catalog, order toll free: 1-800-782-4356 Monday-Friday 8:00 a.m. - 6:00 p.m. EST, for credit card holders only To order the publications in this portfolio in Canada: Make cheques payable to:...

  • Page 204: Reporting Safety Defects

    Reporting safety defects REPORTING SAFETY DEFECTS (U.S. ONLY) If you believe that your vehicle has a defect that could cause a crash, or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Ford Motor Company.

  • Page 205: Index

    Accessory delay ... 49 Air bag supplemental restraint system ... 83 and child safety seats ... 85 description ... 84 disposal ... 88 indicator light ... 87 passenger air bag ... 86 Air conditioning automatic temperature control system . 22,23,24,25,27 Anti-theft system .
  • Page 206 Index Emission control system ... 166 Engine coolant ... 143 idle speed control . 149 service points . 137,138 starting after a collision ... 118 Engine block heater . 99 Engine oil checking and adding ... 140 dipstick ... 138 specifications .
  • Page 207 Lights, warning and indicator ... 6 air bag ... 11 anti-lock brakes (ABS) ... 9 anti-theft ... 9 brake ... 10 charging system ... 10 cruise indicator ... 10 door ajar ... 7 low coolant ... 9 low fuel ... 8 oil pressure ...
  • Page 208 Index changing ... 126 checking the pressure ... 155 replacing ... 156 rotating ... 155 snow tires and chains ... 157 tire grades ... 154 treadwear ... 153 Towing ... 112 114,115,116 wrecker ... 134 Transaxle fluid, refill capacities ... 181 Transmission fluid, checking and adding (automatic) .

  • Page 215: Filling Station Information

    Filling station information Item Recommended fuel Fuel tank capacity Engine oil capacity (including filter change)-3.0L V6 Vulcan engine Engine oil capacity (including filter change)-3.0L V6 Duratec engine Tire size and pressure Hood release Coolant capacity (3.0L V6 Vulcan engine) Coolant capacity (3.0L V6 Duratec engine) Power steering fluid capacity-3.0L V6 Vulcan...
  • Page 216 Filling station information Item Automatic transaxle capacity (AX4N)-3.0L V6 Vulcan engine Automatic transaxle capacity (AX4N)-3.0L V6 Duratec engine Automatic transaxle capacity (AX4S)-3.0L V6 Vulcan engine Use Ford Premium Engine Coolant (green in color). DO NOT USE Ford Extended Life Engine Coolant (orange in color).
