step 3 - HangIng tHe Fan

Hang fan from the previously in-
stalled J-Hook or U-Hook.
seCuriNg FaN to seCoND-
arY support
1. Find the looped end of the braid-
ed cable and insert it through the
ceiling plate and one of the holes
in the outlet box into the ceiling.
2. Access the support brace in the
ceiling. You may not be able to
do this from below the ceiling
depending on your installation
site.
3. Drive a #10 x 38 mm (1-1/2")
wood screw and washer into the
side of the brace that holds the
outlet box. Leave 3 mm (1/8")
of space between the support
brace and the washer.

4. Wrap the braided cable around
the support brace once creating
a complete circle.
5. Hook the looped end of the cable
over the wood screw so that the
braided cable lies between the
washer and the support brace.
See Figure 3b.
6. Tighten the loop and secure the
screw and washer all the way

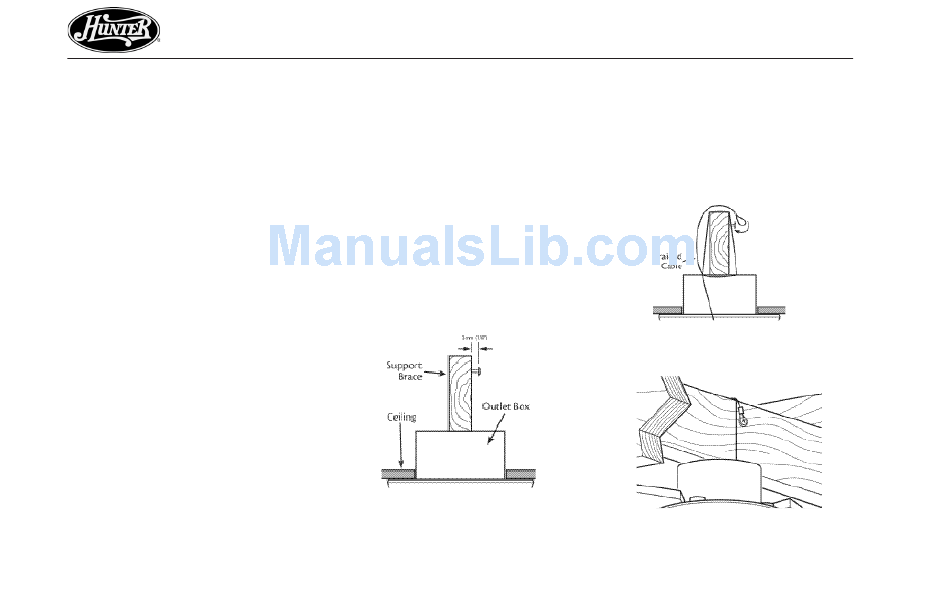

Figure 3a - Installing the Wood Screw
into the Brace
down to the support brace. See
Figure 3c.
7. Coil up the excess cable. Return
Figure 3b - Hooking the Cable
Figure 3c - Tightening the Loop
