A.l Technical Data of Z 80A-CPU
1.0 ARCHITECTURE

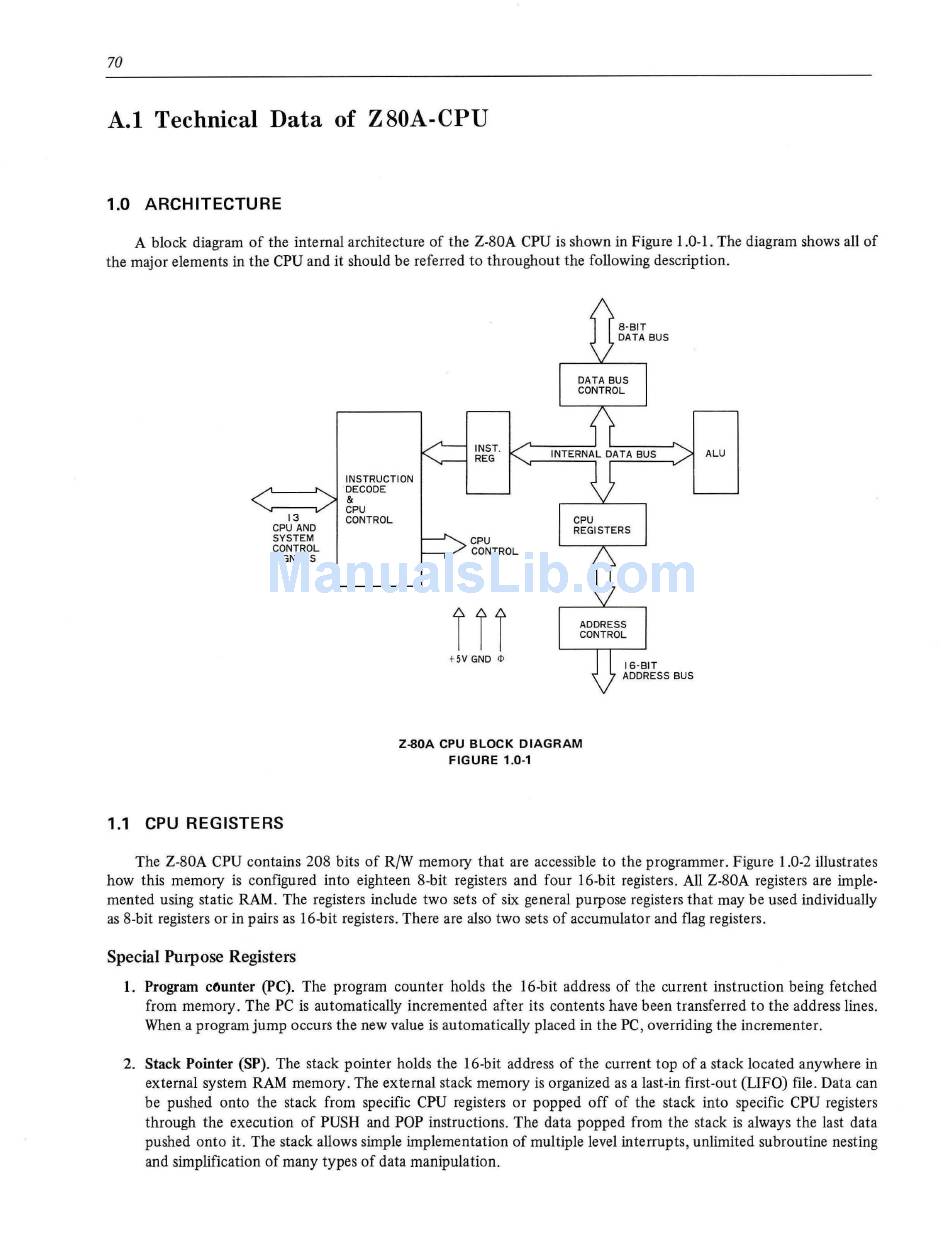

A block diagram of the internal architecture of the Z-80A CPU is shown in Figure 1.0-1. The diagram shows all of
the major elements in the CPU and it should be referred to throughout the following description.
13
CPU AND
SYSTEM
CONTROL
SIGNALS
1.1 CPU REGISTERS
INSTRUCTION
DECODE
&
CPU
CONTROL
r r r
+ 5V GND
<I>
Z-80A CPU BLOCK DIAGRAM
FIGURE 1.0-1
The Z-80A CPU contains 208 bits of R/W memory that are accessible to the programmer. Figure 1.0-2 illustrates
how this memory is configured into eighteen 8-bit registers and four 16-bit registers. All Z-80A registers are imple-
mented using static RAM. The registers include two sets of six general purpose registers that may be used individually
as 8-bit registers or in pairs as 16-bit registers. There are also two sets of accumulator and flag registers.
Special Purpose Registers
1.
Program c()unter (PC). The program counter holds the 16-bit address of the current instruction being fetched
from memory. The PC is automatically incremented after its contents have been transferred to the address lines.
When a program jump occurs the new value is automatically placed in the PC, overriding the incrementer.
2. Stack Pointer (SP). The stack pointer holds the 16-bit address of the current top of a stack located anywhere in
external system RAM memory. The external stack memory is organized as a last-in first-out {LIFO) file. Data can
be pushed onto the stack from specific CPU registers or popped off of the stack into specific CPU registers
through the execution of PUSH and POP instructions. The data popped from the stack is always the last data
pushed onto it . The stack allows simple implementation of multiple level interrupts, unlimited subroutine nesting
and simplification of many types of data manipulation.
