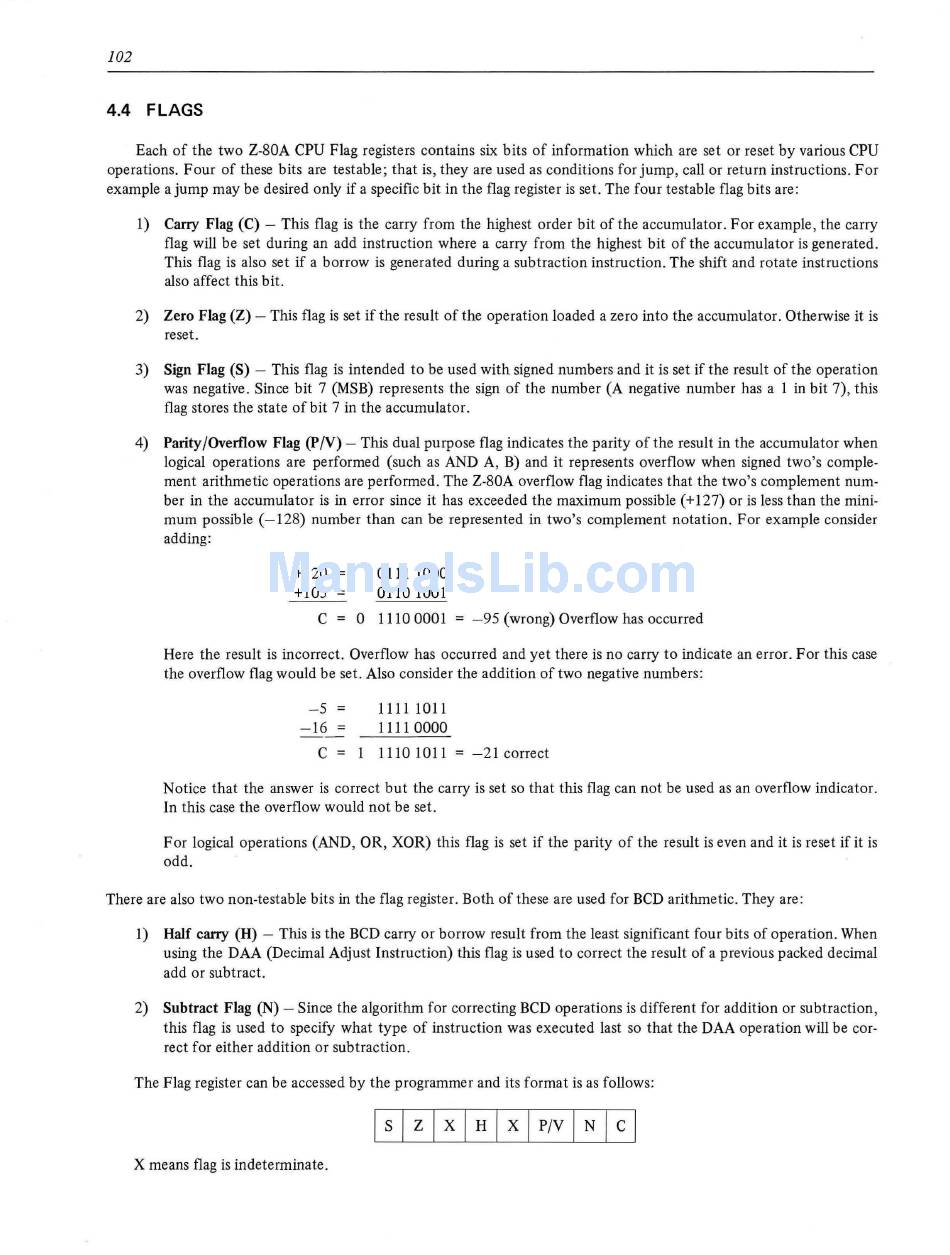

102
4.4 FLAGS
Each of the two Z-80A CPU Flag registers contains six bits of information which are set or reset by various CPU
operations. Four of these bits are testable; that is, they are used as conditions for jump, call or return instructions. For
example a jump may be desired only if a specific bit in the flag register is set. The four testable flag bits are :
1) Carry Flag (C)- This flag is the carry from the highest order bit of the accumulator. For example, the carry
flag will be set during an add instruction where a carry from the highest bit of the accumulator is generated .
This flag is also set if a borrow is generated during a subtraction instruction. The shift and rotate instructions
also affect this bit.
2) Zero Flag (Z) - This flag is set if the result of the operation loaded a zero into the accumulator. Otherwise it is
reset.
3) Sign Flag {S) - This flag is intended to be used with signed numbers and it is set if the result of the operation
was negative . Since bit 7 (MSB) represents the sign of the number (A negative number has a 1 in bit 7), this
flag stores the state of bit 7 in the accumulator.
4) Parity
/Overflow Flag (P /V) -
This dual purpose flag indicates the parity of the result in the accumulator when
logical operations are performed (such as AND A, B) and it represents overflow when signed two's comple-
ment arithmetic operations are performed. The Z-80A overflow flag indicates that the two's complement num-
ber in the accumulator is in error since it has exceeded the maximum possible (+127) or is less than the mini-
mum possible ( -128) number than can be represented in two's complement notation . For example consider
adding:
+ 120 0 111 1000
+105 0110 1001
C 0 1110 0001
=
- 95 (wrong) Overflow has occurred
Here the result is incorrect. Overflow has occurred and yet there is no carry to indicate an error. For this case
the overflow flag would be set. Also consider the addition of two negative numbers:
- 5
=
-16
=
c
=
11111011
1111 0000
11101011
=
-21 correct
Notice that the answer is correct but the carry is set so that this flag can not be used as an overflow indicator.
In this case the overflow would not be set.
For logical operations (AND , OR, XOR) this flag is set if the parity of the result is even and it is reset if it is
odd.
There are also two non-testable bits in the flag register. Both of these are used for BCD arithmetic. They are:
1) Half carry (H) - This is the BCD carry or borrow result from the least significant four bits of operation. When
using the DAA (Decimal Adjust Instruction) this flag is used to correct the result of a previous packed decimal
add or subtract.
2) Subtract Flag (N) -Since the algorithm for correcting BCD operations is different for addition or subtraction ,
this flag is used to specify what type of instruction was executed last so that the DAA operation will be cor-
rect for either addition or subtraction .
The Flag register can be accessed by the programmer and its format is as follows :
I
s
I
z
I
X
I
H X P/V N
I
c
I
X means flag is indeterminate.
