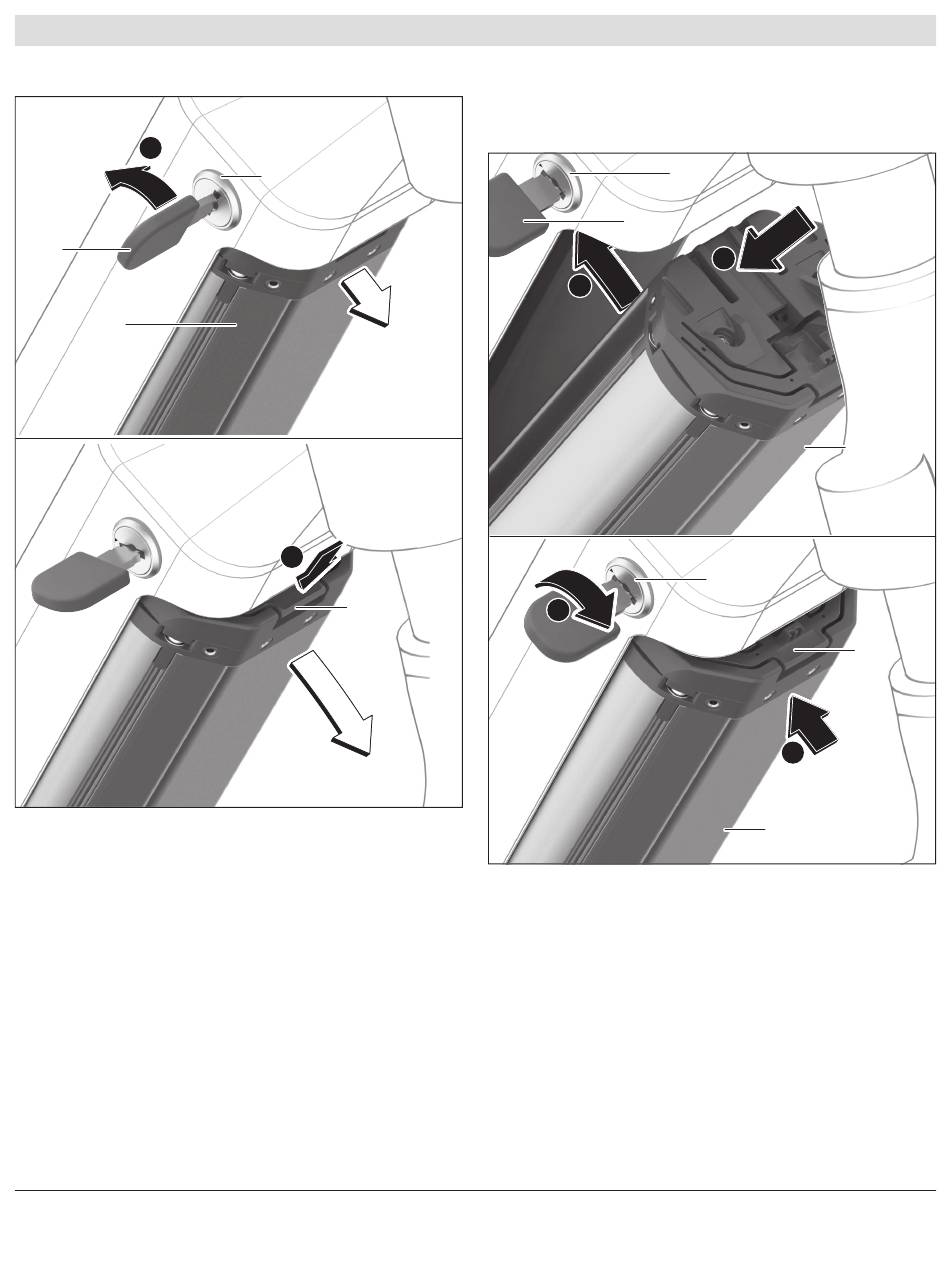

Removing the PowerTube Battery (pivot)
1
(1)
(4)
❶ To remove the PowerTube battery (4), open the
battery lock (2) using the key (1). The battery
will be unlocked and fall into the safety re-
straint (8).
Note: When removing the eBike battery, hold it firmly
in your hand.
❷ Hold the battery firmly and press on the safety
restraint (8) from above. The battery will be un-
locked completely and fall into your hand. Then
pull the battery out of the frame.
Note: As a result of varying designs, the battery may
need to be inserted and removed using a different
0 275 U07 3PX | (20.03.2023)
(2)
2
(8)
method. Read the eBike manufacturer's operating in-
structions.
Inserting the PowerTube Battery (pivot)
(1)
2
4
In order for the battery to be inserted, the key (1)
must be inserted into the battery lock (2) and the bat-
tery lock must be open.
❶ To insert the PowerTube battery (4), place it so
that its contacts are in the lower holder of the
frame.
❷ Twist the battery upwards until it is held by the
safety restraint (8).
❸ Hold the battery lock open with the key and
press the battery upwards until you hear it click
into place.
(2)
1
(4)
(2)
3
(4)
