❹ Always secure the battery by closing the battery
lock (2) – otherwise the battery lock may open
and the battery may fall out of the holder.
Always remove the key (1) from the battery lock (2)
after locking it. This prevents both the key from falling
out and the eBike battery from being removed by
unauthorized third parties when the eBike is not in
use.
Removing the PowerTube Battery (axial)
(2)
(3)
(11)
(1)

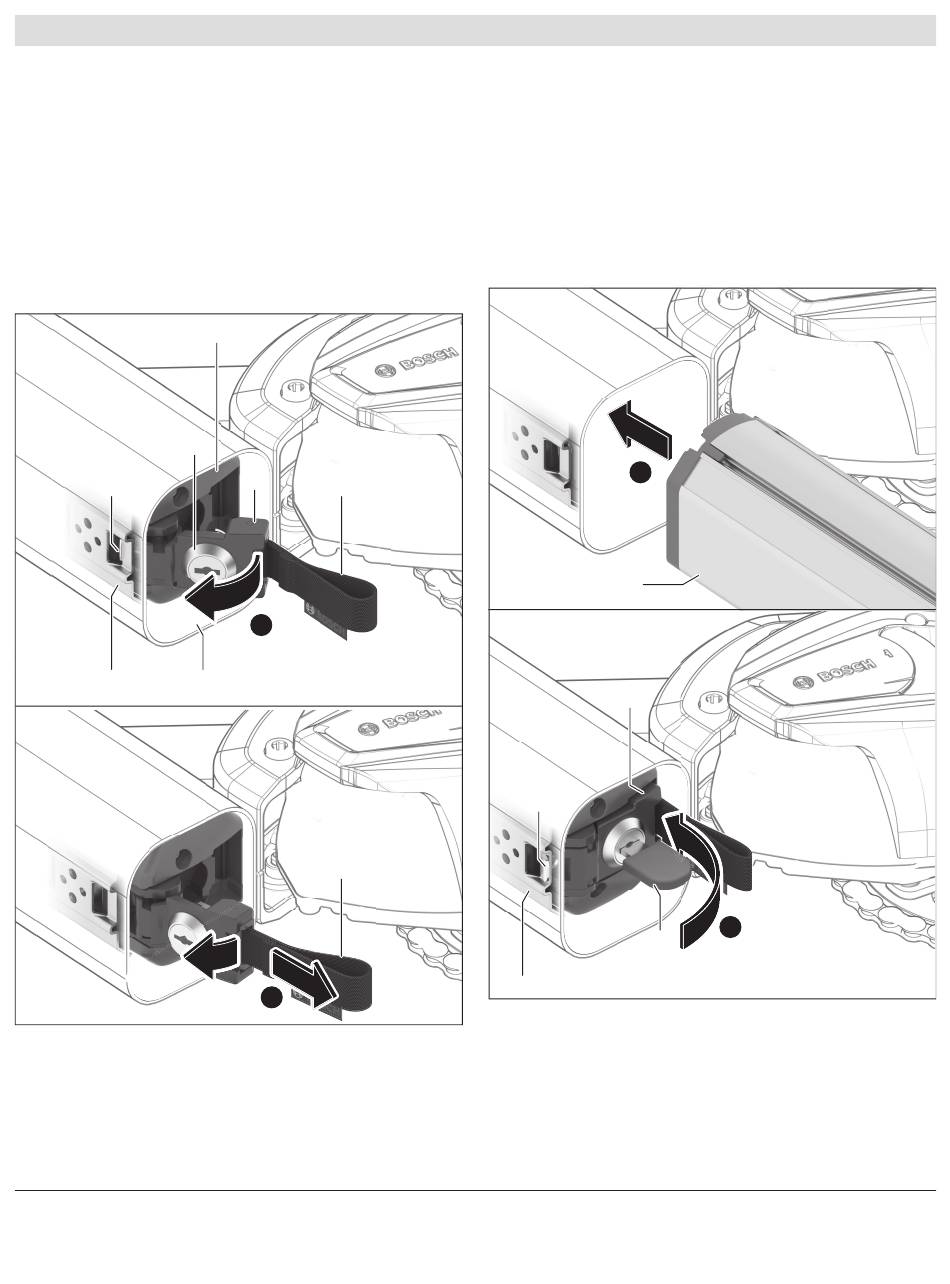

❶ To remove the PowerTube battery (12), open
the battery lock (2) using the key (1), remove
the key (1) and fold the locking mechanism (9)
to the side.
Bosch eBike Systems
(12)
(9)
(10)
1
(10)
2
❷ Use the pull strap (10) to pull the battery (12)
out of the frame and keep hold of it so that it
does not fall out of the frame.
Note: As a result of varying designs, the battery may
need to be inserted and removed using a different
method. Read the eBike manufacturer's operating in-
structions.
Inserting the PowerTube Battery (axial)
1
(12)
(9)
(3)
(1)
(11)
In order for the battery to be inserted, the locking
mechanism (9) must be folded to the side. At this
point, the key (1) must not be inserted in the battery
lock (2).
❶ To insert the PowerTube battery, insert it into
the frame with the socket for the charging con-
English – 19
2
