Use and Care Manual

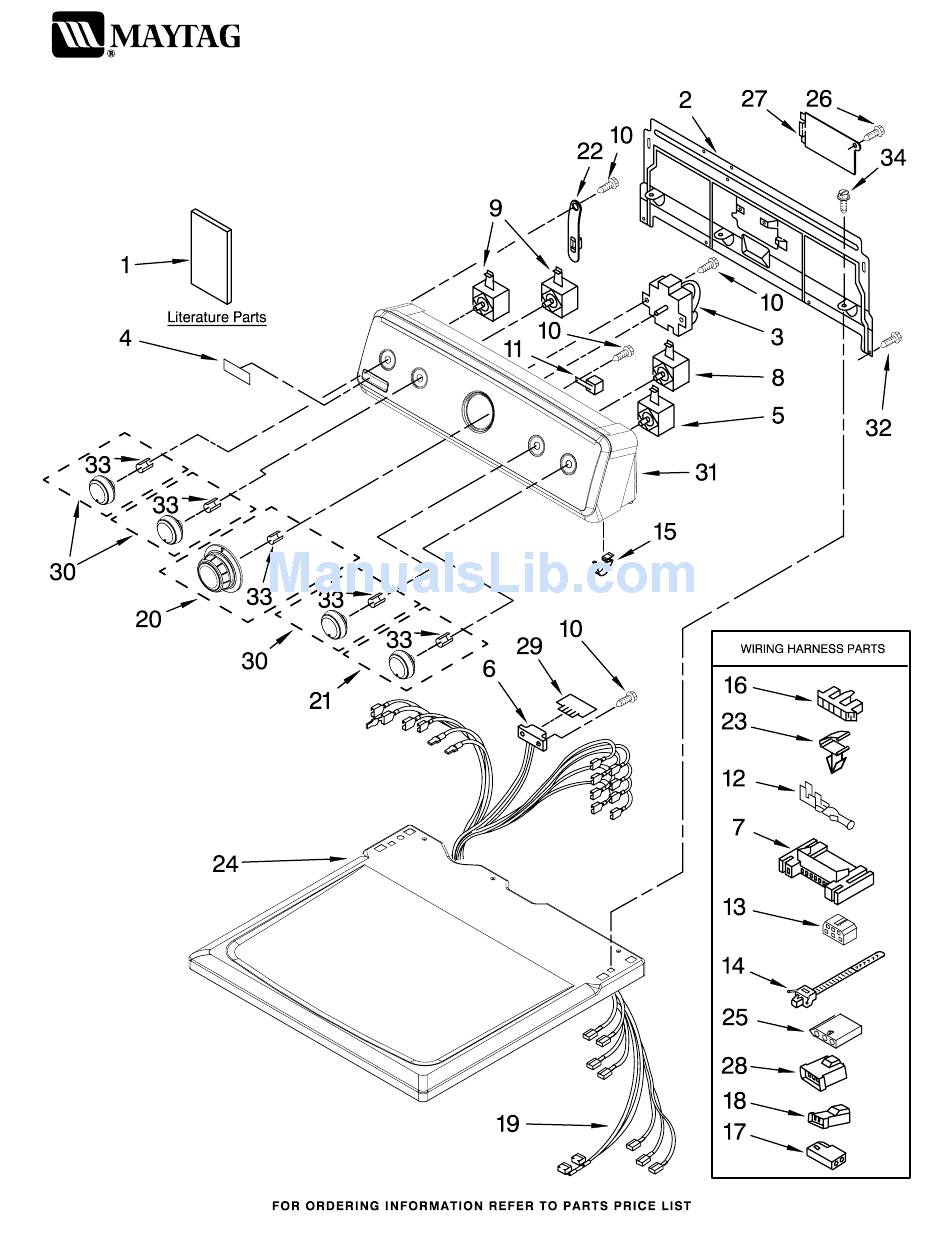

TOP AND CONSOLE PARTS
27" GAS DRYER
For Models: MGD5801TW0
(White/Grey)
10−07 Printed in U.S.A.(LT)
1
Part No. W10169357 Rev. A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maytag MGD5801TW0
Summary of Contents for Maytag MGD5801TW0
- Page 1 TOP AND CONSOLE PARTS 27" GAS DRYER For Models: MGD5801TW0 (White/Grey) 10−07 Printed in U.S.A.(LT) Part No. W10169357 Rev. A...
- Page 2 Push−To−Start 3391885 Connector, Edge 3395683 Connector (Motor) 8530169 Switch, Rotary Temperature 3405156 Switch, Rotary 8533971 Screw, 8−18 x 5/16 TOP AND CONSOLE PARTS For Models: MGD5801TW0 (White/Grey) Illus. Part DESCRIPTION 694419 Mini−Buzzer 94614 Terminal 3347243 Connector, 6−Circuit 3391018 Tie, Cable...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: MGD5801TW0 (White/Grey) W10169357... - Page 4 3398948 Wire, Jumper (Broken Belt Switch) 8563747 Exhaust Pipe & Bracket 233520 Washer, Thrust 297092 Clip (2) CABINET PARTS For Models: MGD5801TW0 (White/Grey) Illus. Part DESCRIPTION 20 W10121334 Washer 3387560 Hinge, Door (R.H.) 3387559 Hinge, Door (L.H.) 3387565 Spring, Door (2)
- Page 5 BULKHEAD PARTS For Models: MGD5801TW0 (White/Grey) W10169357...
- Page 6 3392258 Wire 487909 Screw, 8−15 x 1/2 3394984 Door, Lint Screen 8066224 Exhaust Pipe 16 W10001120 Nut, 3/8−16 (L.H.) 8520836 Bulkhead, Rear BULKHEAD PARTS For Models: MGD5801TW0 (White/Grey) Illus. Part DESCRIPTION 3387459 Washer, Support 8575325 Shaft, L.H. Thread 690997 Ring, Tri 8536973 Roller, Support 695240 Screw, 8−18 x 1/2...
-
Page 7: Burner Assembly
8576353 BURNER ASSEMBLY For Models: MGD5801TW0 (White/Grey) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−153A W10169357... - Page 8 8576353 BURNER ASSEMBLY For Models: MGD5801TW0 USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8576353 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) W10169357 For Models: MGD5801TW0 (White/Grey) Illus. Part DESCRIPTION ACCESSORY PARTS 80047 Kit, Dryer Repair 8522199 Kit, Dryer Vent Testing 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 3406911 Dry Rack PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.)
