- Page 1 CABINET PARTS 29"ELECTRIC DRYER For Model: MED6400TQ0, MED6400TB0 (White) (Black) 11−07 Litho in U.S.A. (LT.) Part No. W10118240 Rev. A...
-
Page 2: Cabinet Parts

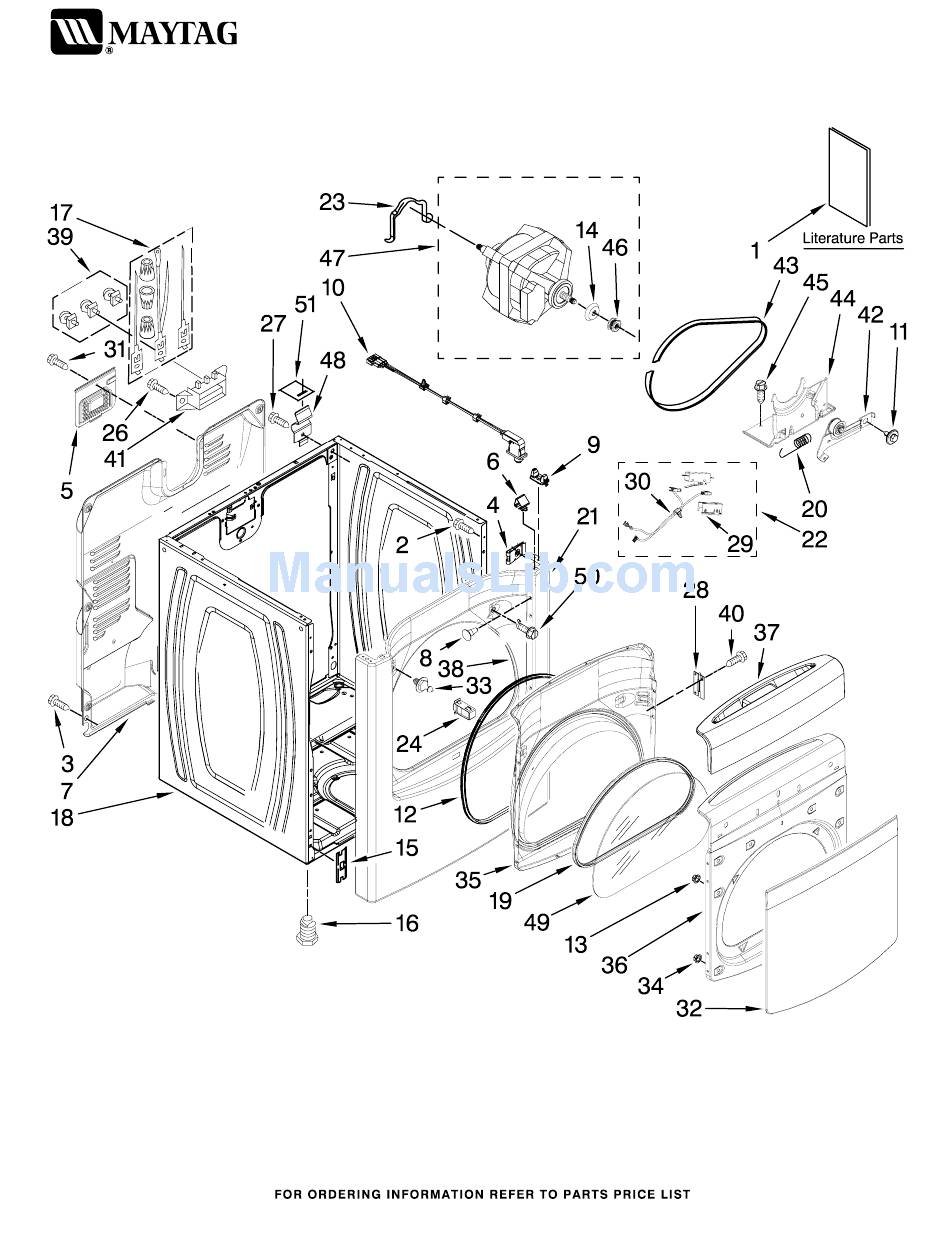

8578538 Restrainer, Belt 3394083 Clip, Front Panel (2) 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length Package of 2) (Not Included) CABINET PARTS For Model: MED6400TQ0, MED6400TB0 (White) (Black) Illus. Part DESCRIPTION 279318 Terminal, Tinned & Brass (3) (Includes Illus. 39) - Page 3 TOP AND CONSOLE PARTS For Model: MED6400TQ0, MED6400TB0 (White) (Black) W10118240...
- Page 4 TOP AND CONSOLE PARTS For Model: MED6400TQ0, MED6400TB0 (White) Illus. Part DESCRIPTION 337686 Screw 8558863 Bracket, Console 237446 Washer (Top/Chute) 4 W10051096 User Interface Panel, Console W10120084 White W10120085 Black 3196537 Screw, 8−18 x 5/8 8564265 Cover, Rear 8 W10003770 Screw, 6−19 x 3/64...
- Page 5 BULKHEAD PARTS For Model: MED6400TQ0, MED6400TB0 (White) (Black) W10118240...
- Page 6 BULKHEAD PARTS For Model: MED6400TQ0, MED6400TB0 (White) (Black) Illus. Part DESCRIPTION 8544805 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3387459 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 8573836 Shield, Exhaust 8566498 Thermostat, HI−Limit W10169881 Kit, Thermal Cut−Off (Includes Illus.
- Page 7 OPTIONAL PARTS (NOT INCLUDED) W10118240 For Model: MED6400TQ0, MED6400TB0 (White) (Black) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair W10071550 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.)
