Recessed water line
24"
Cabinet
(Single Trim Kit shown.)
A
C
B
Reversible Kickplate
All-Freezer
Built-In Installation
(without Trim Kit)
Cutout
Single Unit

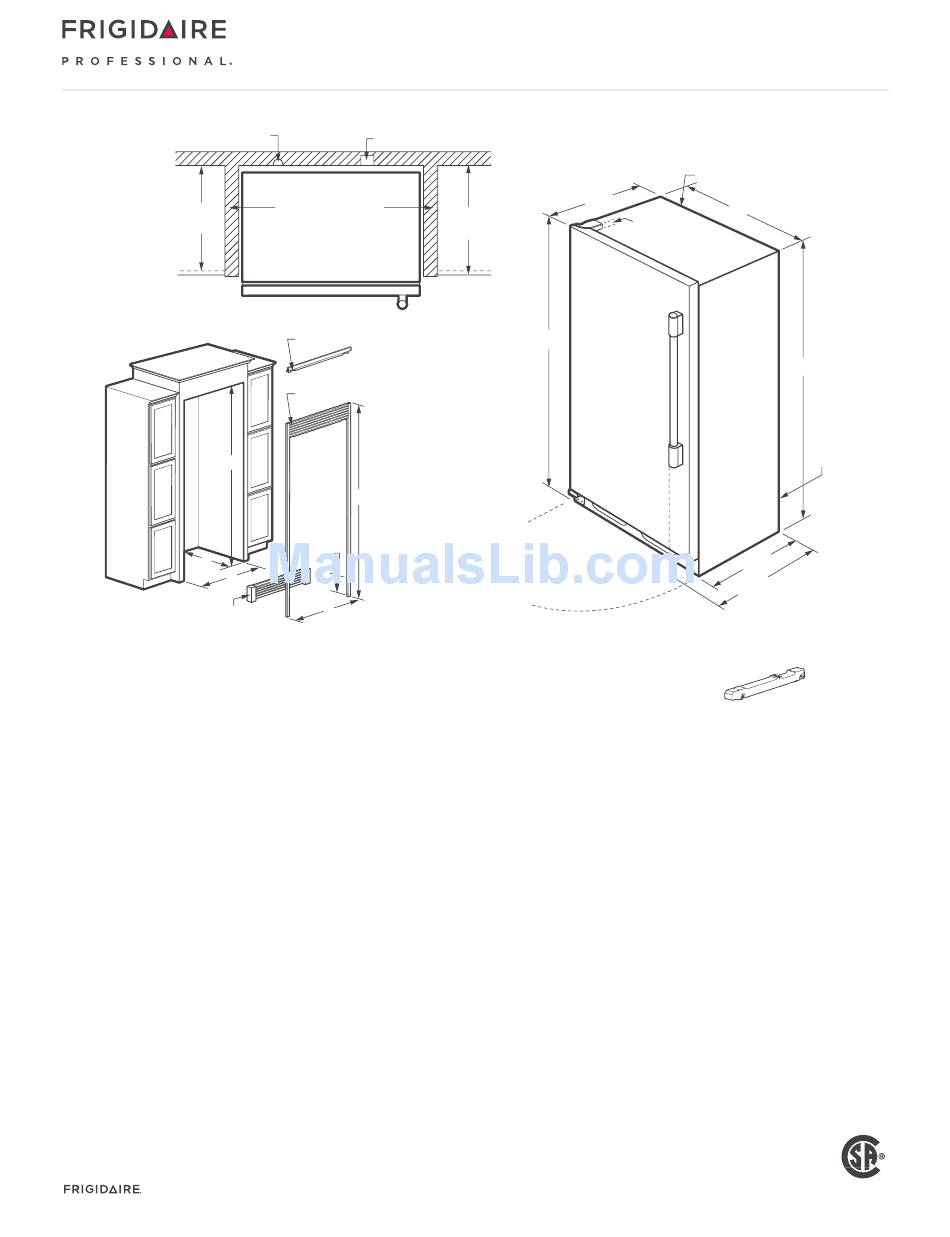

Dimensions
(A) 72" (B) 33" (C) 25
Double Unit (Side-by-Side)
(A) 72" (B) 66" (C) 25
Built-In All-Freezer Specifications
Product Shipping Weight – 245 Lbs.
•
•
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition of
National Electrical Code (NFPA 70) and local codes & ordinances.
•
Voltage Rating – 115V / 6 0 Hz / 2 0 Amps
Connected Load (kW Rating) @ 115 Volts = 0.55 kW
•
•
Amps @ 115 Volts = 15 Amps
Always consult local and national electric & plumbing codes.
•
•
Water line for ice maker can enter opening through floor or rear wall Copper
tubing recommended between cold water line and water connection
location. Water line tubing recommended is 48" minimum length by 1/4"
diameter. Installation of easily accessible shutoff valve in water line required.
Minimum 25-1/4" depth requires recessed electrical outlet and copper water line.
•
•
To allow for ease of installation, tape excess power cord to back of unit.
•
To allow for ease of moving out side-by-side units after installation, 84"
minimum length of coiled copper tubing recommended.
•
When installing freezer adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended
to allow for optimum 140° door swing, providing complete drawer / crisper
access and removal. (Absolute 4" minimum clearance will ONLY allow for
90° door swing which will provide limited drawer / crisper access with
restricted removal.)
•
Minimum 3/8" clearance required for sides and top of refrigerator or freezer
with 1" clearance at rear to allow for ease of installation, proper air circulation,
and plumbing / e lectrical connections.
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
•
•
FPFU19F8R 07/15
Recessed electrical outlet
25
/
" min. side panels,
1
4
/
" min. width
1
2
Countertop
(Trim Kit installation requires
/
" min. width)
3
4
Top Trim Piece
Optional Trim Kits
(for 75" opening)
& Dimensions
Kits include top and side trim
pieces, louvered grille, reversible
Louvered Grille
kickplate and leveling system
(for 79" opening)
to fit 75" or 79" opening height.
Single Louvered Trim Kit
PN # TRIMKITEZ1
(D) 75
/
" or 79
1
8
Trim Kit
Double Louvered Trim Kit
PN # TRIMKITEZ2
D
(Includes hardware to secure
side-by-side units together.)
Cut off
(D) 75
/
" or 79
1
8
4" for 75"
opening
Note: Both kits attach
directly to cabinetry through
top trim piece or louvered
4"
grille to stabilize unit(s).
Refer to detailed kit installation
E
instructions packed with
kit or on web.
Built-In Installation
(with Trim Kit & Leveling System)
Single Unit
/
" min.
(A) 75" or 79" (B) 33" (C) 25
1
†
4
Double Unit (Side-by-Side)
/
" min.
(A) 75" or 79" (B) 66" (C) 25
1
†
4
1-800-265-8352
frigidaire.ca
•
•
© 2015 Electrolux Major Appliances, NA
26
/
"
1
2
25"
7
71
/
"*
3
8
/
" (E) 34
/
"
1
3
8
4
/
" (E) 67
/
"
1
1
8
8
Allow at least
57
/
" for overall depth
3
8
with door in 90°
open position
Leveling System
(2) per unit raises height 2-9/16" min.
Only available with trim kits.
/
" min.
1
†
4
Minimum depth from face of cabinet side
†
/
" min.
1
†
panels and requires recessed electrical outlet.
4
•
To ensure optimum performance, (do not install in areas where temperature
drops below 55° F or rises above 110° F ) and avoid installing in direct sunlight
or close proximity to range, dishwasher or other heat source.
•
Freezer must be placed on level surface of hard material, same height as
flooring. Surface must support approximately 800 lbs. when fully loaded.
Unit equipped with 4-point leveling.
"Built-In Look" Specifications
•
Minimum opening of 72" H x 33" W x 25-1/4" D required for single-unit
"Built-In Look" installation; 66" W required for double-unit installation. (72" H
to be measured from finished floor to underside
of soffit or overhead cabinet.)
•
Remove all wall / floor moulding prior to built-in installation.
Optional Trim Kit Specifications
If optional Single or Double Louvered Trim Kit is to be used, different cutout
•
dimensions are required. Kit can be adapted to fit either 75" or 79" opening
height. (Refer to cutout dimensions on this page and detailed Louvered Trim
Kit installation instructions included with kit or on web.)
•
Remove all wall / floor moulding prior to built-in installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.ca for detailed instructions.
Optional Accessories
•
Single Louvered Trim Kit – (PN # TRIMKITEZ1).
•
Double Louvered Trim Kit – (PN # TRIMKITEZ2).
•
PureAdvantage® Air Filter
Replacement Cartridge – (PN # 241754001).
All Freezer
FPFU19F8RF
Water inlet location (left bottom rear)
and ice maker connection
location (left top rear)
32"
/
"
16
70
/
"*
3
16
Power
cord
location
(right
bottom
rear)
23
/
"
1
2
28
/
" to handle
1
4
extension
*Height without
leveling system
Printed in Canada
18.6 Cu. Ft.
Specifications
subject to change.
