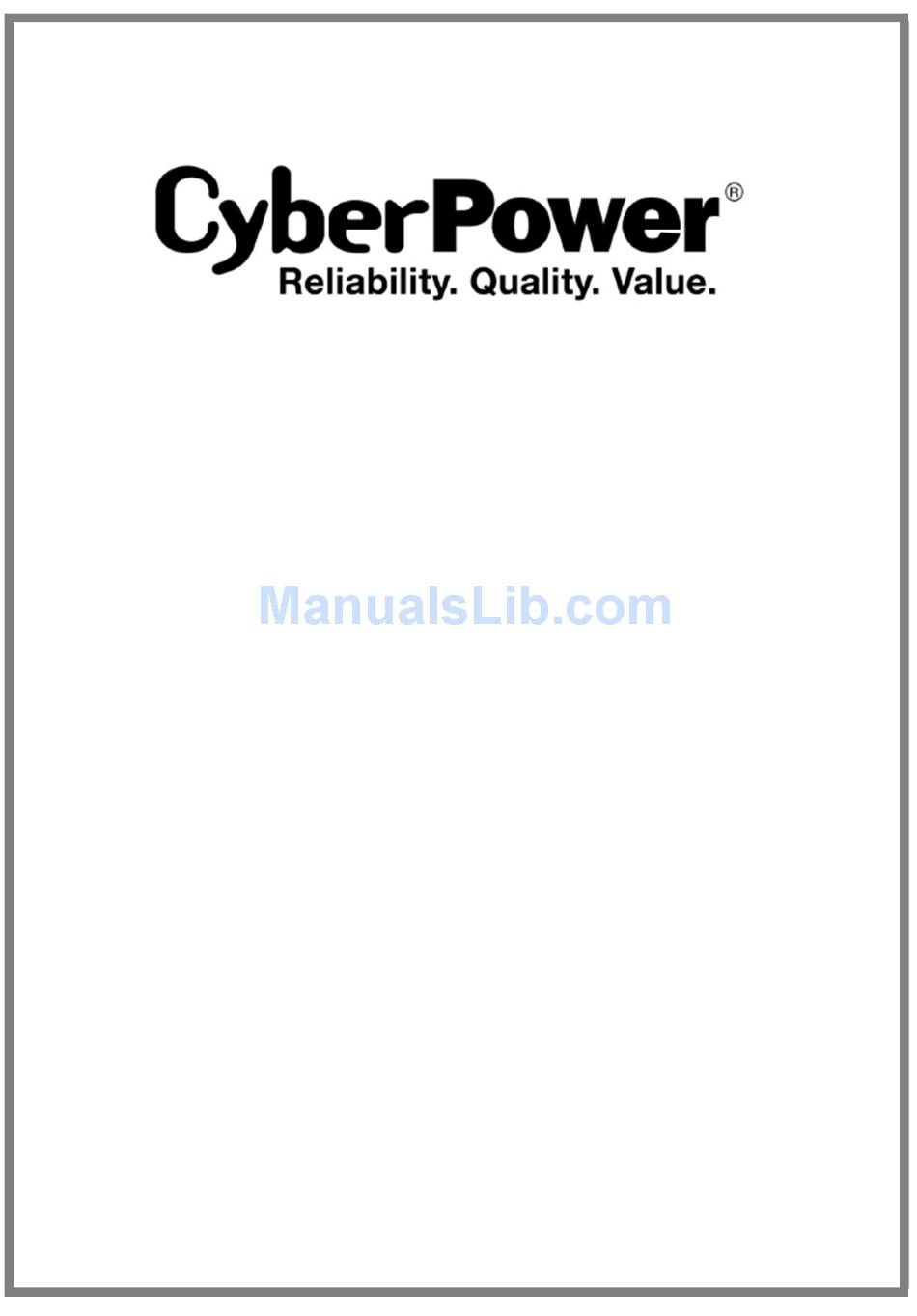

  • Page 1 User’s Manual...

  • Page 2: Table Of Contents

    CONTENT: 1. Safety and EMC Instructions .............. 1 1.1 Installation..................1 1.2 Operation ..................2 1.3 Maintenance, Servicing and Faults ..........2 1.4 Transport ..................3 1.5 Storage .................... 3 1.6 Standards ..................4 2. Description of Commonly Used Symbols ......... 5 3.
  • Page 3 7.3 Trouble Shooting In Else Cases ............ 38 8. Battery Maintenance ................39 9. Communication Port ................40 9.1 USB Interface ................40 9.2 Dry contact Interface(optional)............40 9.3 RS-232 Interface ……….............. 40 9.4 Intelligent slot................. 40...

  • Page 4: Safety And Emc Instructions

    1. Safety and EMC Instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1.1 Installation This is permanently connected equipment, and it must be installed by qualified maintenance personnel. Condensation may occur if the UPS is moved directly from a cold to a warm environment.

  • Page 5: Operation

    With the installation of the equipment, the sum of the leakage current of the UPS and the connected load does not exceed 5% of rated value of input current. Do not block ventilation openings in the UPS’s housing. Ensure allow at least 50cm of space on front and rear of the UPS. 1.2 Operation Do not disconnect the mains cable on the UPS or the building wiring terminals during operation since this would remove the...

  • Page 6: Transport

    Before carrying out any kind of service and/or maintenance, isolate UPS and disconnect the batteries. Verify that no current is present and no hazardous voltage exists in the capacitor or BUS capacitor. Batteries must be replaced only by qualified personnel. Batteries have a high short-circuit current and pose a risk of shock.

  • Page 7: Standards

    1.6 Standards * Safety IEC/EN 62040-1 * EMI Conducted Emission......:IEC/EN 62040-2 Category C3 Radiated Emission......:IEC/EN 62040-2 Category C3 * EMS Level 3 Level 3 Level 4 Level 4 CS……………………………………...:IEC/EN 61000-4-6 Level 3 MS……………………………………..: IEC/EN 61000-4-8 Level 3 Voltage Dips………………………..: IEC/EN 61000-4-11 Low Frequency Signals.....:IEC/EN 61000-2-2 Warning: This is a product for commercial and industrial application in the needed to prevent disturbances.

  • Page 8: Description Of Commonly Used Symbols

    2. Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning: Symbol and Explanation Symbol Explanation Symbol Explanation Alert you to pay Caution of high special voltage...

  • Page 9: Introduction

    3. Introduction This On-Line series is an uninterruptible power supply incorporating double-converter technology. It provides perfect protection specifically for computer equipments, communication servers, and data centers. The double-converter principle eliminates all mains power disturbances. A rectifier converts the alternating current from the mains power to direct current.

  • Page 10: Electrical Specifications

    Outstanding adaptability to the worst mains input condition.  Extra wide input voltage, frequency range and waveform, avoid excessive dissipating limited battery energy. Internal charger could be up to 4Amps to decrease recharging  time of battery. Optional external large charging current charger which is up to 12Amps could be supplied.

  • Page 11: Operating Environment

    Wave form sine Load type PF 0.5~1, lagging < 2% @ full linear load THDV <5% @ full nonlinear load In Line mode**: 10 min 105~125% 1 min 125~150% 10 S >150% Overload 100 mS >170% In Battery mode: 2 min 105~125% 30 S 125~150% 100 mS...

  • Page 12: Typical Backup Time (Typical Values At 25°C In Minutes)

    3.4 Typical Backup Time (Typical values at 25°C in minutes) Model No. 100 % Load 3.5 Dimensions and Weights Dimensions W×H×D Net Weight Model No. (mm) (kg) 260 x 708 x 550 6KXL 260 x 708 x 550 260 x 708 x 550 8KXL 260 x 708 x 550 260 x 708 x 550...
  • Page 13 USB Port RS 232 EPO Port Dry contact (optional) Intelligent Slot Parallel Port Maintenance Switch Input Breaker Terminal Block 6K(XL) 10K(XL) Fig. 3-1 Back View of 6K(XL)/10K(XL) *The back view of 8K(XL) models are same as 10K(XL) models.

  • Page 14: Installation

    4. Installation The system may be installed and wired only by qualified electricians in accordance with applicable safety regulations! When installing the electrical wiring, please note the nominal amperage of your incoming feeder. 4.1 Moving to The Installation Site The series UPS has wheels making it easy to move the UPS to the installation site after it has been unpacked.

  • Page 15: Input And Output Power Wires And Protective Earth Ground Installation

    2. Check all packaging materials to ensure that no items are missing. The shipping package contains: ● A UPS ● A user’s manual ● A USB cable ● A RS232 cable (optional) ● A parallel cable ● A parallel port cover plate ●...
  • Page 16 4.3.2 Installation For safety, please cut off the mains power switch before installation! Use cable cross section and protective device specification Model 8/10k Protective earthing conductor (8AWG) 10 mm (6AWG) Min cross section Input L, N, G (8AWG) 10 mm (6AWG) Min conductor cross section Input breaker...
  • Page 17 Fig.4-6 Typical external isolating device installation 2) No matter the UPS is connected to the mains power or not, the output of the UPS may be electrically live. The parts inside the unit may still have hazardous voltage after turning off the UPS. To make the UPS have no output, power off the UPS, and then cut off the mains power supply, wait the UPS shut down completely.
  • Page 18 8) Connect other input and output wires to the corresponding input and output terminals according to the following diagram. 9) It is requested to use the accessorial terminal splices which can be compacted on the wires tightly, to ensure the connection between the wires and the terminal block is reliable.

  • Page 19: Operating Procedure For Connecting With The External Battery

    14) If it is necessary to connect the inductance load such as a monitor or a laser printer to the UPS, the start-up power should be used for calculating the capacity of the UPS, as its start-up power consumption is too big to make the UPS which capacity is small fail easily.

  • Page 20: Epo Connection

    Set the external battery pack breaker in “OFF” position and connect the 20 pieces of batteries in series. Connect the external battery pack to the battery terminals. Check the polarity of connection is correct. Set the breaker of the battery pack in the “ON” position. Set the mains input breaker in the “ON”...

  • Page 21: Operation

    5. Operation 5.1 Display Panel The UPS has a five-button, dot matrix LCD with white text and a blue background. Besides the LCD, the UPS has four colorized LEDs to provide more convenient information. Fig. 5-1 Control Panel Table 5-1 Control Button Functions The Button Function Illustration...
  • Page 22 Press this button more than 200mS to confirm Enter current selection or enter the current selection. Exit Press this button more than 200mS to cancel current selection and return to previous menu. Press this button more than 200mS to move the focus to the up menu Down Press this button for more than 200mS to move...
  • Page 23 The UPS provides useful information about UPS itself, load status, battery, events, identification, and settings through the front panel display. During powering on, the LCD would display the CyberPower logo for several seconds and then enter to the default page which shows the UPS status summary.

  • Page 24: Turning On And Turning Off Ups

    Check all the connection is correct. Check the breaker of external battery pack is in “ON” position. Set input breaker in “ON” position. At this time the fan begins to rotate, LCD will show “CyberPower”. Then LCD will show the default UPS status summary screen after UPS finishing self-test.

  • Page 25: Lcd Operation

    5.2.3 Turning off UPS with mains To turn off the inverter of UPS by pressing button continuously for more than 3s and the buzzer will beep for 3s. The UPS will turn into Bypass mode at once. When completing the above action, UPS output voltage is still present.
  • Page 26 Fig. 5-2 status menu...
  • Page 27 5.3.2 The UPS main menu Buzzer mute Buzzer mute Bat test Bat test Bat test Single UPS off Single UPS off Bat test Event 0001:12:00:00 Utility abnormal 1/10 Alarm 0002:12:00:00 Overload 1/10 Events&alarms Fault Fault 0003:12:00:00 Clear all events Over tempearture Clear all faults Clear all events Control...
  • Page 28 5.3.3 The control menu By pressing on the menu of “Control”, the display would enter the next control menu screen. Single UPS turn off: is one command to turn off one UPS which is operated currently in a parallel system, and other UPSs continue working to supply the load in the parallel system.
  • Page 29 5.3.4 The setting menu Please contact your local distributor for further information before using the settings. Some settings would change the specification, and some settings would enable or disable some functions. The unsuitable option set by user may result in potential failures or protecting function loss, even directly damage the load, battery or UPS.
  • Page 30 Table 5-4 Submenu item Optional Values Default value User password enabled/disabled disabled Audio alarm enabled/disabled enabled Site wiring fault alarm enabled/disabled enabled Ambient temperature enabled/disabled enabled warning DC start enabled/disabled enabled Auto Restart enabled/disabled enabled Automatic overload restart enabled/disabled enabled AutoBypass enabled/disabled enabled...

  • Page 31: Special Function

    6. Special Function The series UPS has some special functions, which could satisfy some special application of user. And the functions have own features, please contact your local distributor for further information before using the function. 6.1 ECO Function 6.1.1 Brief introduction of ECO function If ECO function is set to enable, after the UPS is turned on, the power used by the load is directly supplied from the mains power via internal filter while the utility power is in normal range, so the...

  • Page 32: Converter Function

    6.2 Converter Function 6.2.1 Brief introduction of Converter function In converter mode, the UPS would free run with fixed output frequency (50Hz or 60Hz). Once the mains power is loss or abnormal, the UPS would transfer to Battery mode and the load is supplied continuously.
  • Page 33 6.3.2 Parallel installation and operation How to install a new parallel UPS system: Before installing a new parallel UPS system, user need to prepare the input and output wires, the output breaker, and the parallel cable. Users need to use a standard 25-pin communication cable, which should have 25 cores, corresponding stitches and shield, as the UPS parallel cable.
  • Page 34 Fig. 6-1 Input and output Terminal Block wiring diagram...
  • Page 35 Fig. 6-2 Parallel System Installation Diagram 10) Do not switch on the output breaker of each UPS, switch on the input breaker of the each UPS, the UPS should work in bypass with output, observe their display to check if there are any warning or fault information, measure the output voltage of each UPS separately to check if the voltage difference between them is less than 1V.
  • Page 36 13) Press the button of one UPS, each UPS would start to turn on, after turning on, the UPSs should work parallel in the Line mode. How to join a new UPS to a parallel system: First the parallel system must be installed one main maintenance mechanical switch or static switch.
  • Page 37 Ensure the bypass is normal and the bypass setting is “enable”, remove the cover plate of maintenance switch on the rear panel of each UPS, the UPS system would transfer to bypass automatically, set the own maintenance switch of each UPS from “UPS”...

  • Page 38: Trouble Shooting

    7. Trouble Shooting If the UPS system does not operate correctly, first check the operating information on the LCD display. Please attempt to solve the problem using the table below. If the problem still persists, consult your dealer. 7.1 Trouble Shooting According To Warning Indication Problem Displayed Possible cause Remedy...
  • Page 39 Over Charge Battery is over The UPS will turn off the charged is normal Model Pin Error UPS internal fault Consult dealer. Ambient Over The ambient Check the environment Temperature temperature is too ventilation. high Heatsink Over Inside temperature of Check the ventilation of UPS Temperature UPS is too high...

  • Page 40: Trouble Shooting According To Fault Indication

    7.2 Trouble Shooting According To Fault Indication Problem Displayed Possible cause Remedy Inv Overload Fault Overload Check the loads and remove some non-critical loads. Check if some loads are failed. Byp Overload Fault Overload Check the loads and remove some non-critical loads. Check if some loads are failed.

  • Page 41: Trouble Shooting In Else Cases

    7.3 Trouble Shooting In Else Cases Problem Possible cause Remedy No indication, no No input voltage Check the building wiring and warning tone even input cable. though system is Check if the input breaker is connected to mains closed. power supply BYPASS LED light up Inverter not switched Press On-Switch “I”...

  • Page 42: Battery Maintenance

    8. Battery Maintenance Battery replacement should be performed by qualified personnel. This series UPS only requires minimal maintenance. The  battery used for standard models are value regulated sealed lead-acid maintenance free battery. These models require minimal repairs. The only requirement is to charge the UPS regularly in order to maximize the expected life of the battery.

  • Page 43: Communication Port

    9. Communication Port 9.1 USB Interface The USB port is compliance with USB 1.1 protocol for its communication software. 9.2 Dry contact Interface(optional) This series UPS has independent dry contact interface. Please contact your local distributor for details. 9.3 RS-232 Interface The RS-232 port is available for UPS monitoring, control, and firmware updates.
