Lexmark CS310 Quick Refence Manual

Quick Reference

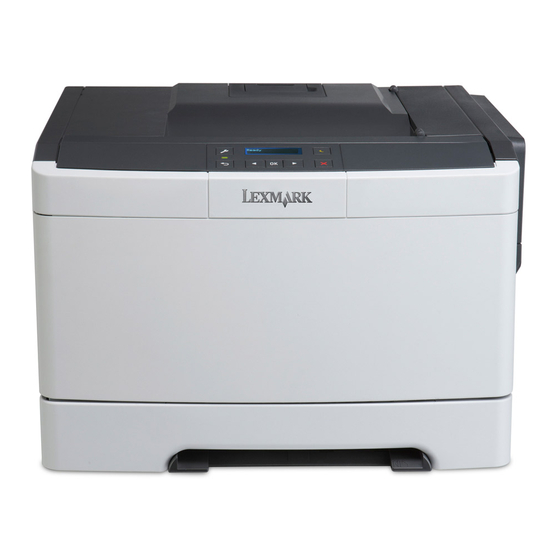

Learning about the printer

Using the printer control panel

1 2
9 8 7 6 5
Use the To
1 Menus button Open the menus.
Notes:
• The menus are available only when the
printer is in Ready state.
• Pressing the button while in a menu
item lets you return to the top level
menu screen.
2 Display View printing options as well as status and
error messages.
3 Sleep button Enable Sleep mode or Hibernate mode.
Notes:
•
Pressing any hard button, sending a
print job, or performing a power on
reset with the main power switch
wakes the printer from Sleep mode.
• Pressing the Sleep button or
performing a power on reset with the
main power switch wakes the printer
from Hibernate mode.
4 Stop button Stop printer activity.
Use the
5 Right arrow
button
6 Select button
7 Left arrow
button
3
8 Back button
9 Indicator light
Understanding the colors of the Sleep
button and indicator lights
The colors of the Sleep button and indicator lights on the control panel
4
signify a printer status or condition.
Indicator light
Off
Blinking green
Solid green
Blinking red
Sleep button light
Off
Solid amber
Blinking amber
Blinking amber for 0.1
second, then goes
completely off for 1.9
seconds in a slow, pulsing
pattern
To
• Scroll through menus or move between
screens and menu options.
•
Increase the numeric value of an option
or setting being displayed.
•
Select menu options.
• Save settings.
• Scroll through menus or move between
screens and menu options.
• Decrease the numeric value of an option
or setting being displayed.
Return to the previous screen.
Determine the status of the printer.
Printer status
The printer is off or in Hibernate mode.
The printer is warming up, processing data,
or printing.
The printer is on, but idle.
The printer requires user intervention.
Printer status
The printer is off, idle, or in Ready state.
The printer is in Sleep mode.
The printer is entering or waking from
Hibernate mode.
The printer is in Hibernate mode.
1

Using the Embedded Web Server

Note: This feature is available only in network printers or printers
connected to print servers.
If the printer is installed on a network, then you can use the Embedded
Web Server to do the following:
• View the virtual display of the printer control panel.
• Check the status of the printer supplies.
• Configure supply notifications.
• Configure printer settings.
• Configure network settings.
• View reports.
To access the Embedded Web Server for your printer:
1
Obtain the printer IP address:
• From the TCP/IP section in the Network/Ports menu
• By printing a network setup page or menu settings page, and
then finding the TCP/IP section
Notes:
–
An IP address appears as four sets of numbers separated
by periods, such as 123.123.123.123.
– If you are using a proxy server, then temporarily disable
it to load the Web page correctly.
2 Open a Web browser, and then type the printer IP address in the
address field.
3
Press Enter.
The Embedded Web Server page appears.
Loading paper and specialty
media
Note: The Embedded Web Server is available only in network
printers or printers connected to print servers.

Setting the paper size and type

1
From the printer control panel, navigate to:
> Paper Menu > > Paper Size/Type >
