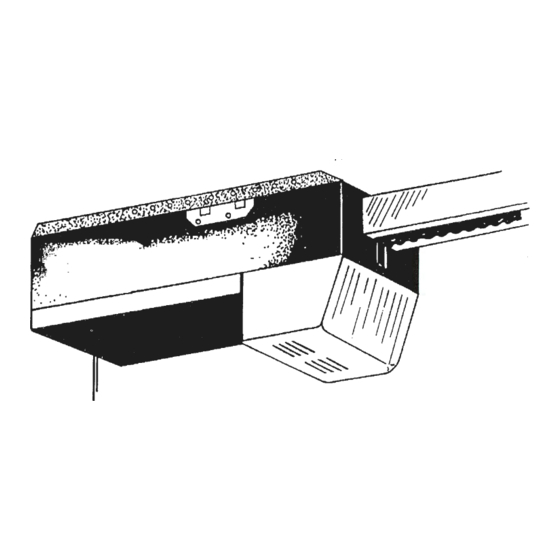

GARAGE DOOR OPENER SYSTEM
MODEL1056
INSTALLATION INSTRUCTIONS
AND
OWNERS
MANUAL
READ THESE INSTRUCTIONS CAREFULLY
BEFORE
INSTALLIN
G OR
USING THIS OPENER.
~---
WARNING:
---~
DO NOT
allow
children to play
in
the area
of the door or with radio control transmit-
t er or with pushbutton.
.-------- WARNING:----~
Door is under
extreme
spring tension. Repairs
and
adjustments,
especially to cables and
spring
as-
sembly, can be hazardous and can result in
severe
personal
injury.
Repairs and adjustments
shou
ld
be
performed
ONLY
by Qualified
Door
Service
People.
After installation
is
completed, place instructions
in close proximity to garage door.
PIN
108696-0001
INDEX
GENERAL INSTALLATION NOTES
INSTALLATION
INSTRUCTIONS
.
SENSITIVITY ADJUSTMENT
OPERATION
.
. . .
. . .
.
OWNER'S INFORMATION . .
TROUBLESHOOTING GUIDE
.
WIRING SCHEMATIC . . .
.
CARRIAGE/TRACK ASSEMBLY
PARTS LIST . . . .
.
. .
POWER UNIT ASSEMBLY
.
WARRANTY
.
. . .
.
.
All-American
Craftsmanship
Made in U.S.A.
.PAGE
1
.
PAGE 2-9
. PAGE 8
.
PAGE 10
.
PAGE 11
.
PAGE 12
.PAGE
13
. PAGE 14
.
PAGE 15
.
PAGE 16
. BACK PAGE
11/24/92
