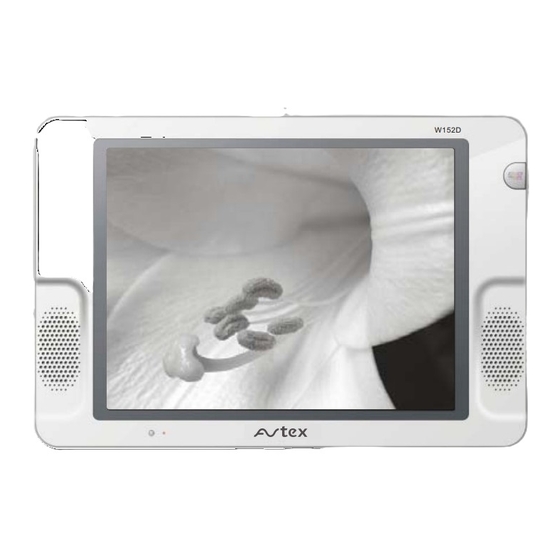

Avtex W152D User Manual

Tft-lcd tv
Hide thumbs Also See for W152D:
Table of Contents

Advertisement

Quick Links

TFT-LCD TV
W152D
USER MANUAL
READ CAREFULLY
BEFORE OPERATION
W152D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W152D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avtex W152D

Summary of Contents for Avtex W152D

  • Page 1 TFT-LCD TV W152D USER MANUAL READ CAREFULLY BEFORE OPERATION W152D...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS TO PREVENT ELECTRICAL SHOCK. CAUTION DO NOT REMOVE THIS COVER. NO USER- SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK. REFER SERVICING TO QUALIFIED DO NOT OPEN. SERVICE PERSONNEL. T h i s s y m b o l i n d i c a t e s This symbol indicates d a n g e r o u s v o l t a g e important instructions...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS Do not clean the front with keton-type materials (e.g.Acetone ),ethyl alcohol, toluene, ethy lacid, methyl, or chloride-these may damage the panel. Locate your DC adapter near an easily accessible AC outlet. If your LCD TV does not operate normally in particular, if there are any unusual sounds or smells coming from it unplug it immediately and contact an authorized dealer or service center.

  • Page 4: Table Of Contents

    CONTENT INSTALLATION Normal installation PANEL BUTTON FUNCTIONS Panel control Rear panel EXTERNAL EQUIPMENT Connecting diagram REMOTE CONTROL HANDSET Remote buttons Battery installation LET'S START Changing source operation TV MENU SETUP Sound Picture TV setup Function TELETEXT FUNCTION Teletext display Page selection Lock Mix mode Zoom in teletext...
  • Page 5 CONTENT DVD OPERATION Features Brief introduction to DVD Compatible disc types Playback Volume control Play/pause playback Information DVD menu playback VCD, SVCD menu playback PBC playback Direct play Memory Select track to play directly Select language/audio by number buttons Repeat playback of selected segment Repeat playback Fast playback Play from the desired position...

  • Page 6: Installation

    INSTALLATION NORMAL INSTALLATION Hook Ostium M4 10 Screw 1pcs Kickstand Rear viewing of LCD TV 1, Hook the tache (labeled A)of the kickstand onto the plate (labeled C). 2, Tighten the screws ( M4 10) through the ostium (labeled B). 3, Figure shows the finished installation.

  • Page 7: Panel Button Functions

    PANEL BUTTON FUNCTIONS PANEL CONTROL Front panel IR sensor window Indicator( Indicator is red when in standby mode, green when working normally. Left panel SETUP (Enter or exit setup menu) VOL+/-(Increase or decrease volume) CH+/- (Increase or decrease channel number) SOURCE (Enter to exit source menu) STANDBY (To switch between standby mode and power-on mode) Headphone jack...

  • Page 9: External Equipment

    EXTERNAL EQUIPMENT CONNECTING DIAGRAM PC IN VGA AUDIO FM ANTENNA COAXIAL VIDEO PB/CB SCART PR/CR AV IN cable Power amplifier (with coaxial digital audio in) DVD or VCR player NOTE You should connect all interconnecting cables BEFORE plugging in the power cord.

  • Page 10: Remote Controller

    (invalid in DVD and DVB mode). SETUP Enter or exit setup menu. DISC MENU To go to the DVD main menu. CHANNEL+/- W152D To increase or decrease program number in TV/DVB/FM mode. LANGUAGE/NICAM SUBPAGE/PAGE- To switch the output language in DVD/DVB...
  • Page 11 Sound mute switch. Volume +/- To increase or decrease sound volume. SCAN Long press the button to start scanning automatically in TV/DVB/FM mode. W152D SAVE Save the channel in FM mode. TEXT/TEXT To enable or disable the function of teletext. GOTO/RED...

  • Page 12: Battery Installation

    REMOTE CONTROLLER BATTERY INSTALLATION Remove the battery cover. Insert two SUM-4(AAA) batteries matching the -/+ polarities of the battery to the -/+ marks inside the battery compartment, as in the following figure: BATTERY LIFE Generally speaking, the battery may be used for one year, but the battery life is also related to the usage times and remote controller operation.

  • Page 13: Let's Start

    LET'S START After this unit is well fixed on the desk or on the wall, and the cords are well connected for input and output, what you should do next is: Firstly, connect the adapter to the LCD TV, and turn on the power switch then the unit will go into standby mode, you can see the indicator turn red.

  • Page 14: Tv Menu Setup

    TV MENU SETUP This product can store up to 100-channel programs (0 99). You can scan and store all of the channels through manual or automatic scan mode. In TV mode, press [SETUP] button and the setup menu will show as follows: Pressing [ ] button on the remote control, PICTURE...
  • Page 15 TV MENU SETUP NOTE " " Means there are more items in this page, you can press [ ] button to select them. Select "BRIGHTNESS " to adjust it, the sub item will show as follows : press [ ] button to adjust the value of brightness. BRIGHTNESS ADJUST SETUP...

  • Page 16: Sound

    TV MENU SETUP SOUND Select " "and menu will show as follows: SOUND SOUND MODE USER BALANCE BASS TREBLE NICAM MONO SELECT ENTER SETUP RETURN Press [ ] button to select different items and press [ ] button to adjust them. The following are the descriptions of the sound item.

  • Page 17: Tv Setup

    TV MENU SETUP T V S E T U P Select " " and TV setup menu will show as follows: TV SETUP TV SETUP CHANNEL SOUND SYSTEM COLOR SYSTEM AUTO FINE TUNING 40.00MHZ SOUND SYSTEM AUTO SEARCH MANUAL SEARCH FINE TUNING 40.00MHZ CHANNEL EDIT...
  • Page 18 TV MENU SETUP Select "AUTO SEARCH " , the searching menu will show as follows: AUTO SEARCH FOUND: 3 VHF L 112.25MHZ SETUP RETURN The number of programs have found. The current searching frequency Band, 3 Bands in total: "VHF L" ,"VHF H"," UHF". The current searching frequency.

  • Page 19: Function

    TV MENU SETUP FUNCTION You can setup system configuration here. Press [ ] to select " " item and press [ ] button to enter the following section: FUNCTION ENGLISH LANGUAGE TRANSPARENCY LEVEL 3 SLEEP RESET SELECT ENTER SETUP RETURN Press [ ] button to select different items and press [ ] button to adjust them.

  • Page 21: Teletext Function

    TELETEXT FUNCTION ZOOM IN TELETEXT When teletext page shows, you may double zoom in to display this teletext page; Press [SIZE] button to zoom in the upper half part of teletext page; Press [SIZE] button again to enter the under half part of teletext page; Press this button for the third time to return to original display mode.

  • Page 22: Av, Scart And Yp B P Rsetup

    AV ,SCART and YP SETUP VIDEO SETTING MENU The menu setup of AV/SCART /YP modes is much the same as that of TV mode, except the " " section is invalid and a bit difference in sound mode. It is not repeated here. You can find it in preceding pages.

  • Page 23: Vga Setup

    VGA SETUP With the VGA mode supported up to 1024*768@75Hz, and speakers built in, you can use this unit as a multimedia PC monitor. When this unit works in VGA mode, the following setup can be done. Press [SETUP] button to enter main section. Press [ ] button to select sections and then press [ ] button or [OK] button to enter.

  • Page 24: Sound

    VGA SETUP Here shows the color temperature sub menu. COLOR TEMPERATURE COLOR TEMP. NORMAL GREEN BLUE SELECT ADJUST SETUP RETURN Press [ ] button to select item and press [ ] button to adjust the value of the item. Description Item Select color temperature mode :"USER", "NORMAL", "WARM"...

  • Page 25: Monitor Setup

    VGA SETUP M O N I T O R S E T U P Press [ ] button to select " " and press [ /OK] button to enter. MONITOR SETUP PHASE FREQUENCY H-POSITION V-POSITION SELECT ENTER SETUP RETURN Press [ ] button to select different items and press [ ] button to adjust .

  • Page 26: Function

    VGA SETUP F U N C T I O N Press [ ] button to select " ", and press [ /OK] button to enter. FUNCTION ENGLISH LANGUAGE LEVEL 3 TRANSPARENCY SLEEP RESET SELECT ENTER RETURN SETUP Press [ ] button to select different items and press [ ] button to adjust .

  • Page 27: Fm Operation

    FM OPERATION With radio decoder built in , you can enjoy radio programs using this unit. Connect the FM antenna in the accessories to the FM socket on the rear panel of the TV, change source to FM. Press [SETUP] button and a menu will show as follows: CHANNEL FREQUENCY 101.20MHz...

  • Page 28: Function

    FM OPERATION SOUND In main section press [ ] button to select " ", press [ /OK] button to enter. SOUND SOUND SOUND MODE USER BALANCE BASS TREBLE MONO ENTER SETUP RETURN SELECT The operation of sound options here is the same as that in TV mode. Please refer to P11.

  • Page 29: Dvd Operation

    DVD OPERATION Brief Introduction to DVD DVD is well known for its extraordinarily large capacity and outstanding audio-video effects. Its capacity is as high as 4.7-17 GB (approximately 7-26 times the CD capacity).With 500-line horizontal resolution of picture , it brings a new era to household AV products. Comparison Between DVD and Other Discs CDROM Super VCD...

  • Page 31: Compatible Disc Types

    DVD OPERATION Compatible Disc Types Types Sizes Recorded Contents 12cm CD-DA Digital audio VIDEO CD Compressed digital audio+compressed digital video 12cm (dynamic picture) DIGITAL VIDEO SVCD: Compressed digital audio+compressed digital video 12cm (dynamic picture) DVD: Compressed digital audio+compressed digital video 12cm (dynamic picture) MPEG 4: Compressed digital + compressed digital video (dynamic...

  • Page 32: Volume Control

    DVD OPERATION PLAYBACK MPEG4 SVCD 1. Power on and place the disc (with label side facing users) to the door and the unit will draw in the disc and switch signal source to DVD mode automatically. The unit begins to read disc information. STANDBY EJECT PLAY...

  • Page 33: Information

    DVD OPERATION PLAY/PAUSE PLAYBACK MPEG4 SVCD 1. Press [ ] button in playback status. Press [ ] button once to pause playback, display on TV screen: 2. To restore playback, press the [ ] button. PLAY NOTE When you set the screen save mode to ON(see Page 40 for details), the display on TV screen turns to screen saver status after the picture on TV screen keep still for about 2 minutes (in mode such as pause mode, stop mode, menu select, set up menu, no disc mode and so on).

  • Page 34: Vcd, Svcd Menu Playback

    DVD OPERATION 1. Press [DISC MENU] button to display menu on TV screen for selection, operate according to the hint of menu and press number buttons to select. ROOT MENU 1..2..PLAY 3..2. Press cursor button to select track you desired, Number then press [ ] button or [OK] button.

  • Page 35: Direct Play

    DVD OPERATION PBC PLAYBACK SVCD Enjoy PBC alternate function when playing Super VCD, VCD2.0 disc with PBC function, For example:playVCD2.0 disc. 1. Main menu displays on TV screen A: 1..2..Press number button to select. For example: select main menu 1. The TV screen as show in B: 1.

  • Page 36: Select Track To Play Directly By Number Buttons

    DVD OPERATION MEMORY 1. This player can save the currently played time point automatically when you leave the current DVD disc playback (switch from DVD to card read state, switch from DVD signal source to other signal source, enter standby state in DVD mode). 2.

  • Page 37: Repeat Playback

    DVD OPERATION DVD disc: Audio Chinese Audio French As for VCD, SVCD or CD disc with multiple channels, you may select audio output from left or right channel or select stereo audio output. For VCD disc, left channel records dubbing and right channel records singing, and you may select left channel for dubbing.

  • Page 38: Fast Playback

    DVD OPERATION REPEAT PLAYBACK OF SELECTED SEGMENT MPEG4 SVCD When playing disc, you may press [A-B] button to play your desired segment content repeatedly. 1. In normal playback, press [A-B] button at the beginning point (point A) of the segment that you desire to play repeatedly.

  • Page 39: Play From The Desired Position

    DVD OPERATION PLAY FROM THE DESIRED POSITION MPEG4 SVCD Play DVD disc Inputting a certain time, title number or chapter number directly may search in the disc fast and then play forward from this position. 1. Search title and chapter. For instance, search the 2nd chapter in title 6. Press [GOTO] button and TV screen displays: Title 03/30 Chapter Press [...

  • Page 40: Zooming The Displayed Frame

    DVD OPERATION 3. Select the track Press [GOTO] button until TV screen displays the following figure. Press number buttons to input track. Select Track -- /15 GOTO ZOOMING THE DISPLAYED FRAME MPEG4 SVCD Zoom in/out the player frame. 1. When playing a disc, press the [ZOOM] button can open the zoom in/out function, and the TV screen displays( take X2 mode as an example): The frame is magnified to 2 times of the normal size.
  • Page 41 DVD OPERATION State window Scroll bar window Display the current Indicate the current file's position. 00:00 00:00 004/369 state information. \PIC\ DIR window Preview window Display the current JPEG image preview. Du000 Du001 path. Du002 File window Information window Display the current Display the current operation path's file.

  • Page 42: Headphone Enjoying

    DVD OPERATION Other basic operation methods 1. Press [ ] button may turn to the next or last page. Other functions of JPEG file 1. When playing JPEG file, pressing [ ] button will achieve preview playback function. At the same time, all JPEG files are displayed on TV screen. One page can display up to 12 pictures at most.

  • Page 43: Usage Of Usb Equipment

    SLEEP RATIO SCAN SAVE...

  • Page 45: Dvd Function Setup

    DVD FUNCTION SETUP Turn on this TV, press [SOURCE] button to change source to DVD, press [SETUP] button, then press [ ] button to choose DVD item, the DVD setup menu will be displayed as follow: GENERAL SETUP General Setup Page TV Display Wide OSD Lang...
  • Page 46 DVD FUNCTION SETUP SDIF Setup Page SPDIF Output SPDIF/RAW SPDIF/PCM LPCM Out Setup SPDIF SPDIF output: This item is used to set the bit stream type of the digital output. Optional settings: SPDIF/RAW, SPDIF/ PCM; Default: SPDIF/RAW LPCM output: This item is used to set the output frequency of LPCM audio data to fit for different power amplifiers.

  • Page 47: Video Setup

    DVD FUNCTION SETUP VIDEO SETUP Video Quality Setup Sharpness Brightness Contrast Gamma None Saturation Go To Video Setup Page 1. Sharpness: This item is used to set the sharpness of video outputs. Optional settings: High, Medium, Low; Default: Med. 2. Brightness: This item is used to set the brightness of video outputs. 3.

  • Page 48: Password Setup

    DVD FUNCTION SETUP NOTE Audio, subtitle and disc menu language are only effective in DVD mode. If the disc is not recorded with the language you appointed, the unit will apply the language that the disc appointed to play. Select other languages: press [ ] button to move cursor to "OTHER"...

  • Page 50: Dvb Function Setup

    DVB FUNCTION SETUP DVB-T SETUP DVB- T Setup Page Area Time Zone Parental Age Antenna Power Channel setup Go To DVB - T Setup Page The DVB-T Setup Page is composed of five parts: Area, Time Zone, parental Age, Antenna power, Channel Setup.
  • Page 51 DVB FUNCTION SETUP In the scan process, the scan result will be displayed in the Auto Scan window. Press [SCAN] on remote control more than 3 seconds to auto scan. Auto Scan Using the [ ] button to select the Auto Scan item, Status Found Channels Freq: 65000KHz...

  • Page 52: Password Setup

    DVB FUNCTION SETUP Reserve Channel If you want to watch a special program on a channel at a later time, you can reserve it. Then a reminding signal will be displayed on screen several minutes before it starts. 002 FlowerGd 4Mbs Channel FlowerGd 4Mbs Program Tenestrial...

  • Page 53: Display Troubleshooting

    TROUBLESHOOTING Please check for causes of problems in accordance with the following chart before contacting maintenance personnel. DISPLAY TROUBLESHOOTING Causes and Correction Symptom Check whether the power cord is well connected, and whether this unit is powered on Black screen, power indicator light off Check whether the signal cord of input device is well connected...

  • Page 54: Dvd Troubleshooting

    TROUBLESHOOTING DVD TROUBLESHOOTING Symptom Causes Correction 1. Condensation on laser head 1. Switch on power and wait for 1 to 2 hours 2. Disc not properly loaded 2. Make sure label side of the disc facing up Not play 3. Disc not compatible with the unit 3.

  • Page 56: Display Mode

    DISPLAY MODE SUPPORTED PC INPUT MODE Hor scanning frequency Ver scanning frequency Pixel frequency Format Resolution (KHz) (Hz ) (MHz) 640 350 31.5 70.0 25.17 31.5 70.0 720 400 28.32 31.5 60.0 640 480 25.18 37.9 72.0 640 480 31.50 VESA 37.5 75.0...
  • Page 57 DISPLAY MODE SUPPORTED VIDEO INPUT MODE Hor scanning frequency Ver scanning frequency Vert scan type Format ( KHZ) (HZ) 720X480 31.5 480P 720X480 15.6 480i 720X576 31.2 576P 720X576 15.6 576i NOTE Specifications and designs are subject to change without notice.
