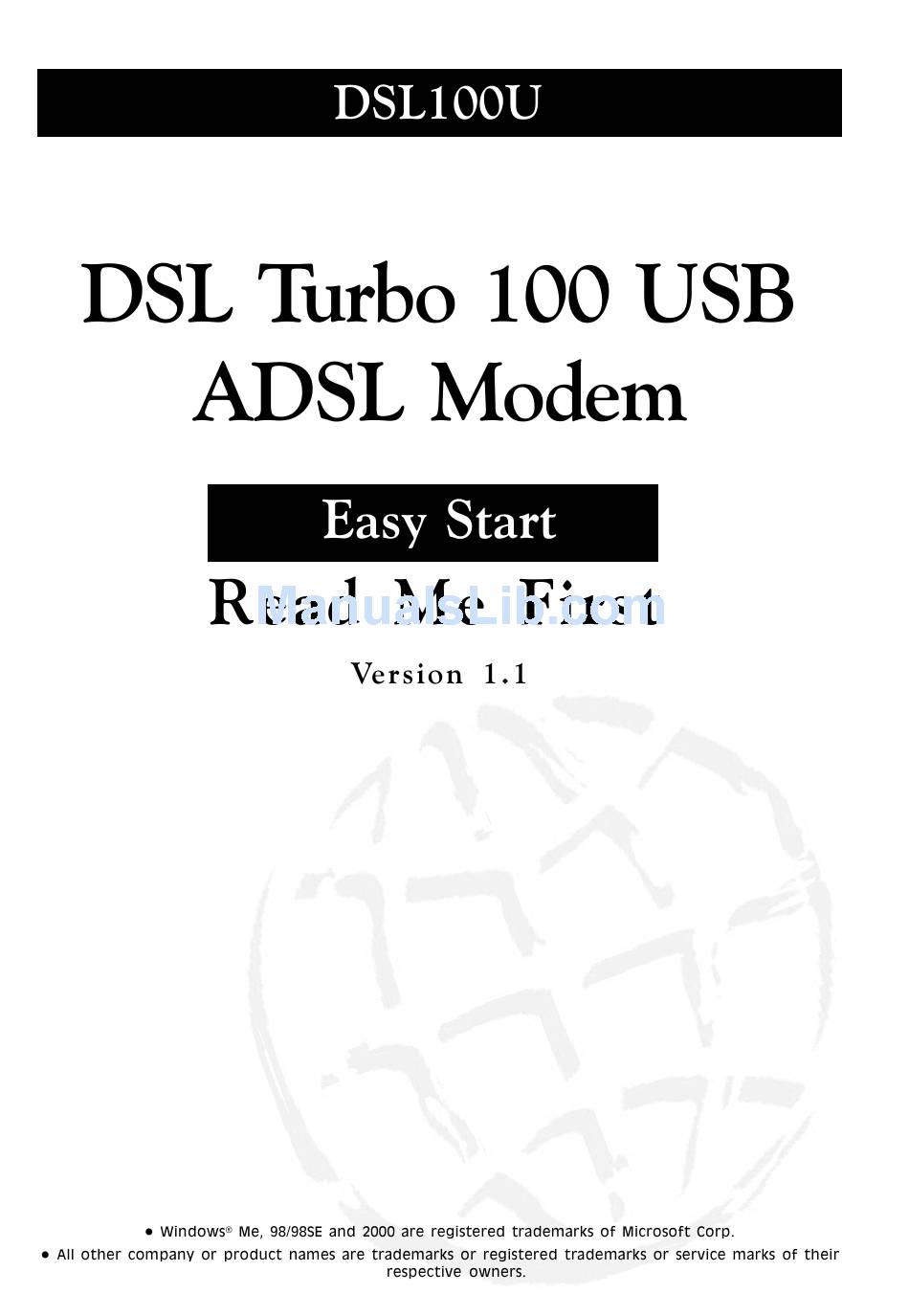

Aztech DSL100U Easy Start

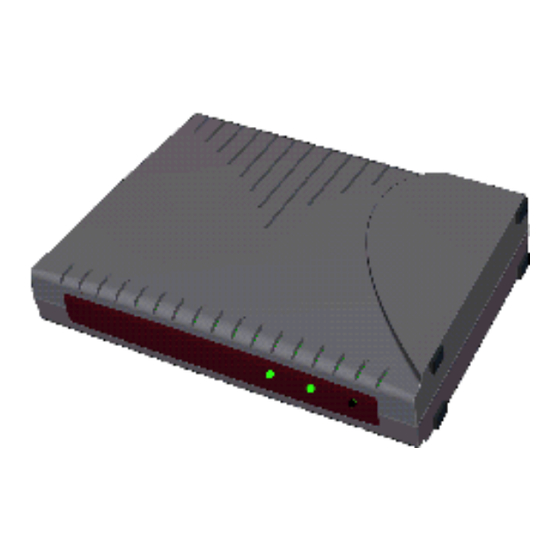

Dsl turbo 100 usb adsl modem
Hide thumbs Also See for DSL100U:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Easy Start
Contents...
Safety Guidelines .................. 5
About this Easy Start .................. 5
Package Contents .................. 5
Rear Panel Connections .................. 6
Front Panel LED Indicators .................. 7
DSL Test ................ 18
Uninstalling the Modem Drivers ................ 19
Troubleshooting ................ 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL100U and is the answer not in the manual?

Questions and answers

Related Manuals for Aztech DSL100U

Summary of Contents for Aztech DSL100U

  • Page 1: Table Of Contents

    Contents... Safety Guidelines ....5 About this Easy Start ....5 Package Contents ....5 Rear Panel Connections ....6 Front Panel LED Indicators ....7 Installing the USB ADSL Modem Drivers ....7 Running the Modem Setup Program ....13 Establishing the ADSL Connection ....
  • Page 2 Part 15 FCC Compliance Statement...
  • Page 3 Part 68 FCC Compliance Statement (FCC ID : 4J2SNG-47095-DL-N)
  • Page 4 Industry Canada Information...

  • Page 5: Safety Guidelines

    To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord About this This booklet contains information on setting up your ADSL modem DSL100U . It touches on the key installation procedures Easy Start to help you setup your modem in a breeze! Package Contents Please check that you have the following items in your package.

  • Page 6: Rear Panel Connections

    Rear Panel Connections With the "Hot Swap" feature in this modem, you can connect your modem to your computer anytime, without having to power off your system! The following illustration shows the connections for the modem. LINE USB Port jack jack USB cable Telephone...

  • Page 7: Front Panel Led Indicators

    Front Panel LED Indicators The LED indicators show the following status: Power ADSL Link Power Lights up when power is supplied via the USB port ADSL Link Flashes during training. Lights up when ADSL connection is established Installing the USB ADSL Modem Drivers The drivers that are included with this modem are for the RFC 2364 (WAN) protocol.
  • Page 8 ® Windows If you have left the default option as Automatic search for a better driver (Recommended) after the Installation CD is placed into the CD-ROM drive, Windows Me will auto-search for the driver and you will be brought to Step 5. Alternatively , select the Specify the location of the driver (Advanced) option and then click Next.
  • Page 9 Click Finish. Installation of the setup program will commence. Refer to Running the Modem Setup Program section. ® Windows 98SE/98 Click Next start the search for drivers. Select Search for the best driver for your device (Recommended) and click Next.
  • Page 10 Select Specify a location, and then browse to your CD- ROM drive. Click Next. Windows will prompt that the driver is found. Click Next. Click Finish. Installation of the setup program will commence. Refer Running the Modem Setup Program section.

  • Page 11: Windows 2000

    ® Windows 2000 Click Next start the search for drivers. Select Search for a suitable driver for my device (recommended) option and then click Next. Select Specify a location and click Next.
  • Page 12 Browse to the CD-ROM drive and then click OK. Windows will prompt that the driver is found. Click Next. Click Finish. Installation of the setup program will commence. Refer to Running the Modem Setup Program section.

  • Page 13: Running The Modem Setup Program

    Running the Modem Setup Program ® Windows Me/98SE/98/2000 Click Next upon the Welcome prompt. The driver files would be installed. If you are running Windows ® 2000, you may be prompted with a Digital Signature Not Found window. Click Yes to continue.
  • Page 14 Properties > Device Manager tab). If it is not there or an exclamation mark is displayed beside it, you should uninstall and then reinstall the drivers. After your system has restarted, a program group DSL100U USB ADSL Modem would be created.
  • Page 15 ® Windows 2000 Detection of the hardware will begin. You may be prompted by a Digital Sugnature Not Found window. Click Yes to continue. Click Finish when the drivers' installation is completed. Restart when prompted.
  • Page 16 Properties > Hardware tab > Device Manager button). If the modem is not shown there or an exclamation mark is displayed beside it, you should reinstall the drivers. After your system has restarted, a program group DSL100U USB ADSL Modem would be created.

  • Page 17: Establishing The Adsl Connection

    Panel Connections. To connect to your ISP service, from the desktop, double-click on the short-cut "DSL100U Dial-up". Enter your user name and password, then click Connect. [You can also connect to your ISP from Control Panel > Dial-up Networking (Win Me &...

  • Page 18: Dsl Test

    If you get a fail for the Line or Network Test, check with your ADSL Service provider. Changing the Configuration Values Click on Start > Programs > DSL100U USB ADSL Modem > Configure to access the Settings button. Click the Settings button to change...

  • Page 19: Uninstalling The Modem Drivers

    Uninstalling the Modem Drivers Ensure that you do not unplug the USB cable from the modem. Click on Start > Programs > DSL100U USB ADSL Modem > Uninstall to access the Remove button. Follow the instructions to uninstall the drivers.

  • Page 20: Troubleshooting

    Troubleshooting Q: I am not getting any connection. The modem Power LED lights up and the ADSL Link LED keeps blinking (The ADSL Link LED does not remain light up). A: Check that the Telephone cable (RJ-11) is connected to the LINE jack on your modem and not to the TEL jack.
