LIFE IS HARD

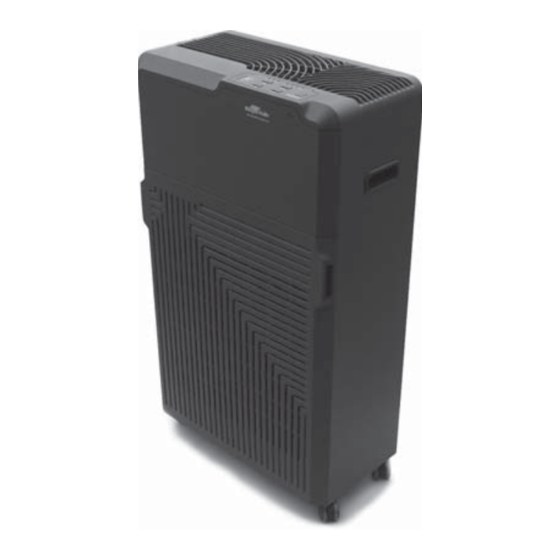

ELECTRONIC AIR PURIFIER
WARNING:
• This unit cannot be used in an atmosphere containing
explosive dust, gas or oxygen, or in an area where
flammable dust is present.
• This product can be used only where the power supply
is 120V/60Hz. You cannot use the unit if the power
voltage is different.
RespirAide Tech Inc.
13-100 Hanlan Road Woodbridge, Ontario
Canada L4L 4V8
Tel: 1-866-874-2532
Fax: 1-905-850-5553
www.respiraide.com
OPERATIONAL MANUAL
Model No. R400T
4004761
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RespirAide R400T
Summary of Contents for RespirAide R400T

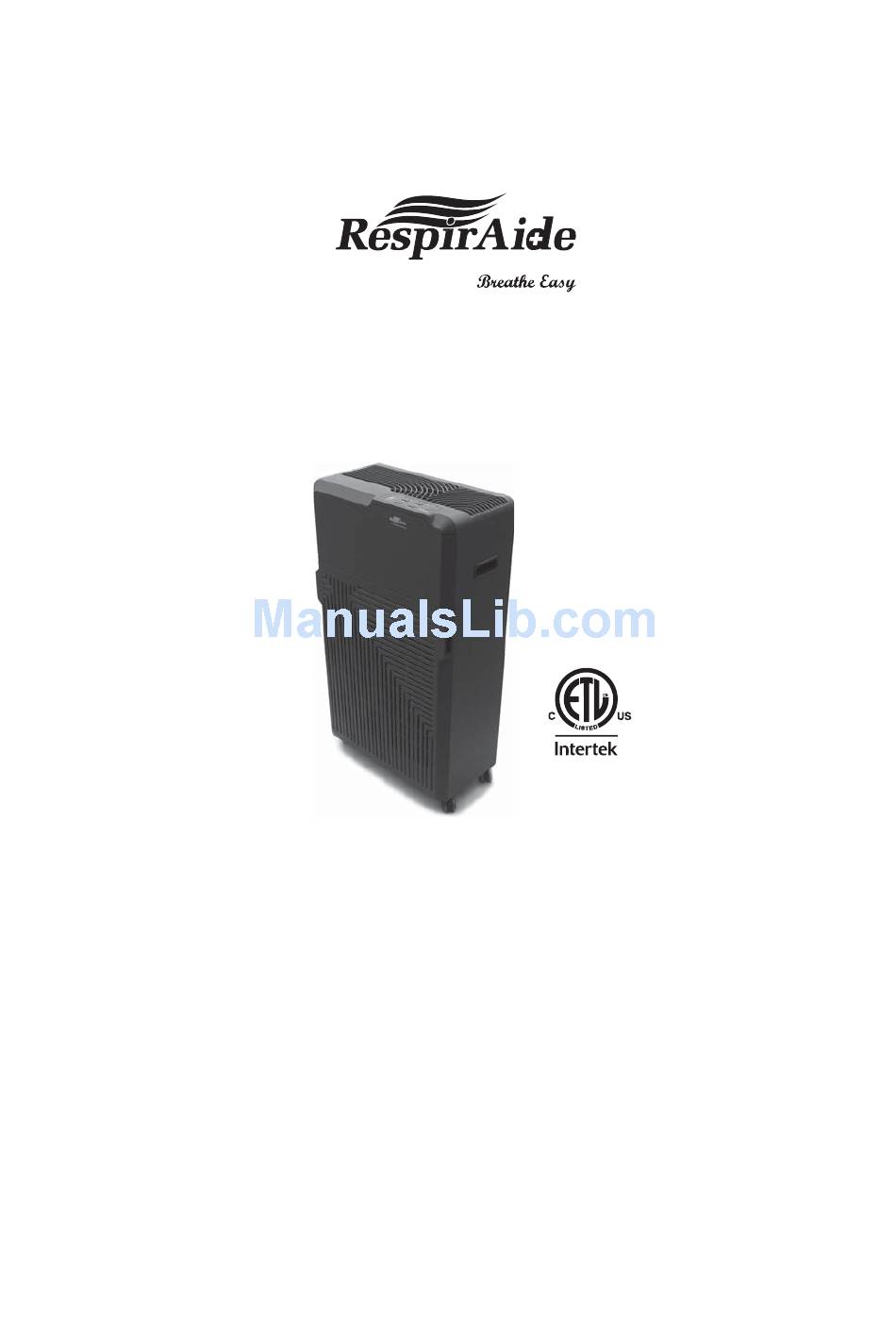

- Page 1 LIFE IS HARD ELECTRONIC AIR PURIFIER OPERATIONAL MANUAL Model No. R400T 4004761 WARNING: • This unit cannot be used in an atmosphere containing explosive dust, gas or oxygen, or in an area where flammable dust is present. • This product can be used only where the power supply is 120V/60Hz.
-
Page 2: Table Of Contents
TABLE OF CONTENTS FOR CUSTOMER ASSISTANCE CONSUMER LIMITED WARRANTY CHAPTER 1 IMPORTANT SAFETY PRECAUTIONS E-6~10 CHAPTER 2 HOW IT WORKS E-11 CHAPTER 3 PART NUMBER AND NAME E-12 E-12 Part Numbers E-12 Part Names CHAPTER 4 FEATURES AND SPECIFICATIONS E-13 E-13 Features E-13... -
Page 3: For Customer Assistance
FOR CUSTOMER If you have any questions about your air purifier, call the customer service number. Before calling, please note the model and serial number ASSISTANCE located on the back of the unit and fill in the following information below. This information will help us answer your questions much more quickly. -
Page 4: Consumer Limited Warranty
WARRANTY LIMITED WARRANTY Congratulations on your investment RespirAide Tech Inc. (Hereinafter called RTI) gives you the following limited warranty for this product only if it was originally purchased from RTI or from an Authorized RTI Dealer. RTI warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. -
Page 5: Chapter 1 Important Safety Precautions
Turn off all controls before unplugging. • If the power cord is damaged, it must be replaced by the RespirAide authorized service or similarly qualified person. • To reduce the risk of electric shock, this equipment has a grounding type plug that has a third (grounding) pin. - Page 6 CHAPTER 1 This manual classifies precautions into WARNINGS and CAUTIONS. Be sure to follow all precautions below: They are important for IMPORTANT SAFETY ensuring your safety. PRECAUTIONS 1. This unit cannot be used in an atmosphere containing explosive dust, gas or in an area where WARNING flammable substances are present.
- Page 7 CHAPTER 1 4. The activated carbon filter must be located IMPORTANT SAFETY behind the cell. Do not try to PRECAUTIONS place the activated carbon filter in front of the cell. It may cause fire! WARNING If you do not follow these instructions exactly, the unit may cause property damage, personal injury or...
- Page 8 CHAPTER 1 7. Use a fuse with proper capacity. Never use a wire IMPORTANT SAFETY in place of a fuse. 125V 2A PRECAUTIONS Doing this may lead to malfunction or fire. Copper Wire WARNING If you do not follow these instructions exactly, the unit may cause property damage, personal injury or...
- Page 9 CHAPTER 1 1. Do not place the product in direct contact with IMPORTANT SAFETY sunlight. It may cause PRECAUTIONS malfunction and deformation of the product. CAUTION If you do not follow these instructions exactly, the unit may cause minor property damage or personal injury.
-
Page 10: How It Works
CHAPTER 2 The air purifier functions as an air cleaner by helping to disinfect airborne microorganisms and removing particulates from the air. HOW IT WORKS The centrifugal fans of the unit draw air through the front panel (Intake) on the front of the unit. Then it passes through the Pre-filter, the electronic cell, the activated carbon filter and the UV-Photo catalytic sterilization chamber. -
Page 11: Chapter 3 Part Number And Name
CHAPTER 3 210801 210302 PART NUMBER AND NAME 210201 210206 201303 Part Numbers 210205 210501 201306 210104 210105 201202 201505 201203 200302 210202 210211 200312 210102 202522 210106 210101 200518 210305 210103 201321 200501 200305 201910 201320 210112 201801 210301 201907 201926 201506... -
Page 12: Chapter 4 Features And Specifications
No screws, hooks or tools are required. The electronic cell captures small particles on aluminum plates that are simply rinsed off in the sink. Product Specifications Specifications Model No. R400T (RespirAide 400T) 120V, 60Hz, 1A Power Requirement Rated Power Fan Motor 120V, 60Hz Noise Level <55dB... -
Page 13: Chapter 5 Operation
CHAPTER 5 Main Unit Operation OPERATION Connect the Power Plug the unit into an electric outlet, the unit will be ready to run and all the indicators on the display panel will light up for 2 seconds. POWER Button: AUTO •... -
Page 14: Setting New Functions
CHAPTER 5 Setting New Functions OPERATION The unit buttons offers access to a number of functions: Setting new functions 1. Timer Cycle Function Setp1. Power off the unit. Step2. Hold the TIMER button for 3 seconds until the "8 hour" indicator light comes on. -
Page 15: Remote Control Operation
CHAPTER 5 Remote Control Operation OPERATION The battery is already set in the remote control, pull out the clear sheet from the battery cover before using. Remote Control Operation Pull out the clear sheet from the battery cover before using. . -
Page 16: Chapter 6 Care And Maintenance
CHAPTER 6 To maintain optimum performance of this air purifier, please clean the unit including the Pre-filter and electronic cell periodically. CARE AND When cleaning the unit, be sure to unplug the power cord, and MAINTENANCE never handle the plug with wet hands. If so, electrical shock and bodily injury may occur as a result. -
Page 17: Cleaning The Electronic Cell
CHAPTER 6 Cleaning the Electronic Cell CARE AND Remove the electronic cell MAINTENANCE • Stop the operation and unplug the unit. • Please wait 5-10 seconds before taking off the front panel. • Pull the cell straight up and out of the filter cabinet. 6-3 Open the front panel WARNING: •... -
Page 18: Replacing The Activated Carbon Filter
CHAPTER 6 Replacing the Activated Carbon Filter CARE AND When the REPLACE CARBON FILTER indicator light flashes, the MAINTENANCE activated carbon filter needs to be replaced. • Stop the operation and unplug the unit. • Please wait 5-10 seconds before opening the front panel. •... -
Page 19: Frequentl Y Asked Questions (Faqs
CHAPTER 7 Why does my air purifier spark? FREQUENTL Y ASKED It is common for the purifier to spark, crackle or pop during operation. A QUESTIONS (FAQs) spark indicates that the air purifier captured a large air particle. If the unit sparks continuously: •... -
Page 20: Chapter 8 Troubleshooting
Service problems that appear to be major can often be solved easily. You can be your own troubleshooter by reviewing the following guide. All TROUBLESHOOTING other servicing should be done by a RespirAide authorized service center. Power failure? Check other electrical appliances. -
Page 21: Chapter 9 Electrical Wiring Diagram
CHAPTER 9 ELECTRICAL WIRING DIAGRAM Electronic cell Ionizer section Power supply Remote control Display Board Black receiver Pink white Pink white Collector section JZ11 JZ10 JZ11 JZ10 Odor sensor JZ12 JZ12 Blue Blue Transformer Pink white Pink white Red(+) Red(+) Black(-) Black(-) Negative ion... -
Page 22: Service Reminder Schedule
SERVICE REMINDER SCHEDULE Pre-filter Wash Reminder Year Memo: Electronic Cell Wash Reminder Year Memo: E-23... - Page 23 RespirAide Tech Inc. 13-100 Hanlan Road Woodbridge, Ontario Canada L4L 4V8 Tel: 1-866-874-2532 Fax: 1-905-850-5553 www.respiraide.com RespirAide reserves the right to revise or modify products and/or specifications without notice. The contents of this manual are subject to change without notice. Ver. 400T-01...
