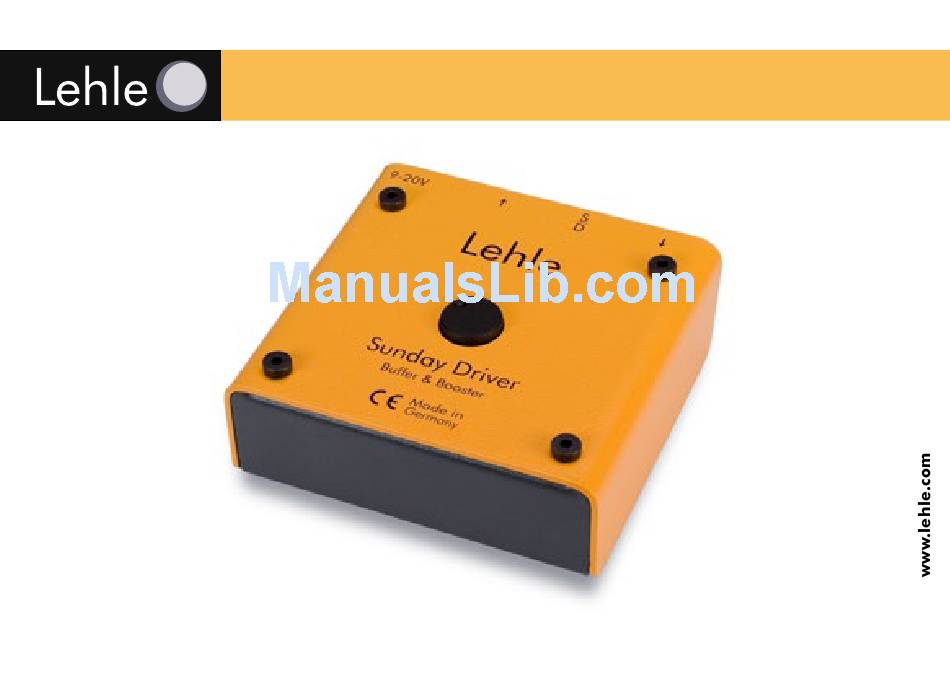

Page 1: Operating Instructions

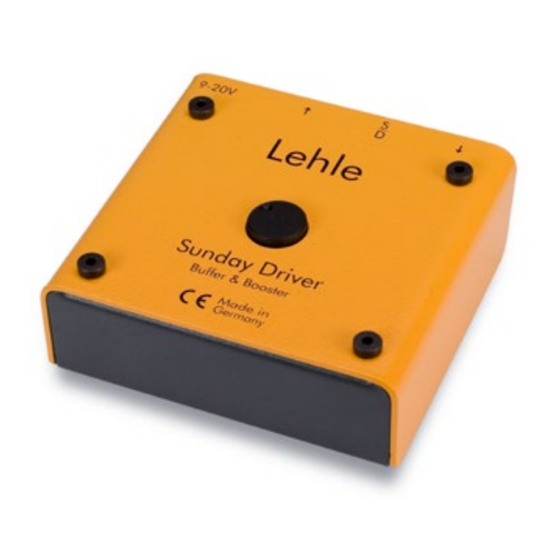

Lehle Sunday Driver Operating instructions Lehle GmbH • Grenzstr. 153 • D-46562 Voerde • Germany • Tel +49 (0) 2855 850070... - Page 2 If you should nonetheless have a problem, or simply a question, just mail me or a member of the Lehle team at: support@lehle.com I wish you the very greatest pleasure and success using your Lehle...
-
Page 3: Table Of Contents
- Lehle Sunday Driver as a switch-in booster ..............12 - Lehle Sunday Driver as a recording preamp ..............14 - Lehle Sunday Driver as a recording preamp combined with the Lehle P-Split II ....15 - Lehle Sunday Driver as a preamp for mixer inputs............17... -
Page 4: Introduction
(e.g. violins, cellos and than -100 dB, the Lehle Sunday Driver is totally double basses) to show their full sound coloration. free of background noise. A high-quality switch... -
Page 5: Technical Data
Technical data Weight: 356 g (without Battery) Length: 9 cm Width: 9.2 cm Overall height: 3.9 cm Voltage range: 9 - 20 V AC or DC, or 9V PP3 battery Max. power take-up: 9 mA Frequency response: 20 Hz - 100 kHz (in mode D) Distortion: 0.001 % at 1kHz, 0 dBU Impedance, Input D: 1 MOhm Impedance, Input S: 4 MOhm... -
Page 6: General Description
General description... - Page 7 Connect a power-pack for a voltage of 9 to 20 V longer break! here, when needed. The Lehle Sunday Driver can be operated op- 2. S/D-selector switch Use this switch to select the mode you want. tionally with a 9 V PP3 (”block”) battery or from an...
- Page 8 9 in this position, the sound is refreshed, in order to Volt. So always make sure that the Lehle Sunday compensate for sound losses that can occur when Driver has a charged battery if you want the extra long cables or effects cascades are used.
-
Page 9: Typical Uses
The following few pages show a number of typical applications in which the Lehle Sunday Driver is a rational addition to your gear! Tip: in case you prefer a velcro solution for your... -
Page 10: Lehle Sunday Driver As A Cable Driver
The Lehle Sunday Driver as a cable driver Live Long cable runs and complex effects cascades on stage or in the concert hall can cause sound losses from the signal. Where electric guitars are used with tube amplifiers, an additional boost is often necessary, to generate a harmonious distortion. -
Page 11: Lehle Sunday Driver As A Line Driver
The Lehle Sunday Driver as a line driver to sound losses caused by over-long cable runs. The full sound quality stays in the signal even at cable runs of 20 meters and more. - Page 12 1. Connect your instrument to the Input socket (1) of the Lehle Sunday Driver. 2. Connect the first effect device in the serial chain to the Send socket (3) of the Lehle Sunday Driver. 3. Switch the S/D selector (2) in the D position, for “Driver“.
-
Page 13: Lehle Sunday Driver As A Booster
The Lehle Sunday Driver as a booster pleasant, with absolutely no shrillness, whereas an increasing gain level results in a silky-warm, harmonious overdrive distortion. Please also take a look at Section 5: the Lehle Sunday Driver as a booster. Device connection Input (1) Instrument Output (3) ... -
Page 14: Lehle Sunday Driver As A Switch-In Booster
Lehle Sunday Driver as a tion level. Take a look, too, at Section 5: the Lehle switch-in booster. This combination is interesting in Sunday Driver as a booster. - Page 15 1. Connect your instrument to the Input socket of 6. Turn the Gain controller (5) of the Lehle the Little Lehle II. Sunday Driver as much to the right till the 2. Connect the Send socket of the Little Lehle II Boost-Level corresponds to your needs.
-
Page 16: Lehle Sunday Driver As A Recording Preamp
In the studio The Lehle Sunday Driver as a recording The Lehle Sunday Driver gives top perfor- preamp mances not only on stage and in the concert hall, but also in the recording studio. Its wide 20 to PCs featuring either integrated or external sound... -
Page 17: Lehle Sunday Driver As A Recording Preamp Combined With The Lehle P-Split Ii
5. Done! and therefore also for the recording. Combination of the Lehle P-Split II and the Lehle Sunday Driver makes this method possible - connect the Tip: If you want to re-amp a signal recorded “dry”,... - Page 18 Device connection Lehle Sunday Driver: Lehle P-Split II: Input (1) Instrument Input Output (3) of the Output (3) Input socket of the Lehle Sunday Driver Lehle P-Split II DIR socket Amplifier ISO socket Mixer input, PC,...
-
Page 19: Lehle Sunday Driver As A Preamp For Mixer Inputs
Lehle P-Split II. like those used on acoustic instruments, are also 5. Switch the S/D selector (2) of the Lehle Sun- too weak for the line inputs of a mixer. As in the day Driver in the D position, for “Driver“. - Page 20 Device connection Input (1) Instrument Output (3) Mixer input, PC, Stagebox etc. What to do: 1. Connect your instrument to the Input socket (1) of the Lehle Sunday Driver.
