- Page 1 OPERATING INSTRUCTIONS LEHLE SUNDAY DRIVER SW II...
- Page 2 Every assembly of your LEHLE SUNDAY DRIVER SW II has been made and tested in Germany. Your LEHLE SUNDAY DRIVER SW II is of extremely robust design and construc- tion, to make sure that you get absolutely years and years of enjoyment from it. If...
- Page 3 (unbalanced and balanced) booster DI box with preamp Typical uses of the LEHLE SUNDAY DRIVER SW II in the studio as recording preamp recording preamp with LEHLE P-SPLIT III signal flow diagram LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...

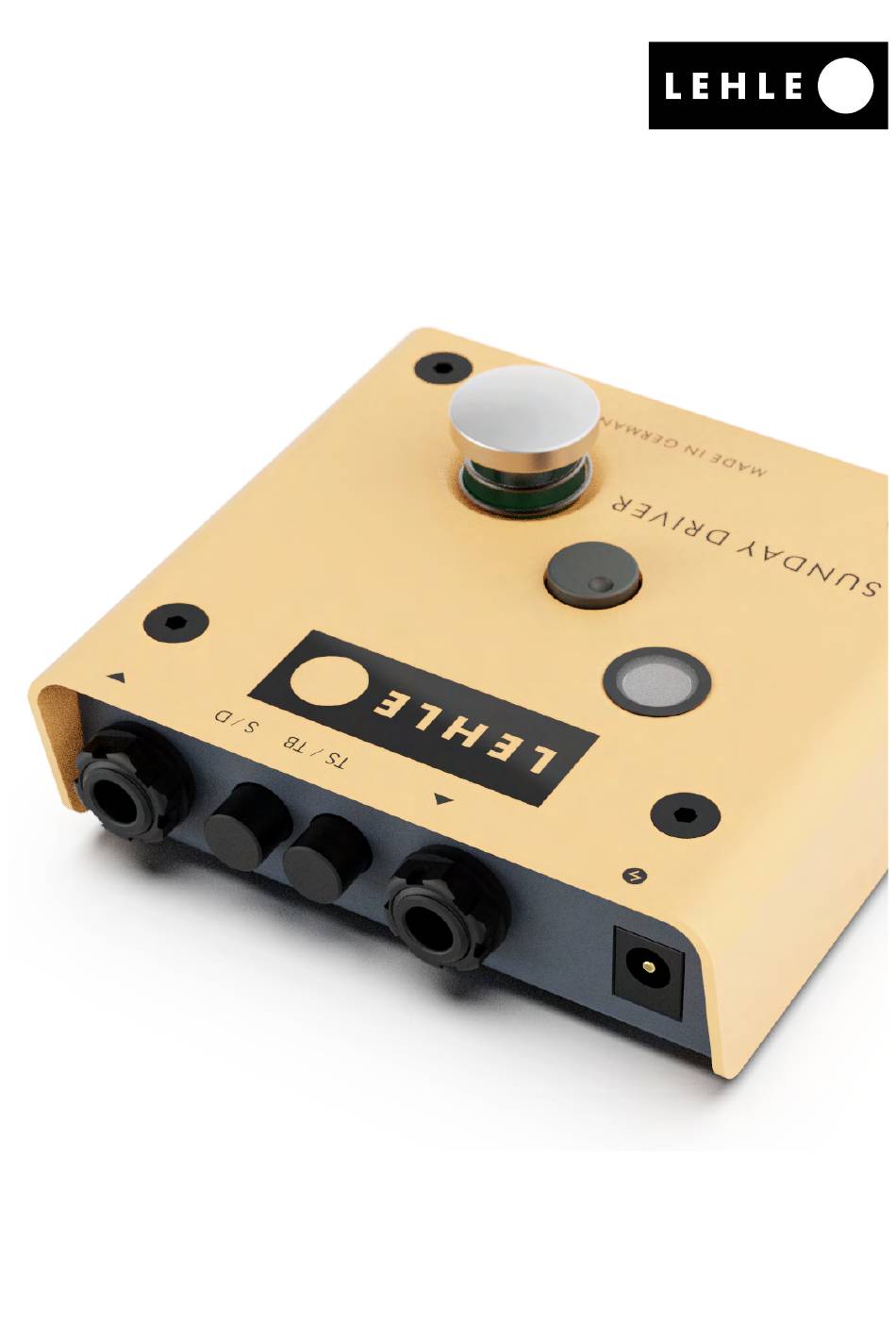

- Page 4 INTRODUCTION The LEHLE SUNDAY DRIVER SW II is a When ON, its circuit is based on a dis- compact high-end preamp for all types crete Class A circuit with JFET technology of electric and acoustic instruments - a and provides two modes of operation,...
- Page 5 In this mode, the LEHLE then filtered, stabilized and transformed SUNDAY DRIVER SW II operates as a to 30 V. totally neutral line-driver equivalent to mode D with the gain pot turned all the When OFF, the LEHLE SUNDAY DRIVER way to the left.
-
Page 6: Technical Data
Total harmonic distortion 0.008 % (0 dBu, 1 kHz) Frequency range 20 Hz – 100 kHz Input impedance D-mode 1 MΩ Input impedance S-mode 5 MΩ Output impedance 220 Ω Max gain 18 dB LEHLE GmbH · Germany · www.lehle.com · support@lehle.com... -
Page 7: General Description

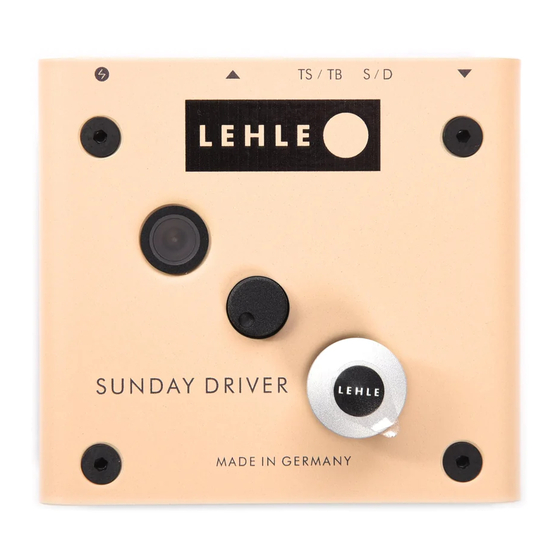

2. S/D-SELECTOR SWITCH Connect your instrument to this socket. Use this switch to select the mode you want. The LEHLE SUNDAY DRIVER SW II pro- cesses signals from electric and acoustic This gold-plated contact switch enables stringed instruments, such as electric gui-... - Page 8 In OFF status, the LEHLE SUNDAY DRIV- To tap the output balanced, the LEHLE ER SW II provides two different modes of SUNDAY DRIVER SW II has to be either operation. activated (LED blue) or the TS/TB-selec- In TB for “True-Bypass” mode, the input tor switch (3) set to “True Sound”.
- Page 9 If the LED is showing white, the LEHLE THE LEHLE SUNDAY DRIVER SW II AS A SUNDAY DRIVER SW II is in bypass and BOOSTER: depending on the position of the TS/TB- A buffer starts to amplify the signal when selector switch (3) in “True-Bypass”...
- Page 10 If required, mount the LEHLE SUNDAY DRIVER SW II to a pedalboard using the mounting kit. The LEHLE SUNDAY DRIVER SW II can be mounted to a plate such as a pedalboard using the two holes in the bottom of the pedal.
-
Page 11: Typical Uses
S U N D AY D R I V E R M A D E I N G E R M A N Y M A D E I N G E R M A N Y LEHLE GmbH · Germany · www.lehle.com · support@lehle.com... -
Page 12: Device Connection
LEHLE SUNDAY DRIVER SW II AS A LINE DRIVER DEVICE CONNECTION Input Instrument Output Input effect(s) S U N D AY D R I V E R M A D E I N G E R M A N Y Electric guitarists and bassists often like It’s easy to get an idea of how much... - Page 13 LIT- the LEHLE SUNDAY DRIVER SW II. TLE LEHLE III or LEHLE D.LOOP SGoS, so 3. Switch the S/D selector (2) in the D po- that the effects can be switched passively sition, for “Driver“.
- Page 14 LEHLE SUNDAY DRIVER SW II AS A CABLE DRIVER DEVICE CONNECTION 20 m Input Instrument Output Amplifier S U N D AY D R I V E R M A D E I N G E R M A N Y...
- Page 15 LEHLE SUNDAY DRIVER SW II AS A BOOSTER DEVICE CONNECTION Input Instrument Output Amplifier S U N D AY D R I V E R M A D E I N G E R M A N Y The LEHLE SUNDAY DRIVER SW II can be...
- Page 16 LEHLE SUNDAY DRIVER SW II AS DI BOX WITH PREAMP DEVICE CONNECTION Input Instrument Output Mixer or stage box S U N D AY D R I V E R M A D E I N G E R M A N Y...
- Page 17 The third conductor is the screening, and again constitutes the signal ground (Sleeve, XLR Pin 1). JACK CABLE Sleeve Ground Pin 1 Ring Pin 3 Signal in mirrored phase Signal in phase Pin 2 LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...
- Page 18 TYPICAL USES IN THE STUDIO RECORDING PREAMP The LEHLE SUNDAY DRIVER SW II gives top performances not only on stage and in the concert hall, but also in the record- ing studio. Its wide 20 to 100,000 Hz transmission range and extremely good signal-to-noise ratio makes it the ideal recording preamp.
- Page 19 LEHLE SUNDAY DRIVER SW II AS RECORDING PREAMP DEVICE CONNECTION Input Instrument Output Input audio interface S U N D AY D R I V E R M A D E I N G E R M A N Y Audio interfaces (sound cards) often do your instrument’s original sound in the...
- Page 20 LEHLE SUN- the signal is optimal for your audio inter- DAY DRIVER SW II’s output in balanced face. with a TRS jack. For this take a look at “4. 6. Done! Output socket”. LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...
- Page 21 LEHLE SUNDAY DRIVER SW II AS A RECORDING PREAMP WITH LEHLE P-SPLIT III I S O D I R S U N D AY D R I V E R P- S P L I T M A D E I N G E R M A N Y...
- Page 22 2. Connect the output (4) of the LEHLE noise. SUNDAY DRIVER SW II to the input sock- Please read the LEHLE P-SPLIT III operat- et of the LEHLE P-SPLIT III.
- Page 23 LEHLE SUNDAY DRIVER SW II SIGNAL FLOW DIAGRAM TRUE-BYPASS SWITCH ( ) TS/TB-SWITCH ( ) INPUT ( ) OUTPUT ( ) GAIN- S/D SWITCH ( ) CONTROLLER ( ) LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...
- Page 24 LEHLE GmbH · Grenzstrasse 153 · 46562 Voerde · Germany www.lehle.com · support@lehle.com LEHLE SUNDAY DRIVER SW II OPERATING INSTRUCTIONS EN V1.1 · 2019-08-01 Copyright 2019 by LEHLE LEHLE GmbH · Germany · www.lehle.com · support@lehle.com...
