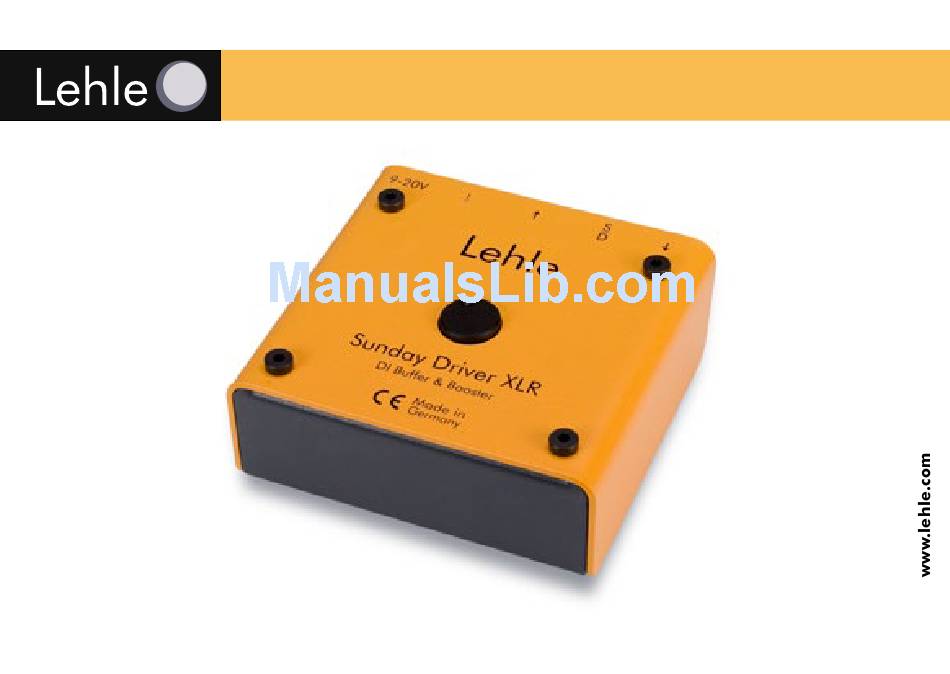

Page 1: Operating Instructions
Lehle Sunday Driver XLR Operating instructions Lehle GmbH • Grenzstr. 153 • D-46562 Voerde • Germany • Tel +49 (0) 2855 850070... - Page 2 If you should nonetheless have a problem, or simply a question, just mail me or a member of the Lehle team at: support@lehle.com I wish you the very greatest pleasure and success using your Lehle...
-
Page 3: Table Of Contents
General description ........................4 Typical uses - Lehle Sunday Driver XLR as a preamp for mixer inputs ..........8 - Lehle Sunday Driver XLR as a recording preamp ............10 - Lehle Sunday Driver XLR as a cable driver ..............11... -
Page 4: Introduction
The Lehle Sunday Driver XLR is a compact- remains powerful and clear, retaining its dynamics format high-end preamp for all types of electrical and brilliance. Mode S for “Sunday” (switcher not and acoustic instruments - a preamp that enables pressed) multiplies the input impedance by four, electric guitars and basses, acoustic guitars, and bringing out previously inaudible details. -
Page 5: Technical Data
Technical data Weight: 362 g (without battery) Length: 8.8 cm Width: 9.2 cm Overall height: 4.2 cm Voltage range: 9 - 20 V AC or DC, or 9V PP3 battery Max. power battery consumption: 19 mA Frequency response: 20 Hz - 100 kHz (in mode D) Distortion: 0.001 % at 1kHz, 0 dBU Impedance, Input D: 1 MOhm Impedance, Input S: 4 MOhm... -
Page 6: General Description
General description... - Page 7 (switcher not pressed), the input impedance is Connect your instrument to this socket. multiplied by four, to 4 MOhm, making previously The Lehle Sunday Driver XLR processes signals unheard details suddenly audible and imparting from electric and acoustic stringed instruments,...
- Page 8 6. Gain controller Use the gain controller to adjust the intensity of The Lehle Sunday Driver XLR can be operated the preamp from a slightly refreshed sound level optionally with a 9 V PP3 (block) battery or from an up to a powerful boost.
- Page 9 7. Base and fixing You can use the fixing screws supplied with the Lehle Sunday Driver XLR to fix it to a base plate (or to a pedal board, for example). Tip: in case you prefer a velcro solution for your...
-
Page 10: Typical Uses
The Lehle Sunday Driver XLR as a preamp Typical uses for mixer inputs The Lehle Sunday Driver XLR’s universal properties make it equally suitable for live use on stage and in the concert hall as well as for studio recording sessions. The following few pages show... - Page 11 “Driver“. 4. Adjust the Gain controller (5) so that the signal input of a mixer. The Lehle Sunday Driver XLR, with its input impedance of 1 MOhm (or 4 MOhm is optimal for your recording equipment.
-
Page 12: Lehle Sunday Driver Xlr As A Recording Preamp
The Lehle Sunday Driver XLR as a record- balanced input of such devices generally fails, because the instrument’s signal level is too low. ing preamp The result is a significant sound discoloration, due to the incorrect input impedance of the balanced input. -
Page 13: Lehle Sunday Driver Xlr As A Cable Driver
You can sound card or DAW a little, and connect the ISO eliminate this tone loss by positioning the Lehle output of the Lehle P-Split II to an amplifier. Sunday Driver XLR as a cable driver in the... - Page 14 Lehle Sunday Driver XLR. amp. The output of the Lehle Sunday Driver XLR must be connected to the input of the Lehle 2. Connect the Output socket (3) of the Lehle P-Split II by using a balanced cable.
