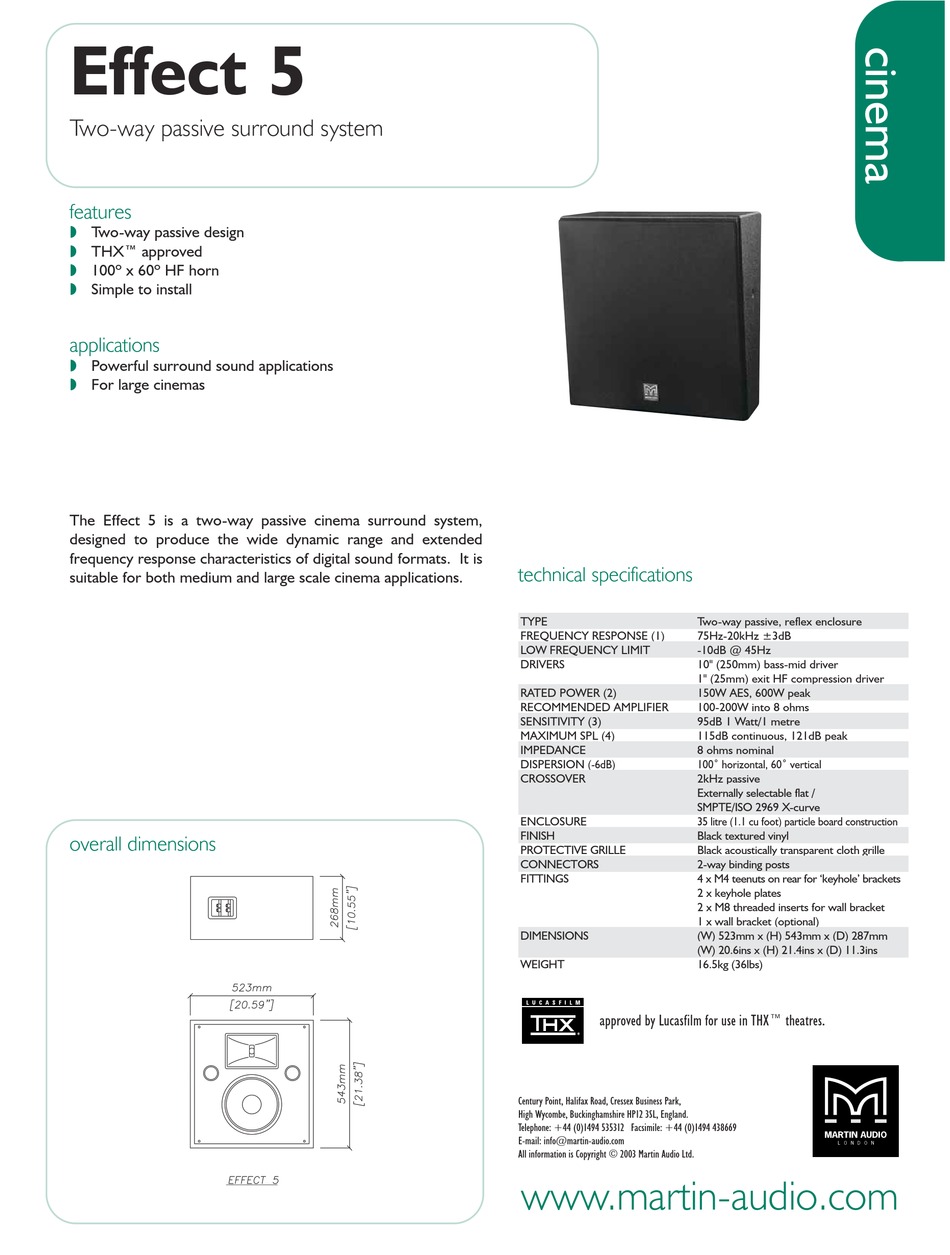

Effect 5
Two-way passive surround system
features
!
Two-way passive design
!
THX™ approved
!
100º x 60º HF horn
!
Simple to install
applications
!
Powerful surround sound applications
!
For large cinemas
The Effect 5 is a two-way passive cinema surround system,
designed to produce the wide dynamic range and extended
frequency response characteristics of digital sound formats. It is
suitable for both medium and large scale cinema applications.
overall dimensions

technical specifications

TYPE
FREQUENCY RESPONSE (1)
LOW FREQUENCY LIMIT
DRIVERS
RATED POWER (2)
RECOMMENDED AMPLIFIER
SENSITIVITY (3)
MAXIMUM SPL (4)
IMPEDANCE
DISPERSION (-6dB)
CROSSOVER
ENCLOSURE
FINISH
PROTECTIVE GRILLE
CONNECTORS
FITTINGS
DIMENSIONS
WEIGHT
approved by Lucasfilm for use in THX™ theatres.
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2003 Martin Audio Ltd.
www.martin-audio.com
Two-way passive, reflex enclosure
75Hz-20kHz ±3dB
-10dB @ 45Hz
10" (250mm) bass-mid driver
1" (25mm) exit HF compression driver
150W AES, 600W peak
100-200W into 8 ohms
95dB 1 Watt/1 metre
115dB continuous, 121dB peak
8 ohms nominal
100˚ horizontal, 60˚ vertical
2kHz passive
Externally selectable flat /
SMPTE/ISO 2969 X-curve
35 litre (1.1 cu foot) particle board construction
Black textured vinyl
Black acoustically transparent cloth grille
2-way binding posts
4 x M4 teenuts on rear for 'keyhole' brackets
2 x keyhole plates
2 x M8 threaded inserts for wall bracket
1 x wall bracket (optional)
(W) 523mm x (H) 543mm x (D) 287mm
(W) 20.6ins x (H) 21.4ins x (D) 11.3ins
16.5kg (36lbs)
