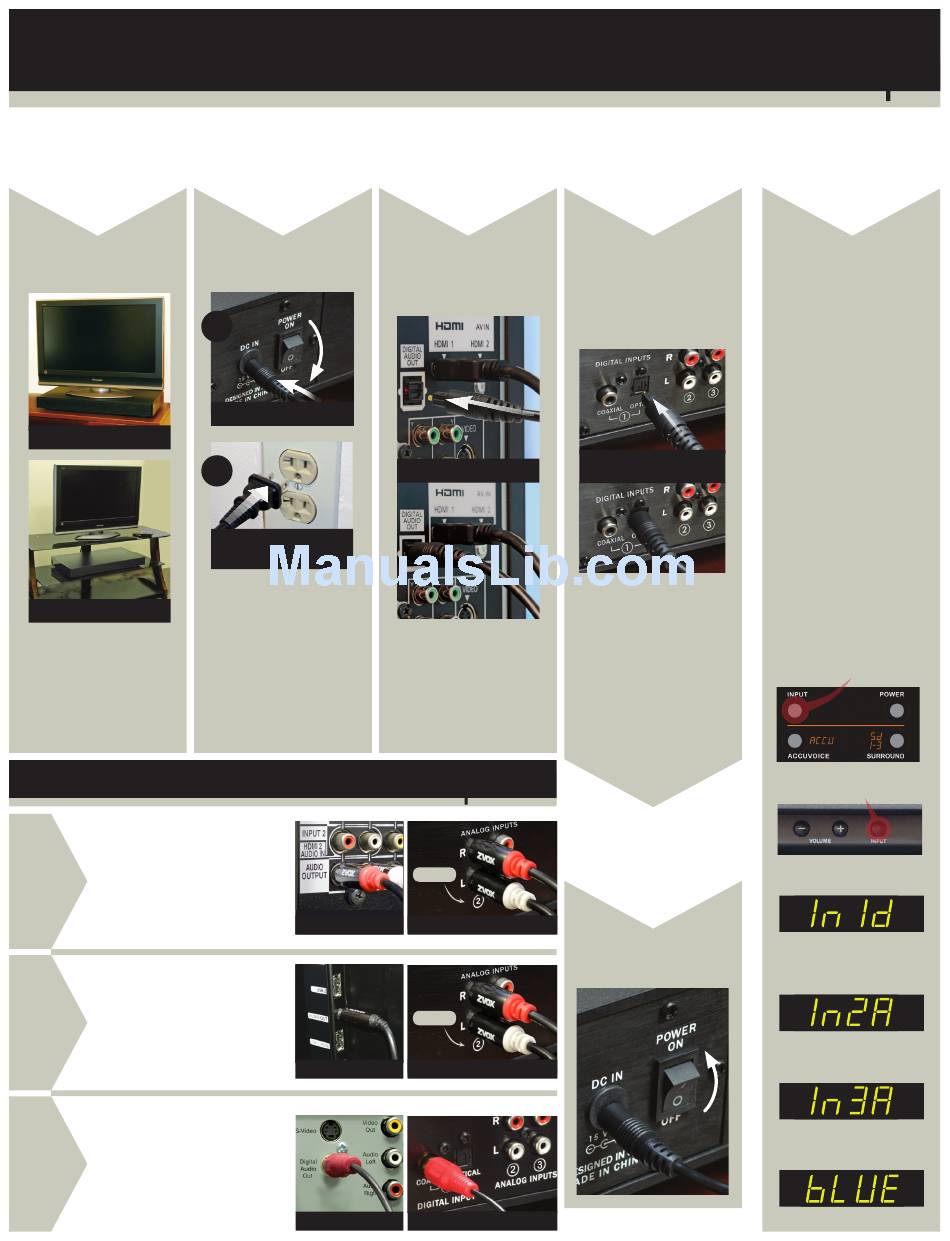

Zvox Audio SoundBase 450 Quick Setup Manual

ZVOX SoundBase
®
1
Position the
SoundBase.
"TV base" position
Shelf position
Place the SoundBase
on stable, flat surface.
Ensure all components
are stable and secure.
Other Possible TV Audio Outputs
RCA Jack Analog
a
Audio Out
A red/white pair of RCA jacks
on the back of the TV labeled
OUTPUT. Do not connect to
RCA jacks labeled INPUT.
"Minijack" Analog
b
Audio Out
Some TVs use a minijack
output or headphone jack.
Do not use a minijack
labeled INPUT.
c
Coaxial Digital
Audio Output
(Single RCA jack,
may be orange)
Any cable with an RCA plug
at each end can be used.
2
Connect the
power cord.
OFF
1
Back of SoundBase
2
AC Power
Receptacle
Connect the AC
power cord to
the back of the
SoundBase. Leave
the Power Switch in
"Off" . Then insert the
AC plug into an AC
power receptacle.
Back of TV
Back of TV
Back of TV
450/350 Quick Setup
®
3
Connect to the
Optical Audio
Output of the TV.
Back of TV
Connect one end of
an optical cable to
the TV's optical digital
audio output.
Input 2
Back of SoundBase
Input 2
Back of SoundBase
Back of SoundBase
4
Connect to the
Optical Audio
Input of the
SoundBase.
Back of SoundBase
SoundBase's Optical
Audio Input
Connect the other end
of the optical cable
to the SoundBase's
optical input.
5
Flip on the Power.
ON
© 2014 ZVOX Audio LLC.
6
Confirm you hear
TV sound through
the SoundBase.
After making an optical
connection, you should
hear the TV sound
through the SoundBase
with the SoundBase
volume set to 12-15.
If you don't hear sound
or if you did not use an
optical connection, press
the INPUT button on
the SoundBase remote
control to select the
correct input.
Select the input on the
SoundBase with the TV
connected to it using the
SoundBase remote
control INPUT button
or the front panel.
Input 1—digital
(optical or coaxial jack)
Input 2—analog (RCA jacks)
Input 3—analog (RCA jacks)
Bluetooth device
