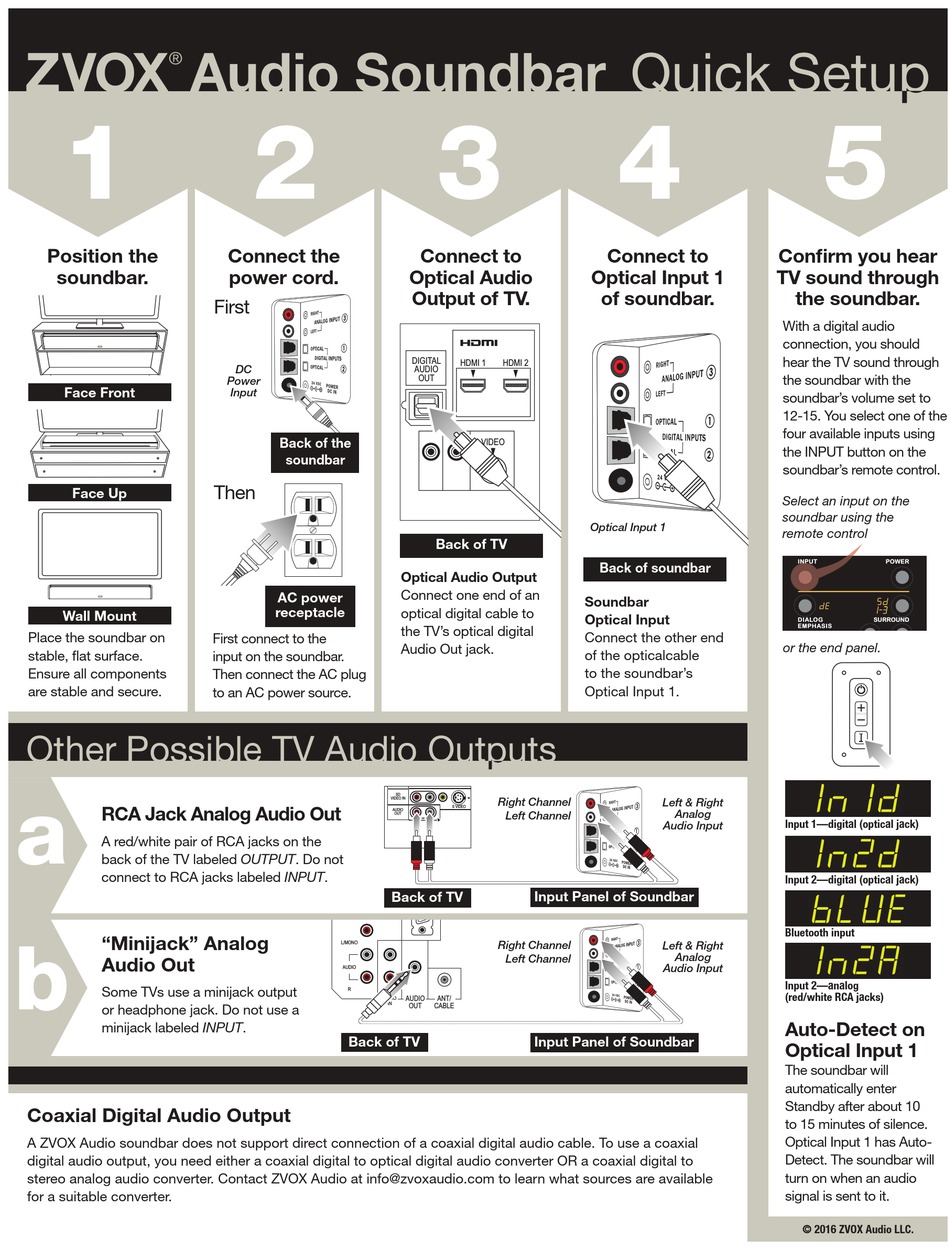

ZVOX Audio Soundbar Quick Setup
1
Position the
soundbar.
Face Front
Face Up
Wall Mount
Place the soundbar on
stable, flat surface.
Ensure all components
are stable and secure.
Other Possible TV Audio Outputs
a
RCA Jack Analog Audio Out
A red/white pair of RCA jacks on the
back of the TV labeled OUTPUT. Do not
connect to RCA jacks labeled INPUT.
b
"Minijack" Analog
Audio Out
Some TVs use a minijack output
or headphone jack. Do not use a
minijack labeled INPUT.
Coaxial Digital Audio Output
A ZVOX Audio soundbar does not support direct connection of a coaxial digital audio cable. To use a coaxial
digital audio output, you need either a coaxial digital to optical digital audio converter OR a coaxial digital to
stereo analog audio converter. Contact ZVOX Audio at info@zvoxaudio.com to learn what sources are available
for a suitable converter.
2
Connect the
power cord.
First
DC
Power
Input
Back of the
soundbar
Then
AC power
receptacle
First connect to the
input on the soundbar.
Then connect the AC plug
to an AC power source.
Back of TV
Back of TV
3
Connect to
Optical Audio
Output of TV.
Back of TV
Optical Audio Output
Connect one end of an
optical digital cable to
the TV's optical digital
Audio Out jack.
Right Channel
Left Channel
Input Panel of Soundbar
Right Channel
Left Channel
Input Panel of Soundbar
4
Connect to
Optical Input 1
of soundbar.
Optical Input 1
Back of soundbar
Soundbar
Optical Input
Connect the other end
of the opticalcable
to the soundbar's
Optical Input 1.
Left & Right
Analog
Audio Input
Left & Right
Analog
Audio Input
5
Confirm you hear
TV sound through
the soundbar.
With a digital audio
connection, you should
hear the TV sound through
the soundbar with the
soundbar's volume set to
12-15. You select one of the
four available inputs using
the INPUT button on the
soundbar's remote control.
Select an input on the
soundbar using the
remote control
or the end panel.
Input 1—digital (optical jack)
Input 2—digital (optical jack)
Bluetooth input
Input 2—analog
(red/white RCA jacks)
Auto-Detect on
Optical Input 1
The soundbar will
automatically enter
Standby after about 10
to 15 minutes of silence.
Optical Input 1 has Auto-
Detect. The soundbar will
turn on when an audio
signal is sent to it.
© 2016 ZVOX Audio LLC.
