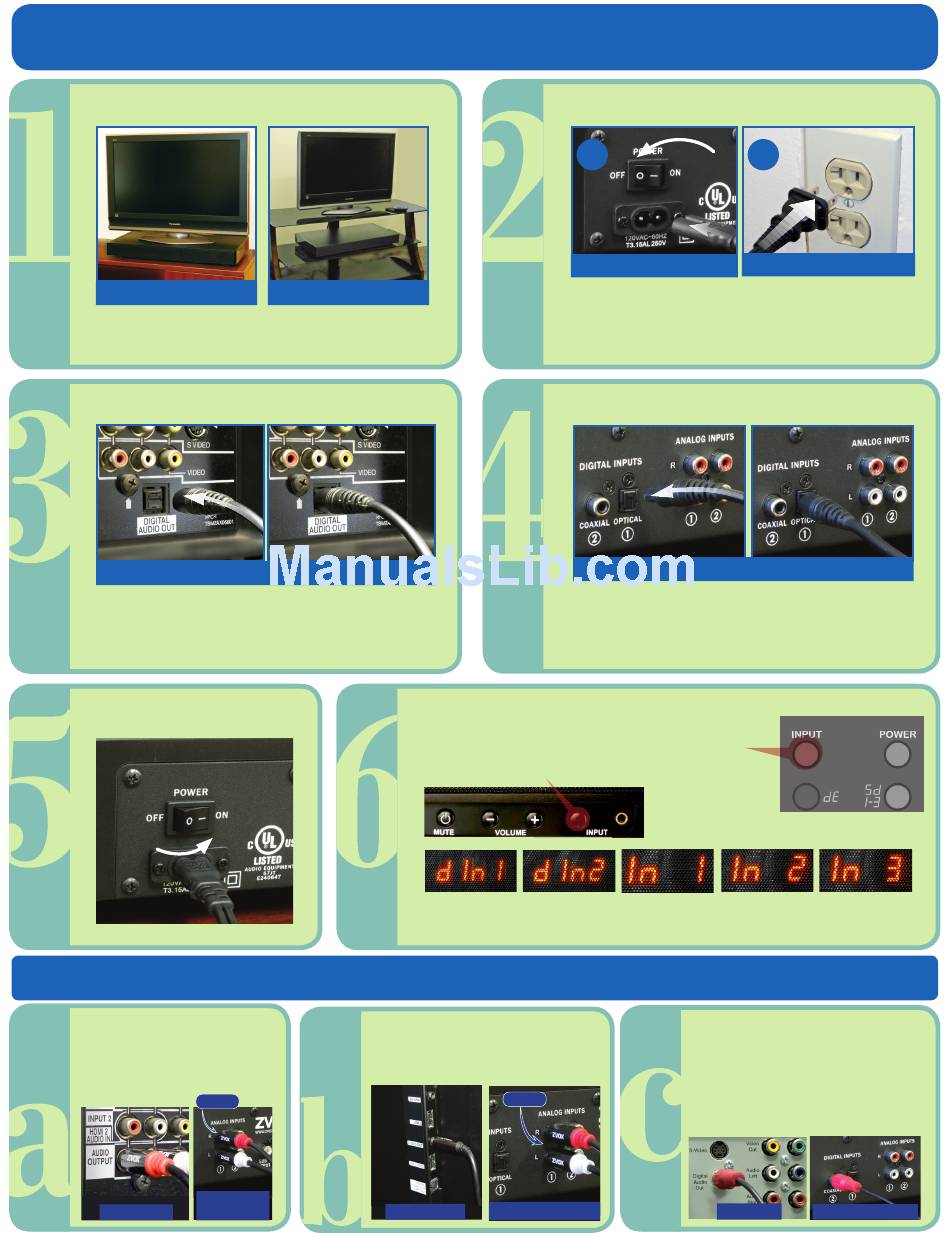

ZVOX Z-Base 555 Quick Setup

Position The Z-Base 555.

"TV base" position
Place the Z-Base 555 on stable, flat surface.
Ensure all components are safe and secure.

Connect to Audio Output of TV.

Back of TV
Optical Audio Output
Connect one end of an optical digital (toslink)
cable to the TV's Audio Out optical jack.

Flip on the Power.

ON

Other Audio Connection Options

Phono Jack Analog
Audio Out
White/red pair of phono output
jacks (not "input") on back of TV.
Input 1
Back of
Back of TV Z-Base 555
Shelf position

Select the correct input.

Select the TV input using the remote control
OR the front panel.
Optical
digital input
"Minijack" Analog Audio Out
Out Some TVs use a "minijack" output
(not "input") or headphone jack.
Back of TV

Connect the power cord.

1
Back of Z-Base 555
Connect the AC power cord to the back of
the Z-Base 555. Leave the Power Switch
in "Off". Then insert the AC plug into an AC
power receptacle.

Connect to Audio Input of Z-Base 555.

Back of Z-Base 555
Z-Base 555's Optical Audio Input
Connect the other end of the optical cable
to the Z-Base 555's optical input jack.
Coaxial
Input 1
digital input (rear panel)
Input 1
Back of Z-Base 555
2
OFF
AC Power Receptacle
Input 2
Input 3
(rear panel)
(front panel)
Coaxial Digital Audio Output
(Single phono jack, may be orange)
Any cable with a phono plug at each
end can be used.
Back of TV
Back of Z-Base 555
