JETWAY NF9V Technical Manual page 9

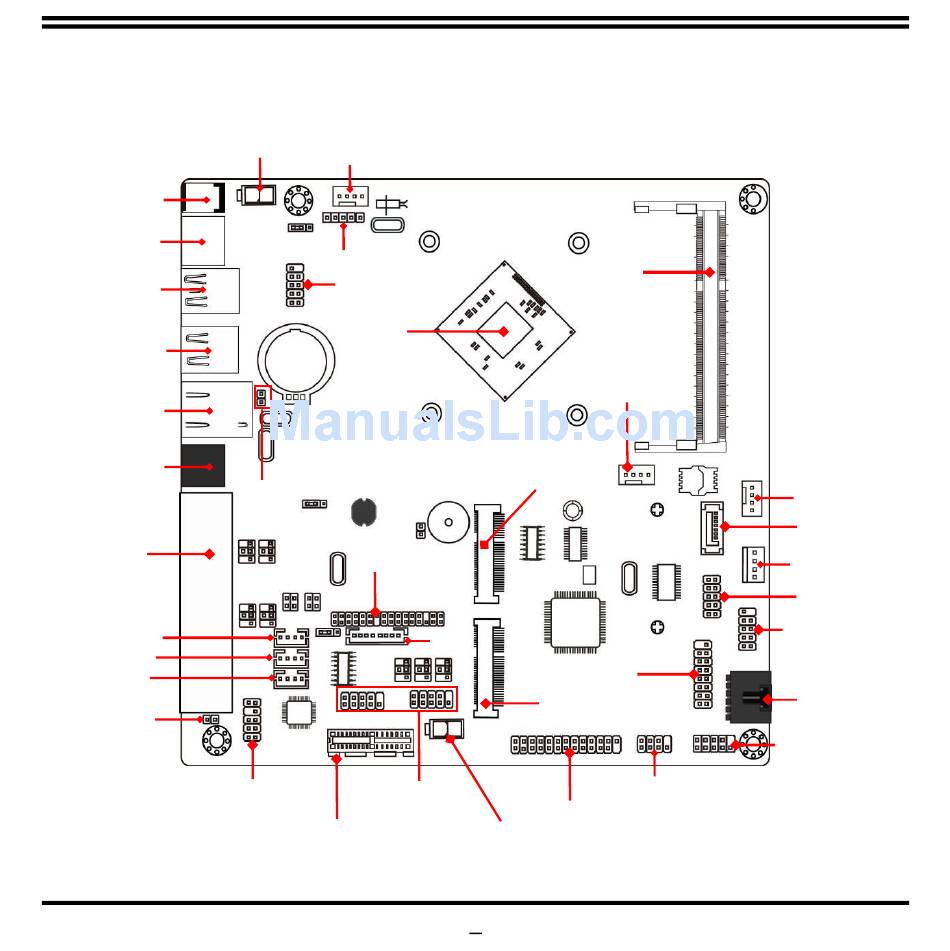

Motherboard Internal Diagram
Power Connector
DC12V
Power-in Connector
PS/2
KB & MS Port
USB 3.0 Port
Over USB 2.0 Port
USB 2.0 Ports
RJ-45 LAN Port
RJ-11
Cash Drawer Port
RJ-45
COM Ports
SPEAK_CON Header
MIC Header
Line-Out Header
HDMI_SPDIF
Header
Note: 1. The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity.
2. Touch I/F header is only optional by order.
Internal 12V
SYSFAN1 Header
SMBUS Header
Front Panel
USB 2.0 Header
Intel CPU
LAN_LED1
Header
LVDS Header
Front Panel
Serial Port Headers
Audio Header
(COM5/6)
PCI Express x1 Slot
*DDR3L SODIMM Slot
(SODIMM1)
CPUFAN Header
Full-size
Mini-PCIE Slot (MPE)
LVDS
Inverter
VGA Port
Header
Mini-SATA Port
Parallel Port Header
MON_PWR
12V Power Connector
4
Power-Out Connector
Front Panel
USB 2.0 Header
Front Panel Header
Power LED Header
& Speaker Header
SYSFAN2 Header
SATAII Port
SATA Hard Disk
GPIO Header
*Touch I/F
Header
(Optional)
