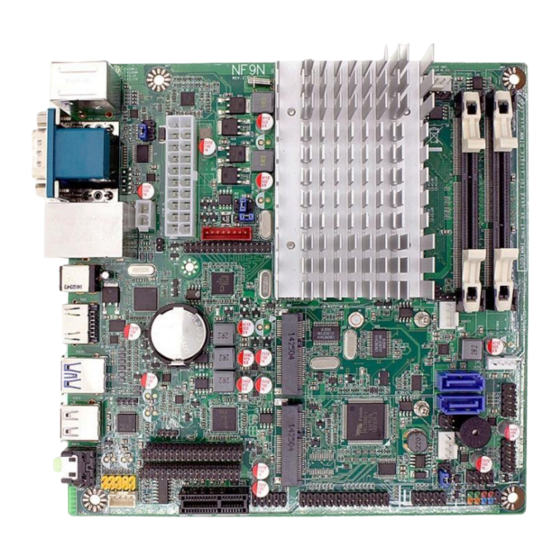

JETWAY NF9N Technical Manual

Intel bay trail cpu based mini-itx m/b
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9N-F
Revision: 2.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF9N and is the answer not in the manual?

Questions and answers

Related Manuals for JETWAY NF9N

Summary of Contents for JETWAY NF9N

  • Page 1 Technical Manual Intel Bay Trail Series CPU Based Mini-ITX M/B NO.G03-NF9N-F Revision: 2.0 Release date: October 1, 2019 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
  • Page 2 Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.

  • Page 3: Table Of Contents

    TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION ................iv USER’S NOTICE ........................v MANUAL REVISION INFORMATION ..................v ITEM CHECKLIST ........................v CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD FEATURE OF MOTHERBOARD ................1 SPECIFICATION ......................2 LAYOUT DIAGRAM ....................3 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING .....................

  • Page 4: Environmental Safety Instruction

    Environmental Safety Instruction  Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet.  0 to 60 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) ...

  • Page 5: User's Notice

    USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

  • Page 6: Chapter 1 Introduction Of The Motherboard Feature Of Motherboard

    Chapter 1 Introduction of the Motherboard Feature of Motherboard ®  Onboard Intel Bay Trail Series Processor, with low power consumption never denies high performance  Support 2 * DDR3L SO-DIMM 1066/1333 MHz up to 8GB  Support Mini-PCIE connector ...

  • Page 7: Specification

    Specification Spec Description  6 layers; PCB size: 17x 17 cm Design ®  Integrated with Intel Bay Trail-D/M/I series CPU Embedded CPU  2 * DDR3L SODIMM Slot for un-buffered dual channel DDR3L 1066/1333 MHz SDRAM, expandable to 8GB in total Memory Slot ...

  • Page 8: Layout Diagram

     1* LAN LED activity header  1* LVDS header  1* LVDS inverter header  1*Jetway daughter board expansion slot header (CN1/CN2) Layout Diagram Rear IO Panel Diagram: RJ-45 LAN Port COM1 Port PS/2 Mouse Port USB 2.0 Port...
  • Page 9 Motherboard Internal Diagram SYSFAN1 Header PS/2 Mouse Port Over PS/2 Keyboard Port Internal ATX Type Power connector COM1 Port over Internal 12V LVDS Inverter VGA Port Power connector *DDR3L SODIMM Slot (SODIMM1/2) RJ-45 LAN Port Over USB 2.0 Ports Intel CPU LAN_LED Header LVDS Header SMBUS Header...
  • Page 10 Jumper Position: JBAT AT-MODE & COPEN...
  • Page 11 Jumper Jumper Name Description JBAT Pin 1-2: CMOS RAM Clear Function Setting 4-Pin Block Pin 3-4: Clear ME RTC Function Setting AT_COPEN Pin 1-2: ATX Mode & AT Mode Select 4-Pin Block Pin 3-4: Case Open Message Display Function LVDS PVCC 5V/3.3V /12V Select 4-Pin Block INVERTER Back Light 5V/12V Select 3-Pin Block...
  • Page 12 Serial Port Header 9-pin Block GPIO_CON GPIO Header 10-pin Block SMBUS SMBUS Header 4-pin Block LAN_LED LAN Activity LED Header 2-pin Block LVDS LVDS Header 30-pin Block INVERTER LVDS Inverter Header 8-pin Block CN1/CN2 Jetway Daughter Board Header 35-pin Block...

  • Page 13: Jumper Setting

    Chapter 2 Hardware Installation 2-1 Jumper Setting Pin 1 & 2 of JBAT (4-pin): Clear CMOS Setting JBAT(Pin1&2)→Clear CMOS 1-2 Open: Normal； 2-3 Close：Clear CMOS. Pin 3 & 4 of JBAT (4-pin): Clear ME_RTC Function Setting JBAT(Pin3&4)→Clear ME_RTC 3-4 Open: Normal； 3-4Close：Clear ME_RTC.
  • Page 14 Pin 1 & 2 of AT_COPEN (4-pin): AT Mode Function Select → AT_COPEN(Pin 1&2) AT Mode Select Pin 1 1-2 Open: ATX Mode Selected; Pin 1 1-2 Close: AT Mode Selected. *ATX Mode Selected: Press power button to power on after power input ready; AT Mode Selected: Directly power on as power input ready.
  • Page 15 function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this. JP2 (4-pin): LVDS PVCC 3.3V/5V/12V Select JP2→LVDS PVCC 2 4 6 2 4 6 1 3 5 1 3 5 2-4 Closed: LVDS...
  • Page 16 JP1 (4-pin): COM1 Port Pin9 Function Select JP1→COM1 Port 2-4 Closed: 3-4 Closed: 4-6 Closed: RI=RS232; RI= +5V; RI= +12V. JP5 (4-pin): COM2 Header Pin9 Function Select JP5→COM2 Header 2-4 Closed: 3-4 Closed: 4-6 Closed: RI=RS232; RI= +5V; RI= +12V.

  • Page 17: Connectors And Headers

    Connectors and Headers 2-2-1 Connectors (1) Rear I/O Connectors RJ-45 LAN Port COM1 Port PS/2 Mouse Port USB 2.0 Port HDMI Port PS/2 Line-Out Port Keyboard Port VGA Port USB 2.0 Ports USB 3.0 Port 12V DC-in Power Connector (2) SATAII Port connector: SATA1/SATA2 These are high-speed SATAII ports that support 3GB/s transfer rate.
  • Page 18 (3) SATA Power Connector (4-pin): SATAPW Pin 1 (4) ATXPWRIN (20-pin block): Power Connector...
  • Page 19 (5) ATX2P (2-pin block): Internal DC 12V Power-in Connector (6) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors SYSFAN1: Pin1 CPUFAN/SYSFAN2: Control Fan Speed +12V Fan Power Pin1...

  • Page 20: Headers

    2-2-2 Headers (1) FP_AUDIO (9-pin): Line-Out, MIC-In Header This header connects to Front Panel Line-out, MIC-In connector with cable. Pin 1 Line-Out, MIC Header (2) SPDIF (2-pin): HDMI_SPDIF Out Header Pin1...
  • Page 21 (3)SPEAK_CON (4-pin): Speaker Connector Pin No. Definition (4)CD_IN (4-pin): CD Audio In Header Pin1...
  • Page 22 (5)LINE_IN (4-pin): Line In Header Pin1 (6) JW_FP (9-pin): Front Panel Header Pin 1...
  • Page 23 (7) SPK-LED (7-pin): Speaker Header & PWR LED Header Pin 1 (8) FP_USB1/FP_USB2 (9-pin): USB 2.0 Port Header DATA+ DATA+ DATA- DATA- Pin 1...
  • Page 24 (9) LPT (25-pin): Parallel Port Header Pin14 Pin1 Pin NO. Pin Definition Pin NO. Pin Definition STB- AFD- Pin 1 Pin 14 PRD0 ERR- Pin 2 Pin 15 PRD1 INIT- Pin 3 Pin 16 PRD2 SLIN- Pin 4 Pin 17 PRD3 Pin 5 Pin 18...
  • Page 25 (10) COM2(9-pin): Serial Port Header Pin6 Pin1 (11) GPIO_CON (10-pin): GPIO Header Pin 1...
  • Page 26 (12) SMBUS (4-Pin): SM BUS Header Pin1 (13)LAN_LED (2-pin): LAN Activity LED Header LED- Pin1 LED+...
  • Page 27 (14) LVDS (30-pin): 24-bit Dual Channel LVDS Header Pin 1 Pin 2 Pin NO. Pin Define Pin NO. Pin Define Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3 Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2 Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1...
  • Page 28 (15) INVERTER (8-pin): LVDS Inverter Pin No. Definition Backlight Enable Backlight PWM Backlight VCC Backlight VCC Backlight Up SW Backlight Down SW...

  • Page 29: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

  • Page 30: Bios Menu Screen

    BIOS Menu Screen The following diagram show a general BIOS menu screen: Menu Bar General Help Items Current Setting Value Function Keys Menu Items Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 31: Getting Help

     Press <Enter> to select.  Press <+>/<–> keys when you want to modify the BIOS parameters for the active option.  [F1]: General help.  [F2]: Previous value.  [F3]: Optimized defaults.  [F4]: Save & Exit.  Press <Esc> to quit the BIOS Setup. Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the top right...

  • Page 32: Main Menu

    Main Menu Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item. System Date Set the date. Please use [Tab] to switch between data elements. System Time Set the time.

  • Page 33: Advanced Menu

    3-7 Advanced Menu OS Selection The optional settings: [Android]; [Windows 8.X]; [Windows 7]. *Note: User needs to go to this item to select OS before installing OS. If Windows Embedded standard 8, please select [Windows 8x] and set “USB 3.0 Support”...
  • Page 34 The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].  Wakeup Function Settings Press [Enter] to make settings for the following sub-items: Wake-up System with Fixed Time Use this item to enable or disable system wake-up on alarm event. The optional settings: [Disabled];...
  • Page 35 The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte FIF0].  Parallel Port Configuration Press [Enter] to make settings for the following items: Parallel Port Use this item to enable or disable parallel port (LPT/LPTE). Change Settings Use this item to select an optimal setting for super IO device. Device Mode The optional settings are: [STD Printer Mode];...
  • Page 36 This item displays current Emulate AT Power Status, motherboard power On/Off control by power supply. User needs to select ‘AT or ATX Mode’ on MB jumper at first (refer to Page 8~9, Jumper AT_MODE for ATX Mode & AT Mode Select). Case Open Detect This item controls detect case open function.
  • Page 37 C/185  Serial Port Consol Redirection Press [Enter] to make settings for serial port redirection settings: COM1 Console Redirection The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], user can make further settings in:  Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data.
  • Page 38 The optional settings are: [80x24]; [80x25]. Putty Keypad The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN]; [VT400]. Redirection After BIOS POST The optional settings are: [Always Enable]; [BootLoader]. Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection The optional settings are: [Enabled];...
  • Page 39 The default setting is: [None]. *This item may or may not show up, depending on different configuration. Stop Bits The default setting is: [1]. *This item may or may not show up, depending on different configuration.  CPU Configuration Press [Enter] to view current CPU configuration and make settings for the following sub-items: Limit CPUID Maximum The optional settings: [Disabled];...
  • Page 40  SATA Configuration Press [Enter] to make settings for the following sub-items: SATA Configuration SATA Port The optional settings: [Disabled]; [Enabled]. SATA Mode The optional settings are: [IDE Mode]; [AHCI Mode]. SATA Speed Support The item is for user to set the maximum speed the SATA controller can support. The optional settings are: [Gen1];...
  • Page 41 Option ROM execution order Network This item controls the execution of UEFI and legacy PXE OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only]. Storage This item controls the execution of UEFI and Legacy Storage OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only]; [Legacy first]; [UEFI first].
  • Page 42 USB hardware delay and time-outs: USB Transfer time-out Use this item to set the time-out value for control, bulk, and interrupt transfers. The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec]. Device reset time-out Use this item to set USB mass storage device start unit command time-out. The optional settings are: [10 sec];...

  • Page 43: Chipset Menu

    3-8 Chipset Menu  North Bridge Press [Enter] to view current using memory information and make settings for the following sub-items: Intel IGD Configuration PAVC Use this item to enable or disable protected audio video control. The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode]. DVMT Pre-Allocated Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device.
  • Page 44 [288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M]. DVMT Total Gfx Mem Use this item to select DVMT 5.0 total graphics memory size used by the internal graphics device. The optional settings are: [128M]; [256M]; [MAX]. Aperture Size The optional settings are: [128MB]; [256MB]; [512MB]. GTT Size The optional settings are: [1MB];...
  • Page 45 [1920 x 1080 24bit Dual].  South Bridge Press [Enter] to set south bridge parameters.  USB Configuration Press [Enter] to make settings for the following sub-items: USB Configuration USB 3.0 Support The optional settings are: [Enabled]; [Disabled]; [Auto]; [Smart Auto]. * Note: When set as [Disable], USB 2.0 Support is applicable, for user to make further settings.

  • Page 46: Security Menu

    failure. The optional settings are: [Always Off]; [Always On]; [Former State]. 3-9 Security Menu Security menu allow users to change administrator password and user password settings.

  • Page 47: Boot Menu

    3-10 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State Use this item to select keyboard numlock state. The optional settings are: [On]; [Off]. Quiet Boot The optional settings are: [Disabled];...

  • Page 48: Save & Exit Menu

    3-11 Save & Exit Menu Save Changes and Reset This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /load default values for all the setup options. Save as User Defaults Use this item to save the changes done so far as user defaults.
  • Page 49 UEFT: Built-in EFI Shell Launch Internal EFI shell application (shell.efi). Lauch EFI Shell from filesystem device Use this item to launch EFI shell application (shell.efi) from one of the available filesystem device. Reset System with TXT disable Mode Press [Enter] for TXE to run into the temporary disable mode. Ignore if TXE Ignition...
