AZTECH HW550-3G
WIRELESS N 3G ROUTER

RECONFIGURING TO CONNECT TO THE INTERNET

1. Make sure that the HW550-3G is switched off
2. Using an Ethernet cable connect the HW550-3G's WAN port to the wall socket
3. Connect the power adapter to the HW550-3G then turn it on
4. At the back of your computer look for the Ethernet port, connect an Ethernet cable to your
computer's Ethernet port then connect the other end of the cable to the HW550-3G's LAN port

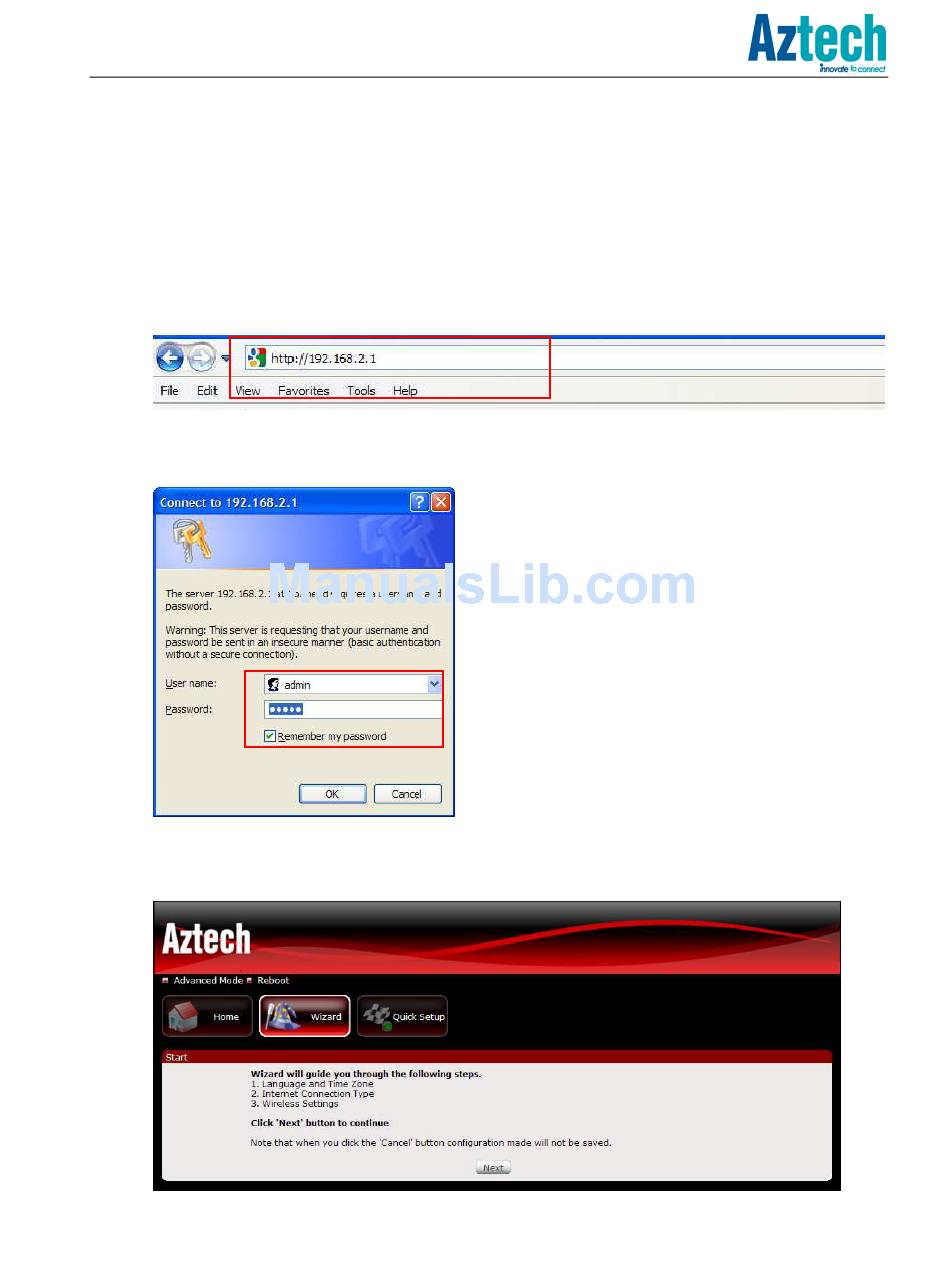

5. On your computer open your Internet browser then type 192.168.2.1
6. An authentication page will pop-up, type admin for the username and admin for the password
then click OK
7. This will open the HW550-3G's Web User Interface, Go to Wizard to setup your router
8.
Under Wizard Page click Next to proceed with the setup
P R O D U C T E N G I N E E R I N G A N D S U P P O R T
S i n g a p o r e
A Z T E C H T E C H N O L O G I E S P T E L T D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HW550-3G and is the answer not in the manual?

Questions and answers

Related Manuals for Aztech HW550-3G

Summary of Contents for Aztech HW550-3G

  • Page 1 4. At the back of your computer look for the Ethernet port, connect an Ethernet cable to your computer’s Ethernet port then connect the other end of the cable to the HW550-3G’s LAN port 5. On your computer open your Internet browser then type 192.168.2.1 6.
  • Page 2 F r e q u e n t l y A s k e d Q u e s t i o n Page 2 of 4 9. Select the Time Zone from the drop down box then click Next 10.
  • Page 3 F r e q u e n t l y A s k e d Q u e s t i o n Page 3 of 4 12. Under Wireless Setting, tick Wireless Enabled, Broadcast SSID Enabled, fill up the SSID box for your wireless network name, tick WPA Enabled to secure your Wireless network then enter the password that you would like to use on the required field 13.
  • Page 4 F r e q u e n t l y A s k e d Q u e s t i o n Page 4 of 4 14. Once the settings are applied, under Home tab the Connection Status should be Connected to Internet Note: 1.
