POWER

The Fat Sandwich Distortion can be powered by a single
9V battery or with a Dunlop ECB-003 external DC power supply.
The power input is a 5.5mm x 2.1mm jack with the positive
voltage on the outer sleeve. Using an external power supply
will disconnect the battery. Disconnect the input jack to
preserve battery life when not in use. The pedal will lock
into bypass mode when it is time to change the battery. It
also includes power protection circuitry to prevent damage
from AC power supplies.

SPECIFICATIONS

INPUT IMPEDANCE..............................> 15k?
OUTPUT IMPEDANCE..............................< 25k?
SIGNAL TO NOISE RATIO
(all controls at MID position)........> 74dBV 'A' Weighted
BYPASS...................True Bypass
DIMENSIONS...4-25/32" x 3-3/4" x 1-3/4"
WEIGHT..................................14oz.
CURRENT DRAW..................8.7mA (9V DC)
POWER SUPPLY..........Standard 9V battery,
Dunlop ECB-03 AC Adapter, Dunlop DC Brick,
or CAE MC-403.
*0dBV = 1Vrms

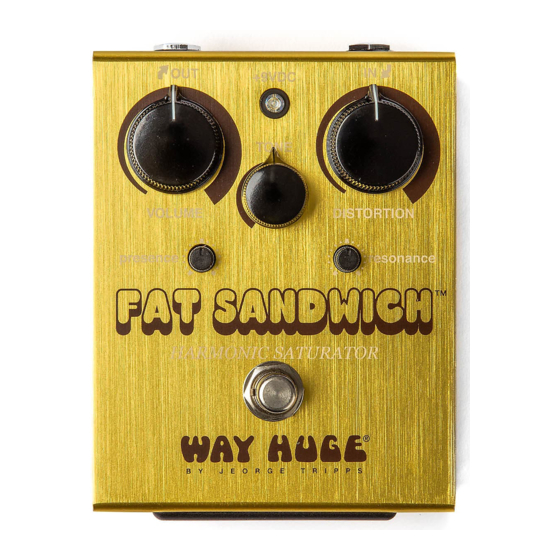

Features: heavy-duty footswitch with quiet relay-based true
bypass, blue LED indicator, 5.5mm x 2.1mm power jack with
AC protection, easy access non-detachable battery door,
super-duty 0.09" aluminum anodized chassis, high grade
components, great tone and cool name.
301
WHE-
Fat Sandwich
instruction manual
DUNLOP MANUFACTURING, INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658 WWW.JIMDUNLOP.COM
