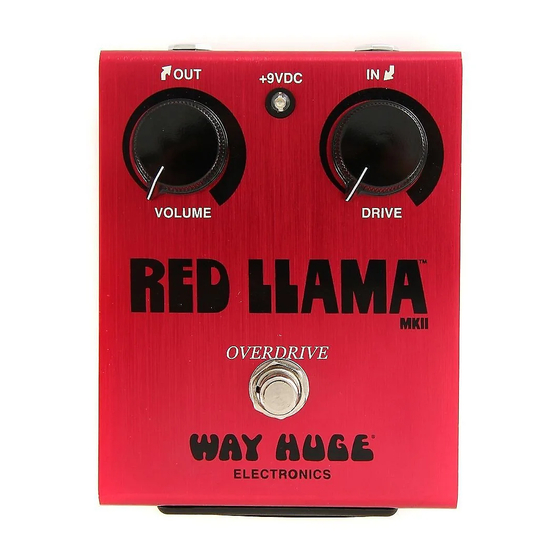

Way Huge RED LLAMA Mk II WHE-203 Instruction Manual

The Red Llama Overdrive MkII can be powered by a single
9V battery, with a Dunlop ECB-003 external DC power
supply, or with the Dunlop DC Brick. The power input is a
5.5mm x 2.1mm jack with the positive voltage on the outer
sleeve. Using an external power supply will disconnect
the battery. Disconnect the input jack to preserve battery
life when not in use. The pedal will lock into bypass mode
when it is time to change the battery. It also includes
power protection circuitry to prevent damage from AC
INPUT IMPEDANCE ................................................100 kΩ
OUTPUT IMPEDANCE ........................................
SIGNAL TO NOISE ................................................
GAIN RANGE ................................................................ 20 dB
BYPASS ................................................ True Hardwire Relay
CURRENT DRAW ........................................................ 15 mA
POWER REQUIREMENT ................................ 9 volts DC
FEATURES: Heavy-duty footswitch with quiet relay-based
true hardwire, blue LED indicator, 5.5mm x 2.1mm power
jack, super-duty 0.09" aluminum anodized chassis, high
grade components, great tone and cool name.
DUNLOP MANUFACTURING, INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658 WWW.JIMDUNLOP.COM
POWER
power supplies.

SPECIFICATIONS

< 10 kΩ
> 80 dBV
203
WHE-
Red Llama
instruction manual
