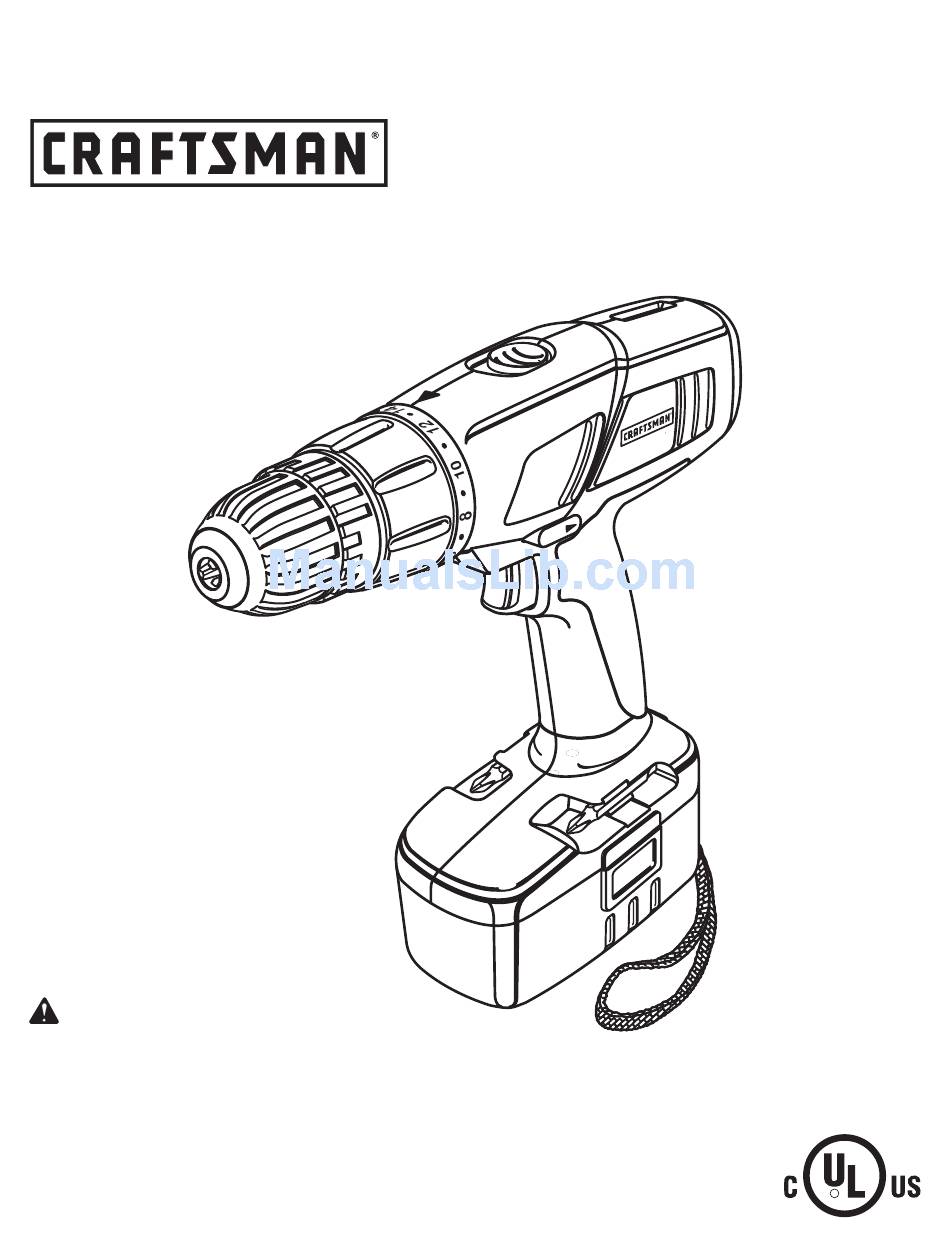

Operator's Manual
3/8 in., 19.2 VOLT CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model No.
973.113450
Save this manual for
future reference
CAUTION:
Read and follow all
Safety Rules and Operating Instructions
before first use of this product.
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-001
2-02
• Safety
• Features
• Operation
• Maintenance
• Parts List
R
Advertisement
Table of Contents
Related Manuals for Craftsman 973.113450
Summary of Contents for Craftsman 973.113450
- Page 1 Safety Rules and Operating Instructions before first use of this product. • Maintenance • Parts List Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA Visit the Craftsman web page: www.sears.com/craftsman 983000-001 2-02...
-
Page 2: Table Of Contents
■ Exploded View And Repair Parts List .......................... 17 ■ Parts Ordering / Service ............................... 18 WARRANTY FULL ONE YEAR WARRANTY ON CRAFTSMAN 3/8 in. CORDLESS DRILL-DRIVER If this 3/8 in. Cordless Drill-Driver fails to give complete satisfaction within one year from the date of pur- chase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED STATES, and Sears will repair it, free of charge. -
Page 3: Introduction
Use battery only with charger listed. MODEL BATTERY PACK CHARGER 973.113450 Item No. 11375 Item No. 11041 (1310715) (1425301) ■... -
Page 4: Specific Safety Rules
GENERAL SAFETY RULES Tool Use and Care ■ Use clamps or other practical way to secure and ■ Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp support the workpiece to a stable platform. Holding cutting edges are less likely to bind and are easier to the work by hand or against your body is unstable and control. - Page 5 IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER AND SPECIFIC SAFETY RULES ■ Do not operate charger with a damaged cord or WARNING: Never use a battery that has been plug. If damaged, have replaced immediately by a dropped or received a sharp blow. A damaged battery qualified serviceman.
- Page 6 SYMBOLS Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz...
-
Page 7: Product Specifications
PRODUCT SPECIFICATIONS DRILL-DRIVER 973.113450 CHARGER Item No. 11041 (1425301) Chuck 3/8 in. Keyless Motor DC Motor 19.2 Volt Rating 120 V, 60 Hz, AC only Charging Voltage 7.2 - 24 Volt Gear Train Two Speed No Load Speed 0-400 RPM (Low) -
Page 8: Features
FEATURES TWO-SPEED LEVEL GEAR TRAIN (HI-LO) TORQUE KEYLESS ADJUSTMENT CHUCK RING ® LEVEL REAR VIEW DIRECTION OF ROTATION SELECTOR (FORWARD/REVERSE) SWITCH TRIGGER STORAGE SCREWDRIVER BITS BATTERY PACK SHOWN IN TOOL BATTERY PACK SHOWN IN CHARGER 4-1/2 in. WRIST STRAP CHARGER RED LED ON INDICATES FAST CHARGING MODE GREEN LED ON AFTER FAST CHARGING... -
Page 9: Operation
OPERATION WARNING: Do not allow familiarity with your drill- LED FUNCTIONS OF CHARGER driver to make you careless. Remember that a LED WILL BE ON TO INDICATE STATUS OF careless fraction of a second is sufficient to inflict CHARGER AND BATTERY PACK: severe injury. - Page 10 OPERATION SWITCH TO INSTALL BATTERY PACK See Figure 2. ■ Lock switch trigger on your drill by placing the direction See Figure 5. To turn your drill ON, depress the switch trigger. To turn it of rotation selector in center position. OFF, release the switch trigger.
- Page 11 OPERATION SWITCH LOCK KEYLESS CHUCK See Figure 5. See Figure 6. The switch trigger can be locked in the OFF position. This Your drill has a keyless chuck. As the name implies, you can feature can be used to prevent the possibility of accidental hand tighten or release drill bits in the chuck jaws.
- Page 12 OPERATION OPERATION INSTALLING BITS REMOVING BITS See Figure 7. See Figure 7. ■ Lock the switch trigger by placing the direction of ■ Lock the switch trigger by placing the direction of See Figure 5. rotation selector in center position. See Figure 5.
- Page 13 OPERATION BIT STORAGE DRILLING See Figure 10. See Figure 12. When not in use, bits provided with your drill can be LEVEL placed in the storage area located on the bottom of your drill as shown in Figure 10. SCREWDRIVER ®...
-
Page 14: Operation
OPERATION ■ Insert hex key in chuck and tighten chuck jaws se- CHUCK REMOVAL curely. Tap sharply with a mallet in a counterclockwise See Figures 13, 14, and 15. direction. This will loosen chuck on the spindle. It can The chuck must be removed in order to use some See Figure 15. -
Page 15: Maintenance
Do not abuse power tools. Abusive practices can damage tool as well as workpiece. Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Only the parts shown on parts list, page 17, are intended to be repaired or replaced by the customer. - Page 16 NOTES...
-
Page 17: Exploded View And Repair Parts List
CRAFTSMAN 3/8 in., 19.2 VOLT CORDLESS DRILL-DRIVER – MODEL NO. 973.113450 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 3/8 in., 19.2 VOLT CORDLESS DRILL-DRIVER or when ordering repair parts. -
Page 18: Parts Ordering / Service
Get it fixed, at your home or ours! For repair of major brand appliances in your own home… no matter who made it, no matter who sold it! 1-800-4-MY-HOME Anytime, day or night (1-800-469-4663) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts &...
