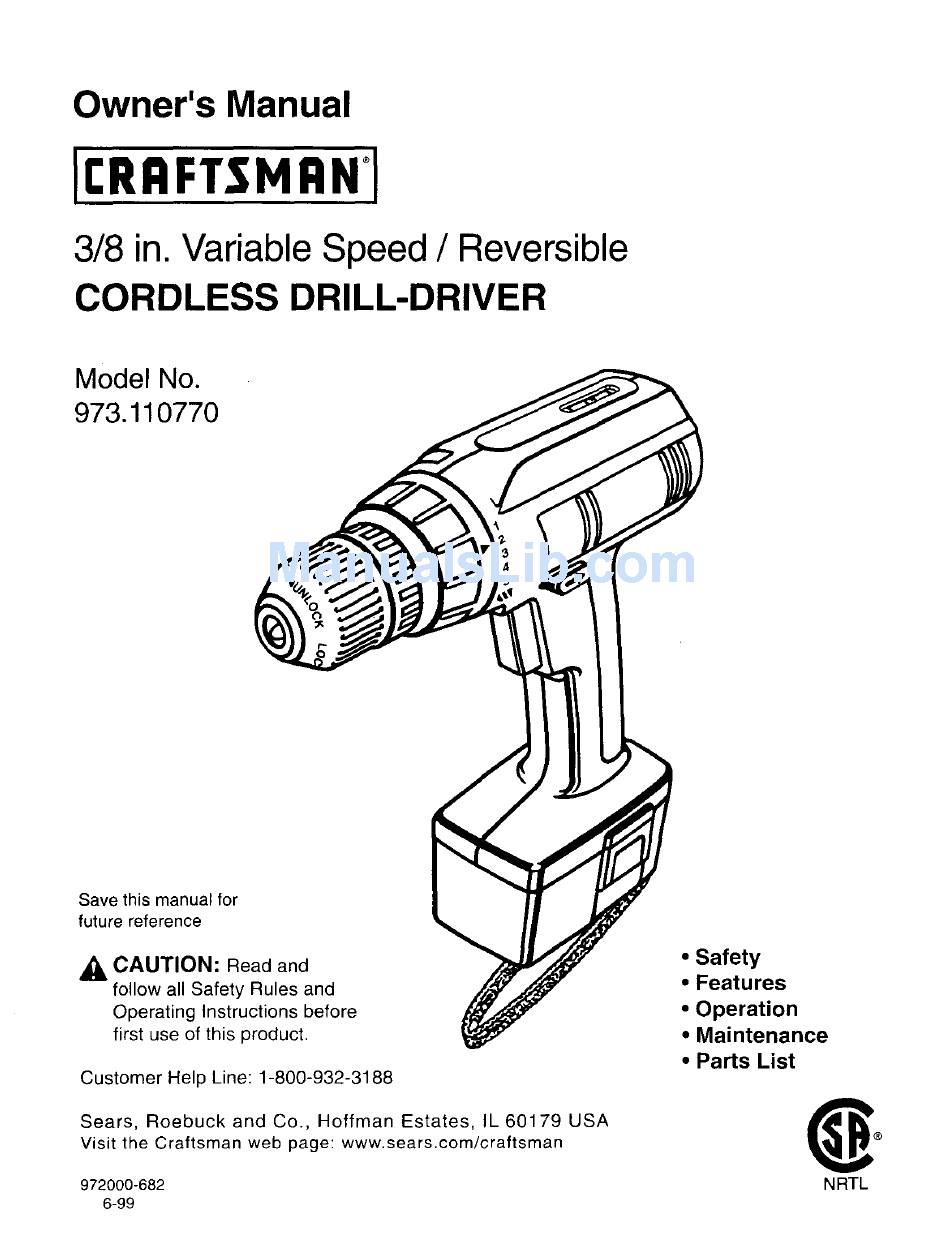

Owner's Manual
3/8 in. Variable Speed / Reversible

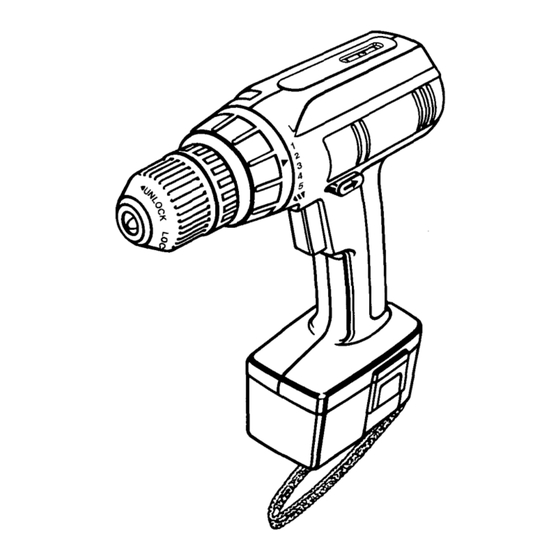

CORDLESS DRILL-DRIVER
Model No.
973.110770
Save this manual
for
future reference
_IL CAUTION:
Read and
follow all Safety Rules and
Operating Instructions before
first use of this product.
Customer
Help Line: 1-800-932-3188
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
972000-682
6-99
• Safety
• Features
• Operation
• Maintenance
• Parts List
N RTL
Advertisement
Related Manuals for Craftsman 973.11077
Summary of Contents for Craftsman 973.11077
- Page 1 Read and follow all Safety Rules and Operating Instructions before first use of this product. Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., Hoffman Visit the Craftsman web page: www.sears.com/craftsman 972000-682 6-99 Estates, IL 60179 • Safety • Features • Operation •...
-
Page 2: Full One Year Warranty
Parts Ordering /Service FULL ONE YEAR WARRANTY ON CRAFTSMAN If this CRRFTSMRN3/8 in. Drill-Driver fails to give complete satisfaction within one year from the date of pur- chase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will replace it, free of charge. - Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. not by themselves eliminate any danger. The instructions proper accident prevention measures. SYMBOL MEANING SAFETY ALERT...
- Page 4 Avoid accidental starting. SECURE WORK before applying power. NEVER hold workpiece in your hand or across your legs. WHEN SERVICING CRAFTSMAN IMPORTANT CHARGER Do not SAVE THESE INSTRUCTIONS.
- Page 5 RULES FOR SAFE OPERATION An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used, make sure: That pins on plug of extension cord are the same number, size and shape as those of plug on charger.
- Page 6 Thefollowing recommended accessories a recurrently • 6-Pc. Extra Length Magnite Power Bit Set • 30-Pc. Power Screwdriver/Nutdriver • 17-Pc. Power Screwdriver/Nutdriver WARNING: The use of attachments or accessories KNOW YOUR DRILL-DRIVER See Figure 1. Before attempting to use any tool familiarize yourself with all operating features and safety requirements.
- Page 7 ,_k WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. WARNING: Do not allow familiarity with your drill to make you careless.
- Page 8 SWITCH See Figure 2. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. CENTER POSITION (LOCK) SWITCH TRIGGER VARIABLE SPEED This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure.
- Page 9 SWITCH LOCK See Figure 4. The switch trigger can be locked in the OFF position. This feature can be used to prevent the possibility of accidental starting when not in use. To lock switch trigger, place the direction of rotation selector in center position.
- Page 10 INSTALLINGBITS See Figure 6. • Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 2. • Open or close chuck jaws to a point where the opening is slightly larger than the bit size you intend to use.
- Page 11 ,_k W.A.RNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. DRILLING See Figure 9. When drilling hard smooth surfaces use a center punch to mark desired hole location.
- Page 12 CHUCKREMOVAL See Figures 11, 12, and 13. The chuck must be removed in order to use some accessories. To remove: • Lock the switch trigger by placing the direction of rotation selector in center position. • Insert a 5/16 inch or larger allen wrench (hex key wrench) into the chuck of your drill and tighten the chuck jaws securely.
-
Page 13: For Recycling
WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. - Page 15 Number 616478-003 973094-001 972000-682 * Can Be Purchased Thru RSOS (Retail Special Order System) DRILL-DRIVER - MODEL regarding your 318 in. CORDLESS DRILL -DRIVER or when ordering ORDERING INSTRUCTIONS PARTS LIST Description Screw (Special) ... Chuck (Item No. 9-20988) ...
- Page 16 for in-home major brand repair service: Call 24 hours a day, 7 days a week 1-800-4-MY-HOME Para pedir servicio de reparacibn Au Canada pour tout le service ou les pieces - 1-800-469 4663 For the repair or replacement Call 6 a.m. - 11 p.m. CST, 7 days a week 1-800-366-PART Para ordenar piezas con entrega...
