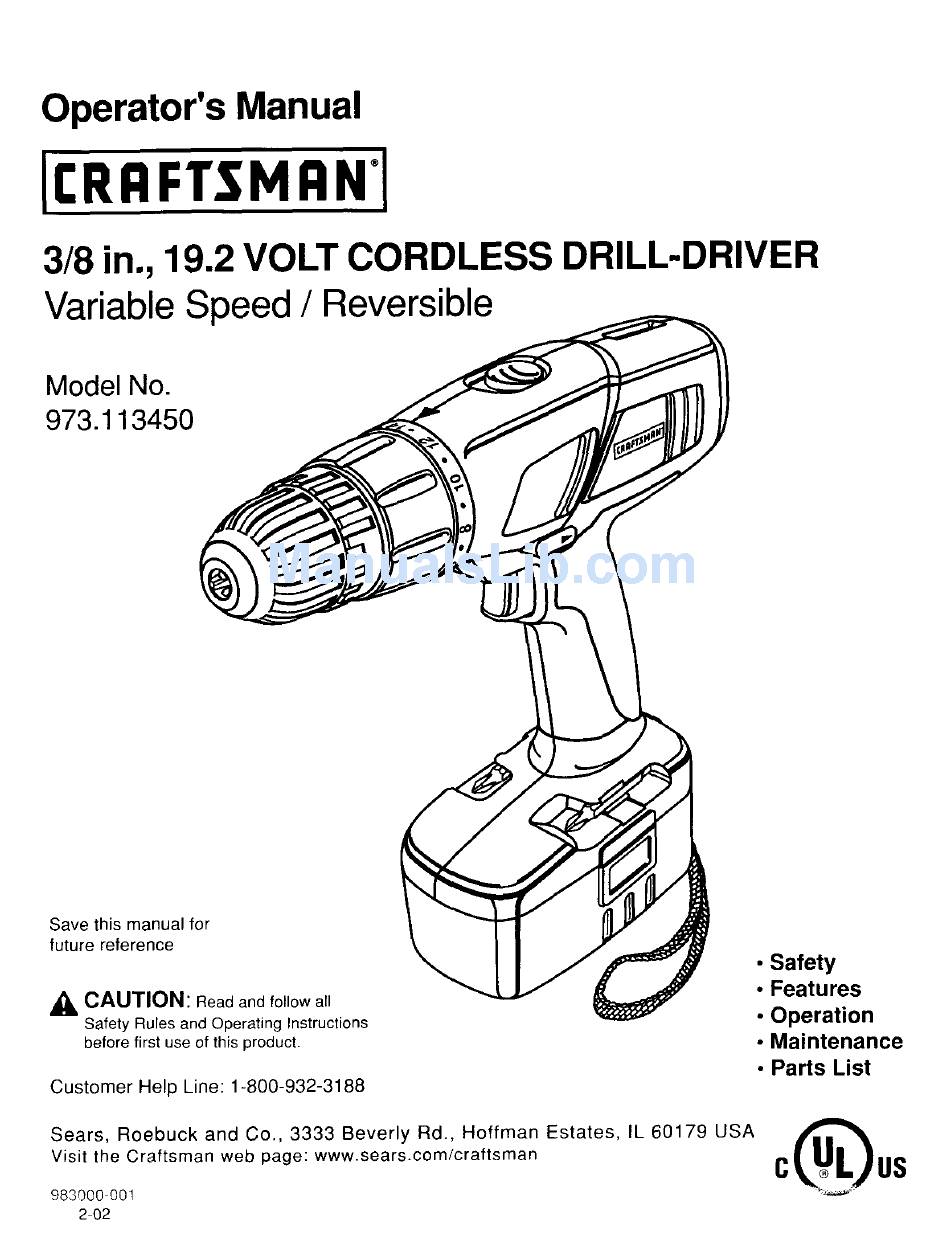

Operator's Manual
3/8 in., 19.2 VOLT CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model No.
973.113450
Save this manual
for
future reference
_, CAUTION:
Read and follow all
Safety Rules and Operating Instructions
before first use of this product.
Customer
Help Line: 1-800-932-3188
• Safety
• Features
• Operation
• Maintenance
• Parts List
Sears,
Roebuck
and Co., 3333
Beverly
Rd., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
983000 001
2 02
C_US
Advertisement
Related Manuals for Craftsman 973.113450
Summary of Contents for Craftsman 973.113450
- Page 1 Safety Rules and Operating Instructions • Operation before first use of this product. • Maintenance • Parts List Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 Visit the Craftsman web page: www.sears.com/craftsman C_US 983000 001 2 02...
- Page 2 3/8 in, CORDLESS DRILL-DRIVER If this CRAFTSMAN 3/8 in. Cordless Drill-Driver fails to give complete satisfaction within one year from the date of pur- chase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED STATES, and Sears will repair it, free of charge.
- Page 3 Your drill-driver has many features for making your drilling CAUTION: Carefully read through this entire operations more pleasant and enjoyable. Safety, operator's manual before using your new drill-driver. performance and dependability have been given top Pay close attention to the General Safety Rules, priority in the design of this drill-driver making it easy to Specific Safety Rules and Symbols, Warnings and maintain and operate.
- Page 4 Tool Use and Care Maintain tools with care. Keep cutting tools sharp • Use clamps or other practical way to secure and and clean. Properly maintained tools, with sharp support the workpiece to a stable platform. Holding cutting edges are less likely to bind and are easier to the work by hand or against your body is unstable and control.
- Page 5 • Do not operate charger with a damaged cord or ,_WARNING: Never use a battery that has been dropped or received a sharp blow. A damaged battery plug. If damaged, have replaced immediately by a is subject to explosion. Properly dispose of a dropped qualified serviceman.
- Page 6 Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIG NATION/EXPLANATION Volts Voltage Amperes Current Hertz...
- Page 7 DRILL-DRIVER 973.113450 CHARGER Item No. 9 11041 Chuck 3/8 in. Keyless (1425301) Motor DC Motor 19.2 Volt Rating 120 V, 60 Hz, AC only Gear Train Charging Voltage 7.2 - 24 Volt Two Speed No Load Speed 0-400 RPM (Low) 1 Hour Charge Rate 0-1400 RPM (High)
- Page 8 TWO-SPEED LEVEL GEARTRAIN(HI-LO) TORQUE KEYLESS ADJUSTMENT CHUCK RING LEVEL REARVIEW DIRECTION OF ROTATIONSELECTOR (FORWARD/REVERSE) SWITCH TRIGGER STORAGE SCREWDRIVER BITS BATrERY PACK SHOWNIN TOOL BATTERYPACK SHOWNIN CHARGER 4-1/2 in. WRISTSTRAP CHARGER RED LEDON INDICATES FASTCHARGING MODE GREENLED ONAFTERFASTCHARGING CYCLE,INDICATES FULLYCHARGED BATTERY PACKANDIN TRICKLECHARGEMODE.
- Page 9 LED FUNCTIONS OF CHARGER WARNING: Do not allow familiarity with your drill- driver to make you careless. Remember that a LED WILL BE ON TO INDICATE STATUS careless fraction of a second is sufficient to inflict CHARGER AND BA'n'ERY PACK: severe injury.
- Page 10 SWITCH TO INSTALL BATTERY PACK See Figure 2. • Lock switch trigger on your drill by placing the direction To turn your drill ON, depress the switch trigger. To turn it of rotation selector in center position. See Figure 5 OFF, release the switch trigger.
- Page 11 SWITCH LOCK KEYLESS CHUCK See Figure 5 See Figure 6. The switch trigger can be locked in the OFF position. This Your drill has a keyless chuck. As the name implies, you can feature can be used to prevent the possibility of accidental hand tighten or release drill bits in the chuck jaws.
- Page 12 REMOVING BITS INSTALLING BITS See Figure Z See Figure 7. • Lock the switch trigger by placing the direction of • Lock the switch trigger by placing the direction of rotation selector in center position. See F'igure 5 rotation selector in center position. See Figure 5. •...
- Page 13 BIT STORAGE DRILLING See F/:.aure !6 See Figure 12. When not in use, bits provided with your drill can be LEVEL placed in the storage area located on the bottom of your drill as shown in Figure 10. SCREWDRIVER STORAGEAREA Fig.
- Page 14 CHUCK REMOVAL • Insert hex key in chuck and tighten chuck jaws se- curely. Tap sharply with a mallet in a counterclockwise See Figures 13, 14, and 15. direction. This will loosen chuck on the spindle. It can The chuck must be removed in order to use some now be unscrewed by hand.
- Page 15 Do not abuse power tools. Abusive practices can WARNING: When servicing, use only identical damage tool as well as workpiece. Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Only the parts shown on parts list, page 17, are intended to be repaired or replaced by the customer.
-
Page 17: Parts List
CRAFTSMAN 318 in., 19.2 VOLT CORDLESS DRILL-DRIVER - MODEL NO. 973.113450 in all correspondence regarding your 3/8 in., 19.2 VOLT CORDLESS DRILL-DRIVER or when ordering he model number will b e foundon a plate attached tothemotorhousing. Always mentionthemodel number ] repair parts. - Page 18 Get it fixed, at your home or ours! For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOME Anytime, day or night (1-800-469-4663) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts &...
