BATTERY CHARGING

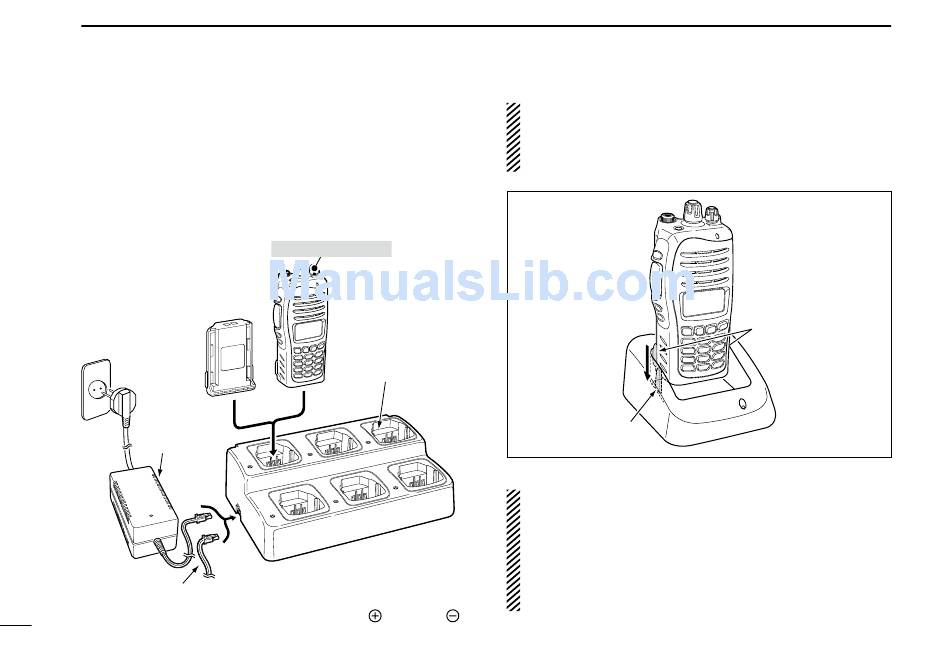

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
Charging time: Approximately 3.5 hours for the BP-232H
The following items are additionally required.
• Six AD-106
charger adapters
• A power adapter or the DC power cable (OPC-656)
Power adapter
(Purchased
separately)
DC power cable (OPC-656*)
(Connect with a DC power supply;
13.8 V/at least 7 A)
23
(purchase separately)
Turn OFF the power
Transceiver
Battery
pack
AD-106 charger
adapters are installed
in each slot.
*About the OPC-656
Red line: Black line:
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration shows the BC-160.)
Guide rail
CAUTION:
When using the OPC-515L/OPC-656 DC power cable
NEVER reverse the polarity when connecting the OPC-
515L/OPC-656 to a power source. This will ruin the battery
charger.
OPC-515L : White line: +, Black line: _
OPC-656 : Red line: +, Black line: _
Tabs
