D AD-106 installation
The AD-106
charger adapter
119N or BC-121N before battery charging.

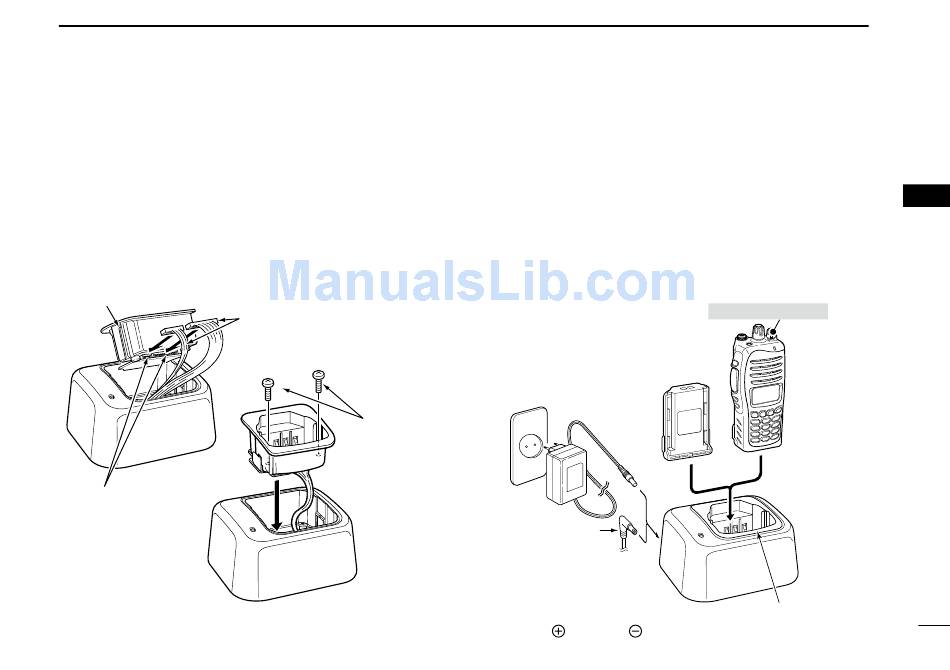

➥ Connect the AD-106
charger adapter
BC-121N as shown below, then install the AD-106 into the
holder space of the BC-119N or BC-121N with the sup-
plied screws.
AD-106
Sockets
This illustration shows
the BC-119N.
must be installed into the BC-
and the BC-119N/
Connectors
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging time: Approximately 3.5 hours for the BP-232H
The following items are additionally required.
• AD-106
charger adapter
• A power adapter (may be supplied with BC-119N depend-
ing on version) or the DC power cable (OPC-515L/CP-23L).
Power adapter
(A different type, or no
power adapter is supplied,
depending on the version.)
Optional OPC-515L*
(for power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the power adapter.
*
About OPC-515L
White line: Black line :
(purchase separately)
Turn OFF the power
Transceiver
Battery
pack
AD-106 charger adapter
is installed in BC-119N.
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
