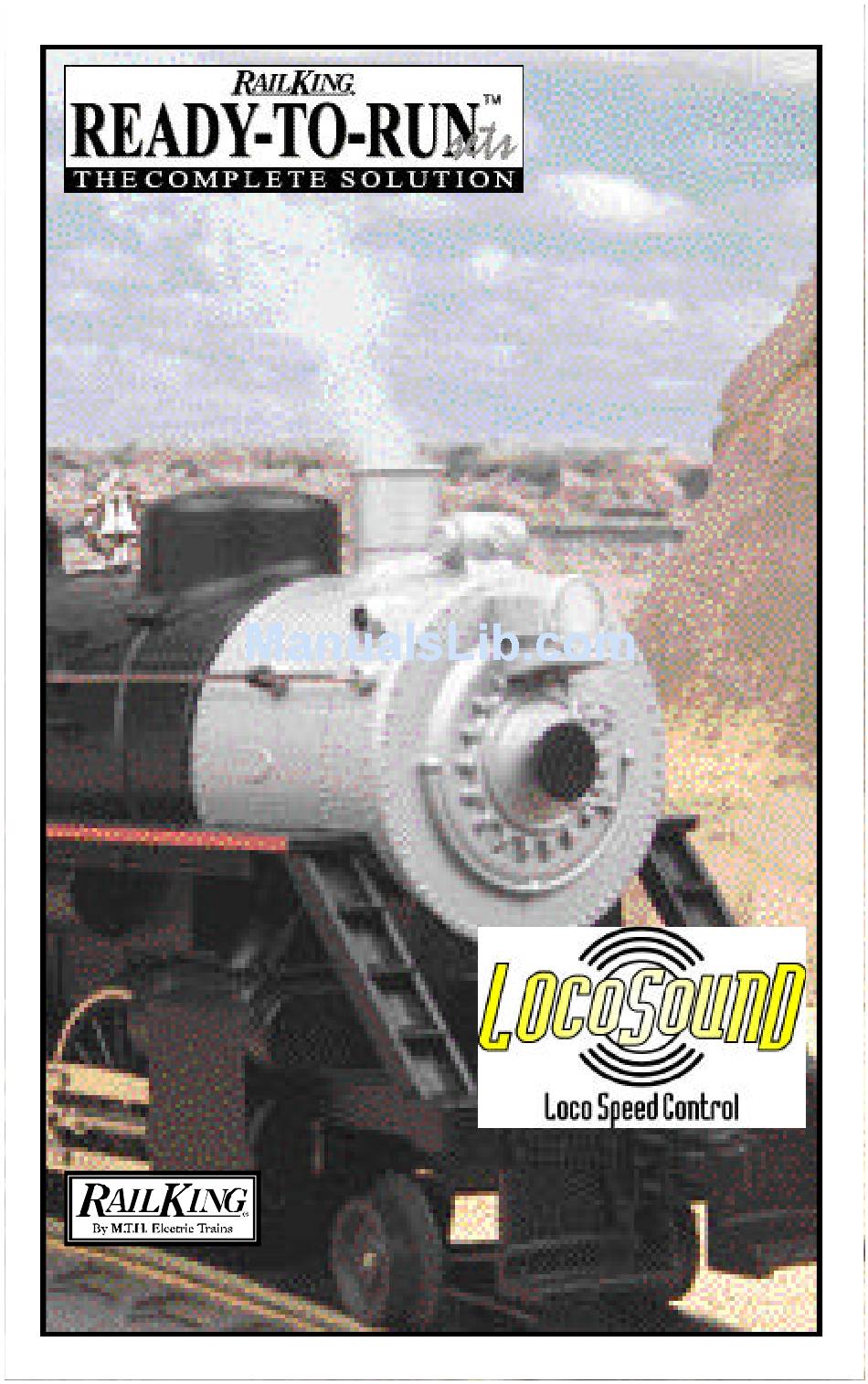

Rail King Ready-To-Run 2-8-0 Operation Manual

Steam freight set
Hide thumbs Also See for Ready-To-Run 2-8-0:

Advertisement

Quick Links

www.railking.com
2-8-0 Steam Freight Set
2-8-0 Steam Freight Set
Operation Manual
Thank you for purchasing this RailKing product.
PLEASE READ BEFORE USE AND SAVE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ready-To-Run 2-8-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rail King Ready-To-Run 2-8-0

  • Page 1 www.railking.com 2-8-0 Steam Freight Set 2-8-0 Steam Freight Set Operation Manual Thank you for purchasing this RailKing product. PLEASE READ BEFORE USE AND SAVE...
  • Page 2: Table Of Contents

    Table of Contents Set Up Checklist ......... . 3 Getting Started .
  • Page 3: Set Up Checklist

    Set Up Checklist ® Assemble RealTrax Connect the transformer Lubricate the engine Prime the Smoke Unit Place the engine and cars on the trackandcouplethemtogether Position remote lock-on lens Applypower to run as described in the Basic Operation section of these instructions. Set Includes 8-Pieces SteamEnginewithLoco-Sound™...
  • Page 4: Getting Started

    Getting Started ® Assembling RealTrax The quickconnectors and built-in roadbed allowyoutosetupRealTraxanywhere, including carpeted surfaces. Knock-outmustberemoved Removeknock-outfrom STEP STEP STEP beforeremotelock-oncan outeredgeoftrackby beinstalled holdingandtwistingup Insert lock-on into withapairofpliers knock-outtab (Lock-onistheinterfacebetween thetrackandtransformer) REMOVETAB FROMOUTEREDGE Makesurethemetal STEP STEP STEP Align Quick contactslineup. ConnectPlugs GentlypushtogetherRealTrax STEP STEP...
  • Page 5: Lubricating The Engine

    Lubricating the Engine Lubricate all exposed moving parts before operatingusingamulti-purpose, DO NOT plastic-compatible oil (available with M.T.H.'s Maintenance Kit, sold OVER OIL separately) or a light household oil. Follow thelubricationpoints. Lubricate ValveGear Lubricate Pick-Up Rollers Lubricate Side Rods (DoNotOiltheFlatPartof Pick-UpRollers) Priming the Smoke Unit Add15-20Drops oushouldprimethesmokeunitwithsmokefluidbefore...
  • Page 6: Remote Control

    DO NOT CONNECT This Engine To A Tender From Another Engine; It May Cause Serious Damage. Look at the bottom ofthe engine and tender where CABLECURVES each will have a color-coded UPWARD stamp. Ifthey match you Plug tenderplugintoboilersocketatthebackofcab. may connect those two pieces;...
  • Page 7: Basic Operation

    Basic Operation Throttle Up Throttle up the power to your trackbypressingthetopendoftheThrottle Control Rocker Switch firmly for about 5 seconds, until theengine's headlight and lighted cars burn bright. Thenputtheengineintomotionbyfirmlypressingthe Directionbutton(holditforapproximately1second)on your remote once. If the engine does not begin to move as soon as you firmly press the Direction button,youmaynot have sent enough voltage to the track to makethetrainmove.
  • Page 8: Speed Control

    Speed Control M.T.H. engines equipped with Loco-Sound have speedcontrol capabilities that allow the engine to maintainaconstantspeedupanddowngradesandaroundcurves, much like an automobile cruisecontrol. You can add or drop cars on the run, and the engine will maintainthespeedyouset. Whiletheengineisprogrammedtostartwiththespeedcontrolfeatureactivated,youcan opt to turn it off. This means theengine's speed will fall as it labors up a hill andincrease asittravelsdownward.
  • Page 9: Proto-Cast And Proto-Dispatch

    Proto-Cast and Proto-Dispatch: Whenused with the remote lock-on included inthisset,Loco-Soundequippedengines ™ ™ gain Proto-Cast and Proto-Dispatch features Proto-Cast: Allows you to play audio recordings through your engine'sspeakers. You must supply theaudiosource(asmallportableCD/tapeplayeris sufficient) and a male-to-male mini cable (1/8"plug,likethatusedfor the headset with a portable CD/tape player)to connect your audio sourcetotheremotelock-on.
  • Page 10: Manual Volume Control

    If usingparalleltrackswithmultipleLoco-Soundequippedengines,Proto-Cast and Proto-Dispatch transmissions from one track may be picked upbytheothernearby engines. If you experience popping and interference whenusingProto-CastorProto-Dispatch, try cleaning the track with denatured alcoholas described in the "Cleaning theWheels,Tires andTrack" section of this booklet. NOTE: M.T.H. does not recommend using Proto-Cast and Proto-Dispatch at the same time.
  • Page 11: Maintenance

    Maintenance Care of the Remote Control Toensuretrouble-free operation: Do not drop theremote. It candamagethedelicateelectronics inside. Remove batteries beforestoringforextendedperiods. AnyattemptbyanyoneotherthananauthorizedM.T.H.repairpersontoopenand repair the handheld transmitter or lock-on may resultindamageandthelossof warranty protection. If your train responds inconsistently,replace old batteries with freshones. Donot mixoldandnewbatteries. Lubrication Instructions The engine shouldbeoiledandgreasedinordertorunproperly.
  • Page 12: Cleaningthewheels,Tiresandtrack

    Cleaning the Wheels, Tires and Track Periodicallycheckthelocomotivewheelsandpickups for dirt and buildup, whichcancausepoorelectrical contact and traction andprematurely wear outthe neoprenetractiontires. Wheels and tires can be cleaned usingdenatured (not rubbing) alcohol applied with a cotton swab. Tocleanthetrack,useRailKingTrackCleaningFluid and a clean rag or denatured (notrubbing) alcohol. Unplug thetransformer and wipe the rails of the track, turning the rag frequently to ensurethatyouareusingcleanclothonthe rails.
  • Page 13: Locomotive Light Bulb Replacement

    Add15-20Drops Add15-20Drops small pipette of ProtoSmoke fluidisincluded). Do SmokeFluid SmokeFluid not overfill the unitorthefluidmayleakoutandcoat the interior engine components. If youchoosenottoaddthefluid(orhavealready added the fluid but choose torunsmoke-free),turnoff the smoke unit switch located underthetender body. Failure eithertoadd fluid to the unit or to turn it off may damagethesmokeunitheatingelement and/or wicking material.
  • Page 14: Caboose Light Bulb Replacement

    STEP Once the locomotive boiler has been removed from its chassis, locatethebulbbracketasseenin the illustration on the right androtatethe headlightbulbcounter-clockwise to remove. ReplaceHeadlight Bulb Caboose Light Bulb Replacement To replace the interiorlight bulbs follow these instructions and seethediagramsbelow. STEP STEP Lowerthechassisfromthe shell,takingcarenottopull the wiresout.
  • Page 15: Railwareinteractive Cd Rom

    Quick-Start Video The included VHS Quick-Start video demonstrates thestart-upandbasicoperationofthis set as well as otherinformation about modelrailroading. You may find it helpful toview the video before operating this set. RailWare Interactive CD ROM M.T.H. providesafreeRailWareCDROMineachReady-To-Runset. Itisfullof helpful information on M.T.H.producthistory, track planning software, a dealer finder, and information and video clips onLoco-Sound and Proto-Sound2.0.
  • Page 16: Troubleshooting

    ™ Troubleshooting Loco-Sound Problems Although Loco-Sound has been designed and engineered for ease ofuse, you may have some questions duringinitial operation. The following table should answer most questions. If your problemcannot beresolved with thistable,contact M.T.H. for assistance ( e-mail: service@mth-railking.com; telephone:410-381-2580;...
  • Page 17: Compatibility

    Compatibility WhilethisReady-To-Run set is equipped witheverythingyouneedtooperateit,the design allowsflexibility. The train willoperate onany traditional O-31orlargerOGauge ® track system, including the RealTrax included with this set ortraditional tubular track. It is also compatible with most standardAC transformers, including the hobby transformer packaged withyourset. Transformer Compatibility and Wiring Chart Note that manyoftheoperationalcommandsdescribedintheseinstructionsrequireabell button,soifyouareusingatransformerotherthantheoneincludedinthissetandyour...
  • Page 18: Exploded View Parts

    2-8-0 Steam Locomotive Engine Parts Name and Number Part # Stanchion ( black ) FB-1200242 ( plastic )( 3.0mm long ) Handrail ( nickel )( boiler ) FB-1200099 Bell ( nickel ) FB-1200101 Shell ( black )( CNW )( # 1761 ) FB-1200239 Lens ( green )( marker ) FA-1230025...
  • Page 19 26.) Wire nut ( yellow ) BI-4500003 27.) PC board ( green ) AG-0000039 ( w/ 10 pin female plug ) 28.) Draw bar ( black ) FB-1200079 ( 67.5mm long ) 29.) Spring IE-0000061 ( 6.5x10.0mm )( w/ 0.6mm thick wire ) 30.) Screw IA-0000028 ( 4/40x6.0mm )( washer head )
  • Page 20 2-8-0 Steam Locomotive Engine Parts RailKing 2-8-0 Steam Freight Set with Loco-Sound™...
  • Page 21 2-8-0 Steam Engine Tender Parts Name and Number Part # Shell ( black ) GA-1200094 ( tender )( plastic )( CNW )( # 1761 ) Board AE-0000003 ( Loco-Sound™ )( steam/turbine ) Screw IA-0000011 ( 4/40x8.0mm )( roundhead ) Insulator ( white ) ID-0000025 ( washer )( 3.0x6.0x3.0mm )( plastic ) Insulator ( clear )
  • Page 22 25.) Washer ( black )( plastic ) ID-0000060 ( 4.6x8.6x2.0mm )( inside 7.0x1.0mm )( cup shaped ) 26.) E-clip ( 3.0x8.0x0.5mm ) IF-0000002 27.) Truck ( black ) DA-1250012 ( tender )( 2 axle ) 28.) Screw IA-0000214 ( 6/32x6.0mm )( washer head ) 29.) Gasket ( black ) IB-0000009 ( speaker ring )( 43.8x49.8x3.0mm )( foam )
  • Page 23 2-8-0 Steam Engine Tender Parts RailKing 2-8-0 Steam Freight Set with Loco-Sound™...
  • Page 24: Service And Warranty Information

    Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, follow the instructions below to obtain warranty service. First,e-mail, write,callorfaxanAuthorizedM.T.H.ServiceCenterinyourareaorM.T.H.ElectricTrainstoobtain RepairAuthorization. YoucanfindthelistofAuthorizedServiceCentersontheM.T.H.website,www.mth- railking.com. AuthorizedServiceCentersare requiredonlytomakewarrantyrepairsonitemssoldfromthatstore; allotherrepairsmayormaynotbedoneatthestore'sowndiscretion. Otherwise,contactM.T.H.(filloutthe ServiceContactformintheServiceSectionofwww.mth-railking.com;sendUSmailtotheaddresslistedbelow; tel:410-381-2580; fax:410-423-0009),statingwhenthe itemwaspurchasedanddescribingtheproblem. Ifyou contact M.T.H.,youwillbegivenareturnauthorizationnumbertoassurethatyourmerchandisewillbeproperly handleduponitsreceipt.
