2-8-0 STEAM ENGINE
OPERATING INSTRUCTIONS

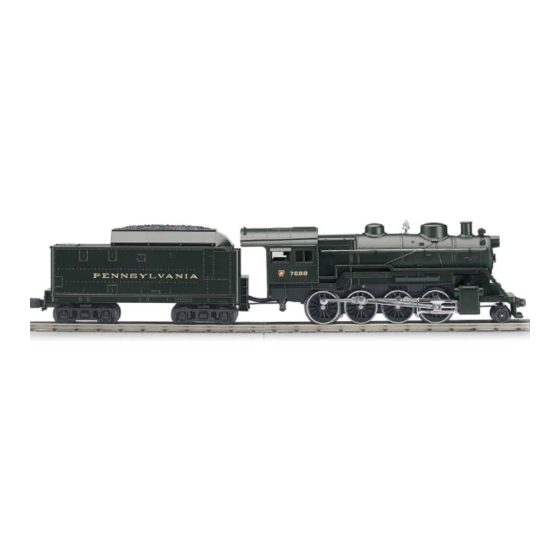

This RailKing 2-8-0 Steam Engine is produced in detailed Die-Cast Metal and operates
on O-31 track. This RailKing Steam Engine contains M.T.H.'s Loco-Sound™ sound and
train control system. The locomotive is easy to operate with any compatible standard AC
transformers (see the compatibility chart on page 14), and is completely compatible with
most other 3-rail locomotives, rolling stock, and accessories.
Please read all the accompanying instructions carefully before setting up and operating
your locomotive.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rail King 2-8-0
Summary of Contents for Rail King 2-8-0
-

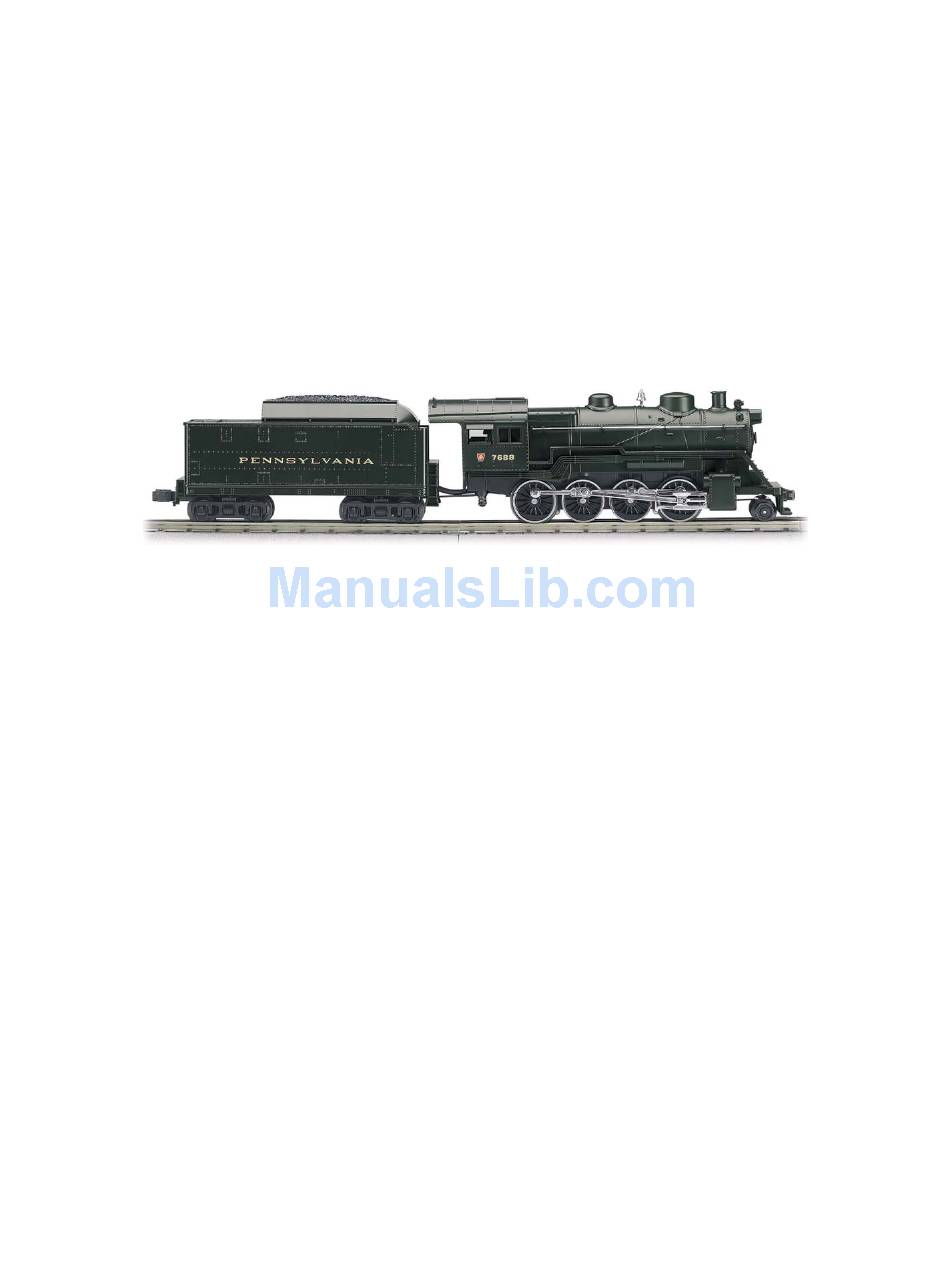

Page 1: Operating Instructions
2-8-0 STEAM ENGINE OPERATING INSTRUCTIONS This RailKing 2-8-0 Steam Engine is produced in detailed Die-Cast Metal and operates on O-31 track. This RailKing Steam Engine contains M.T.H.’s Loco-Sound™ sound and train control system. The locomotive is easy to operate with any compatible standard AC transformers (see the compatibility chart on page 14), and is completely compatible with most other 3-rail locomotives, rolling stock, and accessories. -
Page 2: Table Of Contents
Proto-Cast and Proto-Dispatch Volume Control Maintenance Lubrication and Greasing Instructions Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Smoke Unit Maintenance Locomotive Light Bulb Replacement Troubleshooting Compatibility Transformer Compatibility Chart Safety Precautions Service and Warranty Information RailKing 2-8-0 Steam Engine... -
Page 3: Set Up
O-31 circles of track. The second hole is for O-72 or larger operation. At this point, you are ready to begin running your engine. RailKing 2-8-0 Steam Engine... -
Page 4: Basic Operation
To prevent accidental high-speed start-ups, this engine is programmed to restart in neutral each time the track voltage is turned off for 25 seconds or more. RailKing 2-8-0 Steam Engine... -
Page 5: Speed Control
1 whistle, 3 bells code to return the engine to its normal state. Direction Lock Place Two Horn Blasts Engine into Horn Bell Bell Bell Horn (indicates change is made) Desired Repeat to Return Direction to Normal Condition RailKing 2-8-0 Steam Engine... -
Page 6: Proto-Cast And Proto-Dispatch
If you experience popping and interference, try cleaning the track with denatured alcohol as described in the “Cleaning the Wheels, Tires and Track” section of this booklet. Note: M.T.H. does not recommend using Proto-Cast and Proto-Dispatch at the same time. RailKing 2-8-0 Steam Engine... -
Page 7: Volume Control
– To adjust the volume of all sounds made by this engine, turn the master volume control knob located under the tender clockwise to increase the volume and counter-clockwise to decrease the volume (see Fig. 1). Volume Adjustment Knob Figure 1. Loco-Sound Volume Adjustment Knob RailKing 2-8-0 Steam Engine... -
Page 8: Maintenance
1. Unscrew the chassis screws as shown in Fig. 3 and remove the boiler. Grease Pivot Point (G) Body Mounting Screws Body Mounting Screws Grease Screw (G) (Remove Leading Truck First) Figure 3. Greasing Points on the Engine and the Location of Body Mounting Screws RailKing 2-8-0 Steam Engine... -
Page 9: Cleaning The Wheels, Tires And Track
4. If you twist the tire while stretching it over the wheel, you will need to remove and reinstall the tire. Otherwise your engine will wobble while operating. RailKing 2-8-0 Steam Engine... -
Page 10: Smoke Unit Maintenance
• When the smoke output while running the Figure 6. Smoke Unit engine begins to diminish, add another 10-15 Inspection Cover drops of smoke fluid or turn the smoke unit off. RailKing 2-8-0 Steam Engine... -
Page 11: Locomotive Light Bulb Replacement
Remove the locomotive boiler from its chassis as shown in Figure 3 on pg. Once the body has been removed, rotate the headlight bulb counter-clockwise as seen in Figure to remove. You can obtain replacement bulbs directly from the M.T.H. Parts Department. Headlight Figure 7. Replacing the Headlight RailKing 2-8-0 Steam Engine... -
Page 12: Troubleshooting
Follow the procedure in the with the engine sounds running. “Lock into a Direction” section. Engine speed must be below 10 scale The engine won’t lock into forward, mph (approx. 10 volts or less in neutral, or reverse. conventional mode). RailKing 2-8-0 Steam Engine... -
Page 13: Compatibility
This engine will operate on any traditional O-31 or larger O Gauge track ® ™ system, including M.T.H.’s RealTrax or ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 14 for a complete list of compatible transformers and wiring instructions.) RailKing 2-8-0 Steam Engine... -
Page 14: Transformer Compatibility Chart
Standard Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW * Conventional Mode Only RailKing 2-8-0 Steam Engine... -
Page 15: Safety Precautions
This train set is intended for indoor use. Do not use if water is present. Serious injury or fatality may result. lDo not operate the hobby transformer with damaged cord, plug, switches, buttons or case. RailKing 2-8-0 Steam Engine... -
Page 16: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble- shooting techniques that may correct the problem. Additional information may be found on the M.T.H. Website. Should you still require service, follow the instructions below to obtain warranty service.
