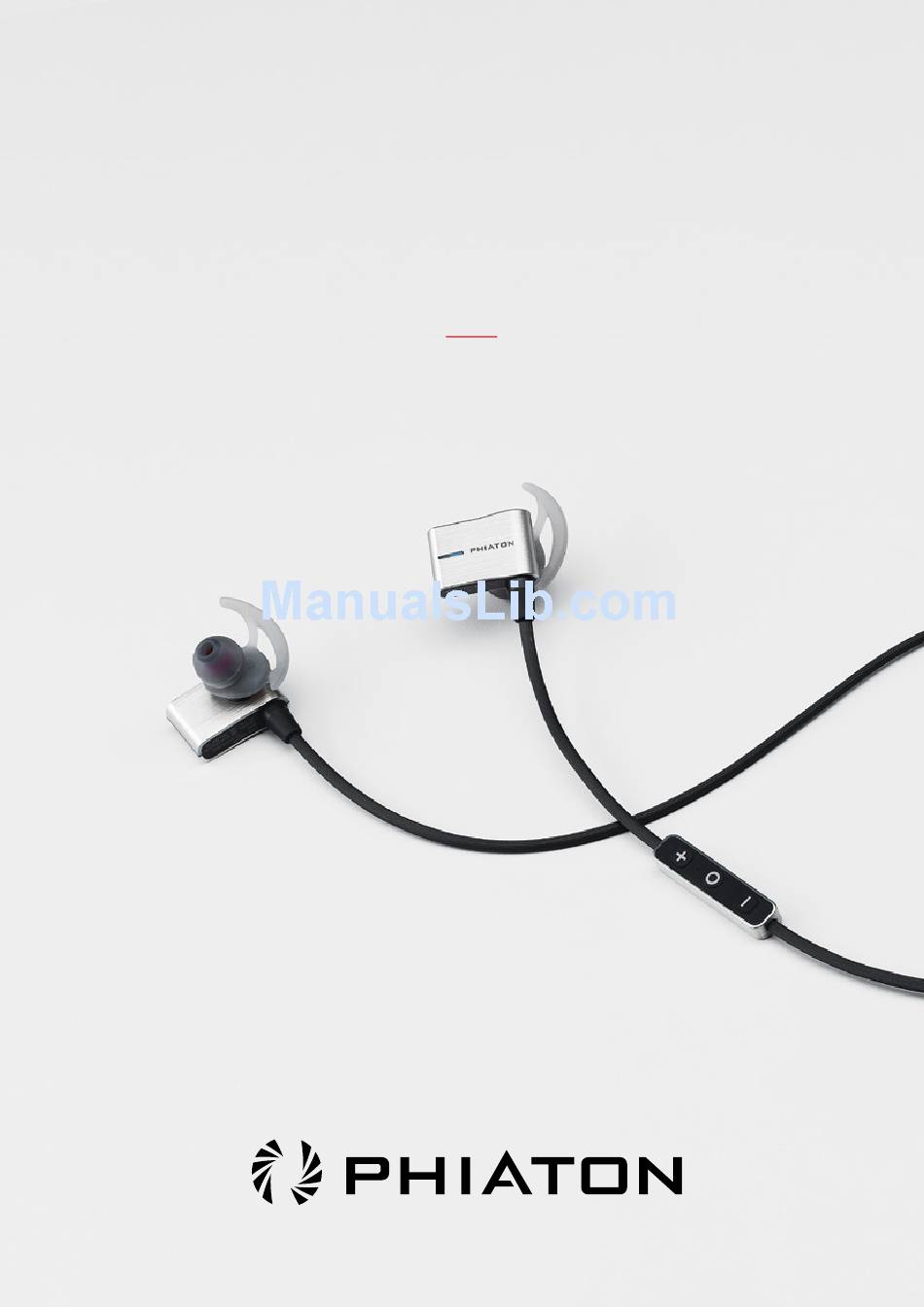

- Page 1 OWNER'S GUIDE BT 110...
-
Page 2: Table Of Contents
- Please follow the directions, and read the guidelines carefully before use. Please keep the owner’s guide for future reference. - Some functions of the BT 110 may not be available when it is paired with certain devices. - The specifications are subject to change without prior notice for quality improvement. -
Page 3: Safety And General Information
4) Do not store the device in places with a temperature higher than 113 ℉ / 45 ℃. 5) This product is sweat and water resistant. Do not get the product completely wet. If the device becomes wet, turn the power off, dry the device with a dry towel and contact Phiaton Customer Service for an inspection. -
Page 4: Components & Features
2. COMPONENTS & FEATURES 1) COMPONENTS - BT 110 - USB Charging Cable - 4 sizes of Eartips - 3 sizes of RightFit+ Ear Wings - Carrying Case - Quick Guide - Warranty Card 2) FEATURES Eartip RightFit+ Ear Wings... -
Page 5: Charging
The device may not be charged upon purchase and must first be charged before use. 1) Connect the provided USB charging cable (micro USB 5pin connector) to BT 110. 2) Connect the provided USB charging cable with a computer (laptop) or you may also use a separately purchased USB adapter (rating: 5V/over 500mA) to begin charging. -
Page 6: Pairing With A 'Bluetooth Device
4 seconds 1) Pairing - Turn on the Bluetooth feature with the ‘Bluetooth Device’ you want to connect with the BT 110. - Place the BT 110 within 3 feet of the ‘Bluetooth Device’ you want to connect. - Press and hold the PLAY/CALL Button for over 4 seconds with the BT 110 power off to enter Pairing Mode. -
Page 7: Multipoint Connection
② Manual Connection - When having entered ‘Connection Waiting Mode’ during connection. - Press the PLAY/CALL Button to connect. - The BT 110 will also be connected if you select ‘BT 110’ from the device search list within your ‘Bluetooth Device’. 3) Checkpoints Upon Pairing - Check to see whether the Bluetooth feature is activated within the ‘Bluetooth Device’... -
Page 8: Listening To Music (Play & Control)
Sleep Mode, pressing any button will re-enter ‘Connection Waiting Mode’ where connection is possible. ※ When the BT 110 power is turned off and back on, only the second paired device will automatically be connected. When the first paired device is reconnected, then both of the devices will remain connected. -
Page 9: Accepting A Call While Playing Music
9. ACCEPTING A CALL WHILE PLAYING MUSIC 1) Accepting a Call while Playing Music - When the incoming call tone is heard through the earphones, press PLAY/CALL Button the PLAY/CALL Button. The music will be paused and the call is connected. - Once the call has ended, press the PLAY/CALL Button to terminate the call. -
Page 10: Miscellaneous Features
Status LED Indicator Incoming Bell/Outgoing Bell Purple light blinks in 1.5 second intervals During Call Blue light slowly blinks every 6 seconds When there are two calls connected Purple light slowly blinks every 6 seconds 11. MISCELLANEOUS FEATURES 1) Checking Remaining Battery Shortly press the Button twice - With the power on, shortly press the PLAY/CALL... -
Page 11: Specifications
12. SPECIFICATIONS - Type: Φ 6 mm Driver Unit - Sensitivity: 90 dB/mW - Frequency Response: 20 ~ 27 kHz - Impedance: 16 ohms - Weight: 16 g / 0.035 lb - Communication Network: Bluetooth 4.0 - Output Power: Power Class 2 - Discover Range: Discoverable within 10 m / 33 ft. -
Page 12: Product Symptoms And Troubleshooting
(Maximum communication range: within 33 feet.) - Check whether the Radio interference object (metal, wall, etc.) or user’s body is located between BT 110 and ‘Bluetooth device’. (If the Radio interference object (metal, wall, etc.) or user’s body is located between BT 110 and ‘Bluetooth device’, it could have an influence to BT 110’s radio performance. -
Page 13: Fcc Compliance Information
RSS-102 of the IC Radio Frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). 16. CE Compliance Information Phiaton, hereby declares that this BT 110 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. - Page 14 2015 PHIATON Corporation 18662 MacArthur Blvd., STE 405 Irvine, California 92612 USA www.phiaton.com www.phiaton.co.kr...
