Summary of Contents for Faytech FAY-002

  • Page 1 FAY-002...
  • Page 2 E10706 First Edition July 2015 Copyright Notice This document is copyrighted, 2015. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1 Product overview Package contents................. 1-1 Features ..................1-1 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 3.4.1 North Bridge ..............3-8 3.4.2 South Bridge ..............3-8 Security menu ................3-9 3.5.1 Administrator Password ..........3-9 3.5.2 User Password ..............3-9 Boot menu .................. 3-10 Boot Configuration ............... 3-10 Save & Exit menu ............... 3-11 Chapter 4 Block diagram R1.05 Block diagram R1.05 ..............

  • Page 5: Chapter 1 Product Overview

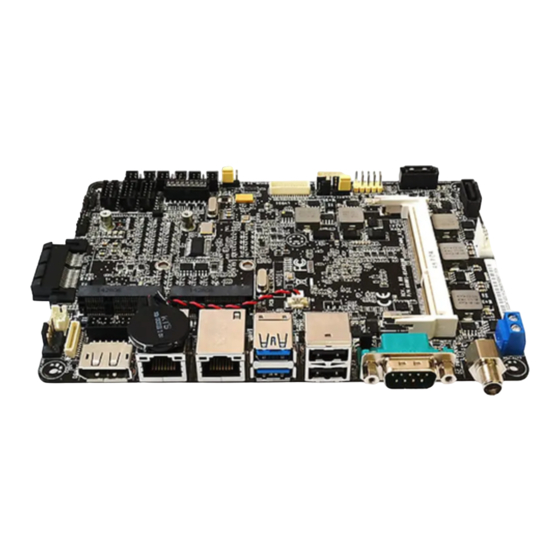

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard If any of the above items is damaged or missing, contact your distributor or sales representative immediately. Features • Intel J1900/N2807 Bay Trail-D ®...

  • Page 6: Specifications

    Operating F~140 F (-10 C~+60 temperature Storage temperature F~185 F (-40 C~85 Operating humidity 0%~90% relative humidity, non-condensing Power compliance Compliant with Eup/ErP Certificate CE/FCC (continued on the next page) Please check the „Optional mSATA Manual“ for further instructions. FAY-002...
  • Page 7 DISPLAY Chipset Intel® Graphics Media Accelerator Up to 1920x1200@60Hz for VGA Resolution Up to 1920x1200@60Hz for DisplayPort Up to 1920x1200@60Hz, Dual Channel 24-bit (via CH7511) for LVDS Output interface 1 x LVDS 1 x VGA 1 x DisplayPort 1 x DP (horizontal) Rear I/O (low profile) 2 x LAN (RJ45) port 1 x USB2.0 connector (blue) (top) and 1 x USB 3.0 connector (blue)
  • Page 8 FAY-002...

  • Page 9: Chapter 2 Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Hold components by the edges to avoid touching the ICs on them. • Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

  • Page 10: Motherboard Layout

    Place this side USBHUB_34 8111G SMSC LAN2 towards the rear USB4604 SMSC ASM1456 of the chassis USB4604 SPI1 USB3_1 CHRONTEL CH7511 ① LVDS1 BATTERY1 USB2_23 J1900 CLRTC INV1 DDR3L_DIMM_A1 (64bit, 204-pin module) DC_PWR1 LED1 LED2 SATA3G_1 SATA_PWR1 EATX_PWR1 ① The USB port on the bottom supports USB 3.0 transfer rate. FAY-002...
  • Page 11 Connectors/Jumpers/Slots Page Chassis fan connectors (4-pin CHA_FAN1) 2-15 PS/2 keyboard and mouse connector (KBMS1) 2-22 Minicard connector (MINI_CARD1, MINI_CARD2) 2-19 Front panel audio connector (10-1 pin AAFP1) 2-15 Audio amplifier connector (4-pin AMP_CON) 2-23 Digital audio connector (4-1 pin SPDIF_OUT) 2-24 Serial port connectors (10-1 pin COM2, COM3, COM4) 2-21 Digital I/O connector (DIO1) 2-20 USB 2.0 connector (10-1 pin USBHUB_34, USBHUB_56 2-19 10. VGA connector (16-pin VGA1) 2-22 11. LVDS connector (30-pin LVDS1) 2-18 12. Inverter voltage selection (3-pin J2) 13. Backlight inverter power connector (5-pin INV1) 2-18 14. LVDS panel voltage selection (3-pin J4) 2-10 15. System panel connector (10-1 pin F_PANEL) 2-16 16. Clear RTC RAM (CLRTC) 17. Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1, SATA3G_2) 2-17 18.

  • Page 12: Screw Size

    Screw size 2.3.1 Component side FAY-002...

  • Page 13: Solder Side

    2.3.2 Solder side Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) This motherboard comes with an Intel® J1900/N2807 processor. J1900 FAY-002 CPU socket J1900 System memory This motherboard comes with two Double Data Rate 3 Low Voltage (DDR3L) Small Outline Dual Inline Memory Modules (SO-DIMM) socket. The figure illustrates the location of the DDR3L DIMM socket: DIMM_A1 FAY-002 204-pin DDR3L DIMM socket NOTE: Use the SO-DIMM_A1 slot when inserting only one SO-DIMM. FAY-002...

  • Page 15: Installing A Dimm

    2.5.1 Installing a DIMM To install a SO-DIMM To remove a SO-DIMM Chapter 2: Motherboard information...

  • Page 16: Jumpers

    Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. CLRTC Normal Clear RTC1 (Default) FAY-002 Clear RTC RAM To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. 3. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data. CAUTION! Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! NOTES: •...
  • Page 17 COM1 Ring/+5V/+12V selector (6-pin J1) +12V Ring (Default) FAY-002 COM2 Ring/+5V/+12V Selection Setting Pins +12V Ring (Default) Inverter voltage selection (3-pin J2) +12V (Default) FAY-002 Inverter Voltage Selection Setting Pins +12V +5V (Default) Chapter 2: Motherboard information...
  • Page 18 Inverter Backlight Control of Inverter selector (3-pin J3) DC CTL PWM CTL (Default) FAY-002 Mode Selection for Back Light Control of Inverter Setting Pins DC Voltage Control (Default) PWM Control LVDS panel voltage selection (3-pin J4) (Default) FAY-002 LVDS Panel Voltage Selection Setting Pins...

  • Page 19: Onboard Leds

    Onboard LEDs Standby Power LED The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED. SB_PWR1 Standby Power Powered Off SB_PWR2 Main Power Main Power Off FAY-002 Onboard LEDs Chapter 2: Motherboard information 2-11...

  • Page 20: Connectors

    ORANGE 100 Mbps connection ORANGE BLINKING Data activity GREEN 1 Gbps connection LAN port USB 3.0 port. This 9-pin Universal Serial Bus (USB) port connects to USB 3.0/2.0 devices. NOTES: • DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows operating system. ® • Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows OS environment and after the USB 3.0 driver installation. ® • USB 3.0 devices can be used for data storage only. • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for a faster and better performance from your USB 3.0 devices. USB 2.0 ports. These three 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0/1.1 devices. NOTE: Before you install Windows 7 operating system, go to BIOS Setup > Advanced > XHCI mode [Disabled], USB 2.0 (EHCI) support [Enabled], and set them back when you finish installing the operating system. FAY-002 2-12...
  • Page 21 COM port. This 9-pin COM port is for pointing devices or other serial devices DC power connector. Insert the power adapter into this port.. Chapter 2: Motherboard information 2-13...

  • Page 22: Internal Connectors

    2.8.2 Internal connectors 12VDC power connectors (2-pin PWR1) This connector is for a 12V DC power supply. Please be careful to connect the PIN right — a wrong polarity will lead to a hardware defect of the mainboard. PWR1 PIN 1 FAY-002 ATX power connector IMPORTANT: • We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate. FAY-002 2-14...
  • Page 23 CAUTION: Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! Front panel audio connector (10-1 pin AAFP) This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP1 PIN1 FAY-002 Front panel audio connector IMPORTANT: We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability. Chapter 2: Motherboard information 2-15...
  • Page 24 System panel connector (10-1 pin F_PANEL) This connector supports several chassis-mounted functions. F_PANEL (NC) HWRST# Ground PWRBTN# PWR_LED- HDD_LED- PWR_LED+ HDD_LED+ PIN 1 FAY-002 System panel connector • System power LED (2-pin PWR_LED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. • Hard disk drive activity LED (2-pin HDD_LED) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD. • ATX power button/soft-off button (2-pin PWR_BTN) This 2-pin connector is for the system power button.
  • Page 25 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1) These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via Serial ATA 3.0 Gb/s signal cables. S_SA3_RXP2_C S_SA3_RXN2_C S_SA3_TXN2_C S_SA3_TXP2_C FAY-002 SATA 3.0Gb/s connectors NOTE: • You must install Windows® XP Service Pack 3 or later version before using Serial ATA hard disk drives. • When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section 3.3.7 IDE Configuration for details SATA power connector (4-pin SATA_PWR1) This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. SATA_PWR1 PIN1 FAY-002 SATA POWER connector IMPORTANT: The SATA power connector supports 1A current to the maximum.
  • Page 26 V_PANEL(POWER) LVDS0_D2- LVDS1_D2- LVDS0_D2+ LVDS1_D2+ SMB_DAT_S SMB_CLK_S LVDS0_D3- LVDS1_D3- LVDS0_D3+ LVDS1_D3+ V_PANEL(POWER) LVDS0_CLK- LVDS1_CLK- LVDS0_CLK+ LVDS1_CLK+ FAY-002 LVDS connector Backlight inverter power connector (5-pin INV1) Connect the backlight inverter power cable to this connector. INV1 INV_ENABKL VCON 12V or 5V PIN1 FAY-002 Inverter connector IMPORTANT: The backlight inverter power connector supports 1A current to the maximum. FAY-002 2-18...
  • Page 27 Minicard connector Use this connector to connect a Minicard reader. MINI_CARD1 MINI_CARD2 FAY-002 MINICARD connectors NOTES: • The Mini-card module is purchased separately. • Mini_card 1 supports mSATA function via modification. Please check the „Optional mSATA Manual“ for further instructions. 10. USB 2.0 connector (10-1 pin USBHUB_34, USBHUB_56) These USB connectors comply with USB 2.0 specifications. USBHUB56 5V_USB S_USB_PN6 S_USB_PP6 S_USB_PP5 S_USB_PN5 5V_USB PIN 1 USBHUB34 5V_USB S_USB_PN4 S_USB_PP4 S_USB_PP3 S_USB_PN3 5V_USB PIN 1 FAY-002 USB2.0 connectors...
  • Page 28 11. BIOS programmable connector (8-pin SPI) Use this connector to flash the BIOS ROM. PIN 1 +V3.3SPI SPI_CLK_F SPI_CS0#_F SPI_SI_F SPI_SO_F (NC) (NC) FAY-002 BIOS Programmable connector 124. Digital I/O connector (10-pin DIO1) This connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices. DIO1 PIN 1 FAY-002 Digitial I/O connector FAY-002 2-20...
  • Page 29 13. Serial port connectors (10-1 pin COM2, COM3) These connectors are for serial (COM) ports. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis. COM2 PIN 1 COM3 PIN 1 FAY-002 Serial port connectors NOTE: • The COM module is purchased separately. • COM1 also supports RS-232 / RS-422 / RS-485. See the table below and section 3.3.2 Super IO Configuration for details. Signal Signal DCD (422TXD-/485DATA-) RXD (422RXD+)
  • Page 30 14. PS/2 keyboard/mouse connector (6-pin KBMS1) This connector is for an IBM PS/2-compatible keyboard or mouse. PIN 1 KBMS1 FAY-002 Series PS/2 keyboard/mouse connector 15. VGA connector (16-pin VGA) This 16-pin connector is for a VGA monitor or other VGA-compatible devices. VGA1 PIN 1 5V_DVI DAC_R DAC_G DAC_B RDDCA_DATA_R R_HSYNC R_VSYNC RDDCA_CLK_R FAY-002 VGA connector FAY-002 2-22...
  • Page 31 16. Battery connector (2-pin BATTERY1) This connector is for the lithium CMOS battery. BATTERY1 +BAT PIN 1 FAY-002 BATTERY connector 17. Audio amplifier connector (4-pin AMP_CON) This connector is for an external audio amplifier. AMP_CON1 PIN1 FAY-002 Audio Stere. Output with Amp connector Chapter 2: Motherboard information 2-23...
  • Page 32 18. Digital audio connector (4-1 pin SPDIF_OUT) This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis. PIN1 SPDIF_OUT FAY-002 Digital audio connector 19. DisplayPort header (16-pin DP_Head1) This connector is for an additional DisplayPort port. DP_HEAD1 S_DP1_HPD_R S_DP1_AUXN_C1...

  • Page 33: Chapter 3 Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 34: Menu Bar

    The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings. 3.2.1 System Date [Day MM/DD/YYYY] Allows you to set the system date. 3.2.2 System Time [HH:MM:SS] Allows you to set the system time. FAY-002...

  • Page 35: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 3.3.1 Power Management Power Mode [ATX Type] Select power supply mode.

  • Page 36: Cpu Configuration

    [Auto] [IO=3F8h; IRQ=4] [IO=3F8h; IRQ=3,4;] [IO=2F8h; IRQ=3,4;] [IO=3E8h; IRQ=3,4;] [IO=2E8h; IRQ=3,4;] 3.3.4 Dynamic Digital IO The items in this menu allow you to modify Digital IO settings. Pin 0~7 [Output] Set pin 0~7 data flow as Input or Output. Configuration options: [Input] [Output] FAY-002...

  • Page 37: Trusted Computing

    Output Level [Low] Configuration options: [High] [Low] 3.3.5 Trusted Computing The items in this menu allow you to modify trusted computing settings. Security Device Support [Disabled] Enables or disables BIOS support for security device, which will not be displayed in the operating system.

  • Page 38: Ide Configuration

    [IDE Mode] Set to [IDE] when you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices. FAY-002...
  • Page 39 SATA Speed Support [Gen2] Allows you to select the SATA speed. Configuration options: [Gen1] [Gen2] Serial-ATA Port 1~2 [Enabled] Allows you to enable or disable Serial-ATA Ports. Configuration options: [Enabled] [Disabled] SATA Port 0/1 HotPlug [Disabled] Configuration options: [Enabled] [Disabled] Chapter 3: BIOS setup...

  • Page 40: Chipset Menu

    Backlight Invert [Normal] Allows you to select the backlight control type of LVDS. Configuration options: [Normal] [Invert] 3.4.2 South Bridge XHCI Mode [Enabled] Allows you to enable or disable the mode of xHCI controller operation. Configuration options: [Disabled] [Enabled] FAY-002...

  • Page 41: Security Menu

    USB 2.0 (EHCI) Support [Disabled] This item becomes configurable when you set the previous item to [Disabled] and allows you to enable or disable USB2.0 (EHCI) support. Configuration options: [Disabled] [Enabled] PCI Express Port 0~3 [Enabled] Configuration options: [Disabled] [Enabled] Speed [Gen2] Configuration options: [Auto] [Gen 1] [Gen 2] Security menu...

  • Page 42: Boot Menu

    • To select the boot device during system startup, press <F7> during POST. • To access Windows OS in Safe Mode, do any of the following: Press <F5> during POST. Press <F8> after POST. FAY-002 3-10...

  • Page 43: Save & Exit Menu

    Boot Override These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device. Save & Exit menu Save Changes and Reset Once you are finished making your selections, choose this option from the Save &...
  • Page 44 FAY-002 3-12...

  • Page 45: Block Diagram R1.05

    Chapter 4 Block diagram R1.05 Block diagram R1.05 64-bit Dual-Channel Memory (SO-DIMM) x1 Slots HNUSB 2.0x1 DDR3 1333 MINI CARD+mSATA (W/ SIM card Optional(mSATA) SIM card)1 x Full / Half size connector 5x2 with mSATA optional by BOX Header jumper SATA2.

  • Page 46: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. FAY-002...
  • Page 47 印 刷 電 路 板 及 其 × ○ ○ ○ ○ ○ 電子組件 外 部 信 號 連 接 頭 × ○ ○ ○ ○ ○ 及線材 ○： 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363- 2006 標准規定的限量要求以下。 ×： 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標准規定的限量要求，然該部件仍符合歐盟指令 2002/95/ EC 的規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 FAY-002...
