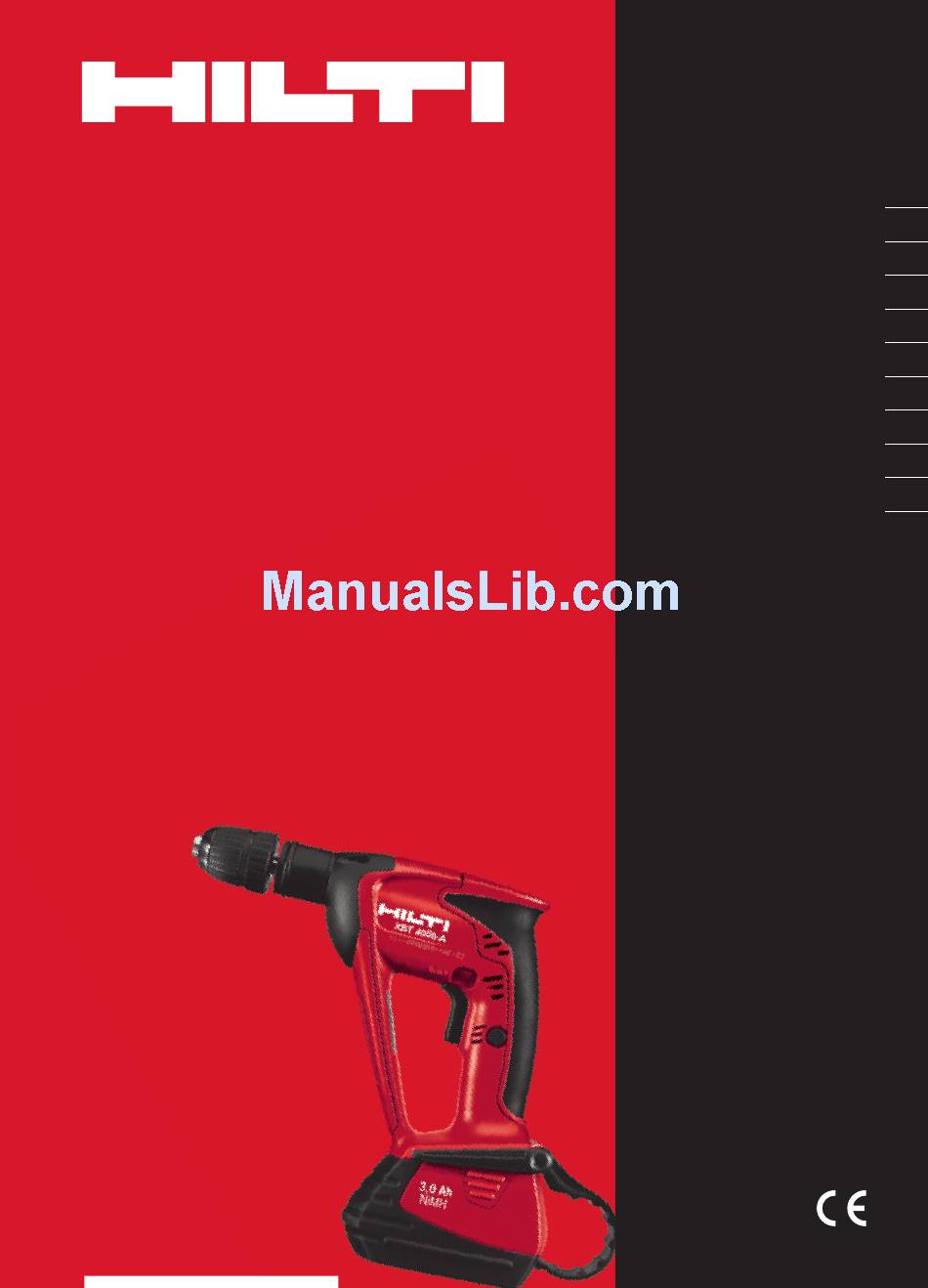

- Page 1 XBT 4000-A Bedienungsanleitung Operating instructions Mode d’emploi Istruzioni d’uso Gebruiksaanwijzing Manual de instrucciones Käyttöohje Bruksanvisning Bruksanvisning Инструкция по зксплуатации Printed: 06.12.2013 | Doc-Nr: PUB / 5139791 / 000 / 01...
- Page 2 XBT 4000-A Printed: 06.12.2013 | Doc-Nr: PUB / 5139791 / 000 / 01...
- Page 3 XBT 4000-A Printed: 06.12.2013 | Doc-Nr: PUB / 5139791 / 000 / 01...
- Page 4 Printed: 06.12.2013 | Doc-Nr: PUB / 5139791 / 000 / 01...
-
Page 5: Table Of Contents
In these operating instructions, the designation “the tool” Contents Page always refers to the XBT 4000-A with battery fitted. 1. General information Location of identification data on the tool 2. Description The type designation, item number, year of manufacture 3. -
Page 6: Description
– Gearing with permanent lubrication Use as intended – Automatic cut-out carbon brushes The XBT 4000-A is a cordless drill for drilling in steel. – Scaffold hook and belt hook It is suitable for use on any type of building site, e.g. -
Page 7: Technical Data
4. Technical data XBT 4000-A drill 18 V DC ––– Rated voltage - - - Drill bit diameter 5 mm (main applications 4 mm dia.) Torque < 6 Nm Speed 0–4000 r.p.m. Speed control Electronic, using ON/OFF switch Dimensions (L×W×H) 250×69×265 mm... -
Page 8: Safety Rules
5. Safety rules the off position before plugging in. Carrying pow- 5.1 General safety rules er tools with your finger on the switch or plugging -WARNING- Read all instructions! Failure to follow in power tools that have the switch on invites acci- all instructions listed below may result in electric shock, dents. - Page 9 Hilti for d) When battery pack is not in use, keep it away from wood dust and/or mineral dust together with this other metal objects like paper clips, coins, keys, tool.
-
Page 10: Before Use
c)The batteries must be disposed of correctly on 5.2.6 Battery tool use and care reaching the end of their life (see section 10). a)Ensure that the outer surfaces of the battery are d)Do not charge or continue to use damaged batter- clean and dry before inserting it in the corresponding ies (e.g. - Page 11 2. Lower the belt hook 70° below the horizontal I. 3. Pull the belt hook out of its guide. Use only the Hilti, C7/24, C7/36-ACS, SFC 7/18H, SFC 4. Push the belt hook into the guide on the other side of 7/18 or TCU 7/36 charger.
-
Page 12: Care And Maintenance
Do not operate the tool when parts are damaged or when the controls do not operate faultlessly. If nec- essary, have the tool repaired at a Hilti service centre. Electrical parts of the tool may be repaired only by trained electrical specialists. -
Page 13: Troubleshooting
Return waste material for recycling. Most of the materials from which Hilti power tools are manufactured can be recycled. The materials must be cor- rectly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old electric tools for recycling. -
Page 14: Manufacturer's Warranty - Tools
11. Manufacturer's warranty – tools Hilti warrants that the tool supplied is free of defects Hilti is not obligated for direct, indirect, incidental in material and workmanship. This warranty is valid so or consequential damages, losses or expenses in long as the tool is operated and handled correctly,... - Page 15 Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 2733 | 1113 | 1-Pos. 1 | 1 Printed in Liechtenstein © 2013 Right of technical and programme changes reserved S. E. & O 377603 / A3 Printed: 06.12.2013 | Doc-Nr: PUB / 5139791 / 000 / 01...
