Summary of Contents for Telematrix Marquis 9002MWD

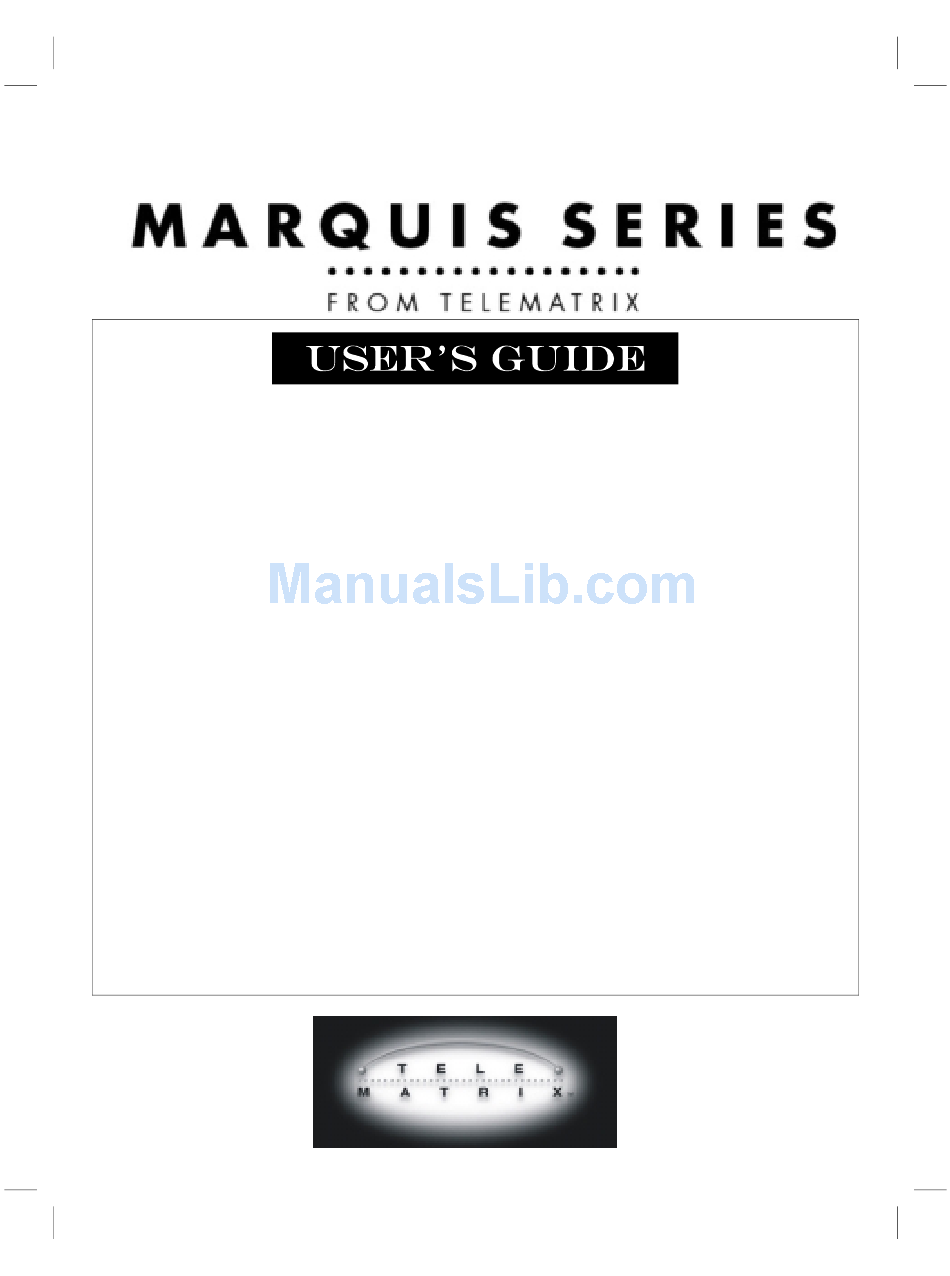

- Page 1 MARQUIS 9002MWD TWO LINE CORDLESS HOTEL TELEPHONE...
- Page 2 Cordless performance provides convenience and mobility for all your guest rooms. Your 9002MWD telephone is a precision electronic device that requires minimum maintenance. Please be sure to read the contents set forth in the user’s guide to become familiar with the wiring and functionality of this product.
-
Page 3: Save These Instructions
To reduce the risk of fire or injury, read and follow these instructions: CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. Use only the designated battery pack for cordless handset and power adapter for the base. Do not dispose of the battery(ies)in a fire. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. - Page 5 FCC Part 15 Compliance Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 DOC - NOTICE AND LOAD NUMBER STATEMENT NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction.
- Page 7 NOTIFICATION TO THE TELEPHONE COMPANY Before you may connect your telephone you must notify the telephone company of particular line(s) to which such connections is to be made, and provided to the telephone company the FCC registration number and ringer equivalence number of the registered protective circuitry. The customer shall give notice to the telephone company upon final disconnection of such equipment or circuitry from the particular line(s).
-
Page 8: Consumer Information
Consumer Information: This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bot- tom of this equipment is a label that contains, among other information, a product identifier in the format US:2N3WI26B97359 If requested, this number must be provided to the telephone company. -
Page 9: Table Of Contents
Features ...…………………... Controls ...…...…………………... Installation …………………... Wall Mounting ...…...…………………... 18 Switch Settings .…………………..…... Programming ...…...…………………... Operation ...…...…………………. Service ...…...…………………... Warranty ...…...…………………... Spare Part List ……………………………………………...…………………... -
Page 10: Features
Two Line Operation Cordless Handset, 900 Mhz Operation, with Handshake Technology Long Life Rechargeable NiCd Battery for Handset Speakerphone (on Base Unit) 10 Guest Service Keys (Speed Dial Locations) TouchLite Message Waiting Indicator/Retrieval Feature Convenient Data Port (on line1 and line2) Line Selectors (on Base Unit and Handset) “Soft-Key”... - Page 11 TOP UNIT (16) (15) (13) (12) NEON STORE FLASH FOR MESSAGES PRESS HERE (10) REDIAL PQRS WXYZ HOLD LINE1 LINE2 MUTE SPEAKER (14) (11)
-
Page 12: Base Unit
Handset ...……………………..…...…...…... Charge LED …….……………………………….. Hold Key ………………………………………… Line Keys ………………………………………… In-Use / Ringer Indicator ………………………... Mute Key ………………………………………… Speaker Key ……………………………………… Speakerphone Volume Control Rocker Switch ….. Locate Key ………………………...……………... 10. Pause/Redial Key ...………...………….….… 11. TouchLite One Touch Message Retrieval Key… 12. -
Page 13: Handset View
HANDSET VIEW (12) (10) LINE1 HOLD LINE2 ON/OFF CONFERENCE ON/OFF WXYZ PQRS FLASH VOLUME REDIAL (11) (4)(5) -
Page 14: Handset Unit
HANDSET UNIT Handset ...…………...……………... Hearing aid compatible, low profile styling. ON/OFF Line Key ...……………..…... Used to activate line. Line Indicator ………………………………... Hold Key ...……………...…... Conference Key ……………………………… Used to conference line 1 and line 2. Numeric Dialing Keypad ……………………. Used to dial numbers. Redial Key ………………………….……….. -
Page 15: Left Side
TOP SIDE LEFT SIDE BOTTOM... - Page 16 1. Telephone Jack …………... 2. Data Port …………..………...…... 3. Voltage Selector Switch ……………………. Used to select 24 Volt, 48 Volt or OFF. Modular receptacle for plugging in telephone line. Convenient port to connect a computer modem, fax or answering device.
-
Page 17: Parts Checklist
Use caution when installing or modifying telephone lines. Parts Check List The following parts are included with the 9002MWD: 1. Stationary Base Unit. 2. Mobile Handset Unit. 3. 15’ Modular Line Cord. 4. 15’ Modular Line Cord 5. -
Page 18: Installation
Wall Mounting Your Telephone* The 9002MWD is designed to be conveniently wall mounted. Note: A 9002MWD wall mounting kit must be used (not included) Follow these easy steps: 1. The handset retaining clip must be engaged to secure the handset when hanging up. - Page 19 Power Adapter “LINE” Connection The power adapter “LINE” connection is used to connect the telephone lines from the wall jack to the telephone. Using the 15’ modular telephone line cord provided, connect one end of the cord to the RJ14 telephone jack on the wall or base board.
-
Page 20: Install The Handset Battery
Install the Handset Battery To install the handset battery; 1. Open the battery cover as shown, 2. Insert the battery pack. Match the polarity marks from the battery to the case (+ to 3. When properly installed, the battery will slide into position. - Page 21 To charge the battery, com- plete the installation procedure by plugging in the power source to the outlet and the 9002MWD telephone. Install the battery into the handset with the positive (+) battery side to the positive (+) on the handset, and the negative (-) battery side to the negative (-) on the handset.
-
Page 22: Message Waiting Lamp
“NEON” position. The switch is located underneath the overlay and faceplate on the top of the base. Note: The 9002MWD is factory preset to the “Neon” setting. *NOTE: The Caller ID feature and Voice Mail will ONLY operate if you subscribe... -
Page 23: Speed Dial Memory
Guest Service Keys (Speed Dial Memory) The 9002MWD has 10 one-touch speed dial memory locations that are used as a conven- ience for dialing frequently used numbers. Each speed dial memory location can store up to 32 digits. Step: Procedure: Press the Speakerphone ON/OFF key to activate the phone. - Page 24 TouchLite the guest to the message center or the front desk. Note: The TouchLite key adds an additional memory location to your 9002MWD telephone. Programming The TouchLite See “Programming: Guest Service Keys (speed dial memory)” connects...
- Page 25 Programming A Flash Into Memory The “Flash” key is a storable function into memory that is used to provide a 600mS timed line break. This function may be required for accessing line features provided by your telephone system or local telephone company. For example, many times the “Flash”...
-
Page 26: Operation
HANDSET DIALING Placing A Call Using The Handset Follow the instructions below for placing a call using the handset. 1. Lift the handset from the base and activate the ON/OFF line key. 2. Dial out using the numeric dial pad on the handset or the base. - Page 27 BASE UNIT DIALING Placing A Call Using The Base Unit Follow the instructions below for placing a call using the base unit. 1. The handset can either be on or off the base cradle when dialing from the base unit. 2.
-
Page 28: Locating The Handset
Locating The Handset The 9002MWD is equipped with a handset locator feature key located on the base. Simply press the “LOCATE” button on the base unit. The handset will beep for about 15 seconds. Once the handset is located, simply press the ON/OFF key to activate your handset. - Page 29 Using The Handset Volume Control A convenient handset volume control is provided. This volume control will adjust the loudness of the handset. The loudness can be adjusted in eight (8) steps up or down. Using The Speakerphone Volume Control A rocker volume switch is provided to adjust the loudness of the speakerphone.
-
Page 30: Switch Settings
Line Status Indicators (Base Unit) The 9002MWD has visual LED indicators located on the base unit that indicates the status of the telephone. Ringing of Line The LED above the line key blinks rapidly GREEN showing which line is ringing. - Page 31 Using The Data Port The 9002MWD is equipped with a convenient port on the right side of the base unit. This modular receptacle is used to plug in any standard telephone device such as a computer modem, answering machine or fax machine.
-
Page 32: Using The Mute Feature
Using The Hold Feature (Base Unit) The “Hold” key is used to place a caller on hold. To use, simply press the “Hold” key. The LED light will show a steady RED to indicate that the line is on hold. When placing a caller on hold, the line will not be disconnected. - Page 33 Redial (Optional) The “Redial” key is used to automatically redial the last number that was manually dialed from the numeric dial pad of the specific handset or base unit. It is a submerged key located underneath the plastic overlay on the base. To use (handset): Lift the handset Press line 1 or line 2 key.
- Page 34 Using The Conference Feature On the Handset The “Conf” key is used to establish a 3- way conversation. The conference feature is acti- vated when pressing a sequence of line keys. A 3-way “Conference” call can be established while on the handset. To use the “Conference” feature: Handset Only: 1.
- Page 35 Placing a Call Using the Speakerphone (on Base Unit) The 9002MWD is equipped with a high quality speakerphone feature to allow for hands-free operation. To use, simply press the “SPEAKER” key when placing or answering a call. The telephone line will activate automatically.
-
Page 36: Service
When problems arise during installation or service that cannot be resolved using this or related documents, contact the TeleMatrix Technical Service department 8:30a.m. - 4:30p.m. MST: Toll Free: 1-800-462-9446 Direct: 719-638-8821 Fax: 719-638-8815 Web Site: http://www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. -
Page 37: Statement Of Limited Warranty
TeleMatrix, Inc. and TeleMatrix Equipment, LLC (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products... -
Page 38: Spare Part List
Spare Parts List The following 9002MWD accessories and spare parts are available from TeleMatrix. Description Complete Handset Unit (light ash) Complete Handset Unit (black) Handset Battery Pack—NiCd 12V DC Power Supply Adapter (light ash) 12V DC Power Supply Adapter (black) 15’...
