01. Volume Control
02. Function Switch
03. CD Compartment
04. (TAPE) Pause Button
05. (TAPE) Stop/Eject Button
06. (TAPE) Fast Forward Button
07. (TAPE) Rewind Button
08. Tuning Control
09. (TAPE) Play Button
Setting method of the dial pointer
1. Remove the front cabinet. (Refer to Fig.5-2 on page 5,
"Disassembly method".)
2. Remove the dial pointer.
3. Insert the dial pointer from A of the top cabinet so that it
engages with the drum gear.
4. Fully turn the drum in the opposite direction of B and set
it to the FL marks.
5. Reassemble the front cabinet.
Top Cabinet

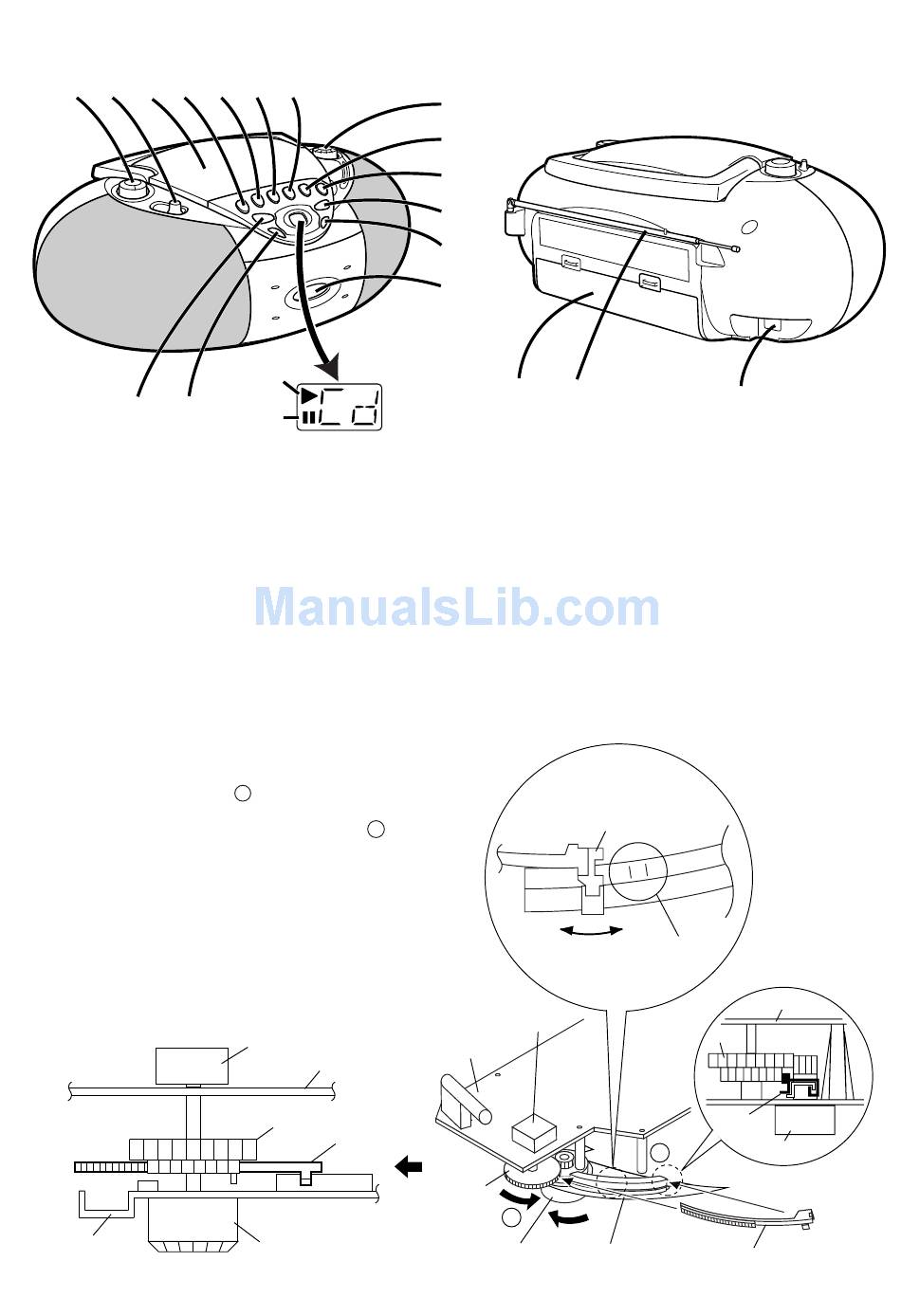

NAMES OF PARTS
16
17
10. (TAPE) Record Button
11. (CD) Play/Pause Button
12. (CD) Track Up/Cue Button
13. Cassette Compartment
14. (CD) Stop Button
15. (CD) Track Down/Review
Button
16. (CD) Play Indicator
17. (CD) Pause Indicator
FITTING OF DIAL POINTER
Variable
Capacitor
Main PWB
Drum
Dial
Pointer
Tuning Knob
8
9
10
11
12
13
18
19
18. Battery Compartment
19. FM Telescopic Rod Antenna
20. AC Power input Socket
FH
Variable
Capacitor
Main PWB
Drum
B
Tuning Knob
Top Cabinet
Figure 3-1
– 3 –
20
Dial Pointer
FL Mark
FL
Main PWB
Drum
Dial
Pointer
Tuning Knob
A
Dial
Pointer
QT-CD180
