Moxa Technologies NPort 5610 series Quick Installation Manual

NPort 5610/5630/5650 Series
Quick Installation Guide
Second Edition, July 2006
1. Overview
Welcome to the MOXA NPort 5600 Series. NPort 5610-16/8 has 16 or 8
RS-232 ports, NPort 5630-16/8 has 16 or 8 RS-422/485 ports, and NPort
5650-16/8 have 16 or 8 RS-232/422/485 ports.
2. Package Checklist
The NPort 5600 package should contain the following items:
1 16-port or 8-port serial device server
NPort Documentation & Software CD
NPort 5600 Quick Installation Guide
Power cord (included with AC version of the product)
Optional Accessories
CBL-RJ45M9-150: 8-pin RJ45 to Male DB9 cable, 150 cm
CBL-RJ45F9-150: 8-pin RJ45 to Female DB9 cable, 150 cm
8-pin RJ45 to Male DB25 cable, 150 cm
CBL-RJ45M25-150:
CBL-RJ45F25-150: 8-pin RJ45 to Female DB25 cable, 150 cm
Notify your sales rep if any of the above items are missing or damaged.
3. Hardware Introduction
The NPort 5600 Series has 12 models: NPort 5610-16, NPort 5610-8,
NPort 5610-16-48V, NPort 5610-8-48V, NPort 5630-16, NPort 5630-8,
NPort 5650-8, NPort 5650-16, NPort 5650-8-M-SC,
NPort 5650-16-M-SC, NPort 5650-8-S-SC, and NPort 5650-16-S-SC.

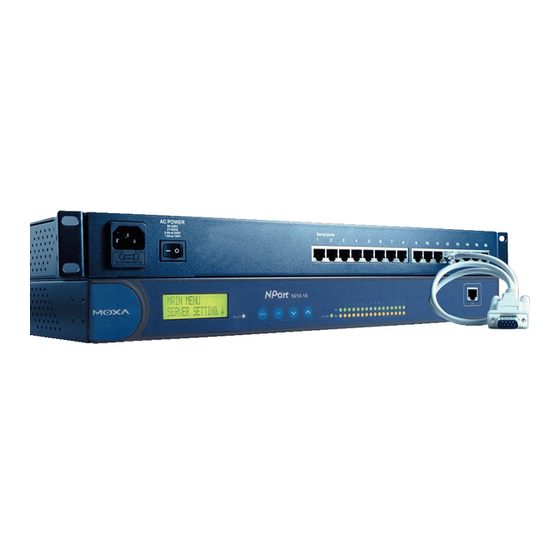

The front and rear panels are shown below:
Front panel of NPort 5600 Series
5610- 16
Rear panel of NPort 5610/5630/5650 (AC Power)
Serial ports
9 10
1 2 3 4 5 6 7 8
LAN
AC POWER 100-240V, 47-63Hz
Rear panel of NPort 5650 (Fiber Model)
Fiber
Serial ports
1 2 3 4 5 6 7 8 9 10
Link
AC POWER 100-240V, 47-63Hz
Rear panel of NPort 5610-16-48V (DC Power)
Serial ports
ON OFF
1 2 3 4 5 6 7 8 9 10
V+ V- LAN
— 1 —
Reset Button—Press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object to press the reset button. Release
the button after the Ready LED stops blinking.
LED Indicators on the Front Panel
The front panels of NPort 5600 have several LED indicators, as described
in the following table.
LED Name
Ready
1-16
LCM Display Panel—If the NPort is working properly, the LCM panel
will be colored green. The red Ready LED will also light up, indicating
that the NPort is receiving power. After the red Ready LED turns green,
you will see a display similar to:
N P
1 9
NP5610-16
38
192.168.127.254
LCM Panel Operation—There are four buttons on NPort 5600's front
panel. These buttons are used to operate the server's LCM panel. Going
from left to right, the buttons are:
Button Action
11 12 13 14 15 16
MENU
11 12 13 14 15 16
SEL
Detailed LCM Panel Operating instructions can be found on the
11 12 13 14 15 16
CD-ROM in the NPort 5600 Series User's Manual.
Link Indicator on the Rear Panel of NPort 5650 Fiber Model
The rear panels of NPort 5600 have a link indicator, as described in the
following table.
P/N: 1802056000200
LED Color LED Function
Off Power is off, or power error condition exists.
Steady on: Power is on and NPort is
booting up.
Red
Blinking: Indicates an IP conflict, or that
DHCP or BOOTP server did
not respond properly.
Steady on: Power is on and NPort is
functioning normally.
Green
Blinking: The NPort has been located by
NPort Administrator's
Location function.
Orange Serial port is receiving data.
Green Serial port is transmitting data.
No data is being transmitted or received
Off
through the serial port.
5 6 1 0 - 1 6 _ 3 8
2 . 1 6 8 . 1 2 7 .
is the NPort's name
is the NPort's serial number
is the NPort's IP address
Activates the main menu, or returns to an upper level.
Scrolls up through a list of items shown on the LCM panel's
second line.
Scrolls down through a list of items shown on the LCM panel's
second line.
Selects the option listed on the LCM panel's second line.
— 2 —
LED Name LED Color
Link
Blinking
4. Hardware Installation Procedure
STEP 1: After removing NPort 5600 from the box, the first thing you
should do is attach the power adaptor.
STEP 2: Connecting the Power
AC: Connect the NPort 5610/5630/5650 100 to 240 VAC power cord to
the AC connector. If the power connection is correct, the "Ready"
LED will glow solid red until the system is ready, at which time the
"Ready" LED will change to green.
DC: Connect NPort 5610-16/8-48V's power cord to the DC connector,
and then perform the following:
ON OFF
V+ V-
If the power is connected properly, the "Ready" LED will glow a solid
red until the system is ready, at which time the "Ready" LED will change
to green.
2 5 4
Grounding NPort 5610-16/8-48V:
ON OFF
V+ V-
SG
STEP 3: Connect NPort 5600 to a network. Use a standard
straight-through Ethernet cable to connect to a Hub or Switch. When
setting up or testing NPort 5600, you might find it convenient to connect
directly to your computer's Ethernet port. In this case, use a cross-over
Ethernet cable.
STEP 4: Connect NPort 5600's serial port to a serial device.
Placement Options: You can place NPort 5600 on a desktop or other
horizontal surface.
LED Function
Off Fiber is disconnected
Fiber is connected and no data is being
Green
transmitted
Fiber is connected and data is being
transmitted
1. Loosen the screws on the V and V terminals of
+ -
NPort 5610-16/8-48V's terminal block.
2. Connect the power cord's 48 VDC or -48 VDC
wire to the terminal block's V terminal, and the
+
power cord's DC Power Ground wire to the
terminal block's V
terminal, and then tighten the
-
terminal block screws. (Note: NPort
5610-16/8-48V can still operate even if the
48V/-48V and DC Power Ground are reversed.)
Grounding and wire routing help limit the effects
of noise due to electromagnetic interference
(EMI). Run the ground connection from the
ground screw to the grounding surface prior to
connecting devices. The Shielded Ground
(sometimes called Protected Ground) contact is
the second contact from the right of the 5-pin
power terminal block connector located on the
rear panel of NPort 5610-16/8-48V. Connect the
SG wire to the Earth ground.
— 3 —
