CYP DCT-35 Operation Manual

Optical & l/r to l/r audio controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DCT-35
Optical & L/R to L/R Audio Controller
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCT-35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP DCT-35

Summary of Contents for CYP DCT-35

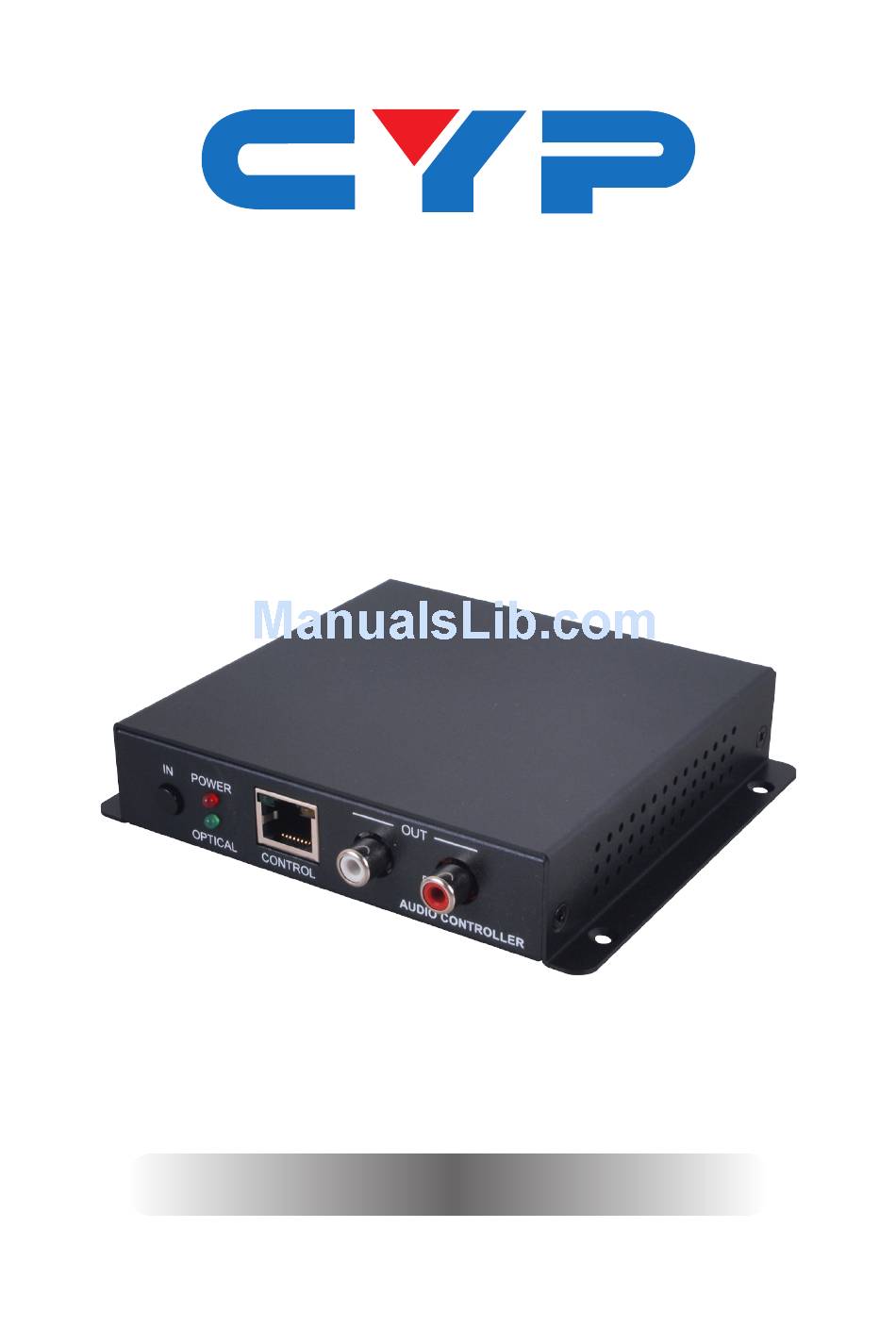

  • Page 1 DCT-35 Optical & L/R to L/R Audio Controller Operation Manual Operation Manual...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ................1 2. Applications .................1 3. Package Contents ..............1 4. System Requirements ............1 5. Features ................1 6. Operation Controls and Functions ........2 6.1 Front Panel ..............2 6.2 Rear Panel ...............2 6.3 IP Searching Software Application and Installation .. 3 6.4 Telnet Commands............5 6.5 Telnet Control ..............6 6.6 Web GUI Control ............8...

  • Page 6: Introduction

    1. INTRODUCTION The Optical & L/R to L/R Audio Controller allows user with flexible and distance control over audio performance. With L/R & Optical inputs to L/R output, this device provides a digital to analog conversion or analog to analog bypass function. Controls like Telnet & WebGUI allow user with easy adjustment and remote over audio output.

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER OPTICAL CONTROL AUDIO CONTROLLER IN Button: Short press IN button to switch the audio source. Long press IN button up to 4 seconds will reset the device to Default Ethernet Setting. The Power LED will blink 5 times. POWER LED: When power is on, the LED light will illuminate.

  • Page 8: Ip Searching Software Application And Installation

    6.3 IP Searching Software Application and Installation Please download the software from www.cypress.com.tw with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the AUDIO CONTROLLER with an active network system and open the CDPS V2.000 application from the directory in a PC/Laptop.
  • Page 9 Default Ethernet Setting is on Static mode with: IP: 192.168.1.50 SUBNET: 255.255.255.0 GATEWAY: 192.168.5.254 HTTP PORT: 80 TLENET PORT: 23...

  • Page 10: Telnet Commands

    6.4 Telnet Commands Command Name Description Description of parameter SOURCE N SOURCE SELECTION N=0/Optical, 1/RCA IN or ? OUTPUT VOLUME VOL N N=-40~10dB (0) or ? SETTING OUTPUT VOLUME MUTE N N=0(Unmute), 1(Mute) or ? MUTE CONTROL SET MOMO OR MONO N N=0(Stereo), 1(Mono) or ? STEREO MODE...

  • Page 11: Telnet Control

    6.5 Telnet Control To access the telnet control in Windows 7, click on ‘Start’ menu and type “cmd” in the Search field then press enter. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” and press enter. Under Mac OS X, go to Go →...
  • Page 12 Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.

  • Page 13: Web Gui Control

    6.6 Web GUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address on the web address entry bar. The browser will display the device’s Audio and System Settings for users to control.

  • Page 14: Connection Diagram

    7. CONNECTION DIAGRAM PC/Laptop Speakers POWER OPTICAL CONTROL AUDIO CONTROLLER OPTICAL SERVICE DC 5V Media Player...

  • Page 15: Specifications

    8. SPECIFICATIONS Input Ports 1 x RJ45(Control) 1 x L/R 1 x Optical 1 x USB(service) Output Ports 1 x L/R Power Supply 5VDC/2.6A (US/EU standards, CE/ FCC/ UL certified) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Chassis Material Metal Silkscreen color...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 201510116 MPM-DCT35...
