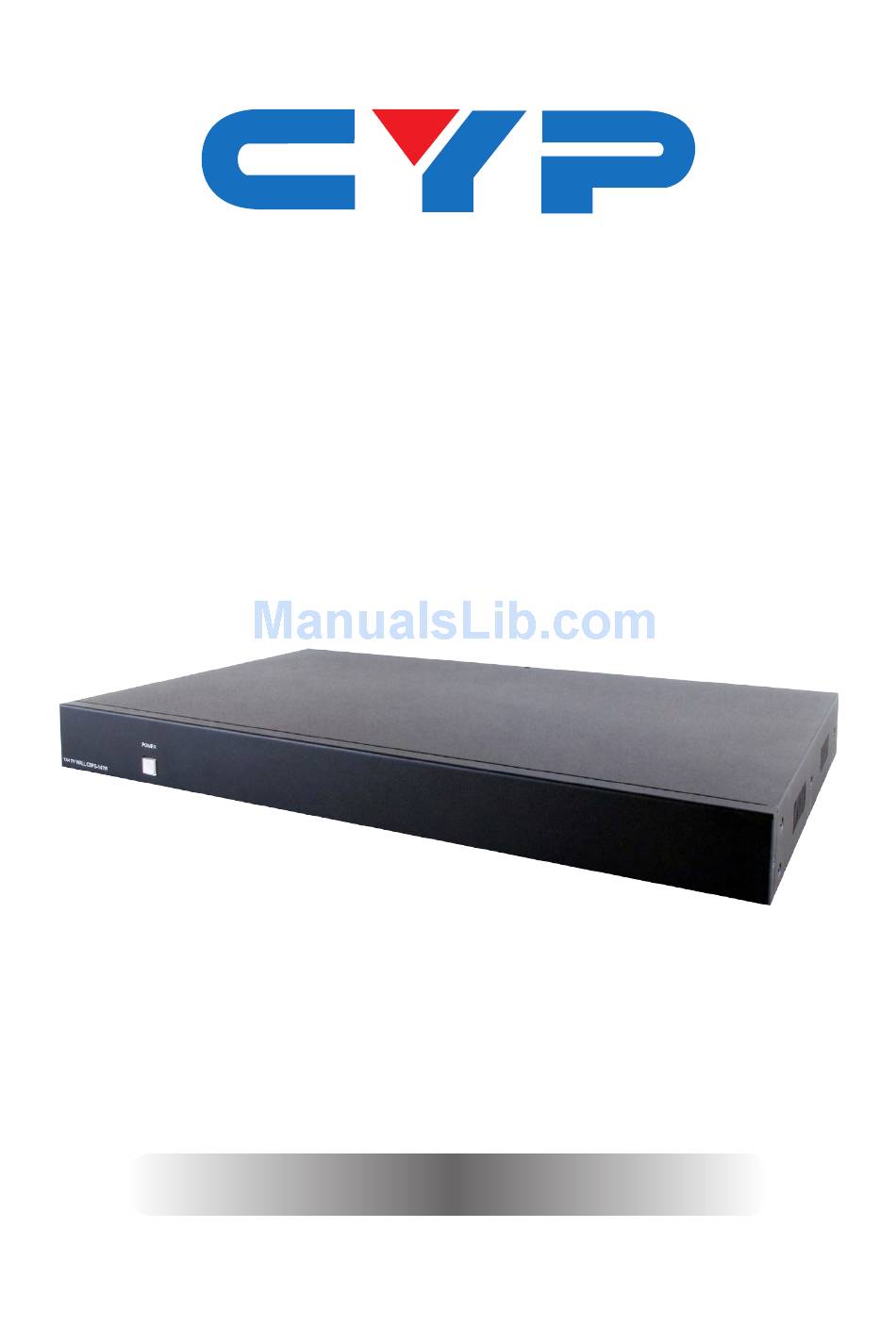

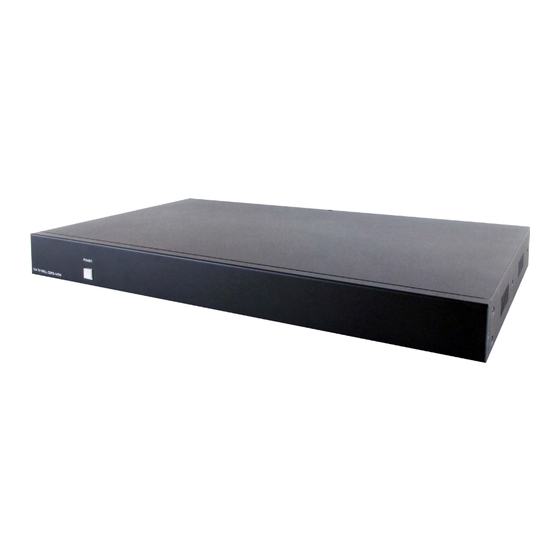

  • Page 1 CDPS-14TW HDMI 1x4 TV Wall Operation Manual Operation Manual...
  • Page 2: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 6.3 RS-232 Protocols .......5 6.4 RS-232 &...
  • Page 5: Introduction

    1. INTRODUCTION The 1 by 4 HDMI TV Wall allows an HDMI input source to be freely arranged on 4 displays (TV or monitor) and or cascade to extend the HDMI signal up to as many as needed with bezel correction function. Friendly control application that leads user with single or total devices control over a one touch button and leave the TV Wall control system never been easier.
  • Page 6: Features

    5. FEATURES • HDMI, HDCP1.4 and DVI compliant • Output source signal to 4 displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction • Cascade/Bypass the HDMI signal up to as many as require • One button push to control all connected TV Wall devices •...
  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER 1X4 TV WALL CDPS-14TW Power ▪ ON/OFF: Press this button to power ON the device or set it to standby mode. ▪ Factory default: Under Power On status, press this button for 3 sec.
  • Page 8 Display HDMI IN HDMI OUT D C B A Control HDMI IN HDMI OUT Router H G F E Control Display HDMI IN HDMI OUT D C B A Control HDMI IN HDMI OUT Router H G F E Control HDMI IN HDMI OUT Control...
  • Page 9: Rs-232 Protocols

    6.3 RS-232 Protocols CDPS-14TW Remote Controller(PC) Definition Definition Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...
  • Page 10: Rs-232 & Telnet Commands

    6.4 RS-232 & Telnet Commands Item Command Description Parameter Request 0=720p50, RRES Resolution 1=720p60, 2=1080p24, 3=1080p25, 4=1080p30, 5=1080p50, 6=1080p60, 7=1024x768 60 Resolution 8=1280x800 60, SRES 0~16 Resolution 9=1280x1024 60, 10=1366x768 60, 11=1440x900 60, 12=1600x900 60, 13=1600x1200 60 14=1680x1050 60, 15=1920x1200 60, 16=Native Request ROSDD OSD Status...
  • Page 11 Item Command Description Parameter Request OSD Display ROSDT Timeout setting 0~50 (50) 0=No Time Out Set OSD SOSDT Display 2~50 Timeout in Second Request ROSDG OSD Gain Correction 0~10 (2) Set OSD SOSDG Gain 0~10 Correction Set OSD SOSDI Information ON/OFF Status OSD reset...
  • Page 12 Item Command Description Parameter SHUE 1~4 Output 1~4, Hue Value 0~100 Set Hue (50) 0~100 Reset 1->Brightness,2->Contrast,3- SIMRE 1~4 Picture >Saturation,4->Hue Setting Reset All SPIRE Picture Setting Request IP RIPM Mode 0->DHCP, 1->Static Ethernet SIPM 0/1 Set IP Mode Request IP RIPA Address SIPA...
  • Page 13 Item Command Description Parameter Request RGAA Gateway Address SGAA Gate ADDR : GAA3.GAA2. 0~255. GAA1.GAA0 0~255. Gateway Address 0~255. 0~255 Request RETIME Ethernet 0=OFF, 1=10min, 2=20min, Timeout 3=30min, 4=40min, 5=50min, 6=60min Set Ethernet SETIME 0~6 Timeout IP000~255 IP010~255 IP020~255 IP030~255 MA000~255 MA010~255 RLINK...
  • Page 14 Item Command Description Parameter Request RPOW Power Status 0=Power off, 1=Power on Set Power SPOW 0/1 Status Request RVER Version SREL Set Re-Link Reset to SDEF factory default Request TV RMNC 1~4 TV WALL M Value Wall Value TV WALL N Value Set TV Wall SMNC M N Output...
  • Page 15 Item Command Description Parameter Request RBEZ 0=Bezel off, 1=Bezel on Bezel Status Set Bezel SBEZ 0/1 Status Request RMDN Device's Model No. Unit model NO. Setting be 1~255 SMDN Set Device's 0~255 Model No. Reset TV SWDE Wall Value 0=1x1, 1=2x2, 2=3x3, 3=4x4, 4=5x5, 5=6x6, 6=2x3, 7=3x2, TV WALL 8=3x4, 9=4x2, 10=4x3, 11=4x5,...
  • Page 16: Software Application Installation

    6.5 Software Application Installation Use the link http://cypress.com.tw to download the software application TV Wall Set v1.09 and execute it to control the TV Wall system. Note: Before installing, remove any former verion that was existing. Once the application is installed successfully, click and open the “TV Wall Set”.
  • Page 17: Tv Wall Functions

    6.6 TV Wall Functions 6.6.1 6.6.2 6.6.3 6.6.1 System Settings 1. Click “Power ON” to switch ON the device, to switch all devices ON click ALL IP and then “Power ON”. 2. Click “Factory Reset” to set the device’s setting back to default, to switch all devices back to default setting click ALL IP and then “Factory Reset”.
  • Page 18: Network Configuration

    must in order to split and arrange the image correctly. 6.6.3 Network Configuration 1. Click on “Get IP” to get the current IP link status. 2. Click on ““ button to change address type. 3. To change IP address, click on “Set IP” and insert direction on IP address, Net Mask and Default Gateway address bar.
  • Page 19: Tv Wall (2)

    6.6.5 TV Wall (2) 1. Output Chanel setup allows user to set up individual output A~D on a specific position and from horizontal and vertical position of 1~15. 2. Output Ch.4 Bypass On/Off allows the TV Wall device’s output D to be set to signal bypass mode or not.
  • Page 20: Tv Wall (3)

    6.6.6 TV Wall (3) 1. Output H&V Value setup allows user to adjust individual output A~D on a specific position and from horizontal and vertical position of 0~255. 2. Refresh button is to refresh I/O Setup page only. 3. Reset button is to reset all settings of I/O Setup back to factory default value.
  • Page 21: Tv Wall (4)

    6.6.7 TV Wall (4) 1. Save TV Wall Settings from FAV 1~5 with current settings, after setting TV Wall (2)’s figure click from FAV 1~5 in TV Wall (3) to store the setting. 2. Recall TV Wall Settings from FAV 1~5 to switch the setting immediately.
  • Page 22: I/O Setup

    6.6.8 I/O Setup 1. All settings under I/O Setup can be done with single TV Wall device or multiple TV Wall devices with single click on “ALL IP”. Parameter and default value are as stated in RS-232 description. 2. Refresh button is to refresh I/O Setup page only. 3.
  • Page 23: Image Adjust

    6.6.9 Image Adjust 1. Again all settings under Image Adjust can be done with single TV Wall device or multiple TV Wall devices with single click on “ALL IP”. Parameter and default value are as stated in RS-232 description. 2. Picture Reset button is to reset all settings of Image Adjust back to factory default value.
  • Page 24 Once in the command line interface (CLI) type “telnet”, then the "IP address" of the unit and hit enter. Only when the Telnet port (device port) is not set to 23, the number "(device port)"" then needs to be entered after IP address (device IP) and before hit enter. This will bring us into the device which we wish to control.
  • Page 25 Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
  • Page 26: Specifications

    7. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input ports 1x HDMI (Female type) 1xUSB (Service only) Output ports 4 x HDMI (Female type) HDMI Cable Distance 15M/8-bit 1080p Sampling Rate 192kHz ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Power Supply 12V/3A DC (US/EU standards, CE/FCC/ UL certified)
  • Page 27: Timing

    8. TIMING 8.1 Input Support Timing Support Timing 480i@59 480p@60 576i@50 576p@50 720p@50,60, 1080i@50,60 1080p@24, 50,60 640x480@60,72,75,85 800x600@56,60,72,75,85 1024x768@60,70,75,85 1280x768@60,75 1280x1024@60,75 1360x768@60 1366x768@60 1600x1200@60 1920x1200@60...
  • Page 28: Output Support Timing

    8.2 Output Support Timing Support Timing 720p50 1280x800@60 720p60 1280x1024@60 1080p24 1366x768@60 1080p25 1440x900@60 1080p30 1600x900@60RB 1080p50 1600x1200@60 1080p60 1680x1050@60 1024x768@60 1920x1200@60RB 9. CONNECTION AND INSTALLATION 2x2 TV Wall DVD/Blu-ray Player HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY PC/NB TV/Monitor...
  • Page 29 3x2 TV Wall DVD/Blu-ray Player HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY Modem or Router TV/Monitor HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY...
  • Page 30: Acronyms

    10. ACRONYMS ACRONYM COMPLETE TERM...
  • Page 31 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPS14TW...
